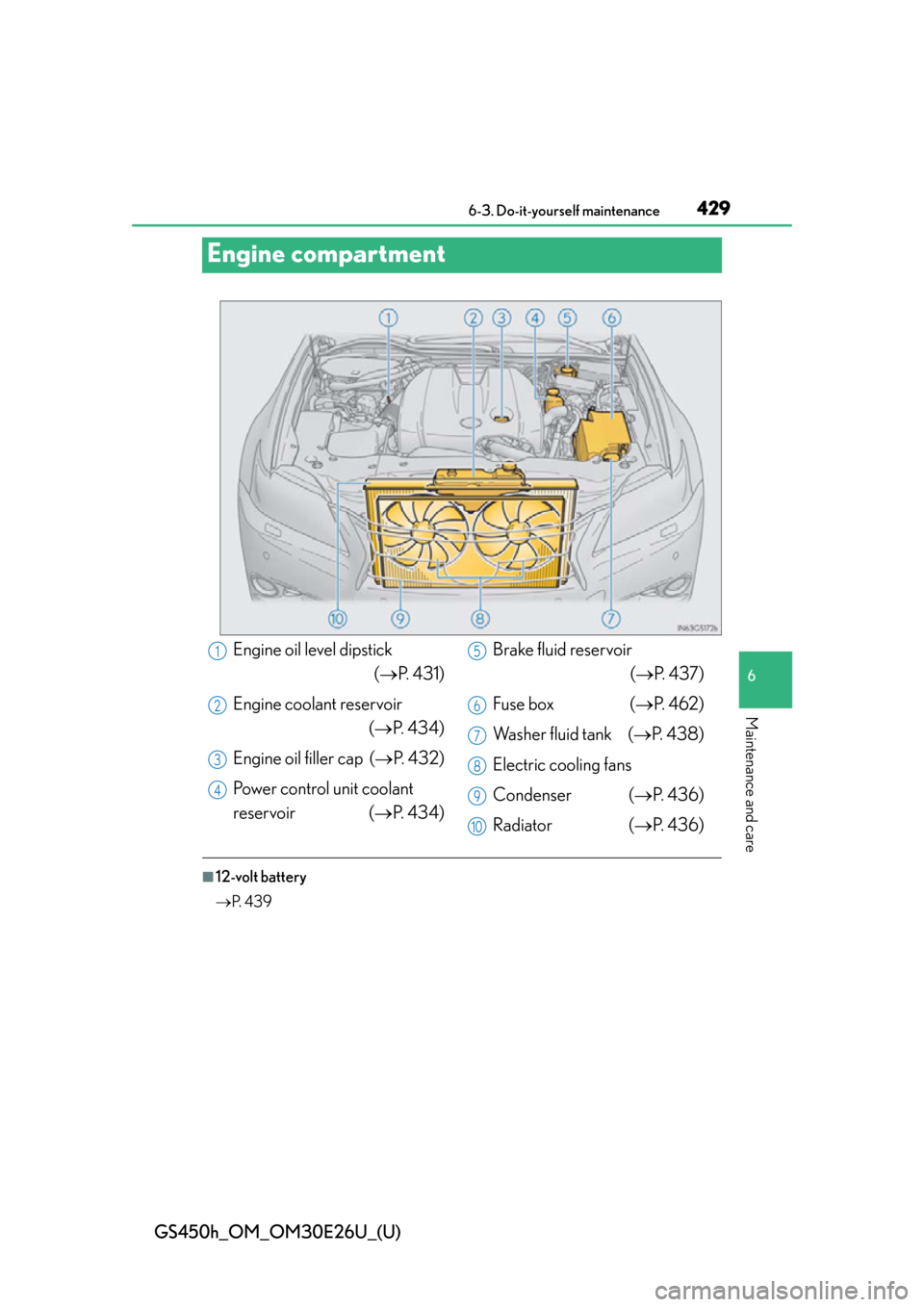

Engine compartment
■12-volt battery
 P. 4 3 9
Engine oil level dipstick
(P. 4 3 1 )
Engine coolant reservoir (P. 4 3 4 )
Engine oil filler cap ( P. 4 3 2 )
Power control unit coolant
reservoir ( P. 4 3 4 ) Brake fluid reservoir
(P. 4 3 7 )
Fuse box ( P. 4 6 2 )
Washer fluid tank ( P. 4 3 8 )
Electric cooling fans
Condenser ( P. 436)
Radiator ( P. 436)1
2
3
4
5
6
7
8
9
10

462
GS450h_OM_OM30E26U_(U)
6-3. Do-it-yourself maintenance

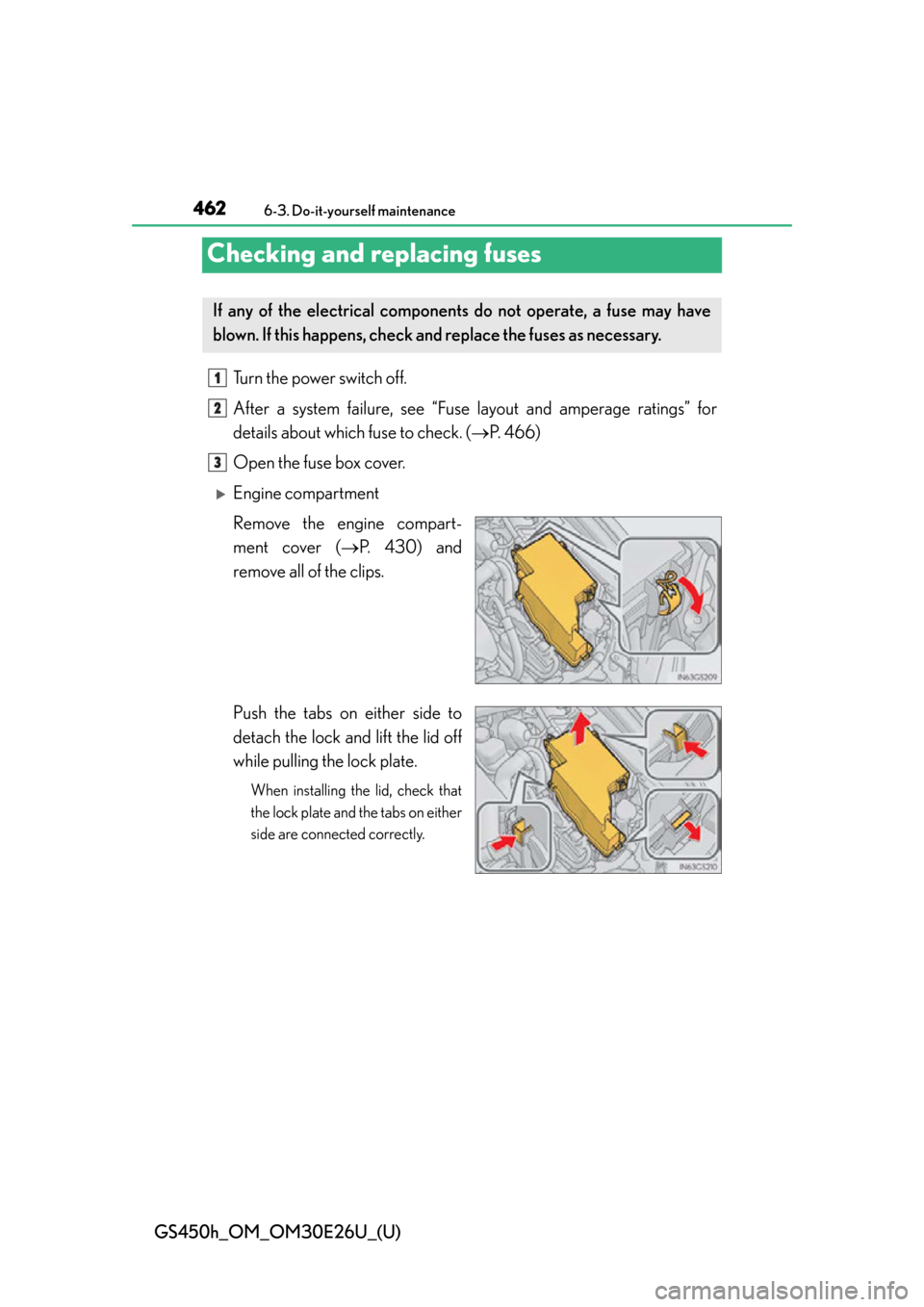

Checking and replacing fuses
Turn the power switch off.
After a system failure, see “Fuse layout and amperage ratings” for
details about which fuse to check. ( P. 466)
Open the fuse box cover.
Engine compartment
Remove the engine compart-
ment cover ( P. 430) and
remove all of the clips.
Push the tabs on either side to
detach the lock and lift the lid off
while pulling the lock plate.
When installing the lid, check that
the lock plate and the tabs on either
side are connected correctly.
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
1
2
3

GS450h_OM_OM30E26U_(U)
4656-3. Do-it-yourself maintenance
6
Maintenance and care
Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Type C and D:
Contact your Lexus dealer.
5
1
2
Ty p e AType B
Ty p e CType D

476
GS450h_OM_OM30E26U_(U)
6-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (P. 4 7 9 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexu s products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-
genuine parts or parts not designed for this vehicle may be unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.
