CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automatically
start, or the cooling fan may suddenly operate even if the gasoline engine stops.
Do not touch or approach rotating parts such as the fan, which may lead to fin-
gers or clothing (especially a tie, a scarf or a muffler) getting caught, resulting in
serious injury.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding
cool coolant to a hot hybrid system too quickly can cause damage to the hybrid
system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additives.
●Do not loosen the coolant inlet cap or the
coolant reservoir cap while the hybrid sys-
tem and radiator are hot.
High temperature steam or coolant could
spray out.
GS450h_OM_OM30F70U_(U).book Page 570 Monday, January 19, 2015 9:34 AM

571
GS450h_OM_OM30F70U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If the vehicle becomes stuck
Stop the hybrid system. Set the parking brake and shift the shift lever to
P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to
help provide traction.
Restart the hybrid system.
Shift the shift lever to D or R and release the parking brake. Then, while
exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC. ( →P. 2 8 5 )
1
2
3
4
5
GS450h_OM_OM30F70U_(U).book Page 571 Monday, January 19, 2015 9:34 AM

5727-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
CAUTION

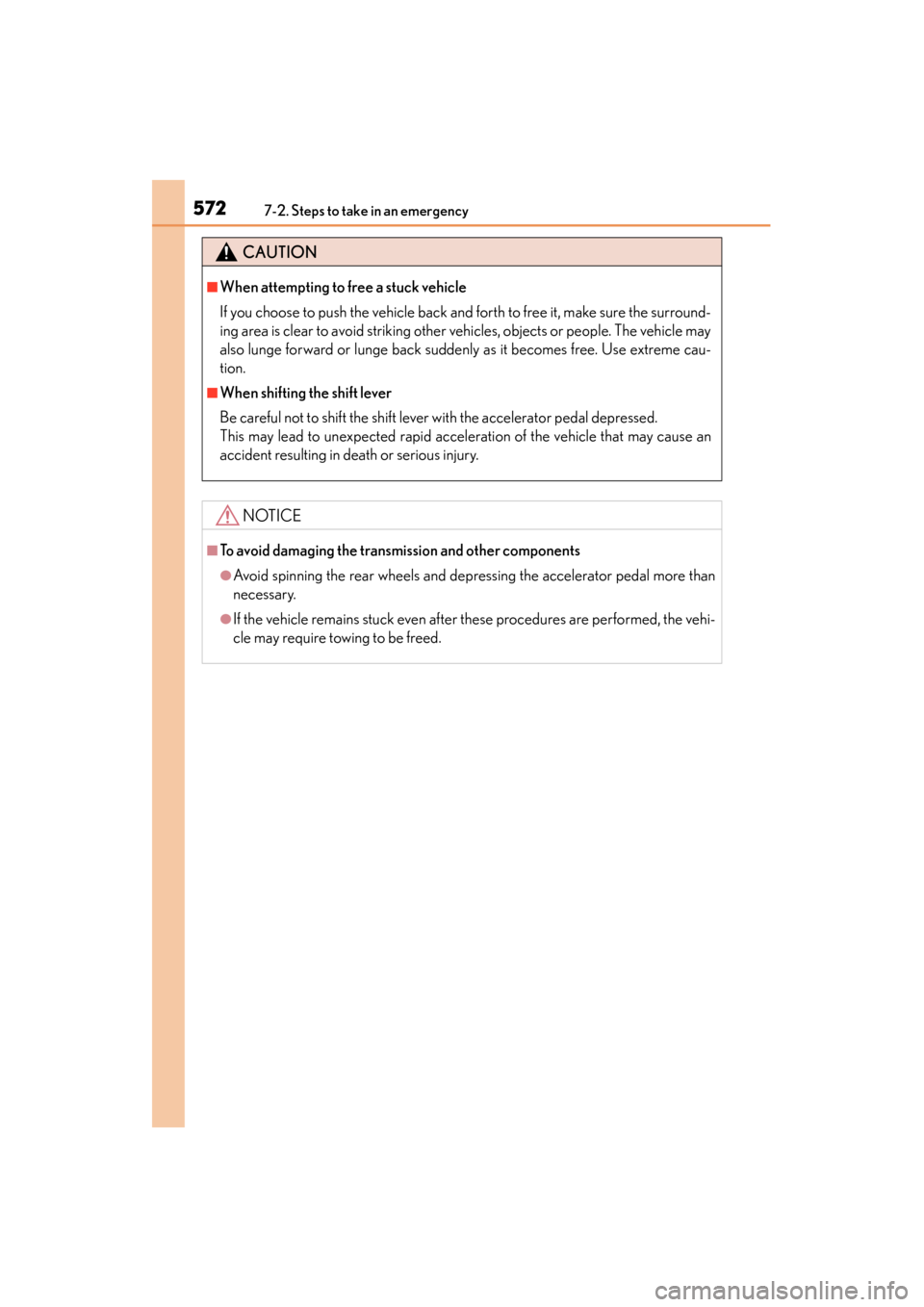

■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear to avoid striking other vehicles, objects or people. The vehicle may
also lunge forward or lunge back suddenly as it becomes free. Use extreme cau-
tion.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than
necessary.
●If the vehicle remains stuck even after these procedures are performed, the vehi-
cle may require towing to be freed.
GS450h_OM_OM30F70U_(U).book Page 572 Monday, January 19, 2015 9:34 AM

573
GS450h_OM_OM30F70U_(U)
8Vehicle specifications

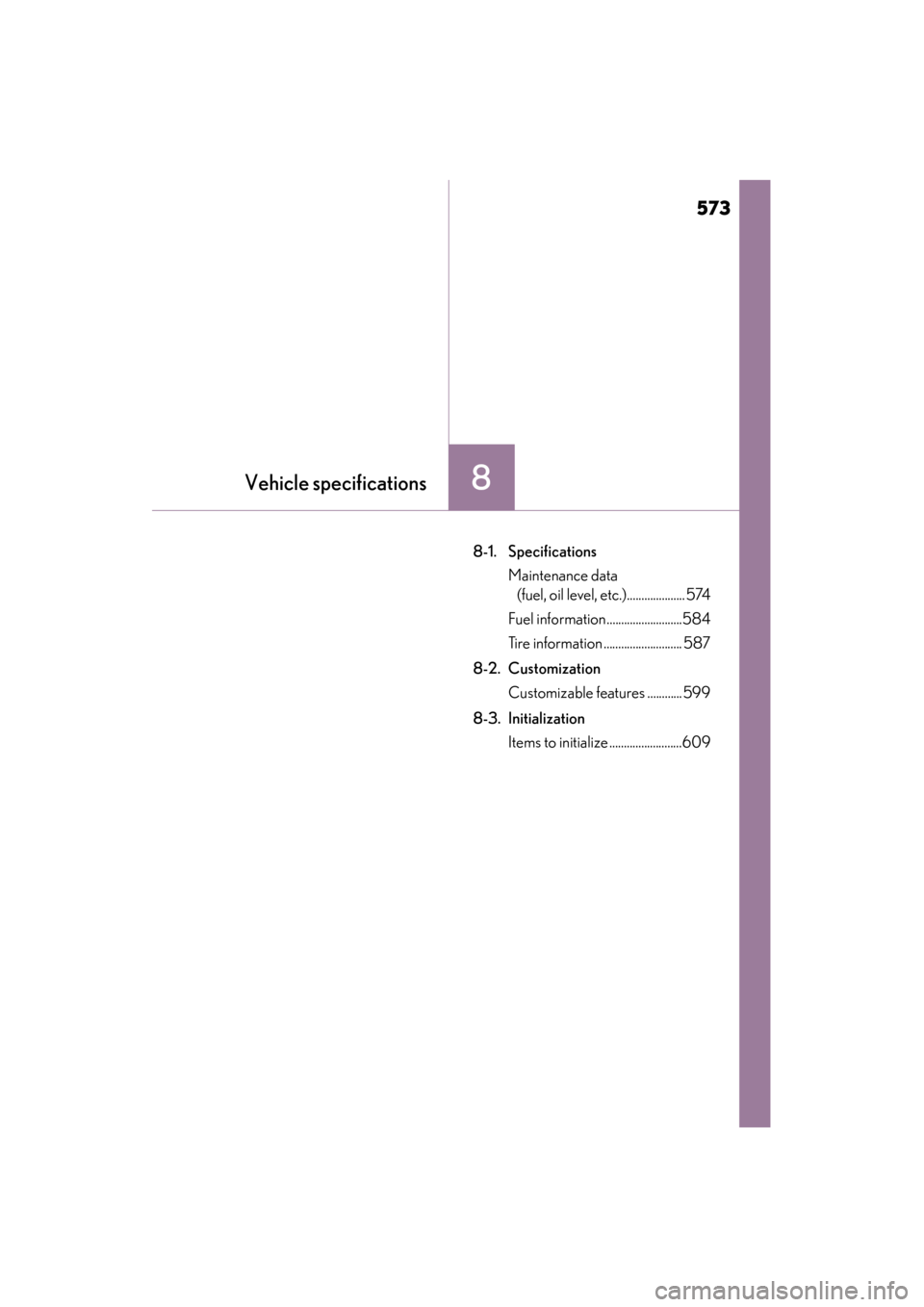

8-1. Specifications Maintenance data (fuel, oil level, etc.).................... 574
Fuel information..........................584
Tire information ........................... 587
8-2. Customization Customizable features ............ 599
8-3. Initialization Items to initialize .........................609
GS450h_OM_OM30F70U_(U).book Page 573 Monday, January 19, 2015 9:34 AM

574
GS450h_OM_OM30F70U_(U)
8-1. Specifications
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with 265/35R19 tires
Dimensions and weight
Overall length190.7 in. (4845 mm)
Overall width72.4 in. (1840 mm)
Overall height*157.3 in. (1455 mm)
Wheelbase112.2 in. (2850 mm)
Tread*1
Front62.0 in. (1575 mm)
Rear62.6 in. (1590 mm)
61.4 in. (1560 mm)
*2
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)
GS450h_OM_OM30F70U_(U).book Page 574 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
5758-1. Specifications
8
Vehicle specifications

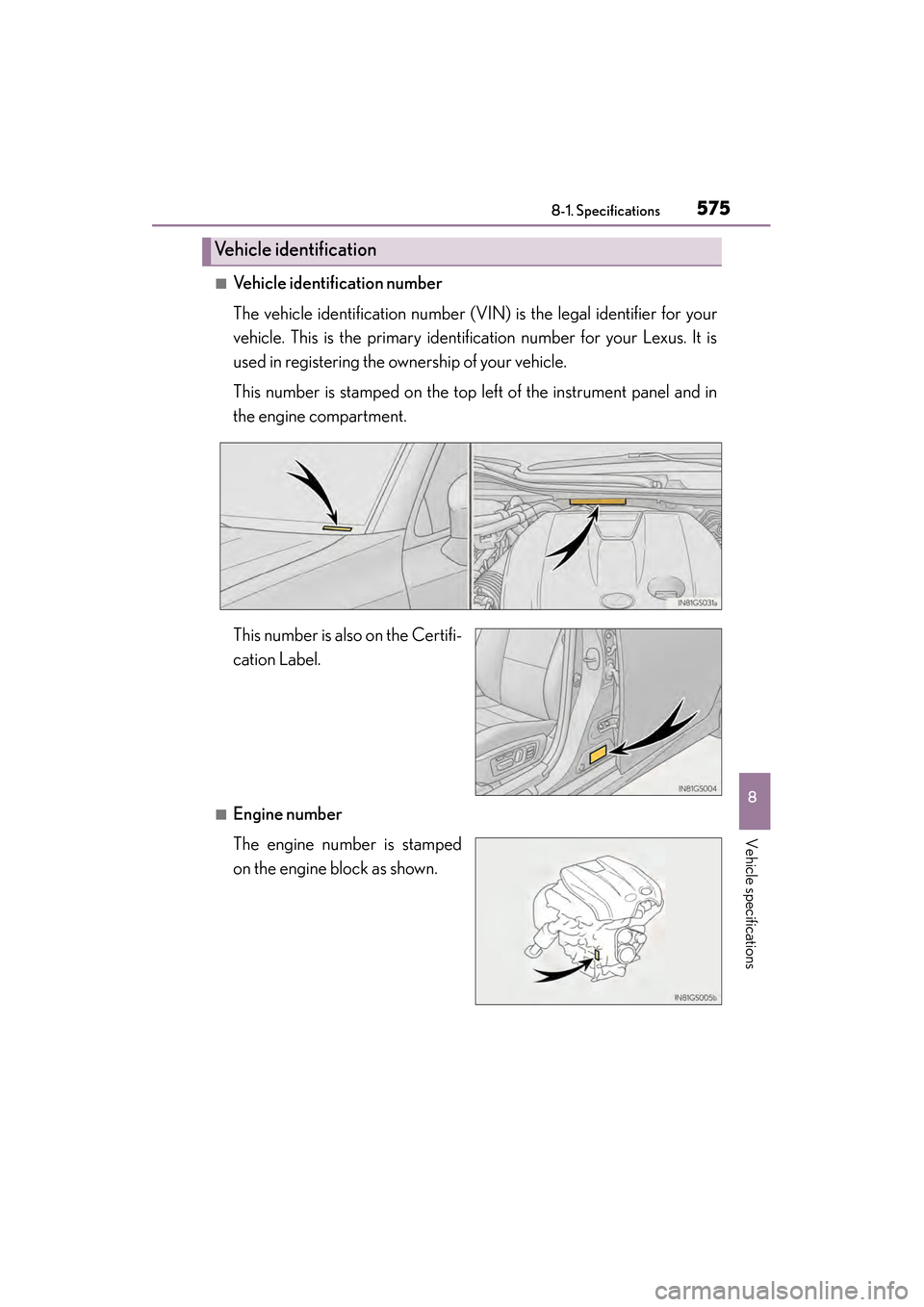

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in
the engine compartment.
This number is also on the Certifi-
cation Label.
■Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification
GS450h_OM_OM30F70U_(U).book Page 575 Monday, January 19, 2015 9:34 AM

576
GS450h_OM_OM30F70U_(U)
8-1. Specifications

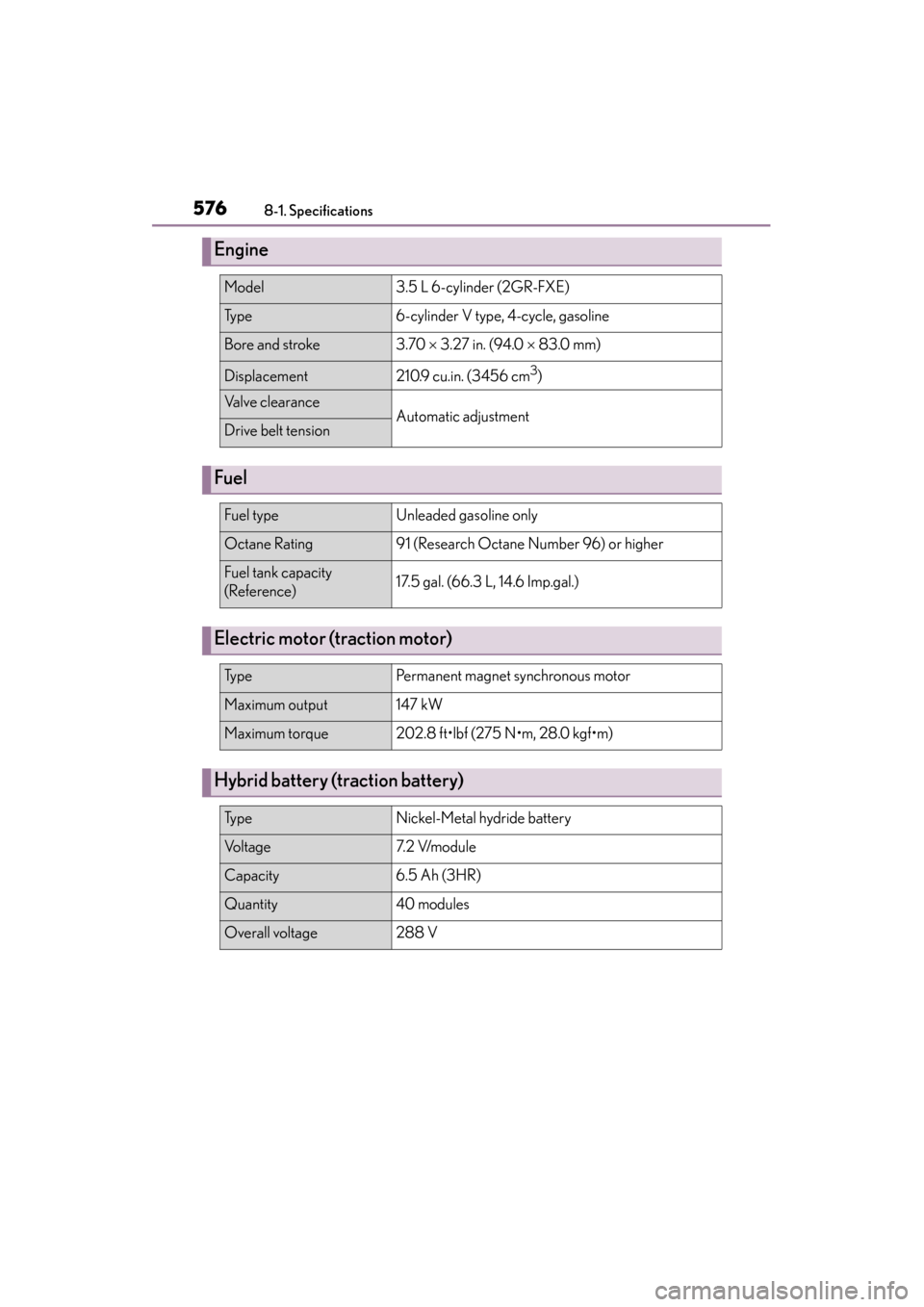

Engine
Model3.5 L 6-cylinder (2GR-FXE)
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Valve clearanceAutomatic adjustmentDrive belt tension
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)17.5 gal. (66.3 L, 14.6 Imp.gal.)
Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output147 kW
Maximum torque202.8 ft•lbf (275 N•m, 28.0 kgf•m)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity40 modules
Overall voltage288 V
GS450h_OM_OM30F70U_(U).book Page 576 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
5778-1. Specifications
8
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing theengine oil. Warm up the engine and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Lubrication system
Oil capacity
(Drain and refill  reference
*)
Wi t h f il te r
Wi t h o u t fi lt er
6.6 qt. (6.2 L, 5.5 Imp.qt.)
6.2 qt. (5.9 L, 5.2 Imp.qt.)
GS450h_OM_OM30F70U_(U).book Page 577 Monday, January 19, 2015 9:34 AM

578
GS450h_OM_OM30F70U_(U)
8-1. Specifications

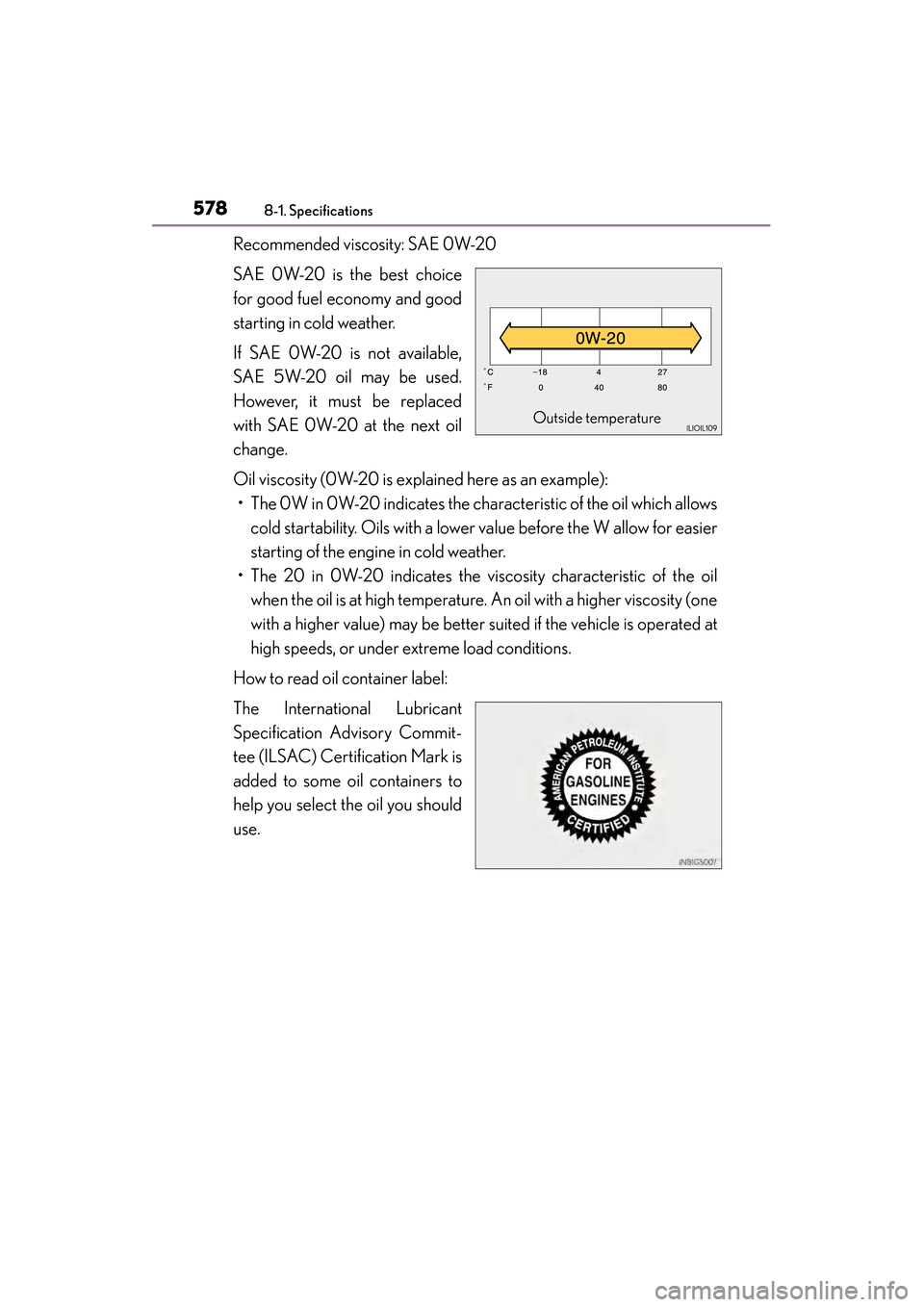

Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one
with a higher value) may be better suited if the vehicle is operated at
high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you should
use.
Outside temperature
GS450h_OM_OM30F70U_(U).book Page 578 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
5798-1. Specifications
8
Vehicle specifications

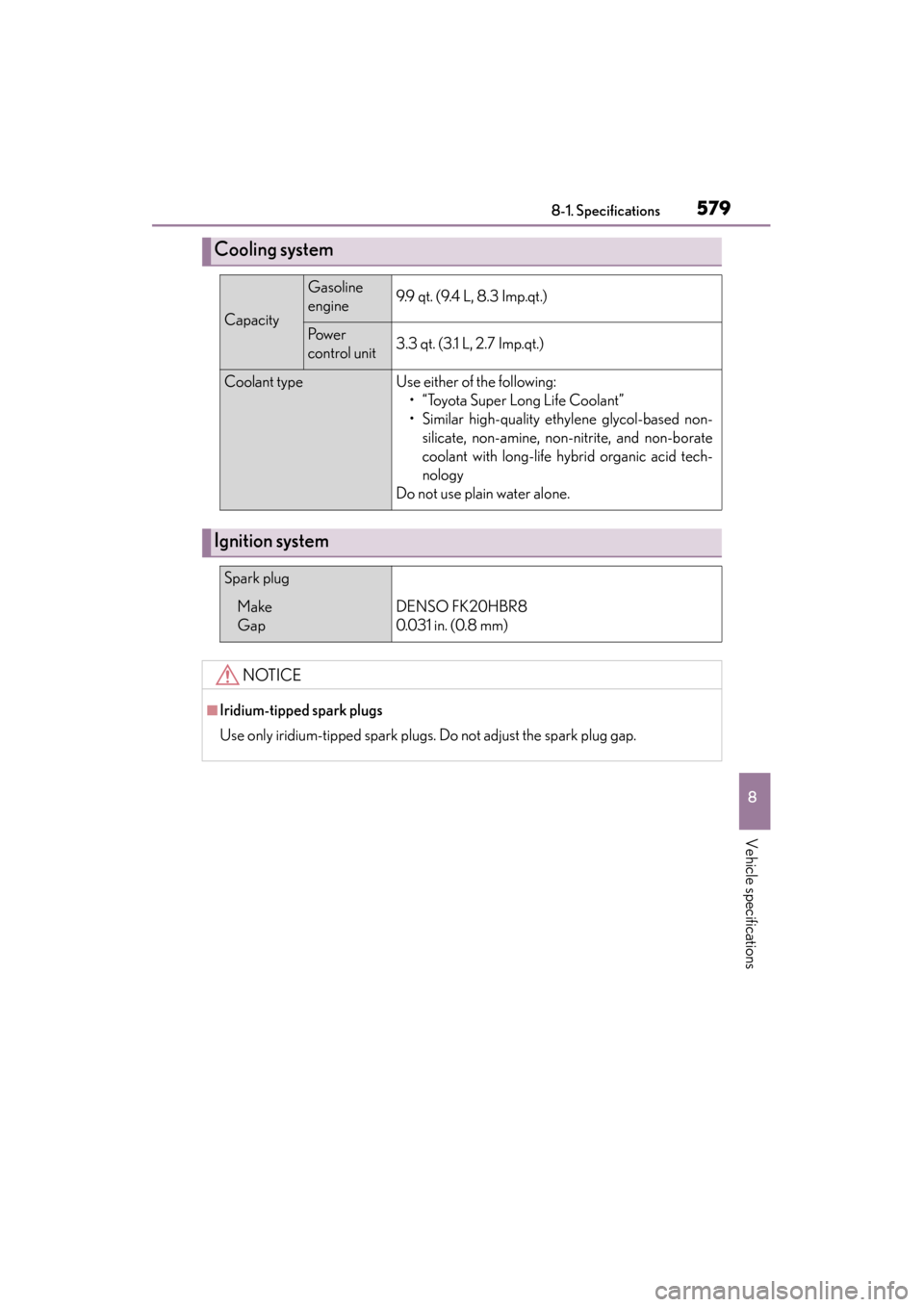

Cooling system
Capacity
Gasoline
engine9.9 qt. (9.4 L, 8.3 Imp.qt.)
Pow e r
control unit3.3 qt. (3.1 L, 2.7 Imp.qt.)
Coolant typeUse either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Ignition system
Spark plug
Make
GapDENSO FK20HBR8
0.031 in. (0.8 mm)
NOTICE
