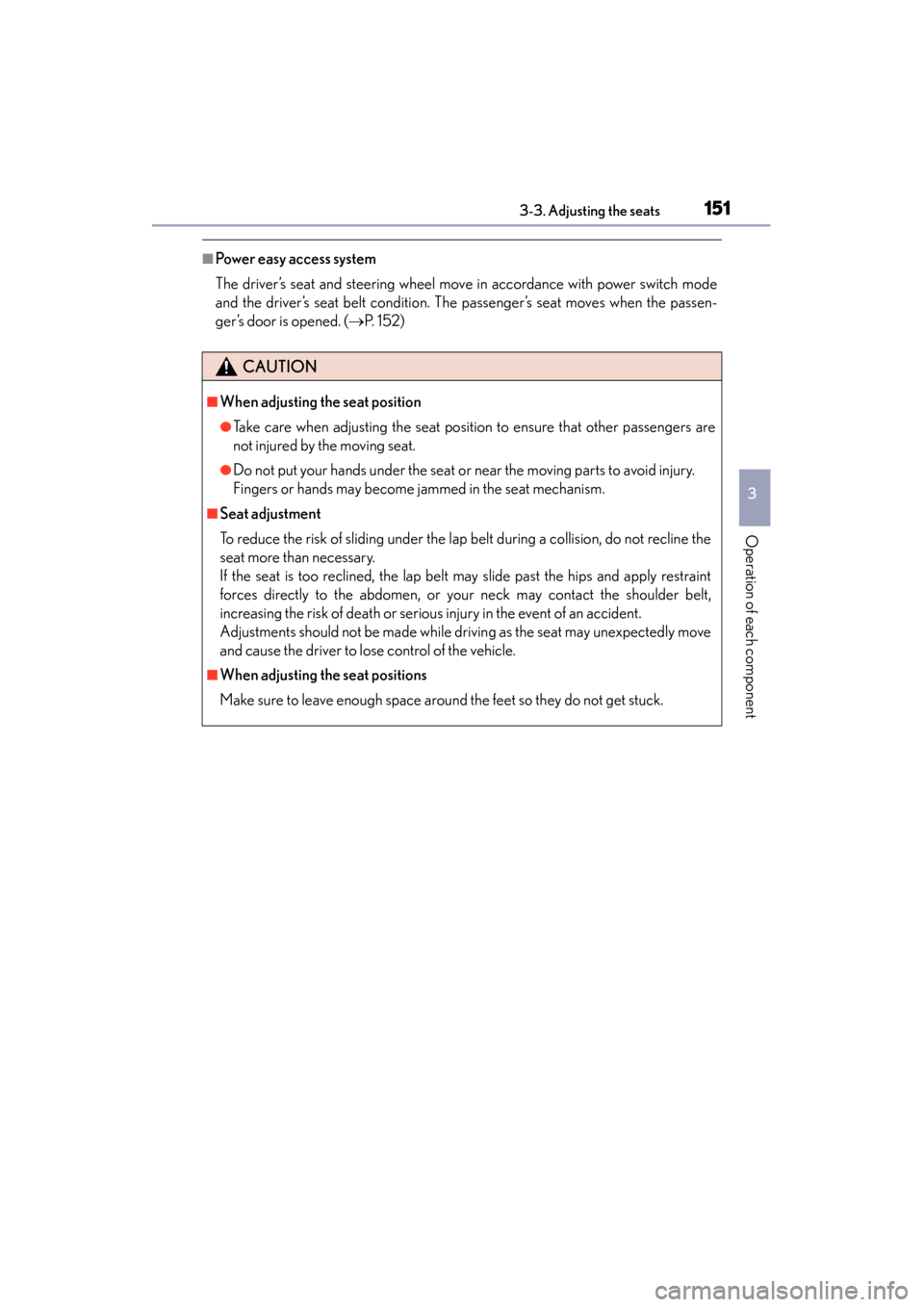

driver seat adjustment Lexus GS450h 2015 Owner's Manual

GS450h_OM_OM30F70U_(U)
1513-3. Adjusting the seats
3
Operation of each component
■Power easy access system
The driver’s seat and steering wheel move in accordance with power switch mode
and the driver’s seat belt condition. The passenger’s seat moves when the passen-
ger’s door is opened. (→P. 1 5 2 )
CAUTION
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
■Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or your neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly move
and cause the driver to lose control of the vehicle.
■When adjusting the seat positions
Make sure to leave enough space around the feet so they do not get stuck.
GS450h_OM_OM30F70U_(U).book Page 151 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)

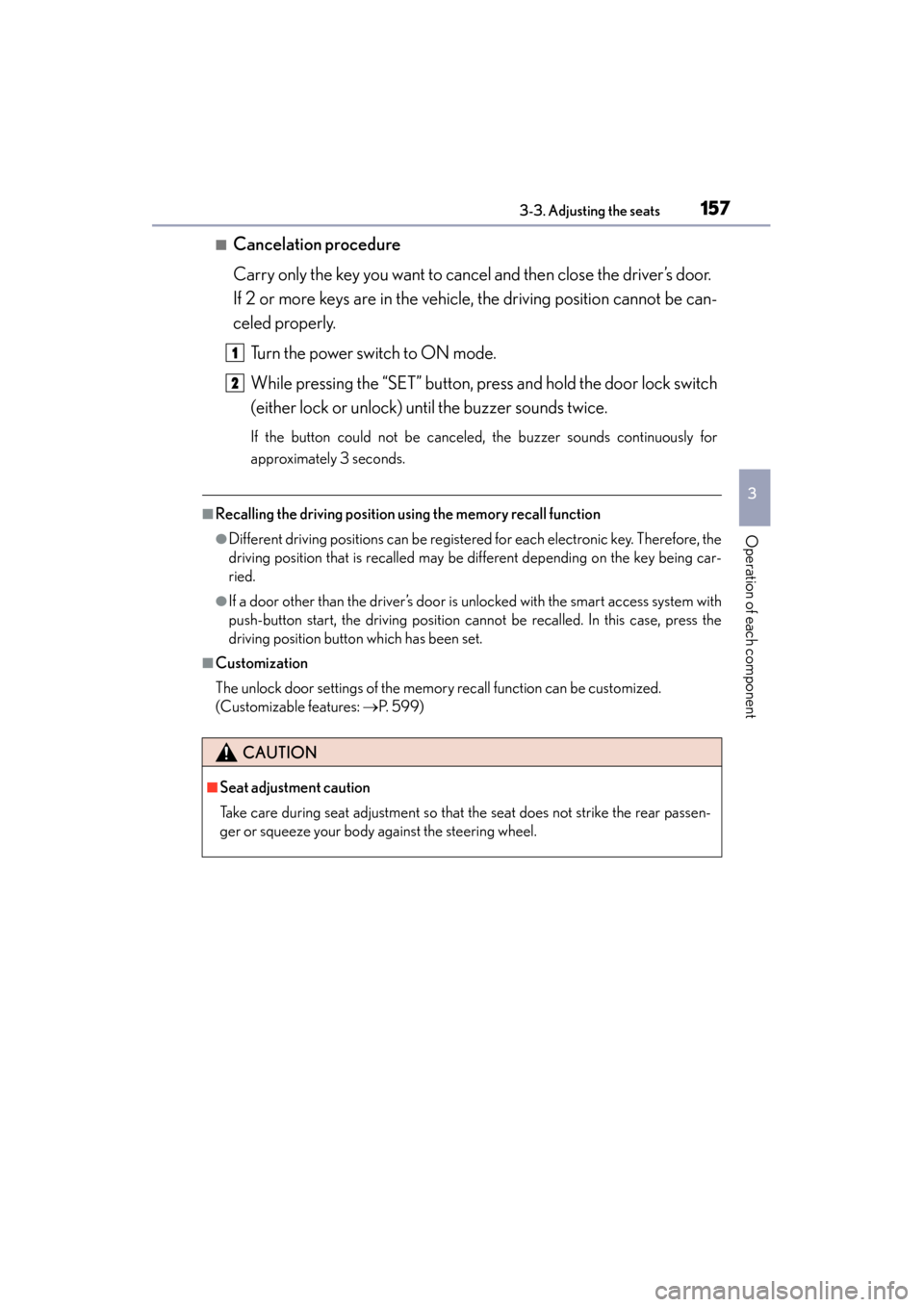

1573-3. Adjusting the seats
3
Operation of each component
■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be can-
celed properly.Turn the power switch to ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) until the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for
approximately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being car-
ried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the
driving position button which has been set.
■Customization
The unlock door settings of the memory recall function can be customized.
(Customizable features: → P. 599)
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
1
2
GS450h_OM_OM30F70U_(U).book Page 157 Monday, January 19, 2015 9:34 AM

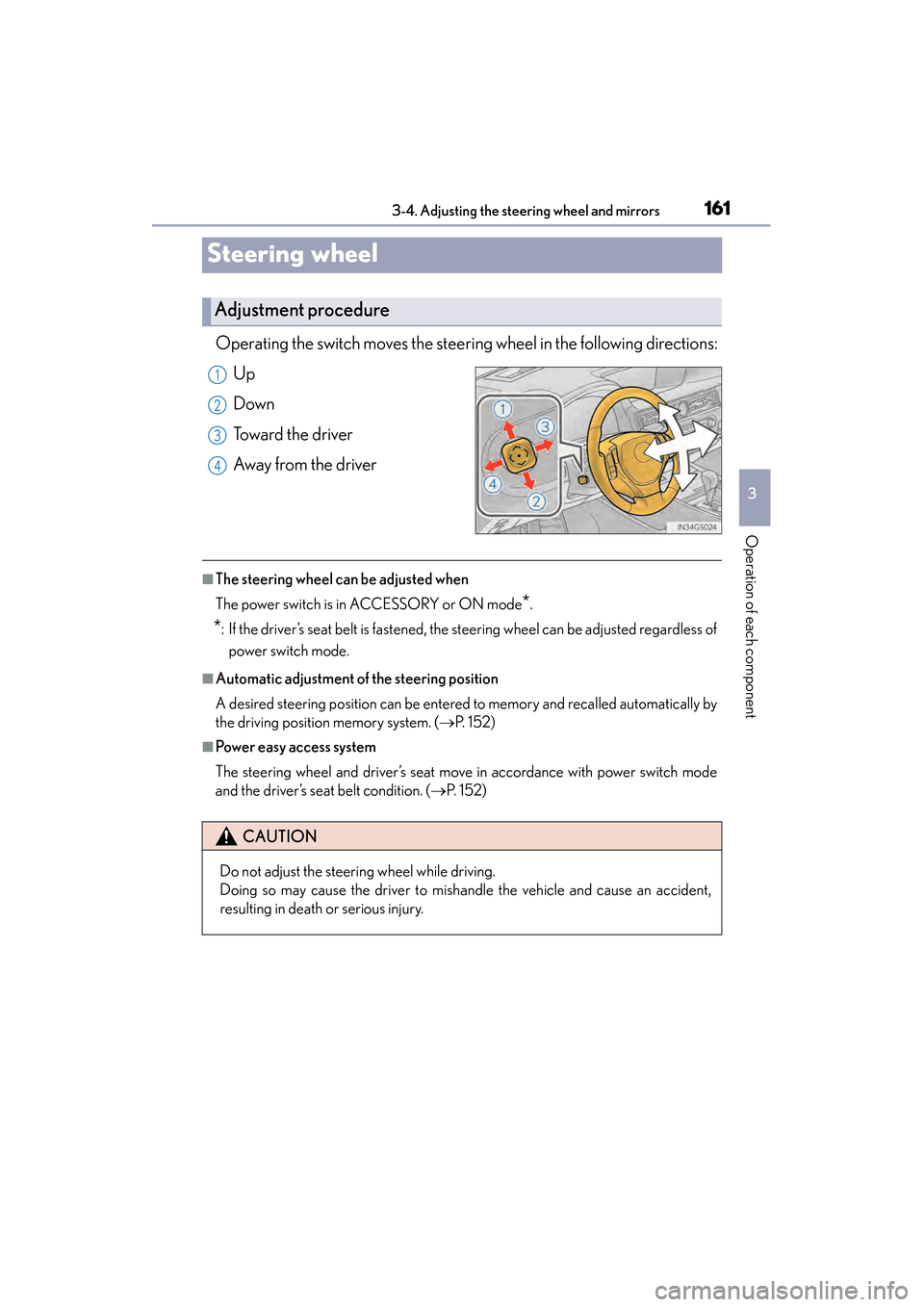

1613-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GS450h_OM_OM30F70U_(U)
Steering wheel
Operating the switch moves the steering wheel in the following directions:
Up
Down
Toward the driver
Away from the driver
■The steering wheel can be adjusted when
The power switch is in ACCESSORY or ON mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of power switch mode.
■Automatic adjustment of the steering position
A desired steering position can be entered to memory and recalled automatically by
the driving position memory system. ( →P. 1 5 2 )
■Power easy access system
The steering wheel and driver’s seat move in accordance with power switch mode
and the driver’s seat belt condition. ( →P. 1 5 2 )
Adjustment procedure
1
2
3
4
CAUTION
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.
GS450h_OM_OM30F70U_(U).book Page 161 Monday, January 19, 2015 9:34 AM

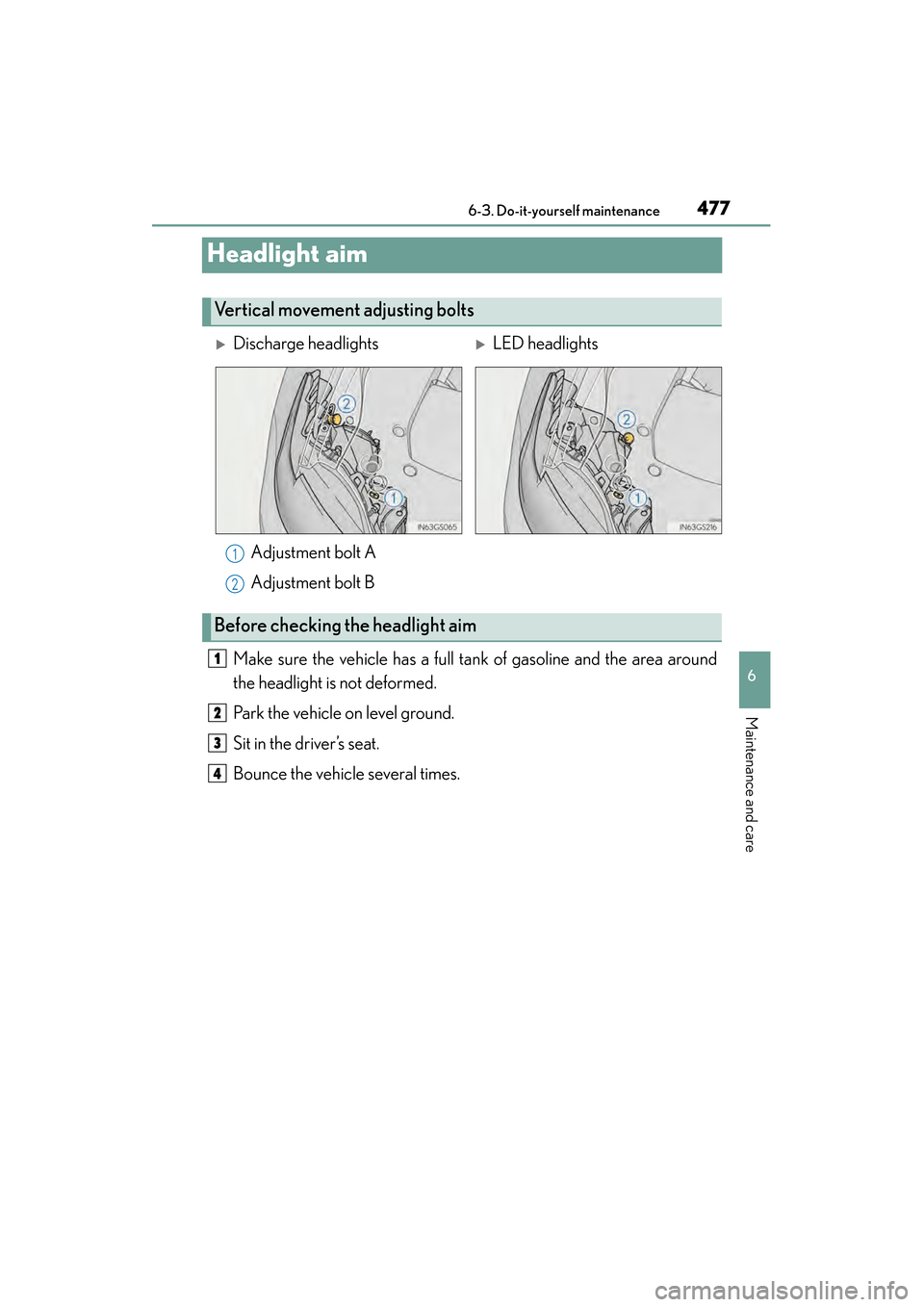

477
GS450h_OM_OM30F70U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Headlight aim
Make sure the vehicle has a full tank of gasoline and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Vertical movement adjusting bolts
XDischarge headlightsXLED headlights
Adjustment bolt A
Adjustment bolt B
Before checking the headlight aim
1
2
1
2
3
4
GS450h_OM_OM30F70U_(U).book Page 477 Monday, January 19, 2015 9:34 AM

646Alphabetical index
GS450h_OM_OM30F70U_(U)
Seat belts..................................................... 32Adjusting the seat belt ........................ 33
Automatic Locking Retractor ......... 34
Child restraint system installation..............................................64
Cleaning and maintaining the seat belt ........................................ 413
Emergency Locking Retractor (ELR).................................. 34
How to wear your seat belt ............. 32
How your child should wear the seat belt ..........................................35
Pre-collision seat belts ....................... 34
Pregnant women, proper seat belt use.......................................... 36
Reminder light and buzzer .......... 506
Seat belt extender.................................35
Seat belt pretensioners ...................... 34
SRS warning light .............................. 504
Seat heaters ............................................ 382
Seat position memory...........................152
Seat ventilators ...................................... 382
Seating capacity..................................... 190 Seats ............................................................150
Adjustment............................................. 150
Adjustment precautions .................... 151
Child seats/child restraint
system installation ............................... 61
Cleaning................................................... 412
Driving position memory................. 152
Head restraints .................................... 158
Power easy access system ............. 152
Properly sitting in the seat ................ 30
Seat heaters .......................................... 382
Seat position memory .......................152
Seat ventilators.................................... 382
Sensor
Automatic headlight system ........ 220
Driver monitor sensor ..................... 293
Humidity sensor ...................................351
Inside rear view mirror......................163
Intuitive parking assist
*
Lexus night view................................... 314
LKA (Lane-Keeping Assist)......... 279
Radar sensor................248, 264, 293
Rain-sensing windshield wipers................................................... 228
Service plug................................................ 76
Service reminder indicators ............... 86
S
GS450h_OM_OM30F70U_(U).book Page 646 Monday, January 19, 2015 9:34 AM
