352
GS450h_OM_OM30F70U_(U)

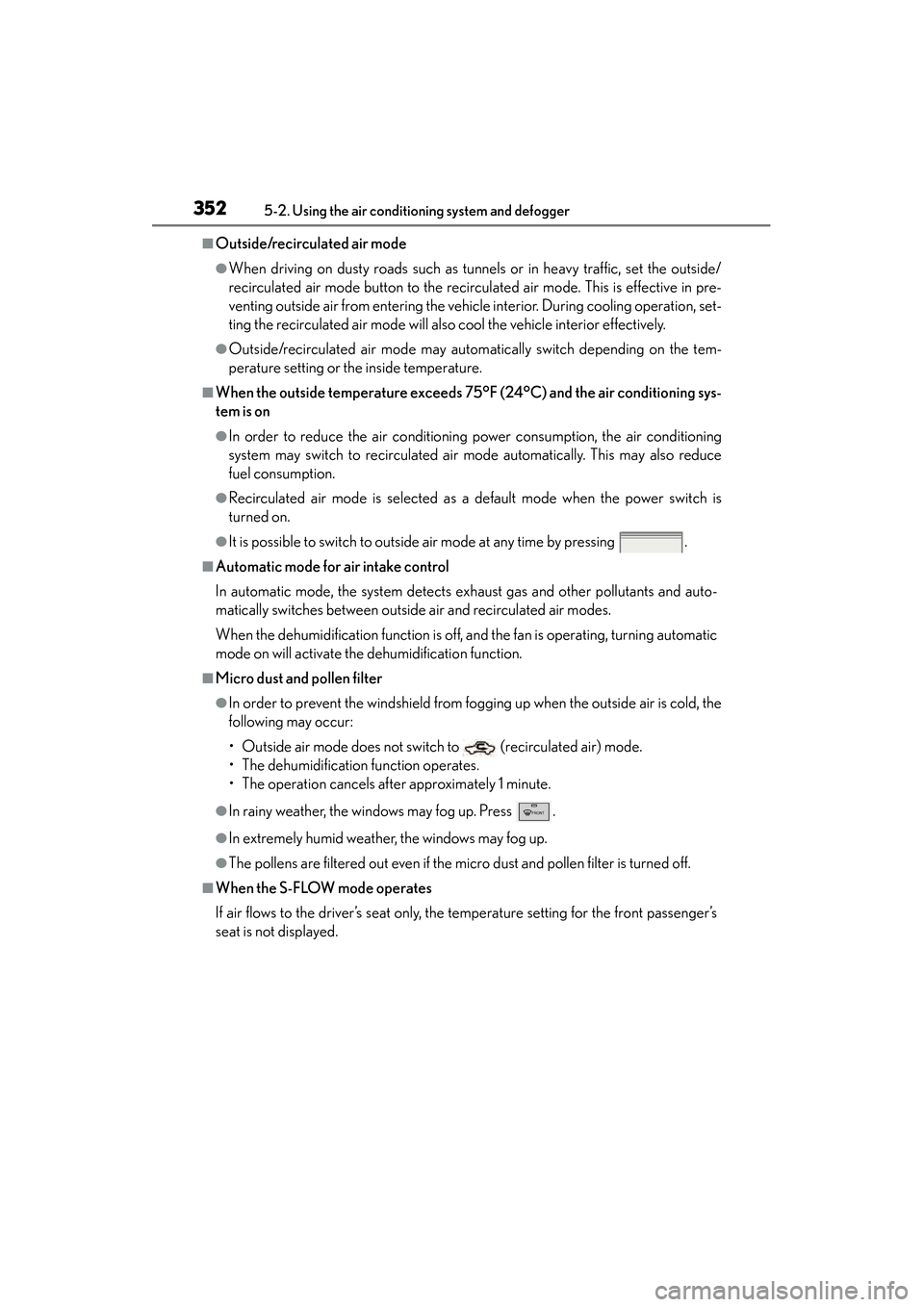

5-2. Using the air conditioning system and defogger
■Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the outside/
recirculated air mode button to the recirculated air mode. This is effective in pre-
venting outside air from entering the vehicle interior. During cooling operation, set-
ting the recirculated air mode will also cool the vehicle interior effectively.
●Outside/recirculated air mode may automatically switch depending on the tem-
perature setting or the inside temperature.
■When the outside temperature exceeds 75°F (24°C) and the air conditioning sys-
tem is on
●In order to reduce the air conditioning power consumption, the air conditioning
system may switch to recirculated air mode automatically. This may also reduce
fuel consumption.
●Recirculated air mode is selected as a default mode when the power switch is
turned on.
●It is possible to switch to outside air mode at any time by pressing .
■Automatic mode for air intake control
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
When the dehumidification function is off, and the fan is operating, turning automatic
mode on will activate the dehumidification function.
■Micro dust and pollen filter
●In order to prevent the windshield from fogging up when the outside air is cold, the
following may occur:
• Outside air mode does not switch to (recirculated air) mode.
• The dehumidification function operates.
• The operation cancels after approximately 1 minute.
●In rainy weather, the windows may fog up. Press .
●In extremely humid weather, the windows may fog up.
●The pollens are filtered out even if the micro dust and pollen filter is turned off.
■When the S-FLOW mode operates
If air flows to the driver’s seat only, the temperature setting for the front passenger’s
seat is not displayed.
GS450h_OM_OM30F70U_(U).book Page 352 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
3535-2. Using the air conditioning system and defogger
5
Interior features
■Operation of the air conditioning system in Eco drive mode
In the Eco drive mode, the air conditioning system is controlled as follows to priori-
tize fuel efficiency:
●Engine speed and compressor operation controlled to restrict heating/cooling
capacity
●Fan speed restricted when automatic mode is selected
To improve air conditioning performance, perform the following operations:
●Adjust the fan speed
●Turn off Eco drive mode
■When the outside temperature falls to nearly 32 °F (0 °C)
The dehumidification function may not operate even when “A/C” on the option con-
trol screen is selected.
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
●During use, various odors from inside and outside the vehicle may enter into and
accumulate in the air conditioning system. This may then cause odor to be emitted
from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immedi- ately after the air conditioning system is started in automatic mode.
■Air conditioning filter
→ P. 4 5 8
■Customization
Settings (e.g. exhaust gas sensor sensitivity) can be changed.
(Customizable features: → P. 599)
GS450h_OM_OM30F70U_(U).book Page 353 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)

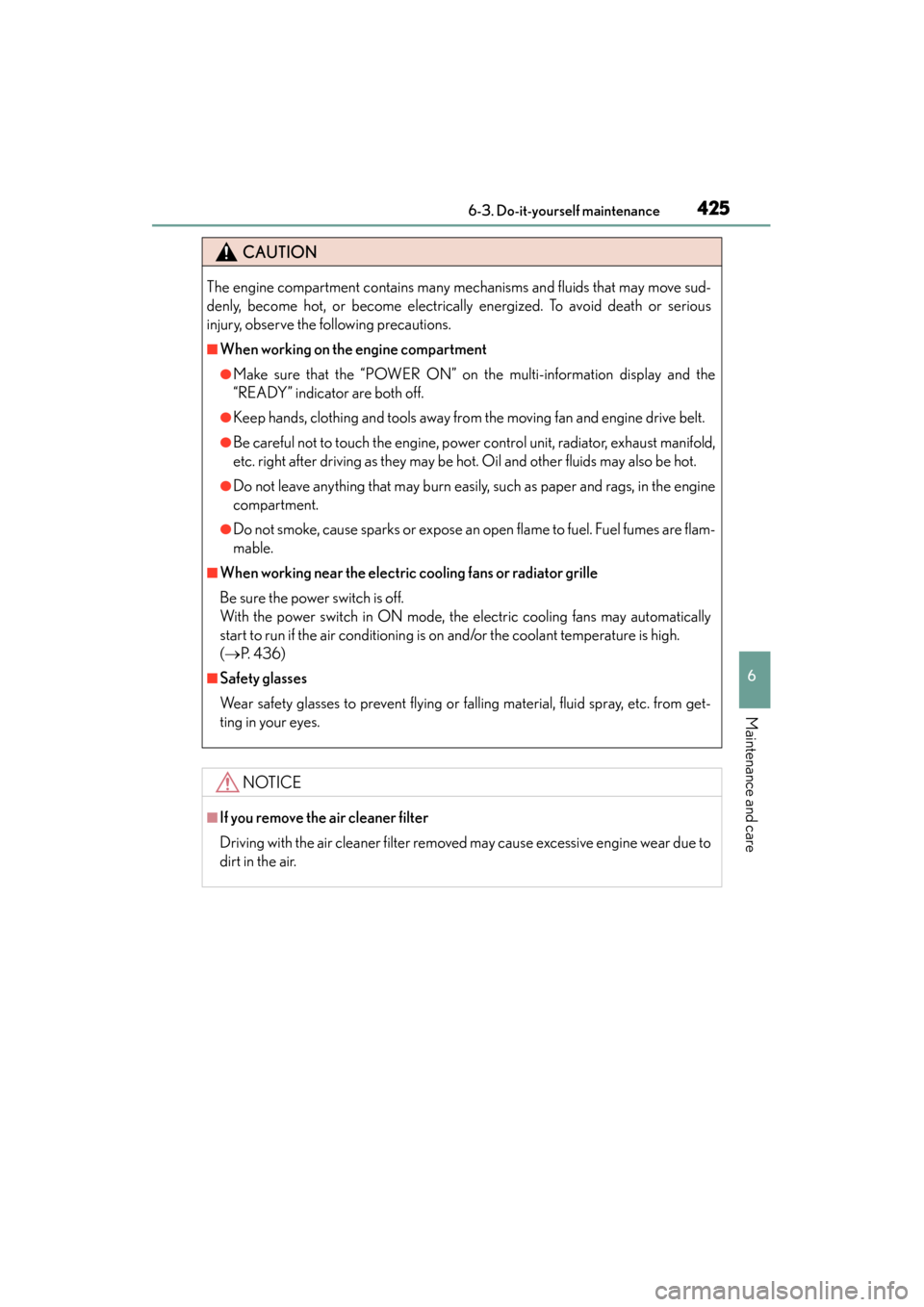

4256-3. Do-it-yourself maintenance
6
Maintenance and care
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious
injury, observe the following precautions.
■When working on the engine compartment
●Make sure that the “POWER ON” on the multi-information display and the
“READY” indicator are both off.
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, power control unit, radiator, exhaust manifold,
etc. right after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes are flam-
mable.
■When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automatically
start to run if the air conditioning is on and/or the coolant temperature is high.
(→ P. 4 3 6 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air.
GS450h_OM_OM30F70U_(U).book Page 425 Monday, January 19, 2015 9:34 AM

652
GS450h_OM_OM30F70U_(U)

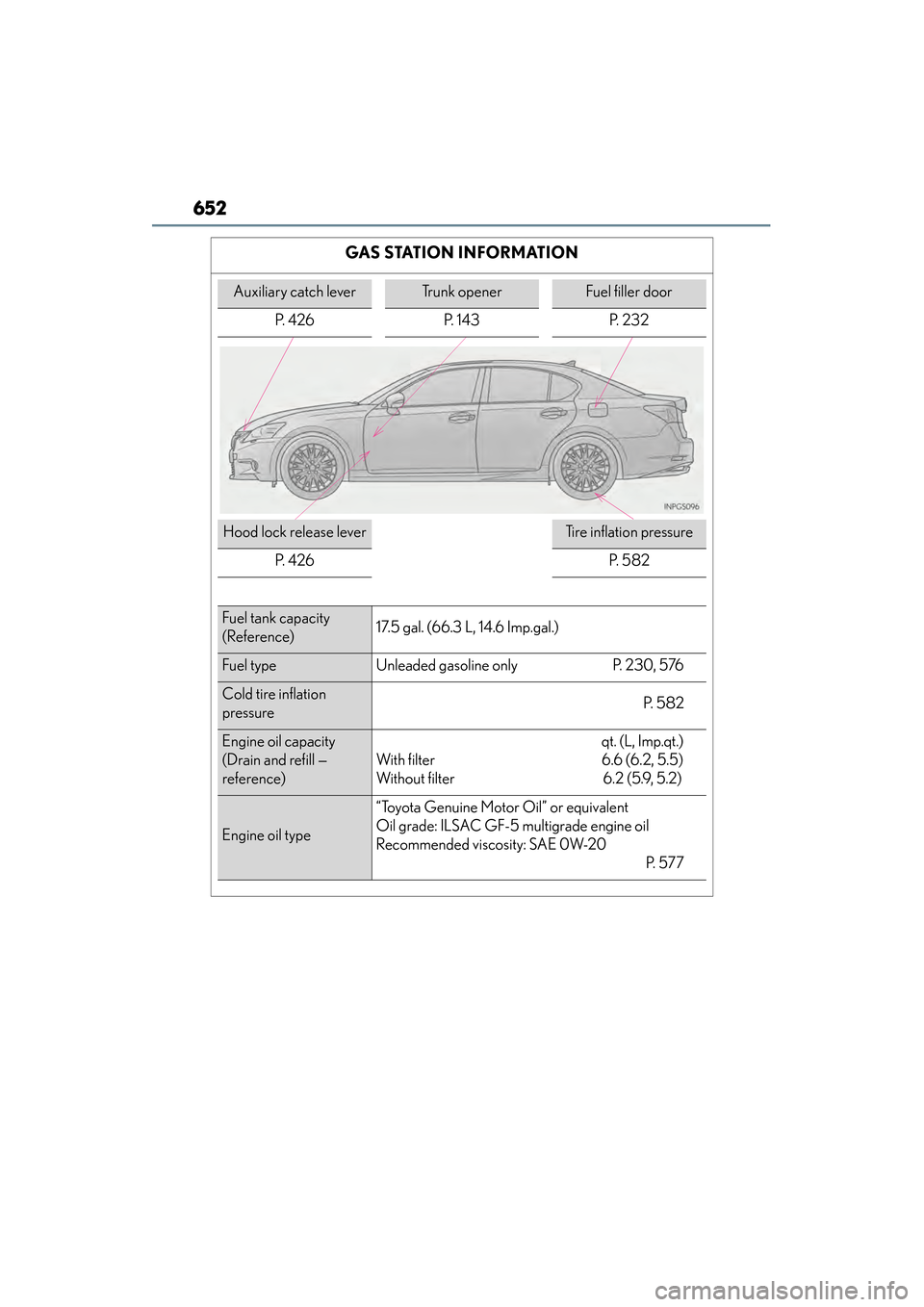

GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 426 P. 143 P. 232
Hood lock release leverTire inflation pressure
P. 4 2 6
P. 5 8 2
Fuel tank capacity
(Reference) 17.5 gal. (66.3 L, 14.6 Imp.gal.)
Fuel type
Unleaded gasoline only P. 230, 576
Cold tire inflation
pressure P. 5 8 2
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
With filter 6.6 (6.2, 5.5)
Without filter 6.2 (5.9, 5.2)
Engine oil type “Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
P. 5 7 7
