fuel cap release Lexus GS450h 2016 Owner's Manual / LEXUS 2016 GS450H OWNERS MANUAL (OM30E99U)

212
GS450h_OM_OM30E99U_(U)

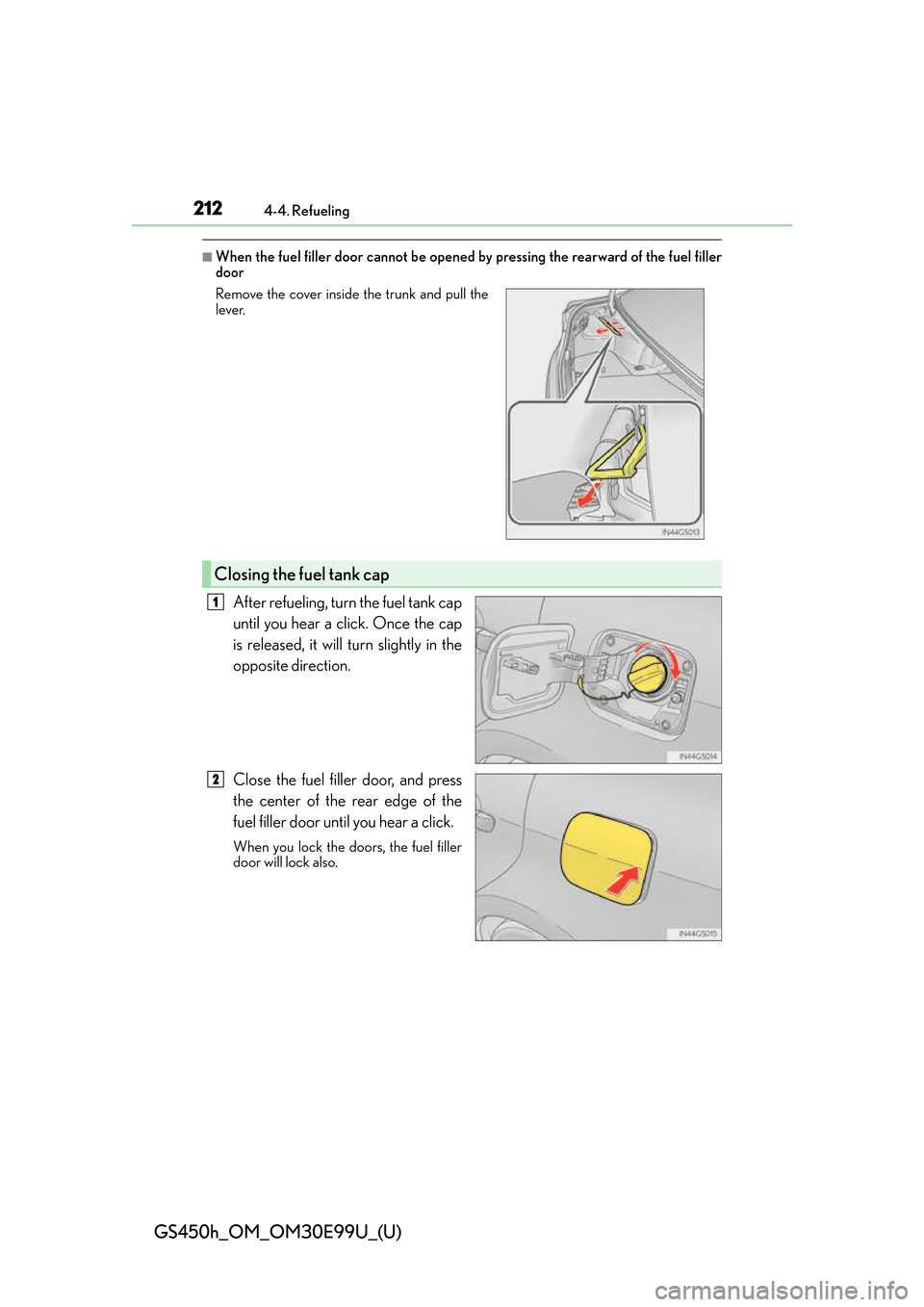

4-4. Refueling
■When the fuel filler door cannot be opened by pressing the rearward of the fuel filler
door
After refueling, turn the fuel tank cap
until you hear a click. Once the cap
is released, it will turn slightly in the
opposite direction.
Close the fuel filler door, and press
the center of the rear edge of the
fuel filler door until you hear a click.
When you lock the doors, the fuel filler
door will lock also.
Remove the cover inside the trunk and pull the
lever.
Closing the fuel tank cap
1
2

544
GS450h_OM_OM30E99U_(U)

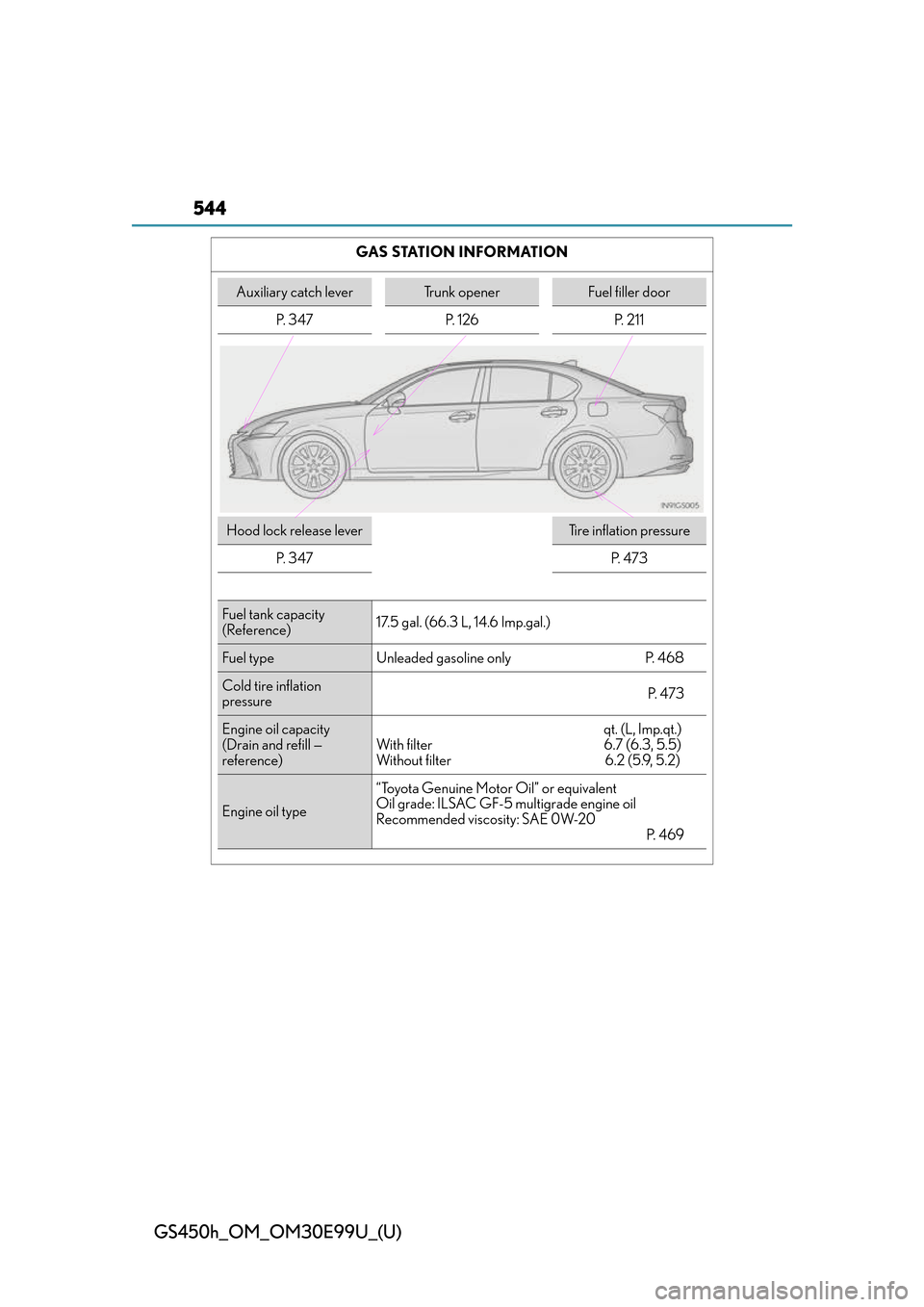

GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 3 4 7 P. 1 2 6 P. 2 1 1
Hood lock release leverTire inflation pressure
P. 3 4 7
P. 4 7 3
Fuel tank capacity
(Reference) 17.5 gal. (66.3 L, 14.6 Imp.gal.)
Fuel type
Unleaded gasoline only P. 468
Cold tire inflation
pressure P. 4 7 3
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
With filter 6.7 (6.3, 5.5)
Without filter 6.2 (5.9, 5.2)
Engine oil type “Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
P. 4 6 9
