2654-5. Using the driving support systems
4
Driving

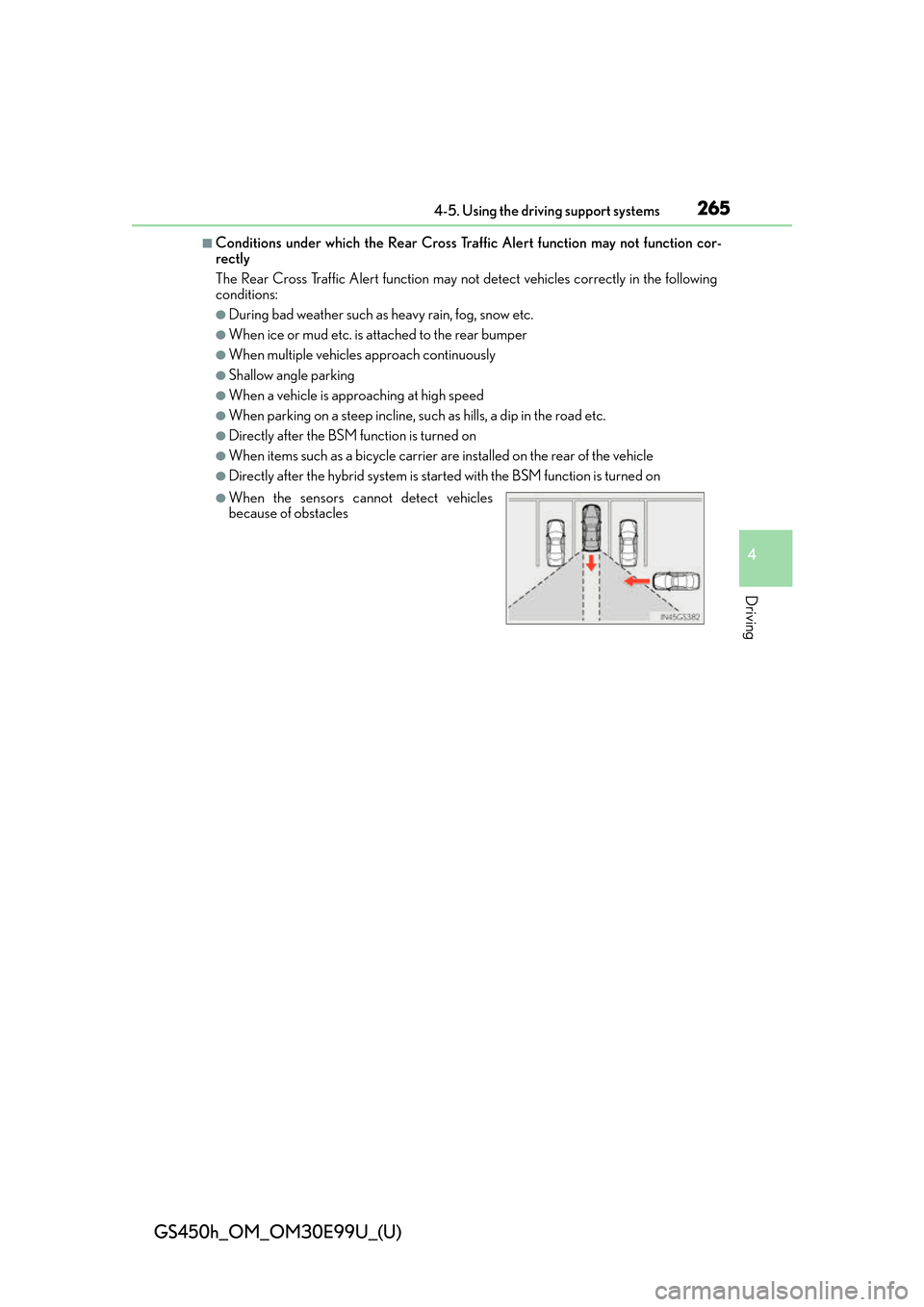

■Conditions under which the Rear Cross Traffic Alert function may not function cor-
rectly
The Rear Cross Traffic Alert function may not detect vehicles correctly in the following
conditions:
●During bad weather such as heavy rain, fog, snow etc.
●When ice or mud etc. is attached to the rear bumper
●When multiple vehicles approach continuously
●Shallow angle parking
●When a vehicle is approaching at high speed
●When parking on a steep incline, su ch as hills, a dip in the road etc.
●Directly after the BSM function is turned on
●When items such as a bicycle carrier are installed on the rear of the vehicle
●Directly after the hybrid system is started with the BSM function is turned on
●When the sensors cannot detect vehicles
because of obstacles

4097-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
7
When trouble arises
(If equipped)

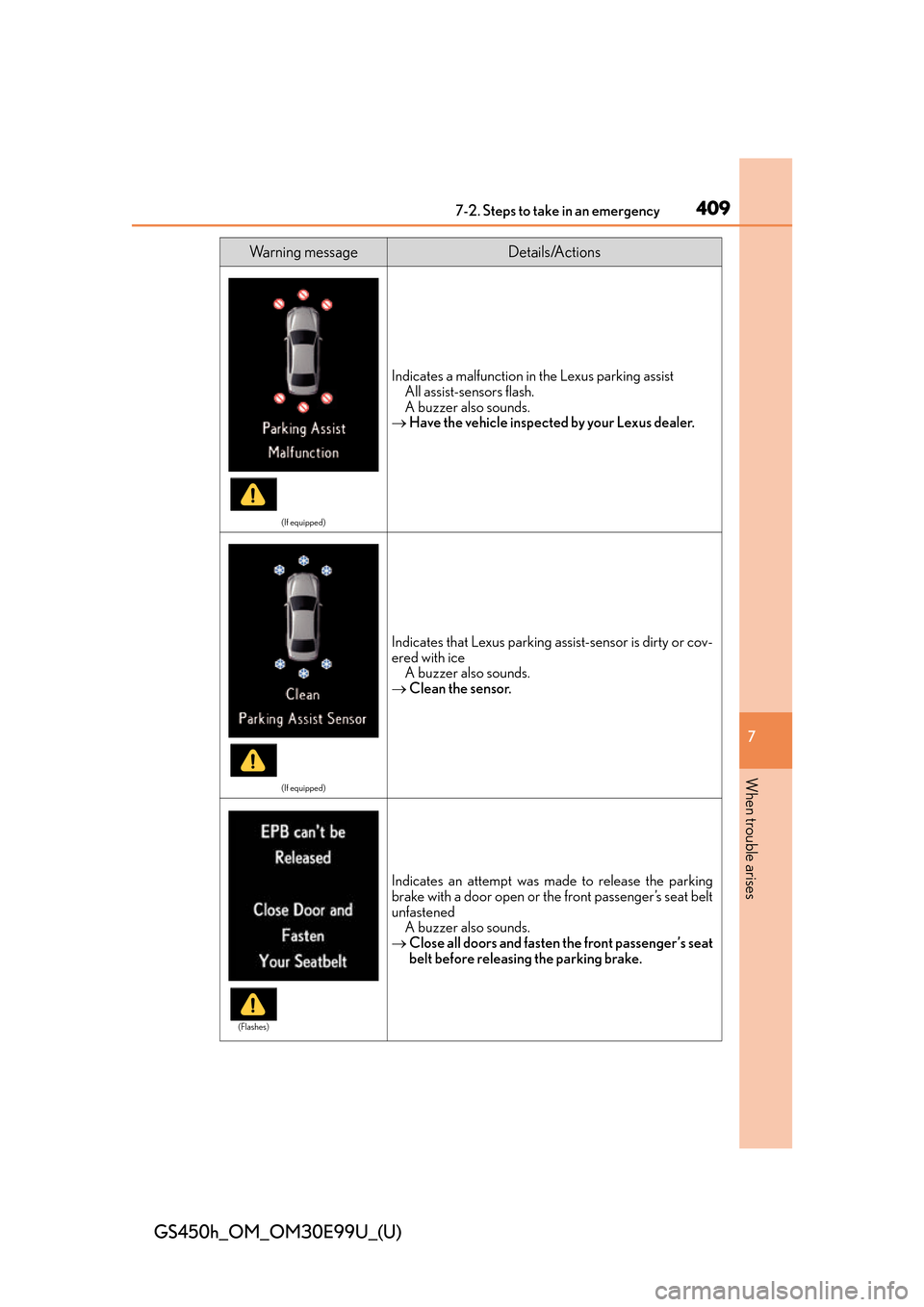

Indicates a malfunction in the Lexus parking assistAll assist-sensors flash.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that Lexus parking assist-sensor is dirty or cov-
ered with ice
A buzzer also sounds.
 Clean the sensor.
Indicates an attempt was made to release the parking
brake with a door open or the front passenger’s seat belt
unfastened
A buzzer also sounds.
 Close all doors and fasten the front passenger’s seat
belt before releasing the parking brake.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

GS450h_OM_OM30E99U_(U)
4998-2. Customization
8
Vehicle specifications
■Intuitive parking assist*1, 2
*1:If equipped
*2: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
■Driving mode select switch (P. 256)
FunctionDefault
settingCustomized setting
Detection distance of the front center
sensorFarNearO—O
Detection distance of the rear center
sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when intuitive parking assist is operat-
ing)All sensors displayedDisplay offO—O
123
FunctionDefault
settingCustomized setting
Power train controlNormalPo w e rO——Eco
Chassis controlNormalSportO——
Air conditioning operationNormalEcoO——
123

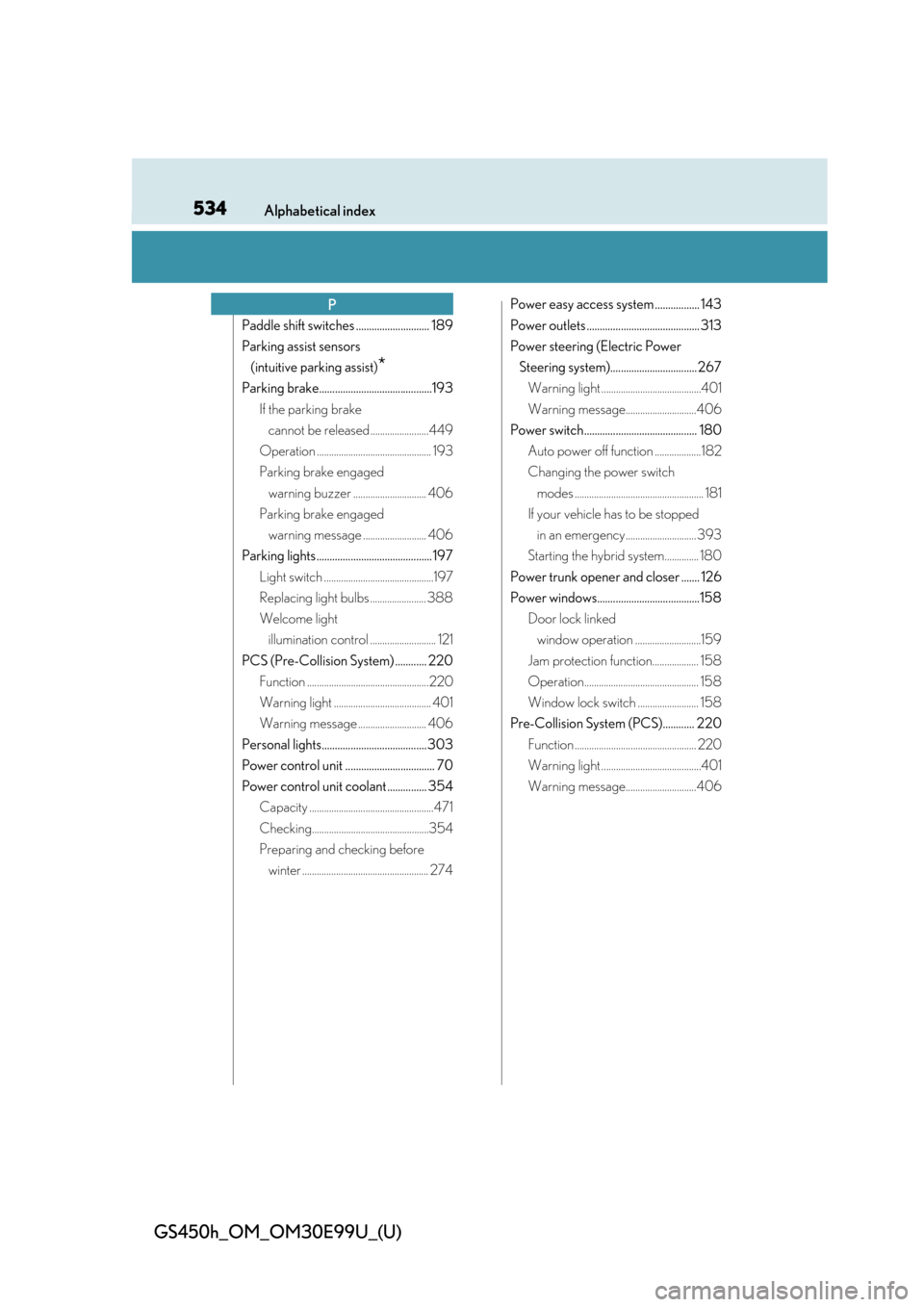

534Alphabetical index
GS450h_OM_OM30E99U_(U)
Paddle shift switches ............................ 189
Parking assist sensors (intuitive parking assist)
*
Parking brake...........................................193 If the parking brake cannot be released........................449
Operation ............................................... 193
Parking brake engaged warning buzzer .............................. 406
Parking brake engaged warning message .......................... 406
Parking lights ............................................ 197 Light switch .............................................197
Replacing light bulbs ....................... 388
Welcome light illumination control ........................... 121
PCS (Pre-Collision System) ............ 220 Function ..................................................220
Warning light ........................................ 401
Warning message ............................ 406
Personal lights........................................ 303
Power control unit .................................. 70
Power control unit coolant ............... 354 Capacity ...................................................471
Checking................................................354
Preparing and checking before winter .................................................... 274 Power easy access system ................. 143
Power outlets ........................................... 313
Power steering (Electric Power
Steering system)................................. 267Warning light .........................................401
Warning message.............................406
Power switch........................................... 180 Auto power off function ...................182
Changing the power switch modes ..................................................... 181
If your vehicle has to be stopped in an emergency............................. 393
Starting the hybrid system.............. 180
Power trunk opener and closer ....... 126
Power windows.......................................158 Door lock linked window operation ...........................159
Jam protection function................... 158
Operation............................................... 158
Window lock switch ......................... 158
Pre-Collision System (PCS)............ 220 Function .................................................. 220
Warning light .........................................401
Warning message.............................406
P
