The Quick Guide is not intended as a substitute for yourOWNER’S MANUAL. We strongly encourage you to review theOWNER’S MANUAL and supplementary manuals so you will
have a better understanding of your vehicle’s capabilities and
limitations.

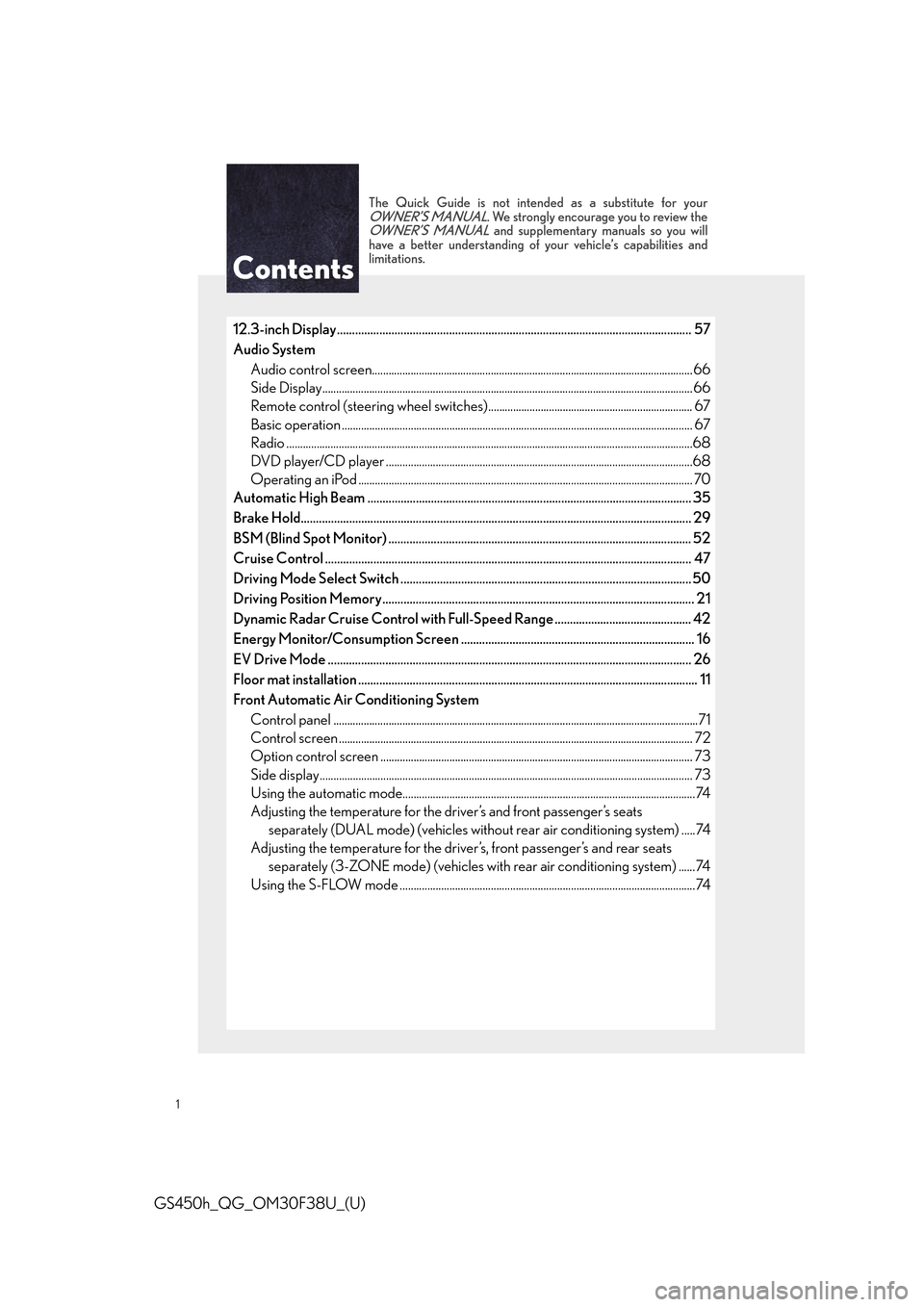

12.3-inch Display.............................................................................................................. ....... 57
Audio System Audio control screen........................................................................................................... ......... 66
Side Display................................................................................................................... ................... 66
Remote control (steering wheel switches).......................................................................... 67
Basic operation ................................................................................................................ ............... 67
Radio .......................................................................................................................... .........................68
DVD player/CD player ........................................................................................................... ....68
Operating an iPod .............................................................................................................. ........... 70
Automatic High Beam ........................................................................................................... 3 5
Brake Hold..................................................................................................................... ............ 29
BSM (Blind Spot Monitor) .................................................................................................... 52
Cruise Control ................................................................................................................. ........ 47
Driving Mode Select Switch ................................................................................................ 50
Driving Position Memory....................................................................................................... 2 1
Dynamic Radar Cruise Control with Full-Speed Range ............................................. 42
Energy Monitor/Consumption Screen ............................................................................. 16
EV Drive Mode .................................................................................................................. ...... 26
Floor mat installation ......................................................................................................... ....... 11
Front Automatic Air Conditioning System Control panel .................................................................................................................. ..................71
Control screen ................................................................................................................. ............... 72
Option control screen .......................................................................................................... ....... 73
Side display................................................................................................................... .................... 73
Using the automatic mode..........................................................................................................74
Adjusting the temperature for the driver’s and front passenger’s seats
separately (DUAL mode) (veh icles without rear air conditioning system) .....74
Adjusting the temperature for the driver’s, front passenger’s and rear seats separately (3-ZONE mode) (vehicles with rear air conditioning system) ......74
Using the S-FLOW mode .......................................................................................................... .74

2

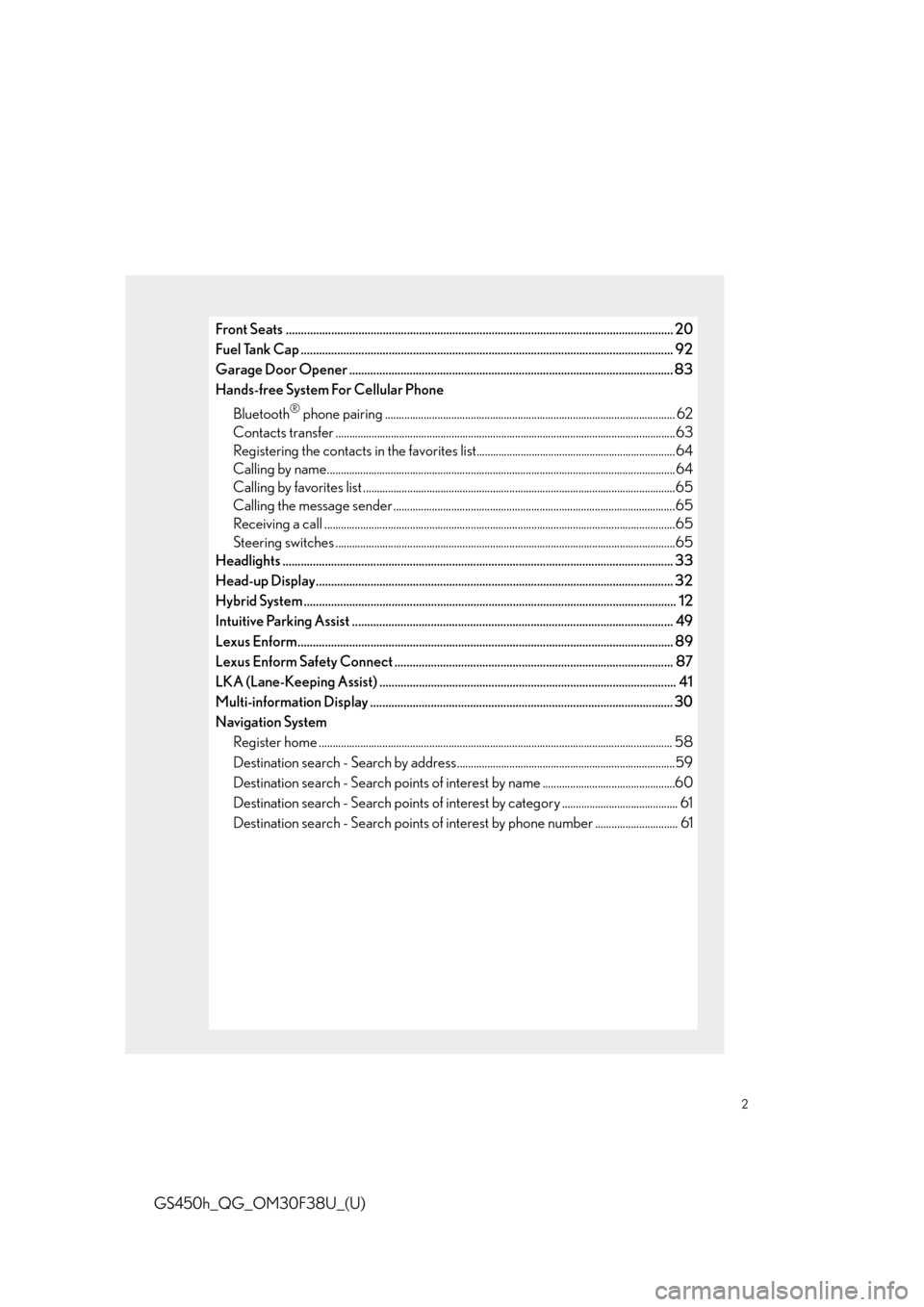

GS450h_QG_OM30F38U_(U)
Front Seats ................................................................................................................................ 20
Fuel Tank Cap .................................................................................................................. ......... 92
Garage Door Opener ........................................................................................................... 83
Hands-free System For Cellular Phone
Bluetooth
® phone pairing ......................................................................................................... 62
Contacts transfer .............................................................................................................. .............63
Registering the contacts in the favorites list........................................................................ 64
Calling by name................................................................................................................ ..............64
Calling by favorites list ...................................................................................................... ...........65
Calling the message sender ..................................................................................................... .65
Receiving a call ............................................................................................................... ................65
Steering switches .............................................................................................................. .............65
Headlights ..................................................................................................................... ............ 33
Head-up Display...................................................................................................................... 32
Hybrid System .................................................................................................................. ......... 12
Intuitive Parking Assist ....................................................................................................... ... 49
Lexus Enform................................................................................................................... ......... 89
Lexus Enform Safety Connect ............................................................................................ 87
LKA (Lane-Keeping Assist) .................................................................................................. 41
Multi-information Display .................................................................................................... 30
Navigation System
Register home .................................................................................................................. .............. 58
Destination search - Search by address ...............................................................................59
Destination search - Search points of intere st by name ................................................60
Destination search - Search points of interest by category .......................................... 61
Destination search - Search points of intere st by phone number .............................. 61

5
GS450h_QG_OM30F38U_(U)

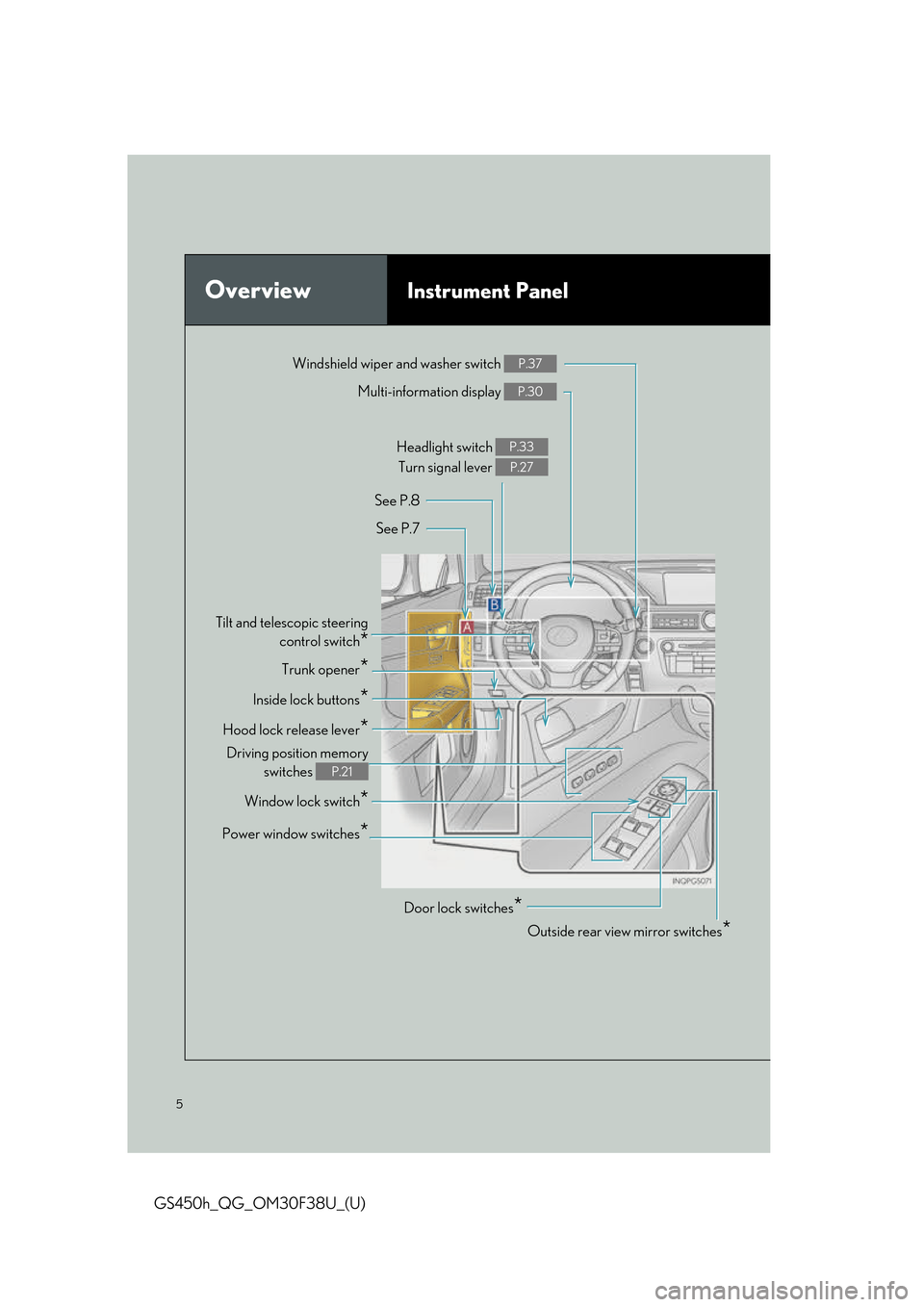

OverviewInstrument Panel
Windshield wiper and washer switch P.37
Multi-information display P.30
Headlight switch Turn signal lever P.33
P.27
Inside lock buttons*
Trunk opener*
Hood lock release lever*
Driving position memory switches
P.21
See P.8
See P.7
Window lock switch*
Power window switches*
Door lock switches*
Outside rear view mirror switches*
Tilt and telescopic steering control switch
*

7
GS450h_QG_OM30F38U_(U)

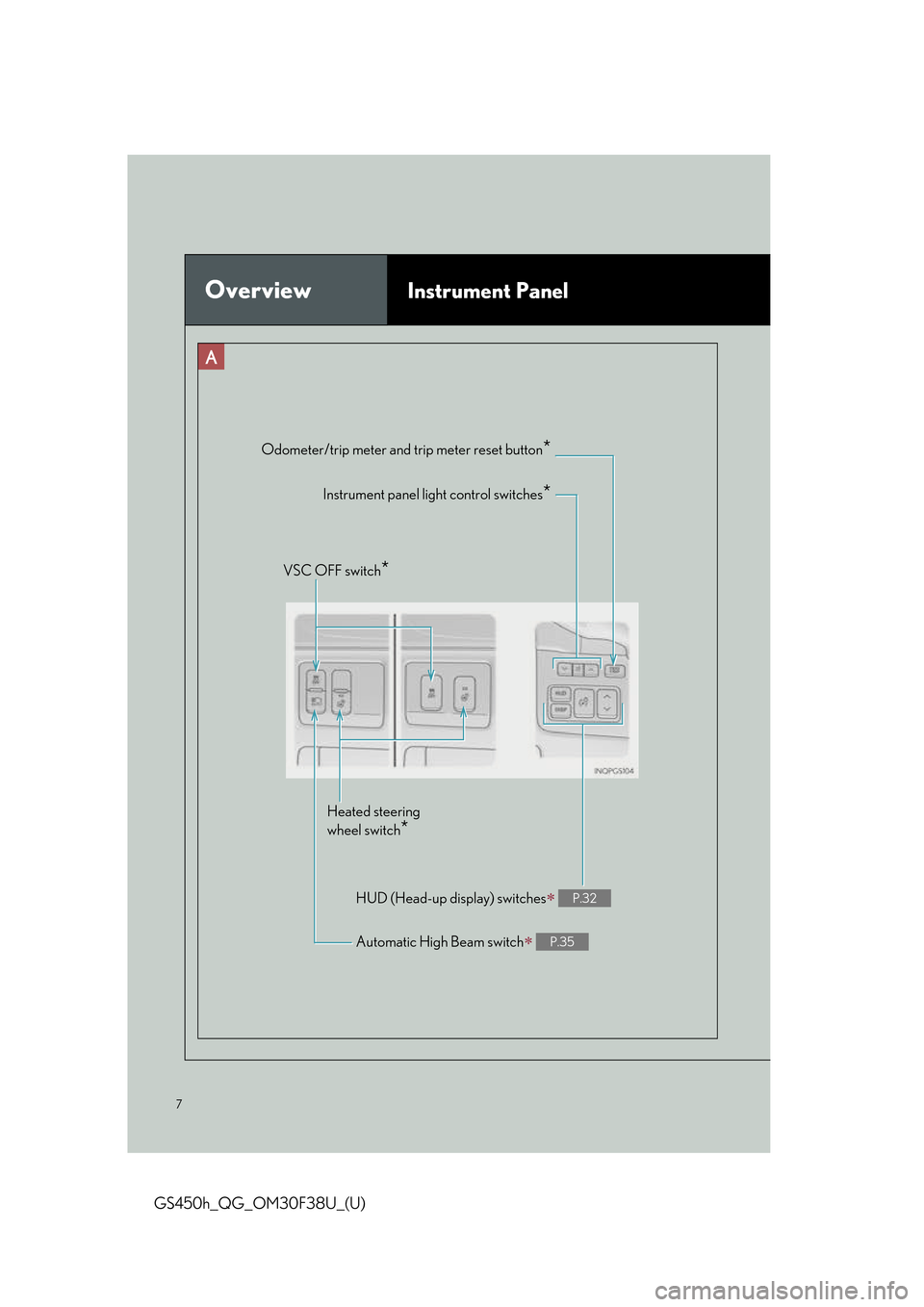

OverviewInstrument Panel
VSC OFF switch*
Instrument panel light control switches*
Odometer/trip meter and trip meter reset button*
Heated steering
wheel switch
*
HUD (Head-up display) switches P.32
Automatic High Beam switch P.35

13
GS450h_QG_OM30F38U_(U)

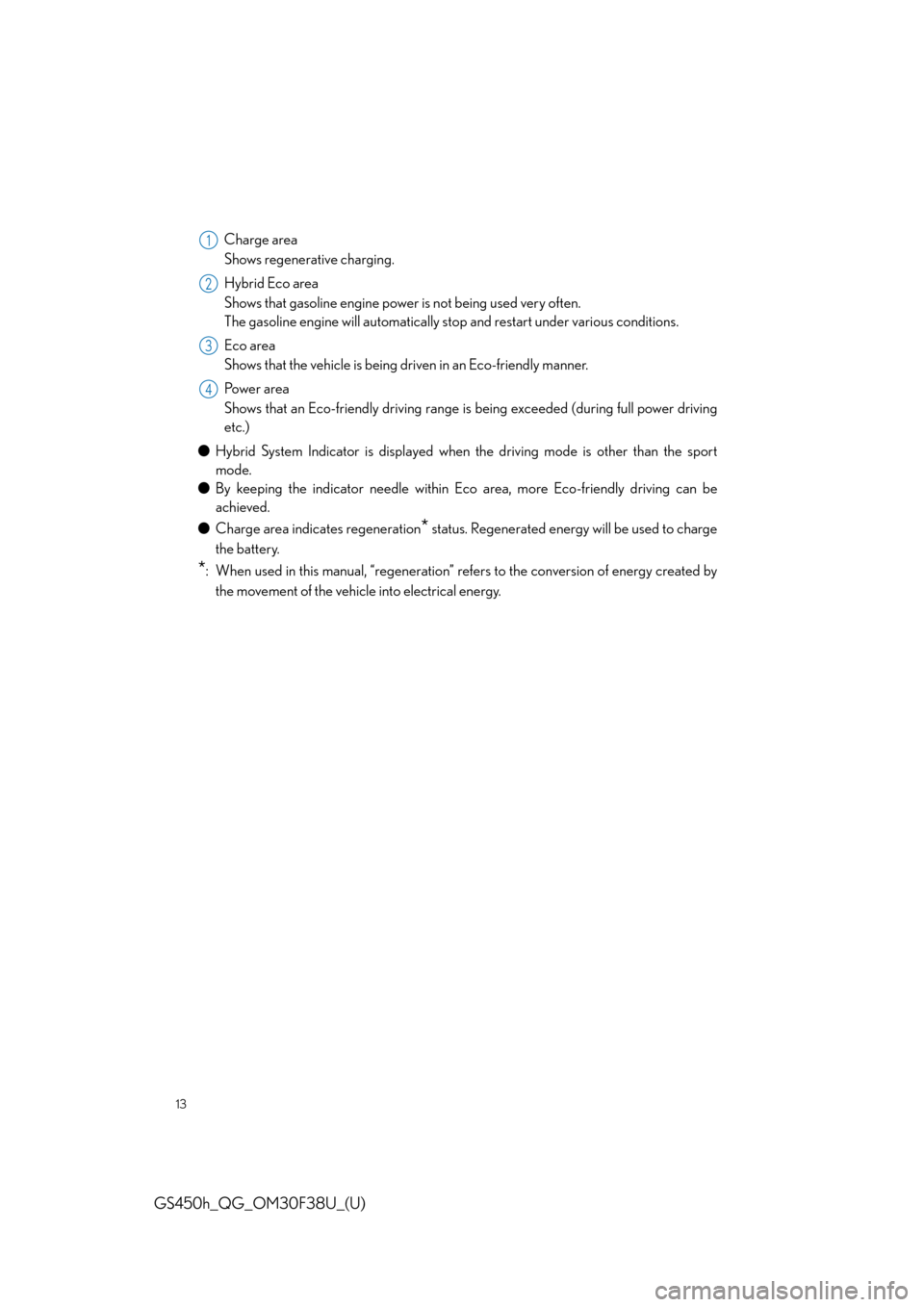

●Hybrid System Indicator is displayed when the driving mode is other than the sport
mode.
● By keeping the indicator needle within Ec o area, more Eco-friendly driving can be
achieved.
● Charge area indicates regeneration
* status. Regenerated energy will be used to charge
the battery.
*: When used in this manual, “regeneration” re fers to the conversion of energy created by
the movement of the vehicle into electrical energy. Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine powe
r is not being used very often.
The gasoline engine will automatically st op and restart under various conditions.
Eco area
Shows that the vehicle is being dr iven in an Eco-friendly manner.
Po w e r a r e a
Shows that an Eco-friendly dr iving range is being exceeded (during full power driving
etc.)
1
2
3
4

15
GS450h_QG_OM30F38U_(U)

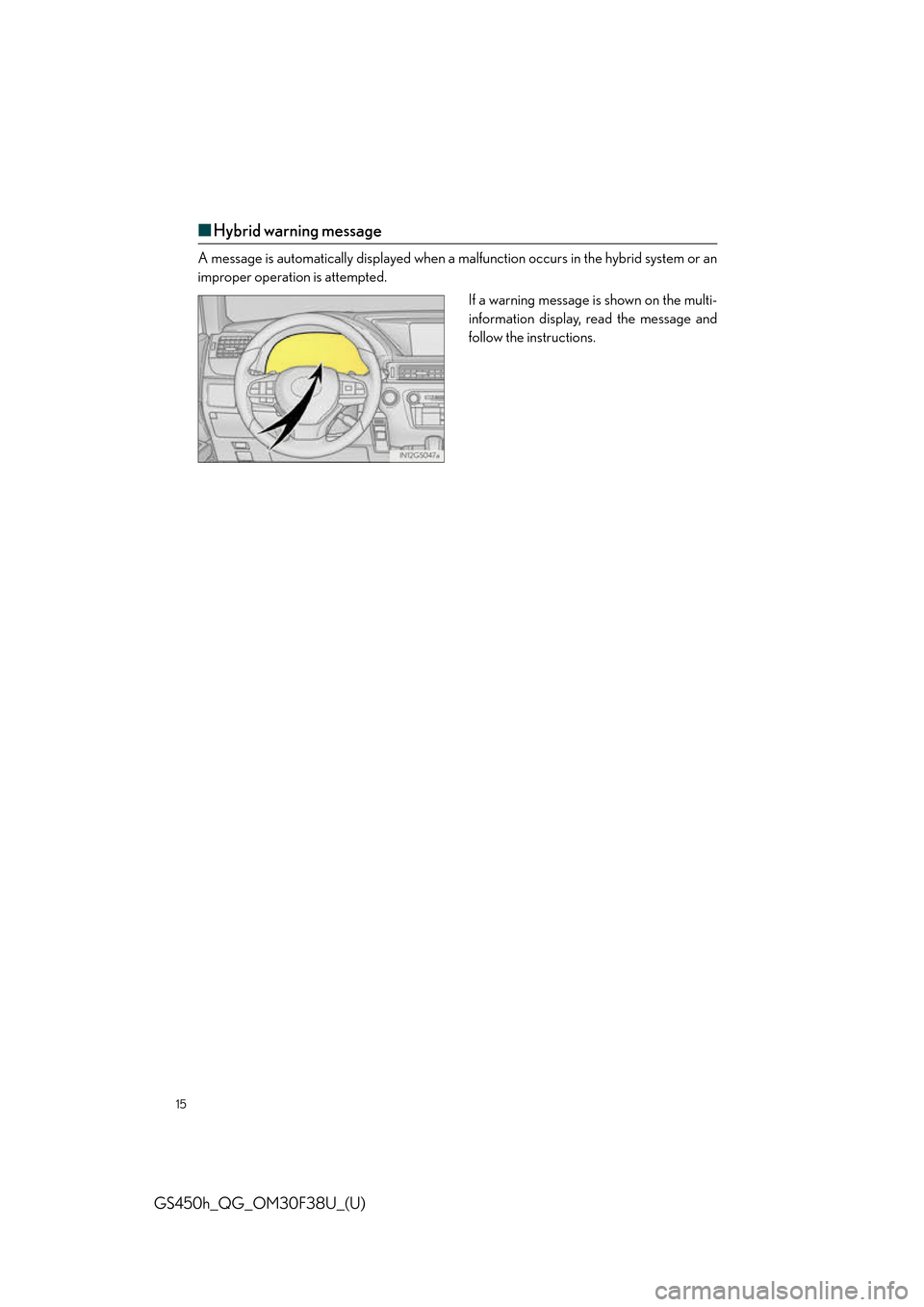

■Hybrid warning message
A message is automatically displayed when a ma lfunction occurs in the hybrid system or an
improper operation is attempted.
If a warning message is shown on the multi-
information display, read the message and
follow the instructions.

16
GS450h_QG_OM30F38U_(U)

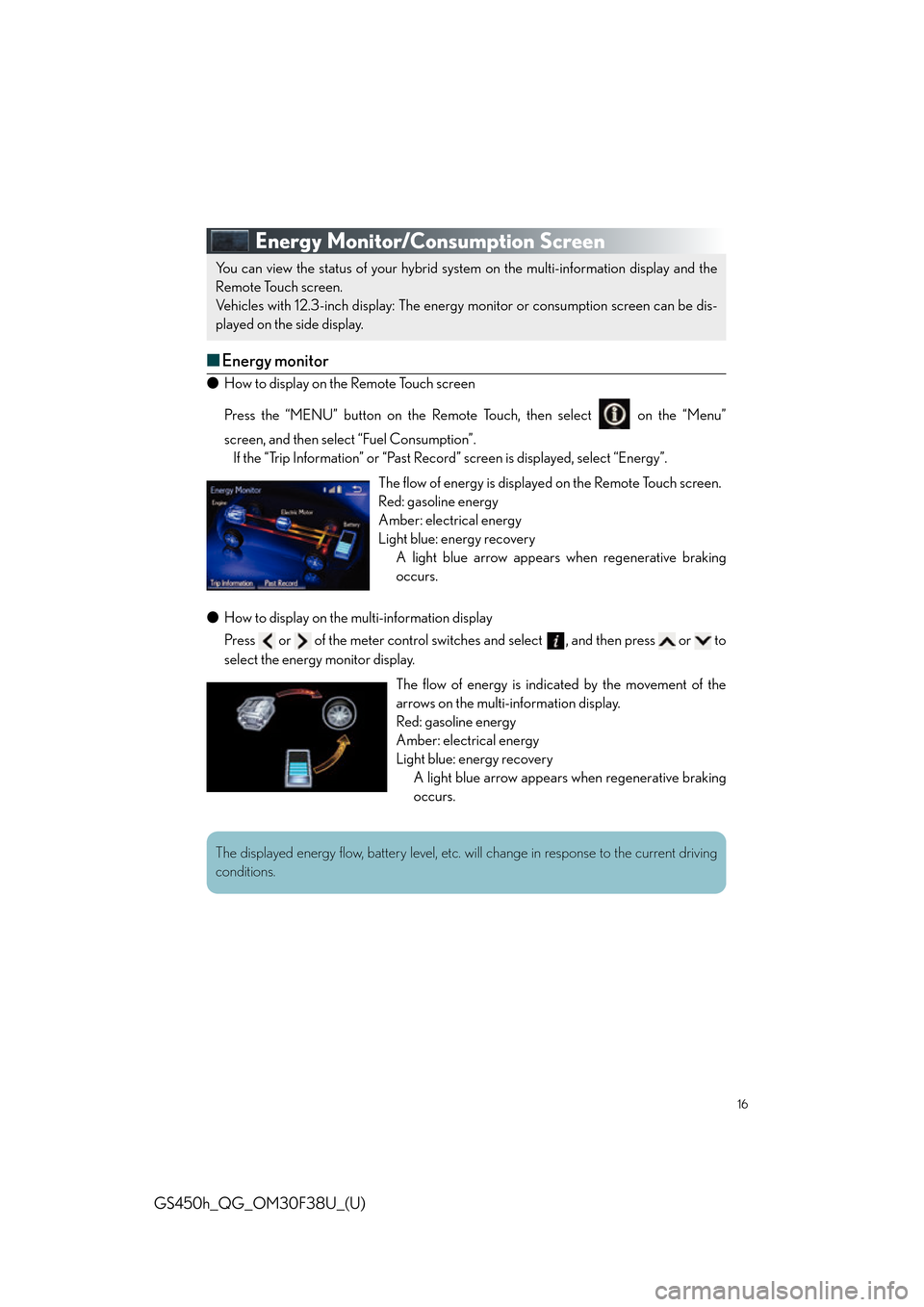

Energy Monitor/Consumption Screen
■Energy monitor
● How to display on the Remote Touch screen
Press the “MENU” button on the Remote Touch, then select on the “Menu”
screen, and then select “Fuel Consumption”.
If the “Trip Information” or “Past Record ” screen is displayed, select “Energy”.
● How to display on the mu lti-information display
Press or of the meter control switches and select , and then press or to
select the energy monitor display.
You can view the status of your hybrid syst em on the multi-information display and the
Remote Touch screen.
Vehicles with 12.3-inch display: The energy monitor or consumption screen can be dis-
played on the side display.
The flow of energy is displaye d on the Remote Touch screen.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recovery A light blue arrow appears when regenerative braking
occurs.
The flow of energy is indicated by the movement of the
arrows on the multi-information display.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recovery A light blue arrow appears when regenerative braking
occurs.
The displayed energy flow, battery level, etc. wi ll change in response to the current driving
conditions.

17
GS450h_QG_OM30F38U_(U)

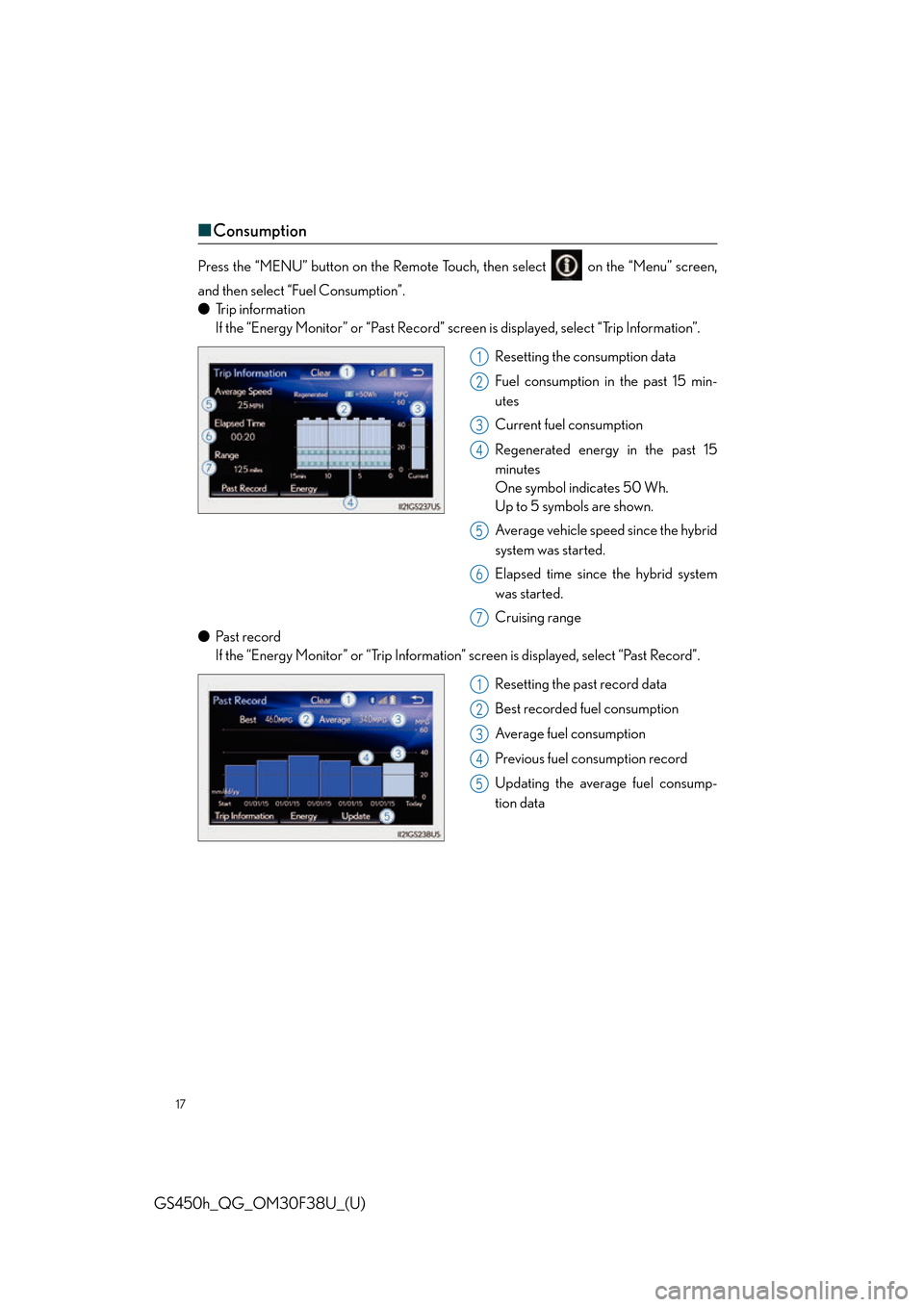

■Consumption
Press the “MENU” button on the Remote Touch, then select on the “Menu” screen,
and then select “Fuel Consumption”.
● Trip information
If the “Energy Monitor” or “Past Record” scre en is displayed, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15 min-
utes
Current fuel consumption
Regenerated energy in the past 15
minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the hybrid
system was started.
Elapsed time since the hybrid system
was started.
Cruising range
● Pa s t re c o rd
If the “Energy Monitor” or “Trip Information” screen is displayed, select “Past Record”.
Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption record
Updating the average fuel consump-
tion data
1
2
3
4
5
6
7
1
2
3
4
5

18
GS450h_QG_OM30F38U_(U)
■Side display
Vehicle information can be displayed on the side display ( P.57), then select or to
select the desired screen.
●Fuel consumption
● Pa s t re c o rd
● Trip information
● Energy monitor
The image is an example only, and may vary slightly from actual conditions.

21
GS450h_QG_OM30F38U_(U)

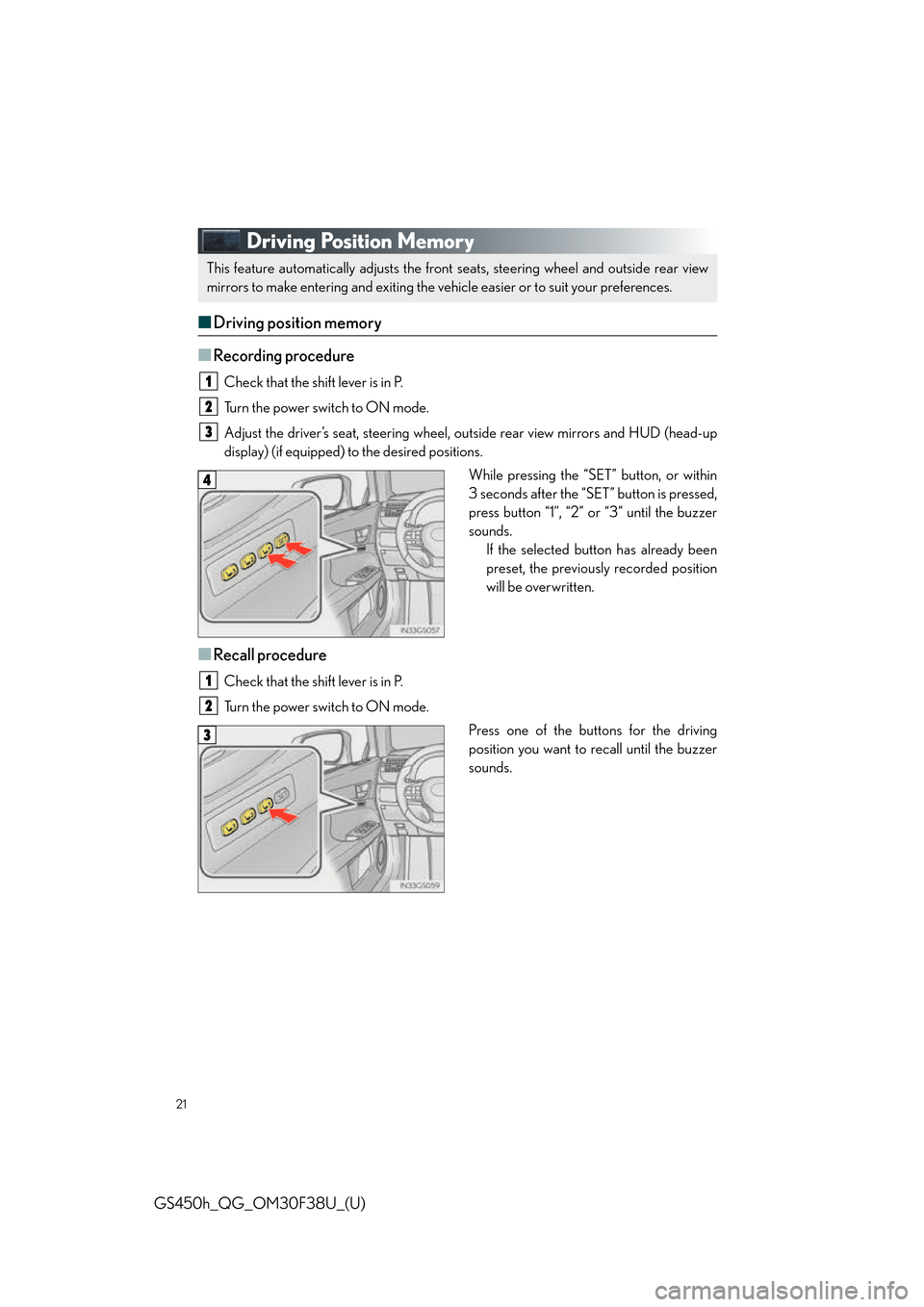

Driving Position Memory
■Driving position memory
■
Recording procedure
Check that the shift lever is in P.
Turn the power switch to ON mode.
Adjust the driver’s seat, steering wheel, outside rear view mirrors and HUD (head-up
display) (if equipped) to the desired positions.
While pressing the “SET” button, or within
3 seconds after the “SET” button is pressed,
press button “1”, “2” or “3” until the buzzer
sounds.If the selected button has already been
preset, the previously recorded position
will be overwritten.
■Recall procedure
Check that the shift lever is in P.
Turn the power switch to ON mode.
Press one of the buttons for the driving
position you want to recall until the buzzer
sounds.
This feature automatically adjusts the front seats, steering wheel and outside rear view
mirrors to make entering and exiting the vehicle easier or to suit your preferences.
1
2
3
4
1
2
3
