Lexus GS450h 2017 Owner's Manual

251
4
4-3. Operating the lights and wipers
Driving
GS450h_300h_OM_OM30F92E_(EE)

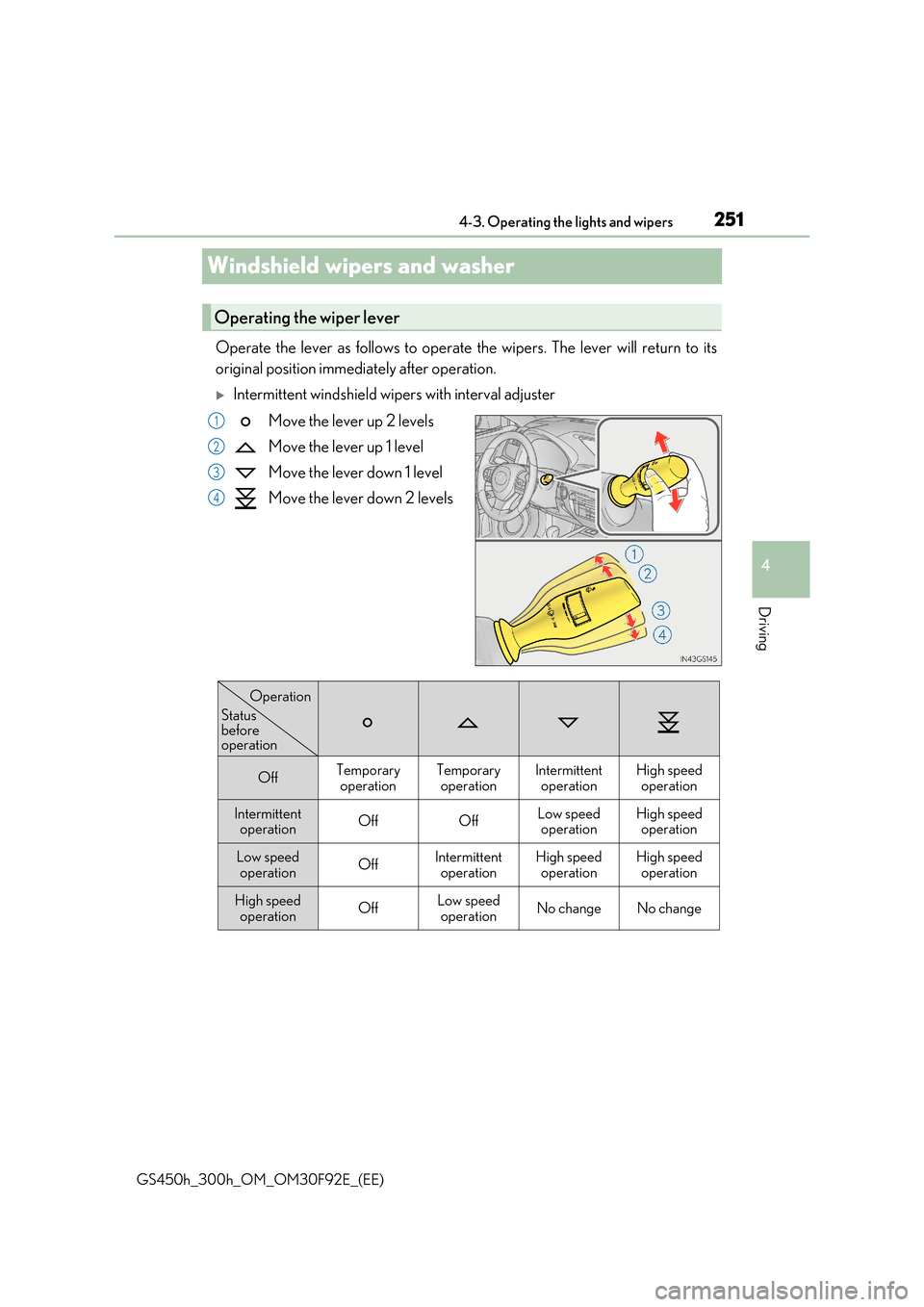

Windshield wipers and washer
Operate the lever as follows to operate the wipers. The lever will return to its
original position immediately after operation.
Intermittent windshield wipers with interval adjuster
Move the lever up 2 levels
Move the lever up 1 level
Move the lever down 1 level
Move the lever down 2 levels
Operating the wiper lever
1
2
3
4
OffTemporary
operation
Temporary
operation
Intermittent
operation
High speed
operation
Intermittent operationOffOffLow speedoperationHigh speedoperation
Low speed operationOffIntermittentoperationHigh speedoperationHigh speedoperation
High speed
operationOffLow speed
operationNo changeNo change
Status before operation
Operation

2524-3. Operating the lights and wipers
GS450h_300h_OM_OM30F92E_(EE)

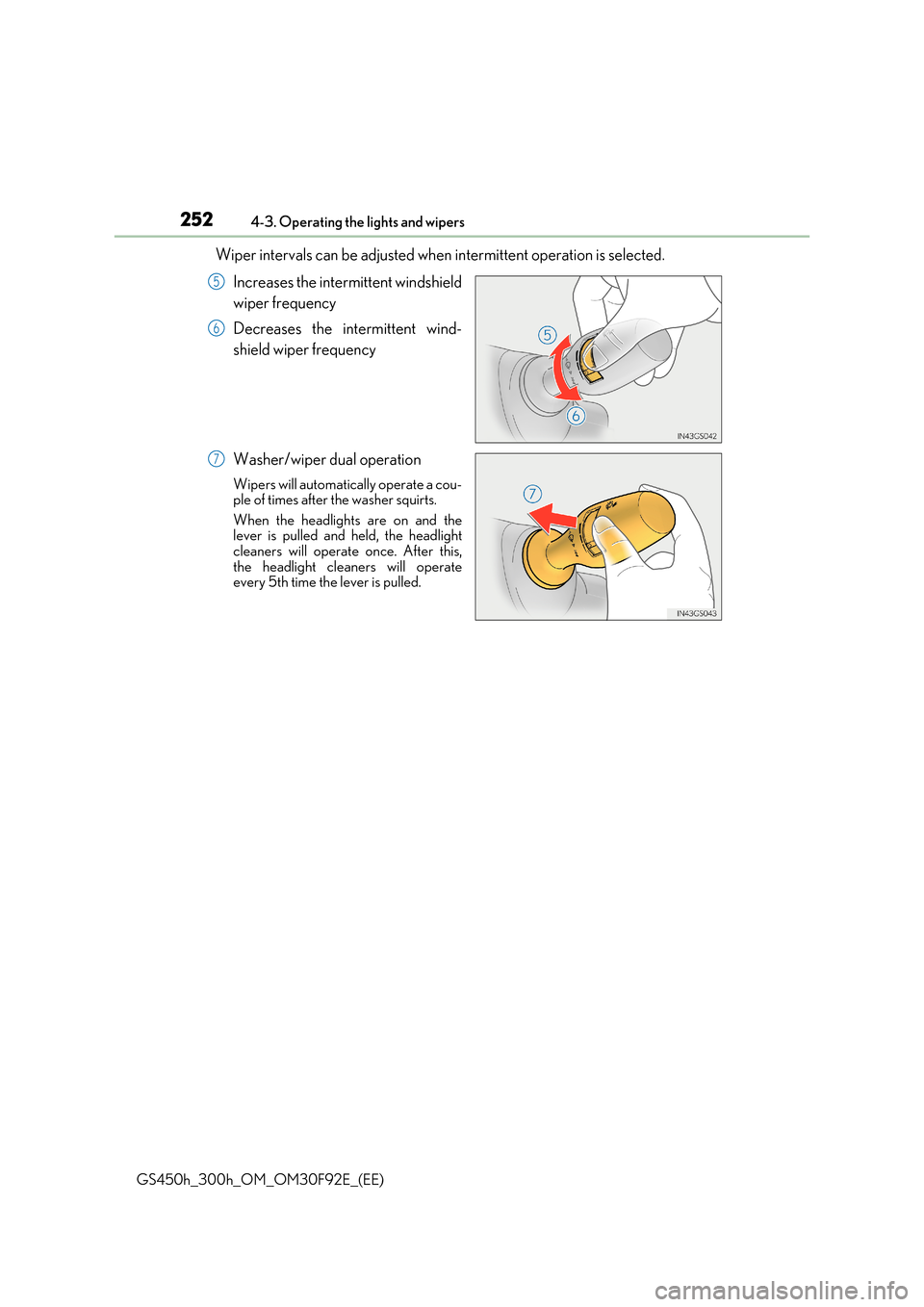

Wiper intervals can be adjusted when intermittent operation is selected.
Increases the intermittent windshield
wiper frequency
Decreases the intermittent wind-
shield wiper frequency
Washer/wiper dual operation
Wipers will automatically operate a cou- ple of times after the washer squirts.
When the headlights are on and the lever is pulled and held, the headlightcleaners will operate once. After this,
the headlight cleaners will operate every 5th time the lever is pulled.
5
6
7

2534-3. Operating the lights and wipers
4
Driving
GS450h_300h_OM_OM30F92E_(EE)
Rain-sensing windshield wipers
Move the lever up 2 levels
Move the lever up 1 level
Move the lever down 1 level
Move the lever down 2 levels
AUTO mode on/off switch
With AUTO mode selected, the wipers will operate automatically when the sen-sor detects falling rain. The system auto-
matically adjusts wiper timing in accordance with rain volume and vehi-cle speed.
AUTO mode indicator will turn on when AUTO mode is selected.
*1: After temporary operation, the mode will return to AUTO mode.
*2: AUTO mode will be canceled.
AUTO mode
indicator
1
2
3
4
5
OffTemporary operationTemporary operationLow speedoperationHigh speedoperation
Low speed operationOffOffHigh speedoperationHigh speedoperation
High speed
operationOffLow speed
operationNo changeNo change
AUTO mode
Intermittent operationOff
Temporaryoperation*1Low speedoperation*2High speedoperation*2
ContinuouslyNo change
Operation
Status beforeoperation

2544-3. Operating the lights and wipers
GS450h_300h_OM_OM30F92E_(EE)
When AUTO mode is selected, the sensor sensitivity can be adjusted by turning
the switch ring.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
Wipers will automatically operate a cou-
ple of times after the washer squirts.
When the headlights are on and the lever is pulled and held, the headlight
cleaners will operate once. After this, the headlight cleaners will operateevery 5th time the lever is pulled.
The wipers can be used as intermittent windshield wipers, which operate regard-
less of vehicle speed or amount of raindrops. The intermittent windshield wiper
operation can be switched when the vehicle is stopped and the wiper is off. The
wiper operation cannot be switched during AUTO mode or while the intermit-
tent windshield wipers are operating.
Press and hold until the AUTO
mode indicator stops flashing.
If is pressed and held until the
AUTO mode indicator stops flashing again, it will return to its previous state.
6
7
8
Switching between the intermittent wi ndshield wipers and rain-sensing
windshield wipers (vehicles with rain-sensing windshield wipers)

2554-3. Operating the lights and wipers
4
Driving
GS450h_300h_OM_OM30F92E_(EE)
■The windshield wiper and washer can be operated when
The power switch is in ON mode.
■Dripping prevention wiper sweep
After washing and wiping operation several times, the wipers operate one more time
after a short delay to prevent dripping.
However, the last sweep will not happen while the vehicle is moving.
■Effects of vehicle speed on wiper operation
●Intermittent windshield wipers interval changes when the vehicle is stopped.
●With low speed operation selected, wiper operation will be switched from low speed to intermittent operation only when the vehicle is stationary.
■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If AUTO mode is selected while the power sw itch is in ON mode, the wipers will oper- ate once to show that AUTO mode is activated.
●If the temperature of the raindrop sensor is 85°C (185°F) or higher, or -30°C (-22°F) or lower, automatic operation may not occur. In this case, operate the wip-ers in any mode other than AUTO mode.
■When the windshield wipers are in temporary operation
AUTO mode cannot be activated even if is pressed.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the windshield washer fluid reservoir.
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is adopted. It may not oper- ate properly when sunlight from the rising or
setting of the sun intermittently strikes the windshield, or if bugs etc. are present on thewindshield.
WARNING
■Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the wind- shield is subject to vibration in AUTO mode. Take care that your fingers or anything
else do not become caught in the windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes warm. The
fluid may freeze on the windshield and cause low visibility. This may lead to an accident, resulting in death or serious injury.

2564-3. Operating the lights and wipers
GS450h_300h_OM_OM30F92E_(EE)
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you and held continually.
■When a nozzle becomes blocked
In this case, contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer. Do not try to clear it with a pin or other object. The nozzle will be damaged.
■When standing the windshield wipers up
Raise the wipers in line with the windshield. ( P. 337) Failure to do so may result in damage to the wipers and/or the hood.

257
4
4-4. Refueling
Driving
GS450h_300h_OM_OM30F92E_(EE)
Opening the fuel tank cap
●Turn the power switch off and ensure that all the doors and windows are
closed.
●Confirm the type of fuel.
■Fuel types
 P. 559
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only accom- modates the special nozzle on unleaded fuel pumps.
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle
WARNING
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may result in death or serious injury.
●After exiting the vehicle and before opening the fuel door, touch an unpainted metalsurface to discharge any static electricity. It is important to discharge static electricity before refueling because sparks resulting fr om static electricity can cause fuel vapors
to ignite while refueling.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it. A whooshing sound may be heard when the fuel tank cap is loosened. Wait until the
sound cannot be heard before fully removing the cap. In hot weather, pressurized fuel may spray out the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their body to come
close to an open fuel tank.
●Do not inhale vaporized fuel. Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■When refueling
Observe the following precautions to prevent fuel overflowing from the fuel tank:
●Securely insert the fuel nozzle into the fuel filler neck.
●Stop filling the tank after the fuel nozzle automatically clicks off.
●Do not top off the fuel tank.

2584-4. Refueling
GS450h_300h_OM_OM30F92E_(EE)

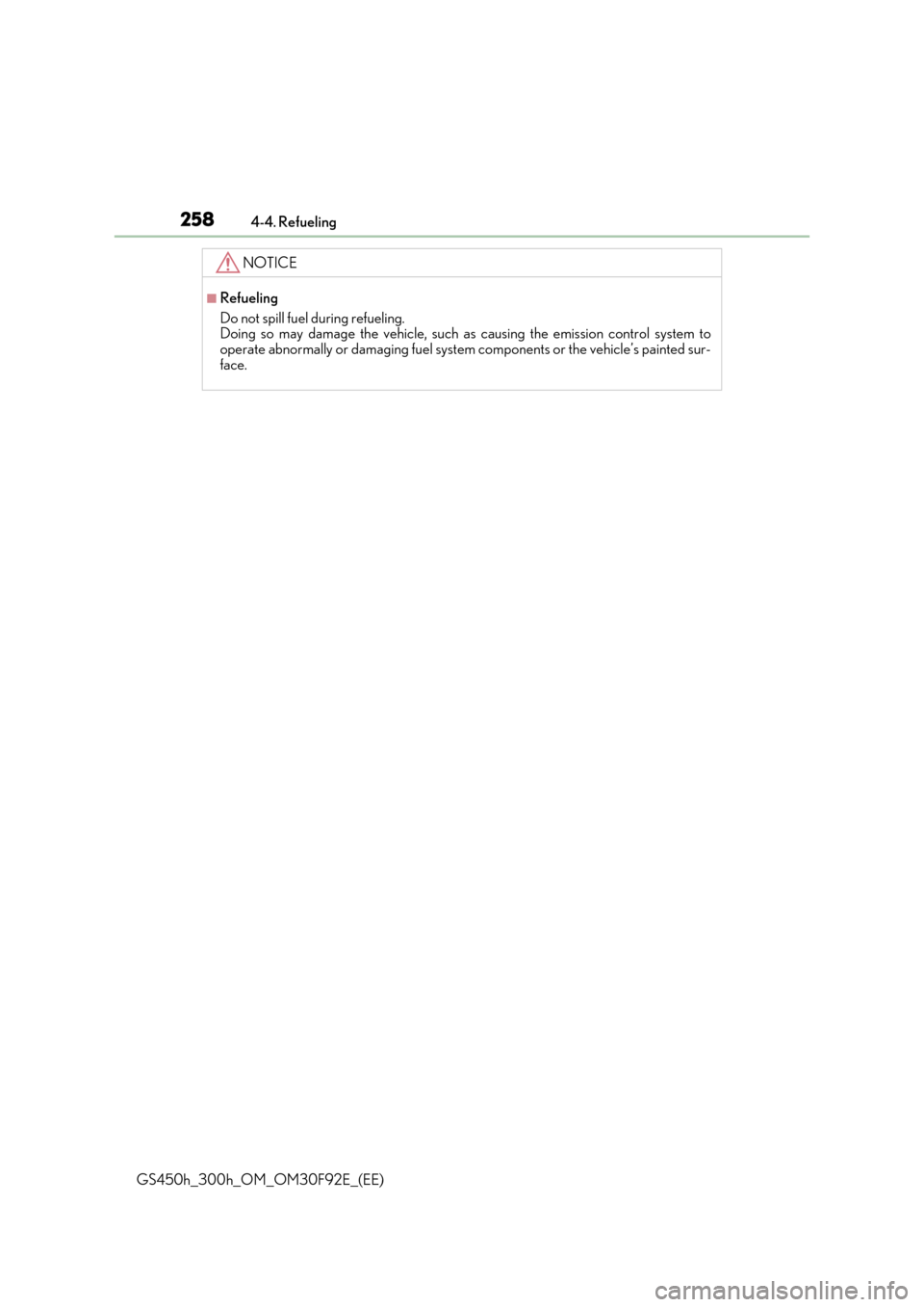

NOTICE
■Refueling
Do not spill fuel during refueling. Doing so may damage the vehicle, such as causing the emission control system to
operate abnormally or damaging fuel system components or the vehicle’s painted sur- face.

2594-4. Refueling
4
Driving
GS450h_300h_OM_OM30F92E_(EE)
With the doors unlocked, press the
center of the rear edge of the fuel
filler door.
Push until you hear a click and take your hand away to slightly open the fuel filler
door. Then open the door fully by hand.
Turn the fuel tank cap slowly to
remove it and put it into the holder
on the fuel filler door.
■When the fuel filler door cannot be opened by pressing the rearward of the fuel filler door
Opening the fuel tank cap
1
2
Remove the cover inside the trunk and pull thelever.

2604-4. Refueling
GS450h_300h_OM_OM30F92E_(EE)

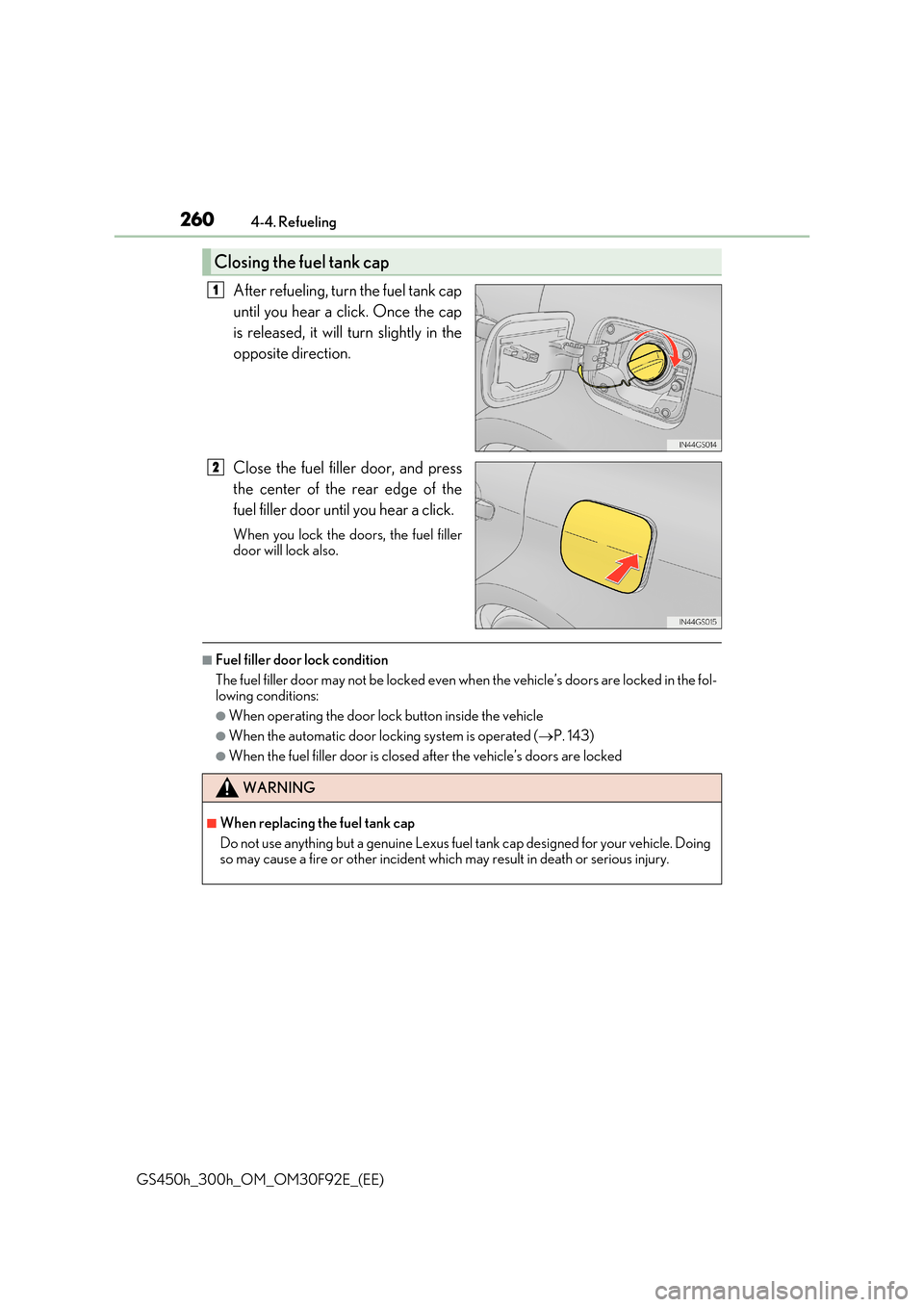

After refueling, turn the fuel tank cap
until you hear a click. Once the cap
is released, it will turn slightly in the
opposite direction.
Close the fuel filler door, and press
the center of the rear edge of the
fuel filler door until you hear a click.
When you lock the doors, the fuel filler door will lock also.
■Fuel filler door lock condition
The fuel filler door may not be locked even wh en the vehicle’s doors are locked in the fol-
lowing conditions:
●When operating the door lock button inside the vehicle
●When the automatic door locking system is operated (P. 143)
●When the fuel filler door is closed after the vehicle’s doors are locked
Closing the fuel tank cap
1
2
WARNING
■When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle. Doing so may cause a fire or other incident whic h may result in death or serious injury.
