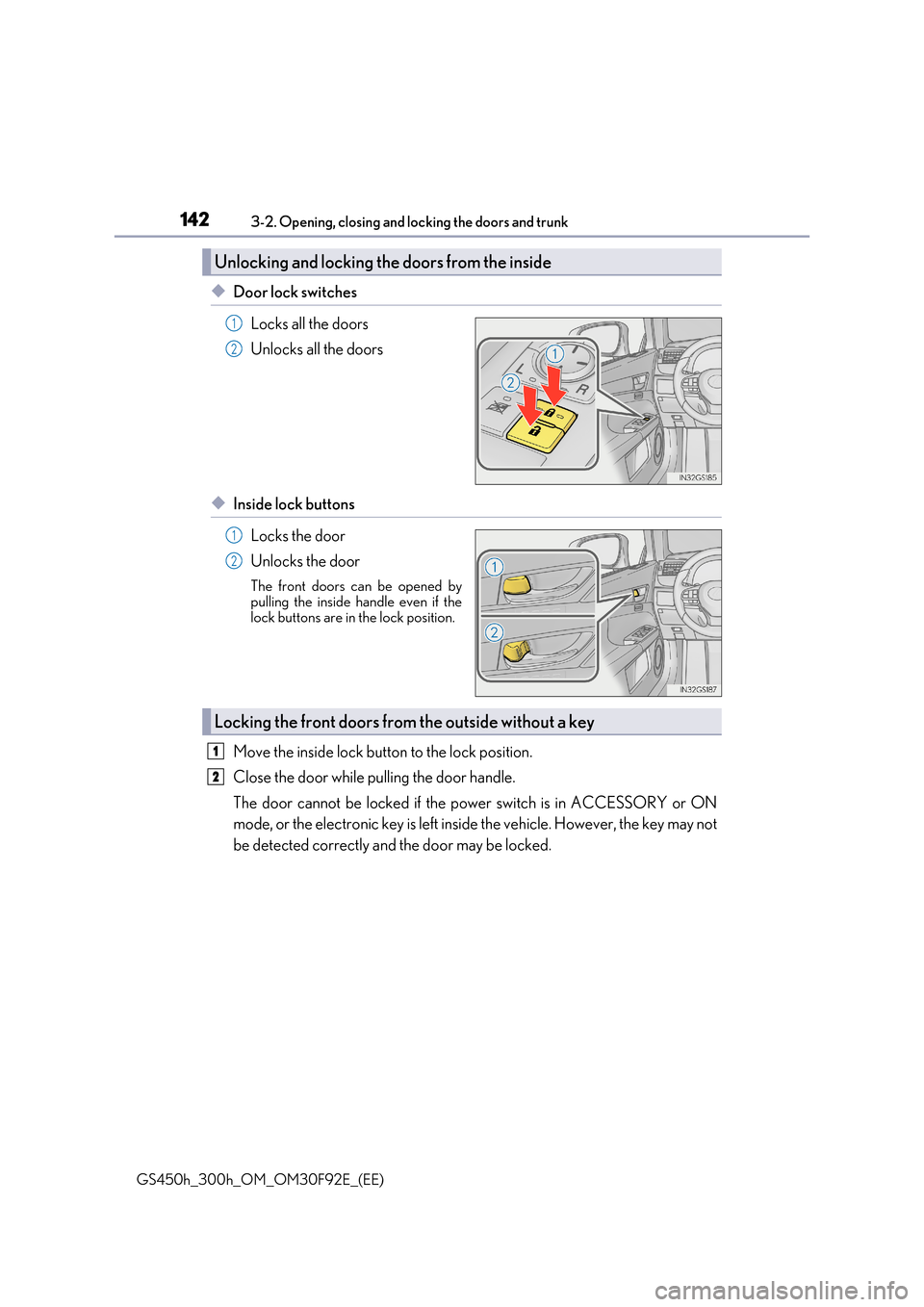

key Lexus GS450h 2017 Owner's Guide

1423-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30F92E_(EE)
◆Door lock switches
Locks all the doors
Unlocks all the doors
◆Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened by
pulling the inside ha ndle even if the lock buttons are in the lock position.
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
The door cannot be locked if the power switch is in ACCESSORY or ON
mode, or the electronic key is left inside the vehicle. However, the key may not
be detected correctly and the door may be locked.
Unlocking and locking th e doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2

1443-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30F92E_(EE)
■Switching the door unlock function (vehicles with entry function)
It is possible to set which doors the entry fu nction unlocks using the wireless remote con- trol.
Turn the power switch off.
Cancel the intrusion sensor and tilt sensor of the alarm system to prevent unintended triggering of the alarm during the setting change. (if equipped) ( P. 94)
When the indicator light on the key su rface is not on, press and hold or
for approximately 5 seconds wh ile pressing and holding .
The setting changes each time an operatio n is performed, as shown below. (When changing the setting continuously, release the buttons, wait for at least 5 seconds, and
repeat step .)
For vehicles with alarm: To prevent unintended triggering of the alarm, unlock the doors using the wireless remote control and open and close a door once after the settings have
been changed. (If a door is not opened within 30 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. ( P. 92)
1
2
3
3
Multi-information displayUnlocking functionBeep
(Left-hand drive vehicles)
(Right-hand drive vehicles)
Holding the driver’s door handleunlocks only the driver’s door.
Exterior: Beeps 3 timesInterior: Pings onceHolding a passenger’s door han-dle unlocks all the doors.
Holding a door handle unlocks
all the doors.
Exterior: Beeps twice
Interior: Pings once

1453-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS450h_300h_OM_OM30F92E_(EE)
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked. Depending on the force of the impact or the type of accident, however, the system may
not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. ( P. 527)
■Conditions affecting the operation of the smart entry & start system or wireless remote control
 P. 155
■Customization
Settings (e.g. unlocking function using a key) can be changed. (Customizable features: P. 561)
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle. Failure to do so may result in a door openin g and an occupant throwing out of the vehi- cle, resulting in death or serious injury.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving. Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the rear seats.

1463-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30F92E_(EE)
Trunk
Press the opener switch.
If the vehicle is equipped with a power trunk lid, the trunk lid automatically
opens fully.
◆Smart entry & start system (vehicles with entry function)
While carrying the electronic key,
press the button.
When all the doors are unlocked with
the power door lock system, the trunk can be opened without carry-ing the electronic key.
If the vehicle is equipped with a power trunk lid, the trunk lid auto-matically opens fully.
The trunk can be opened using the trun k opener, entry function or wireless
remote control.
If the vehicle is equipped with a power trunk lid, the trunk can be closed using
the trunk closer.
Opening the trunk from inside the vehicle
Opening the trunk from outside the vehicle

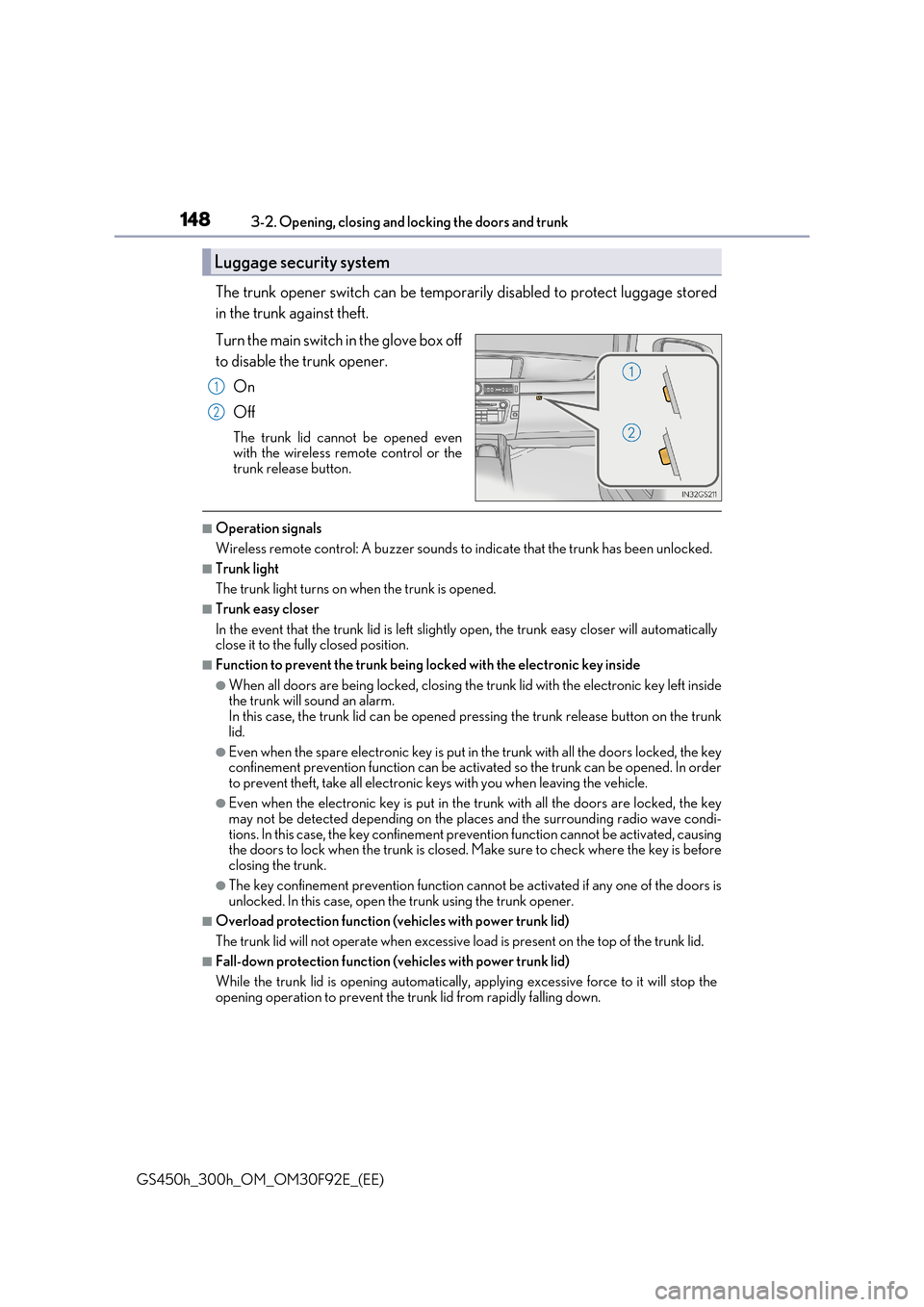

1483-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30F92E_(EE)
The trunk opener switch can be temporarily disabled to protect luggage stored
in the trunk against theft.
Turn the main switch in the glove box off
to disable the trunk opener.
On
Off
The trunk lid cannot be opened even with the wireless remote control or the
trunk release button.
■Operation signals
Wireless remote control: A buzzer sounds to indicate that the trunk has been unlocked.
■Trunk light
The trunk light turns on when the trunk is opened.
■Trunk easy closer
In the event that the trunk lid is left slight ly open, the trunk easy closer will automatically close it to the fully closed position.
■Function to prevent the trunk being locked with the electronic key inside
●When all doors are being locked, closing the tr unk lid with the electronic key left inside the trunk will sound an alarm.In this case, the trunk lid can be opened pressing the trunk release button on the trunk
lid.
●Even when the spare electronic key is put in the trunk with all the doors locked, the key confinement prevention function can be activated so the trunk can be opened. In order
to prevent theft, take all electronic keys with you when leaving the vehicle.
●Even when the electronic key is put in the trunk with all the doors are locked, the key may not be detected depending on the places and the surrounding radio wave condi-
tions. In this case, the key confinement prevention function cannot be activated, causing the doors to lock when the trunk is closed. Make sure to check where the key is beforeclosing the trunk.
●The key confinement prevention function cannot be activated if any one of the doors isunlocked. In this case, open the trunk using the trunk opener.
■Overload protection function (vehicles with power trunk lid)
The trunk lid will not operate when excessive lo ad is present on the top of the trunk lid.
■Fall-down protection function (vehicles with power trunk lid)
While the trunk lid is opening automatically, applying excessive force to it will stop the
opening operation to prevent the trunk lid from rapidly falling down.
Luggage security system
1
2

1493-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS450h_300h_OM_OM30F92E_(EE)
■Jam protection function (vehicles with power trunk lid)
While the trunk lid is closing automatically, the trunk lid will stop closing and open if something gets caught.
■If the smart entry & start system or wireless remote control does not operate properly
●Use the mechanical key to open the trunk. ( P. 527)
●Replace the key battery with a new one if it is depleted. (P. 435)
■When leaving a key to the vehicle with a parking attendant
 P. 136
■Customization
The trunk unlocking operation can be changed. (Customizable features: P. 566)
WARNING
Observe the following precautions. Failure to do so may result in death or serious injury.
■Before driving
●Make sure that the trunk lid is fully closed. If the trunk lid is not fully closed, it may open unexpectedly while driv ing and hit near-by objects or luggage in the trunk may
be thrown out, causing an accident.
●Do not allow children to play in the trunk. If a child is accidentally locked in the trunk, they could suffer from heat exhaustion,
suffocation or other injuries.
●Do not allow a child to open or close the trunk lid. Doing so may cause the trunk lid to open unexpectedly, or cause the child’s hands,
head, or neck to be caught by the closing trunk lid.
■Important points while driving
Never let anyone sit in the trunk. In the event of sudden braking or a collision, they are
susceptible to death or serious injury.

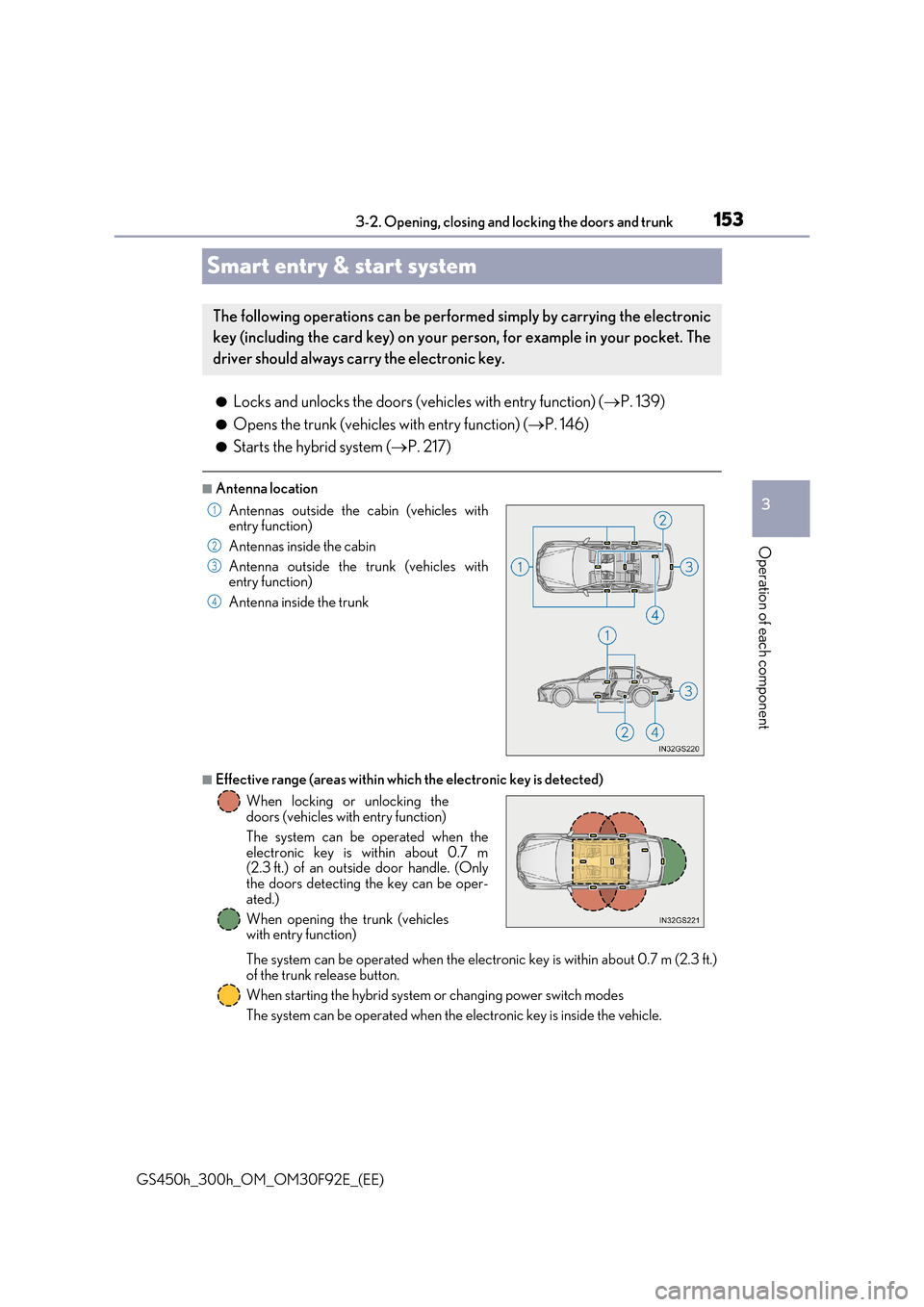

153
3
3-2. Opening, closing and locking the doors and trunk
Operation of each component
GS450h_300h_OM_OM30F92E_(EE)
Smart entry & start system
●Locks and unlocks the doors (vehicles with entry function) ( P. 139)
●Opens the trunk (vehicles with entry function) (P. 146)
●Starts the hybrid system (P. 217)
■Antenna location
■Effective range (areas within which the electronic key is detected)
The system can be operated when the electronic key is within about 0.7 m (2.3 ft.) of the trunk release button.
When starting the hybrid system or changing power switch modes
The system can be operated when the electronic key is inside the vehicle.
The following operations can be performed simply by carrying the electronic
key (including the card key) on your person, for example in your pocket. The
driver should always carry the electronic key.
Antennas outside the cabin (vehicles with entry function)
Antennas inside the cabin
Antenna outside the trunk (vehicles with entry function)
Antenna inside the trunk
When locking or unlocking the doors (vehicles with entry function)
The system can be operated when the
electronic key is within about 0.7 m (2.3 ft.) of an outside door handle. (Onlythe doors detecting the key can be oper-
ated.)
When opening the trunk (vehicles with entry function)
1
2
3
4

1543-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30F92E_(EE)
■Alarms and warning indicators
An alarm sounds and warning message displa ys shown on the multi-information display are used to protect against unexpected accidents or theft of the vehicle resulting from
erroneous operation. When a warning message is displayed, take appropriate measures based on the displayed message. ( P. 493)
When only an alarm sounds, circumstances and correction procedures are as follows.
■Battery-saving function (vehicles with entry function)
The battery-saving function will be activated in order to prevent the electronic key bat- tery and the 12-volt battery from being discharged while the vehicle is not in operationfor a long time.
●In the following situations, the smart entry & start system may take some time to unlock the doors.
• The electronic key has been left in an area of approximately 2 m (6 ft.) of the outside
of the vehicle for 10 minutes or longer. • The smart entry & start system has not been used for 5 days or longer.
●If the smart entry & start system has not been used for 14 days or longer, the doors can-not be unlocked at any doors except the driver’s door. In this case, take hold of thedriver’s door handle, or use the wireless remote control or the mechanical key, to
unlock the doors.
AlarmSituationCorrection procedure
Exterior alarm sounds once for 5 seconds
The trunk was closed whilethe electronic key was still
inside the trunk and all the doors were locked.
Retrieve the electronic keyfrom the trunk and closethe trunk lid.
An attempt was made tolock the vehicle while a
door was open.
Close all of the doors and lock the doors again.
Interior alarm sounds con-tinuously
The power switch wasturned to ACCESSORYmode while the driver’s
door was open (or the driver’s door was openedwhile the power switch was
in ACCESSORY mode).
Turn the power switch off and close the driver’s door.

1553-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS450h_300h_OM_OM30F92E_(EE)
■Electronic Key Battery-Saving Function
When battery-saving mode is set, battery de pletion is minimized by stopping the elec- tronic key from receiving radio waves.
■Conditions affecting operation
The smart entry & start system uses weak ra dio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventingthe smart entry & start system, wireless re mote control and immobilizer system from
operating properly. (Ways of coping: P. 527)
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display, airport or
other facility that gene rates strong radio waves or electrical noise
●When the electronic key is in contact with, or is covered by the following metallic objects
• Cards to which aluminum foil is attached • Cigarette boxes that have aluminum foil inside• Metallic wallets or bags
•Coins • Hand warmers made of metal• Media such as CDs and DVDs
●When other wireless keys (that emit radio waves) are being used nearby
●When carrying the electronic key together with the following devices that emit radio
waves
• When carrying a portable radio, cellular phone, cordless phone or other wireless communication device
• Another vehicle’s electronic key or a wireless key that emits radio waves • Personal computers or personal digital assistants (PDAs)• Digital audio players
• Portable game systems
●If window tint with a metallic content or me tallic objects are attached to the rear win-
dow
●When the electronic key is placed near a battery charger or electronic devices
Press twice while pressing and holding
. Confirm that the electronic key indica-
tor flashes 4 times. While the battery-saving mode is set, the smart
entry & start system cannot be used. To cancel the function, press any of the electronic key but-tons.

1563-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30F92E_(EE)
■Note for the entry function (if equipped)
●Even when the electronic key is within the effective range (detection areas), the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.• The electronic key is near the ground or in a high place, or too close to the rear
bumper center when the trunk is opened. • The electronic key is on the instrument pa nel, rear package tray or floor, or in the door pockets or glove box when the hybrid system is started or power switch modes
are changed.
●Do not leave the electronic key on top of th e instrument panel or near the door pockets
when exiting the vehicle. Depending on the radio wave reception conditions, it may be detected by the antenna outside the cabin and the door will become lockable from theoutside, possibly trapping the electronic key inside the vehicle.
●As long as the electronic key is within the effective range, the doors may be locked orunlocked by anyone. However, only the doors detecting the electronic key can be usedto unlock the vehicle.
●The doors may unlock or lock if a large amou nt of water splashes on the door handle, such as in the rain or in a car wash when the electronic key is within the effective range.(The doors will automatically be locked after approximately 30 seconds if the doors
are not opened and closed.)
●If the wireless remote control is used to lock the doors when the electronic key is near the vehicle, there is a possibility that the d oor may not be unlocked by the entry func-
tion. (Use the wireless remote control to unlock the doors.)
●Touching the door lock sensor while wearin g gloves may delay or prevent lock opera- tion.
●If the door handle becomes wet while the electronic key is within the effective range,the door may lock and unlock repeatedly. In that case, follow the following correction
procedures to wash the vehicle:
• Place the electronic key in a location 2 m (6 ft.) or more away from the vehicle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-saving mode to disable the smart entry & start sys- tem. ( P. 155)
●If the electronic key is inside the vehicle and a door handle becomes wet during a car wash, a message may be shown on the mult i-information display and a buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.
●The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc. Clean the lock sensor and attempt to operate it again, or use the lock sensor on thelower part of the door handle.
●A sudden approach to the effective range or door handle may prevent the doors frombeing unlocked. In this case, return the door handle to the original position and check that the doors unlock before pulling the door handle again.
●Gripping the door handle when wearing a glove may not unlock the door.
●If there is another electronic key in the de tection area, it may take slightly longer to unlock the doors after the door handle is gripped.
●Fingernails may scrape against the door duri ng operation of the door handle. Be care- ful not to injure fingernails or damage the surface of the door.
