4697-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
(If equipped)

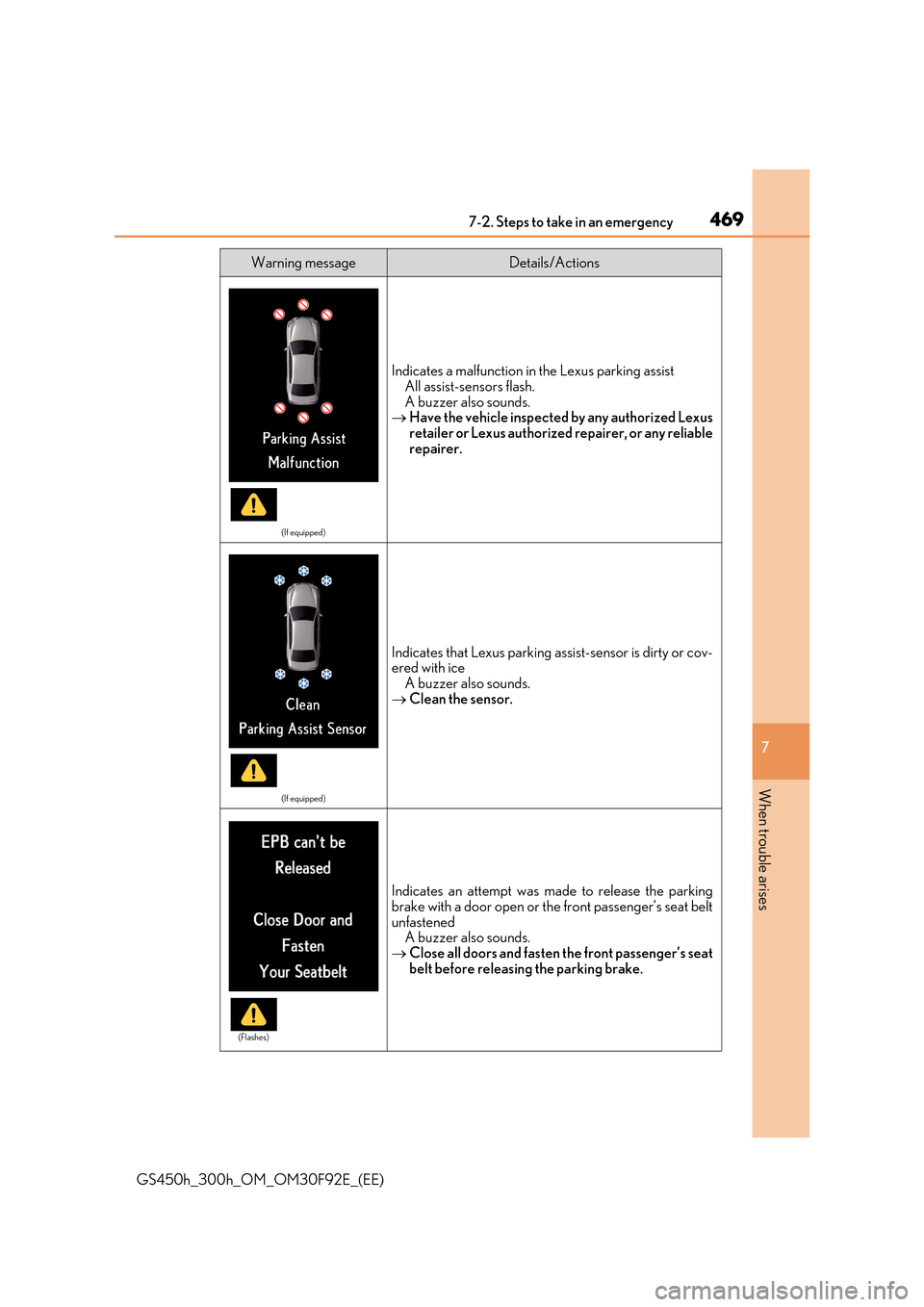

Indicates a malfunction in the Lexus parking assist All assist-sensors flash.
A buzzer also sounds.  Have the vehicle inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.
(If equipped)
Indicates that Lexus parking a ssist-sensor is dirty or cov- ered with ice
A buzzer also sounds.  Clean the sensor.
Indicates an attempt was made to release the parking
brake with a door open or the front passenger’s seat belt unfastenedA buzzer also sounds.
 Close all doors and fasten the front passenger’s seat belt before releasing the parking brake.
Warning messageDetails/Actions
(Flashes)

4767-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
(If equipped)

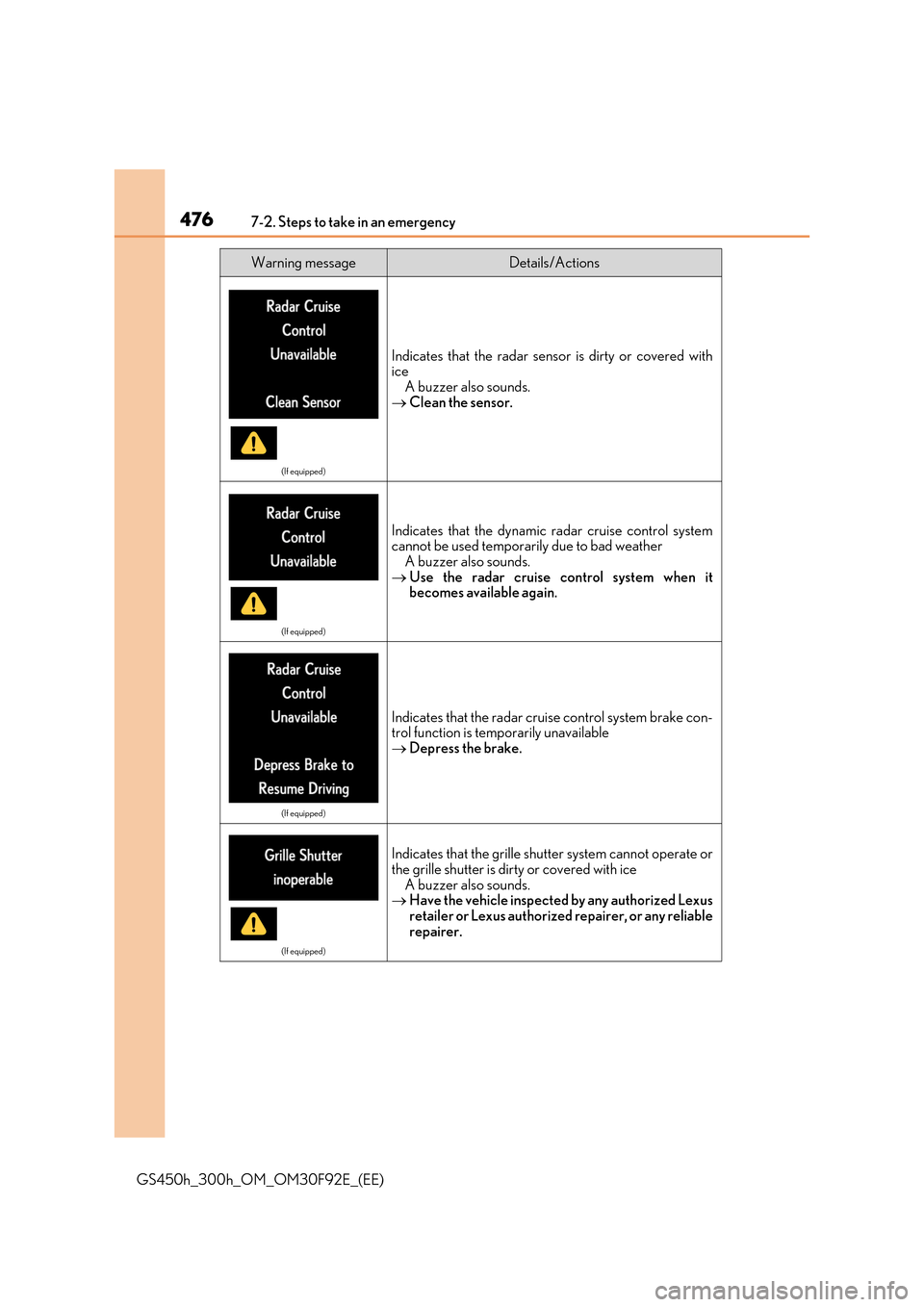

Indicates that the radar sensor is dirty or covered with iceA buzzer also sounds.
 Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control system cannot be used temporarily due to bad weatherA buzzer also sounds.
 Use the radar cruise control system when it becomes available again.
(If equipped)
Indicates that the radar cruise control system brake con-trol function is temporarily unavailable Depress the brake.
(If equipped)
Indicates that the grille shutter system cannot operate or the grille shutter is dirty or covered with ice
A buzzer also sounds.  Have the vehicle inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.
Warning messageDetails/Actions

4777-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
(Vehicles with entry function)

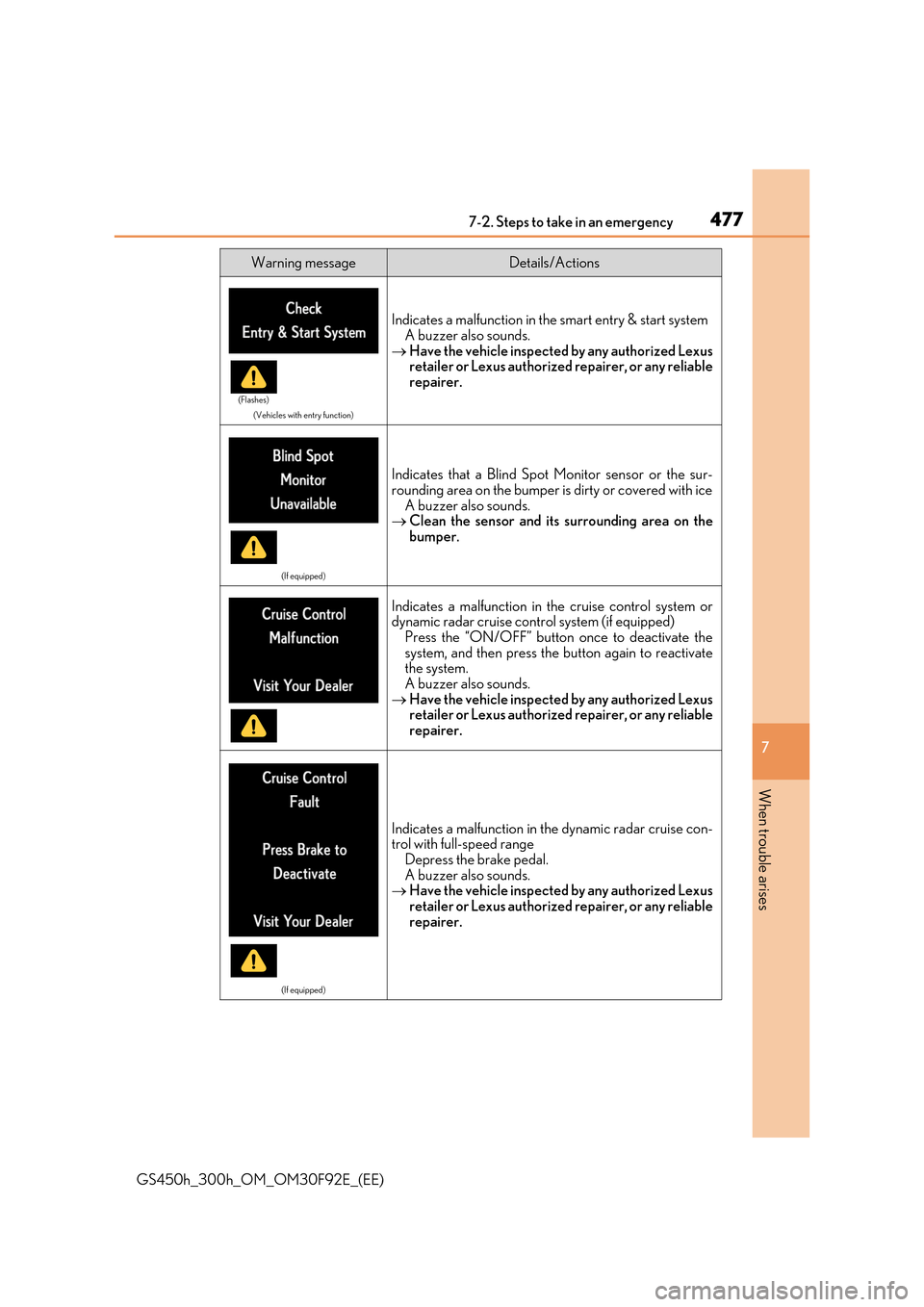

Indicates a malfunction in the smart entry & start system A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliablerepairer.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur-rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.  Clean the sensor and its surrounding area on the bumper.
Indicates a malfunction in the cruise control system ordynamic radar cruise control system (if equipped)Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reactivate the system.A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.
(If equipped)
Indicates a malfunction in th e dynamic radar cruise con- trol with full-speed range
Depress the brake pedal. A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer.
Warning messageDetails/Actions
(Flashes)

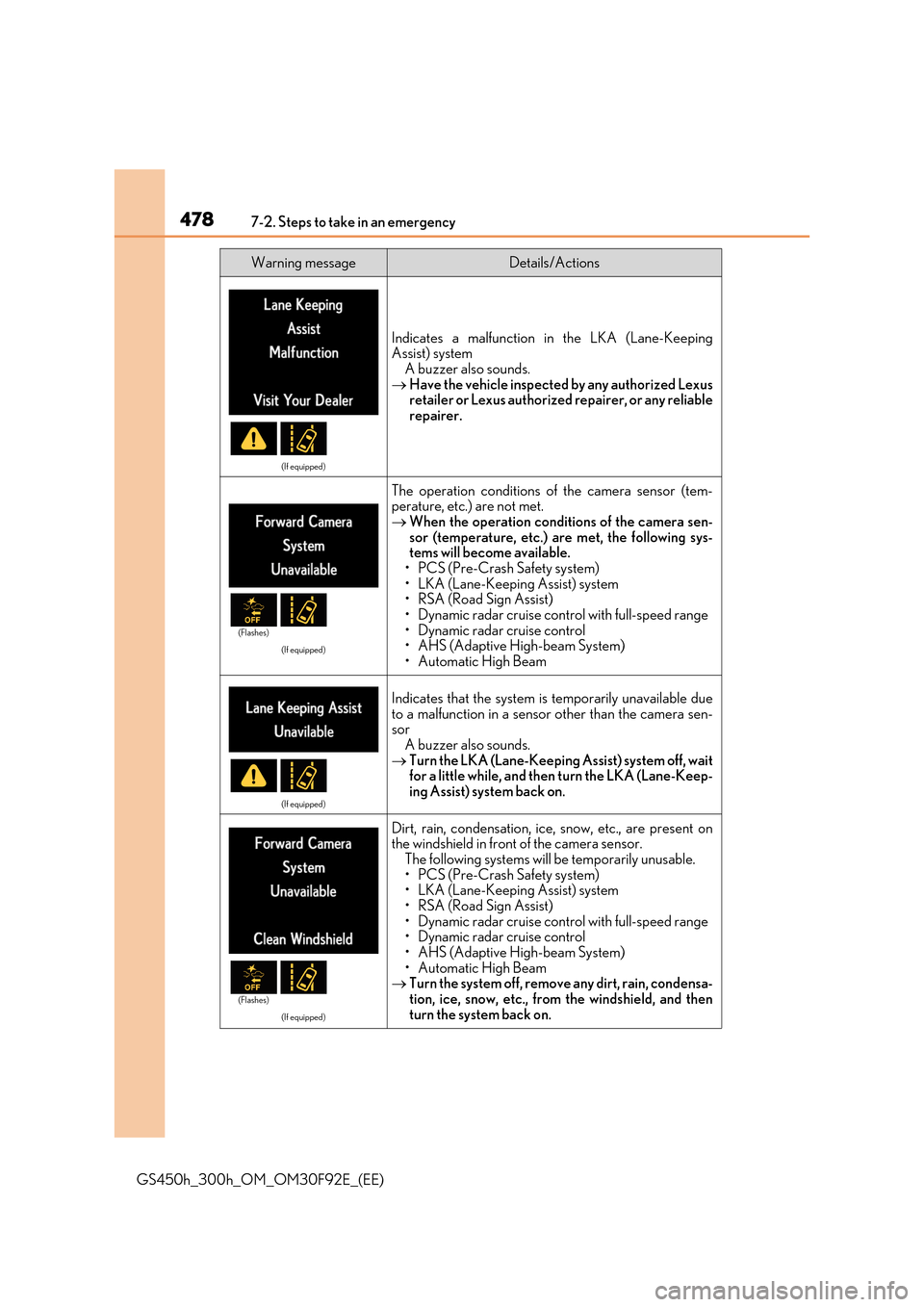

4787-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
(If equipped)
Indicates a malfunction in the LKA (Lane-Keeping Assist) system
A buzzer also sounds.  Have the vehicle inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.
(If equipped)
The operation conditions of the camera sensor (tem- perature, etc.) are not met.
 When the operation conditions of the camera sen- sor (temperature, etc.) are met, the following sys-tems will become available.
• PCS (Pre-Crash Safety system) • LKA (Lane-Keeping Assist) system• RSA (Road Sign Assist)
• Dynamic radar cruise control with full-speed range • Dynamic radar cruise control• AHS (Adaptive High-beam System)
• Automatic High Beam
(If equipped)
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen- sorA buzzer also sounds.
 Turn the LKA (Lane-Keeping Assist) system off, wait for a little while, and then turn the LKA (Lane-Keep-ing Assist) system back on.
(If equipped)
Dirt, rain, condensation, ice, snow, etc., are present onthe windshield in front of the camera sensor.
The following systems will be temporarily unusable. • PCS (Pre-Crash Safety system)• LKA (Lane-Keeping Assist) system
• RSA (Road Sign Assist) • Dynamic radar cruise control with full-speed range• Dynamic radar cruise control
• AHS (Adaptive High-beam System) • Automatic High Beam Turn the system off, remove any dirt, rain, condensa-
tion, ice, snow, etc., from the windshield, and then turn the system back on.
Warning messageDetails/Actions
(Flashes)
(Flashes)

4897-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
Carrying out the corresponding action turns the messages off.

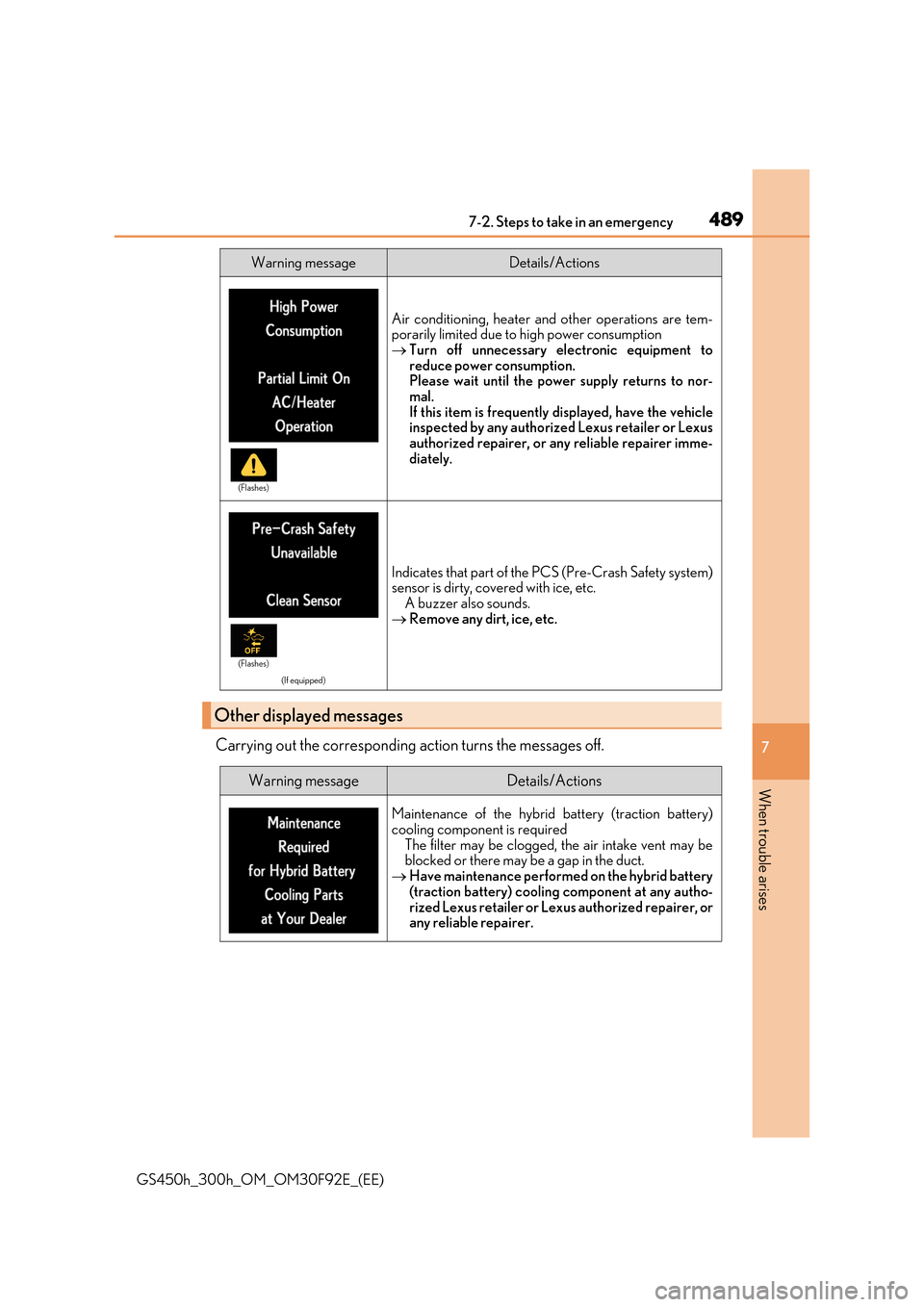

Air conditioning, heater and other operations are tem- porarily limited due to high power consumption
 Turn off unnecessary electronic equipment to reduce power consumption.Please wait until the power supply returns to nor-
mal. If this item is frequently displayed, have the vehicle inspected by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer imme- diately.
(If equipped)
Indicates that part of the PC S (Pre-Crash Safety system) sensor is dirty, covered with ice, etc.
A buzzer also sounds.  Remove any dirt, ice, etc.
Other displayed messages
Warning messageDetails/Actions
(Flashes)
(Flashes)
Warning messageDetails/Actions
Maintenance of the hybrid battery (traction battery)
cooling component is required The filter may be clogged, the air intake vent may beblocked or there may be a gap in the duct.
 Have maintenance performed on the hybrid battery (traction battery) cooling component at any autho-
rized Lexus retailer or Lexus authorized repairer, or any reliable repairer.

5077-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

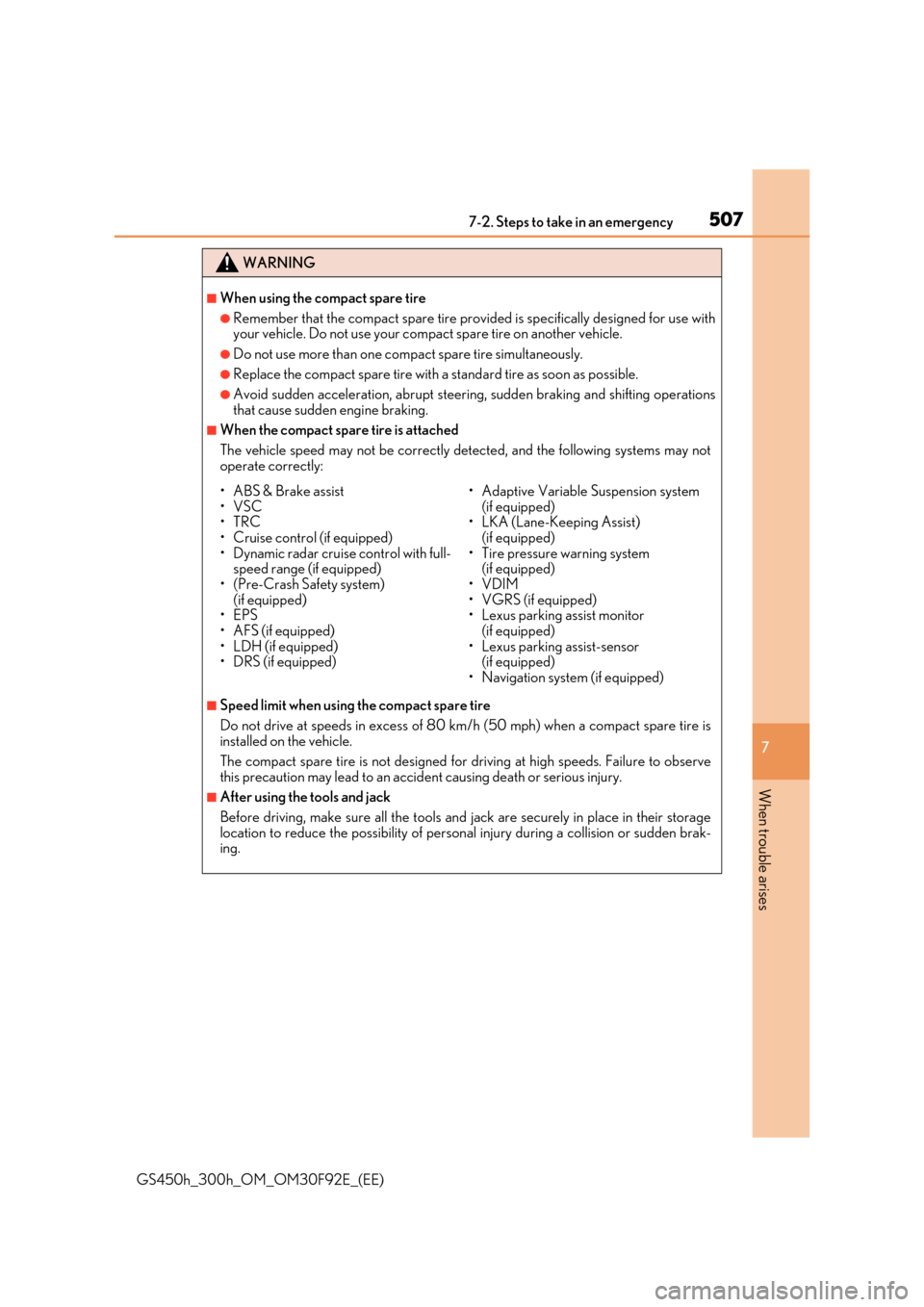

WARNING
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed for use with your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steerin g, sudden braking and shifting operations
that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km /h (50 mph) when a compact spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe this precaution may lead to an accid ent causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage location to reduce the possibility of personal injury during a collision or sudden brak- ing.
• ABS & Brake assist
•VSC •TRC• Cruise control (if equipped)
• Dynamic radar cruise control with full- speed range (if equipped)• (Pre-Crash Safety system)
(if equipped) •EPS• AFS (if equipped)
• LDH (if equipped) • DRS (if equipped)
• Adaptive Variable Suspension system
(if equipped) • LKA (Lane-Keeping Assist) (if equipped)
• Tire pressure warning system (if equipped)•VDIM
• VGRS (if equipped) • Lexus parking assist monitor (if equipped)
• Lexus parking assist-sensor (if equipped)• Navigation system (if equipped)

5688-2. Customization
GS450h_300h_OM_OM30F92E_(EE)

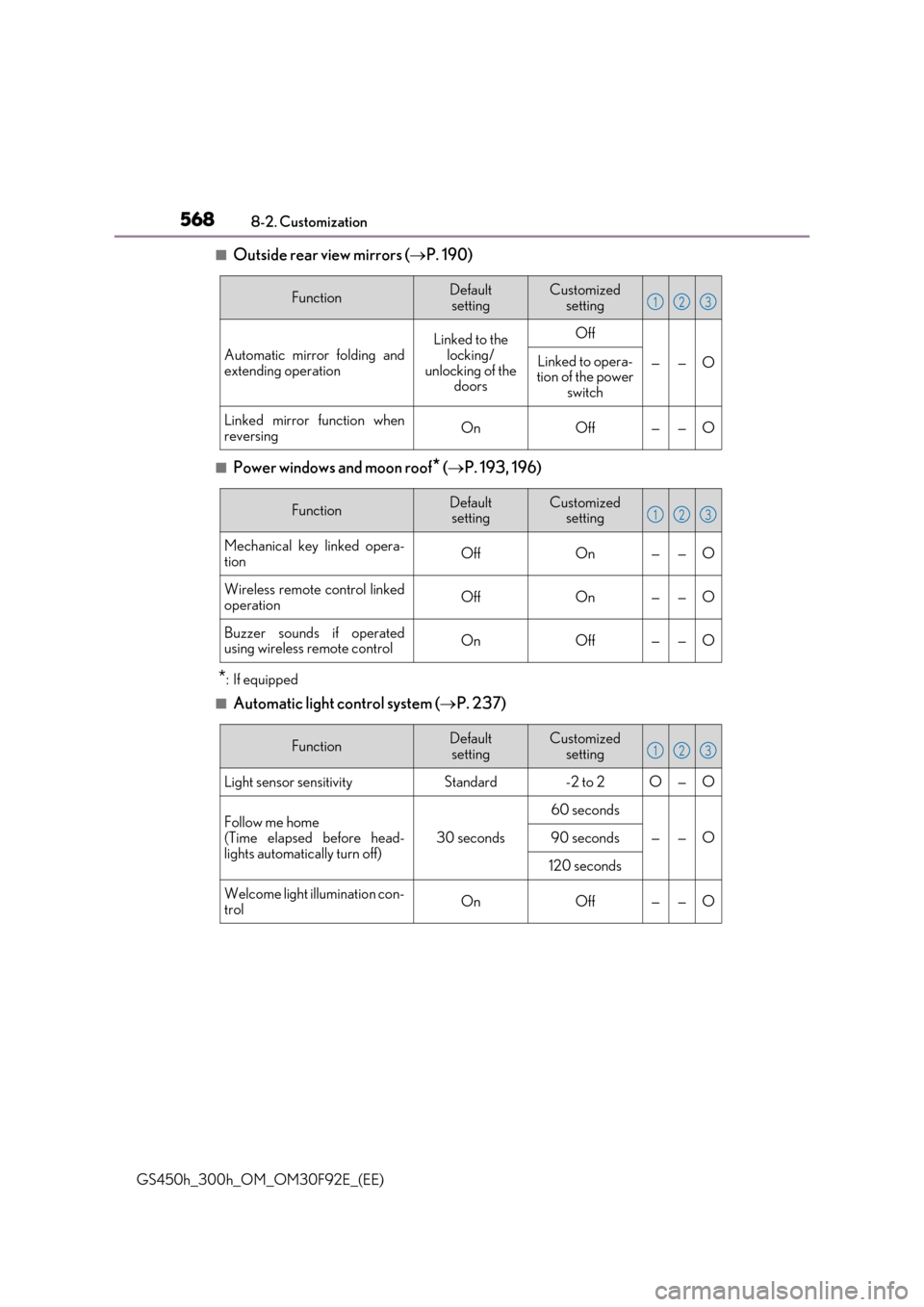

■Outside rear view mirrors ( P. 190)
■Power windows and moon roof* (P. 193, 196)
*: If equipped
■Automatic light control system (P. 237)
FunctionDefault
setting
Customized
setting
Automatic mirror folding and
extending operation
Linked to the locking/
unlocking of the doors
Off
——OLinked to opera-tion of the power switch
Linked mirror function when
reversingOnOff——O
123
FunctionDefault settingCustomized setting
Mechanical key linked opera-
tionOffOn——O
Wireless remote control linked operationOffOn——O
Buzzer sounds if operatedusing wireless remote controlOnOff——O
123
FunctionDefaultsettingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Follow me home (Time elapsed before head-
lights automatically turn off)
30 seconds
60 seconds
——O90 seconds
120 seconds
Welcome light illumination con-
trolOnOff——O
123

5708-2. Customization
GS450h_300h_OM_OM30F92E_(EE)

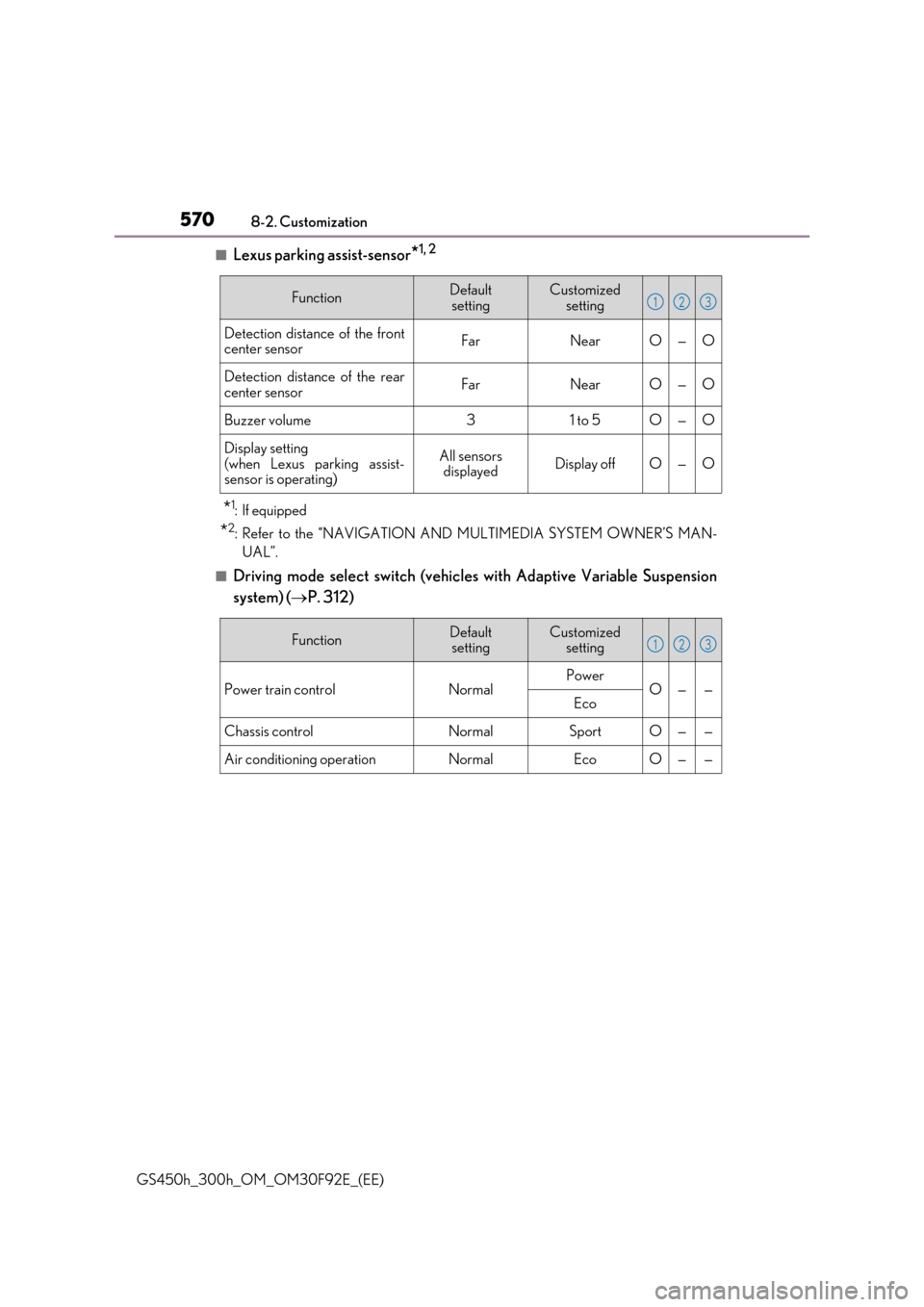

■Lexus parking assist-sensor*1, 2
*1:If equipped
*2: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.
■Driving mode select switch (vehicles with Adaptive Variable Suspension
system) ( P. 312)
FunctionDefault
setting
Customized
setting
Detection distance of the front center sensorFarNearO—O
Detection distance of the rearcenter sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when Lexus parking assist- sensor is operating)
All sensors displayedDisplay offO—O
123
FunctionDefaultsettingCustomized setting
Power train controlNormalPowerO——Eco
Chassis controlNormalSportO——
Air conditioning operationNormalEcoO——
123

571
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)

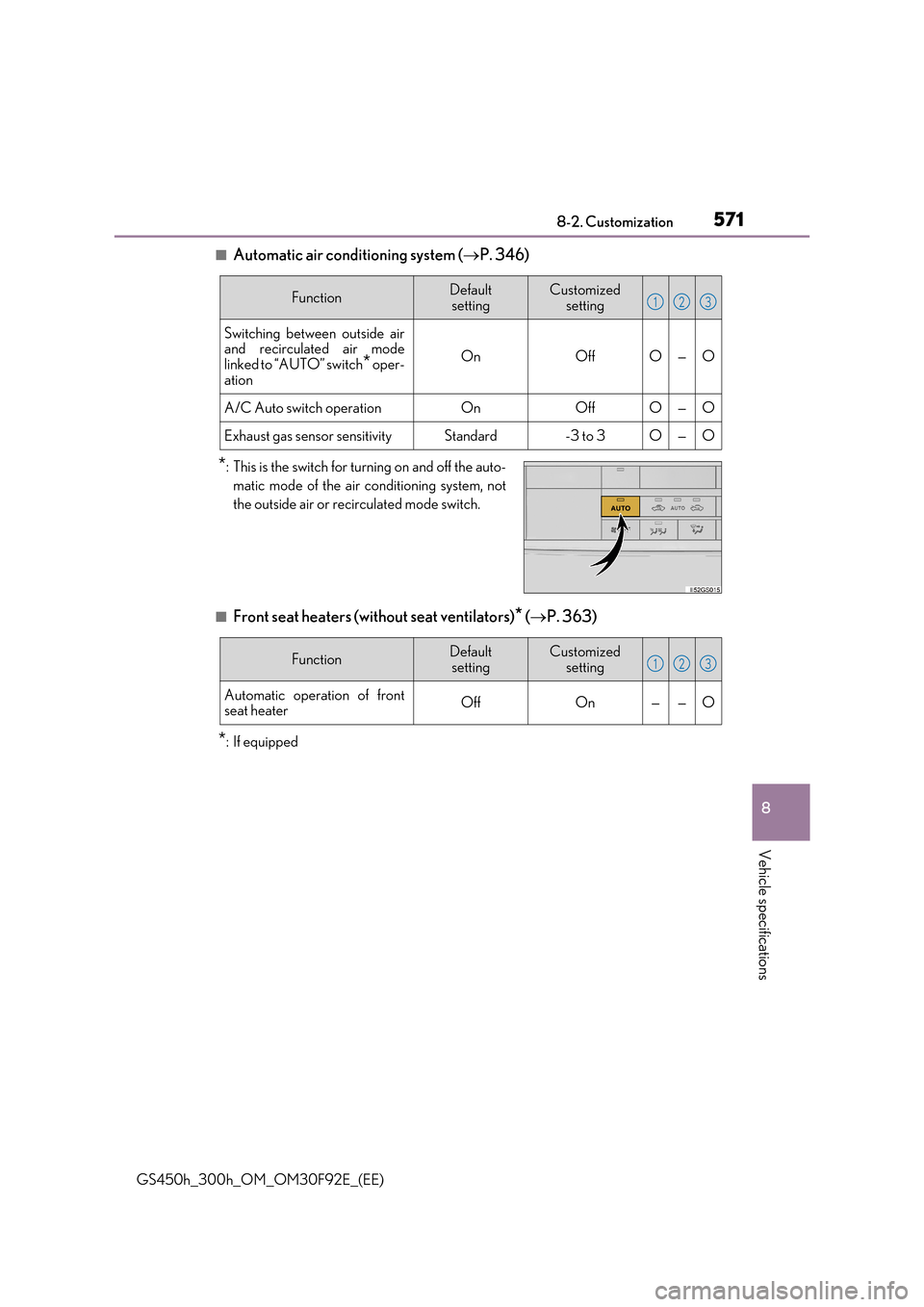

■Automatic air conditioning system ( P. 346)
■Front seat heaters (without seat ventilators)* (P. 363)
*: If equipped
FunctionDefault
setting
Customized
setting
Switching between outside air and recirculated air modelinked to “AUTO” switch* oper-
ation
OnOffO—O
A/C Auto switch operationOnOffO—O
Exhaust gas sensor sensitivityStandard-3 to 3O—O
*: This is the switch for turning on and off the auto-
matic mode of the air conditioning system, not
the outside air or recirculated mode switch.
123
FunctionDefault
setting
Customized
setting
Automatic operation of front seat heaterOffOn——O
123

577

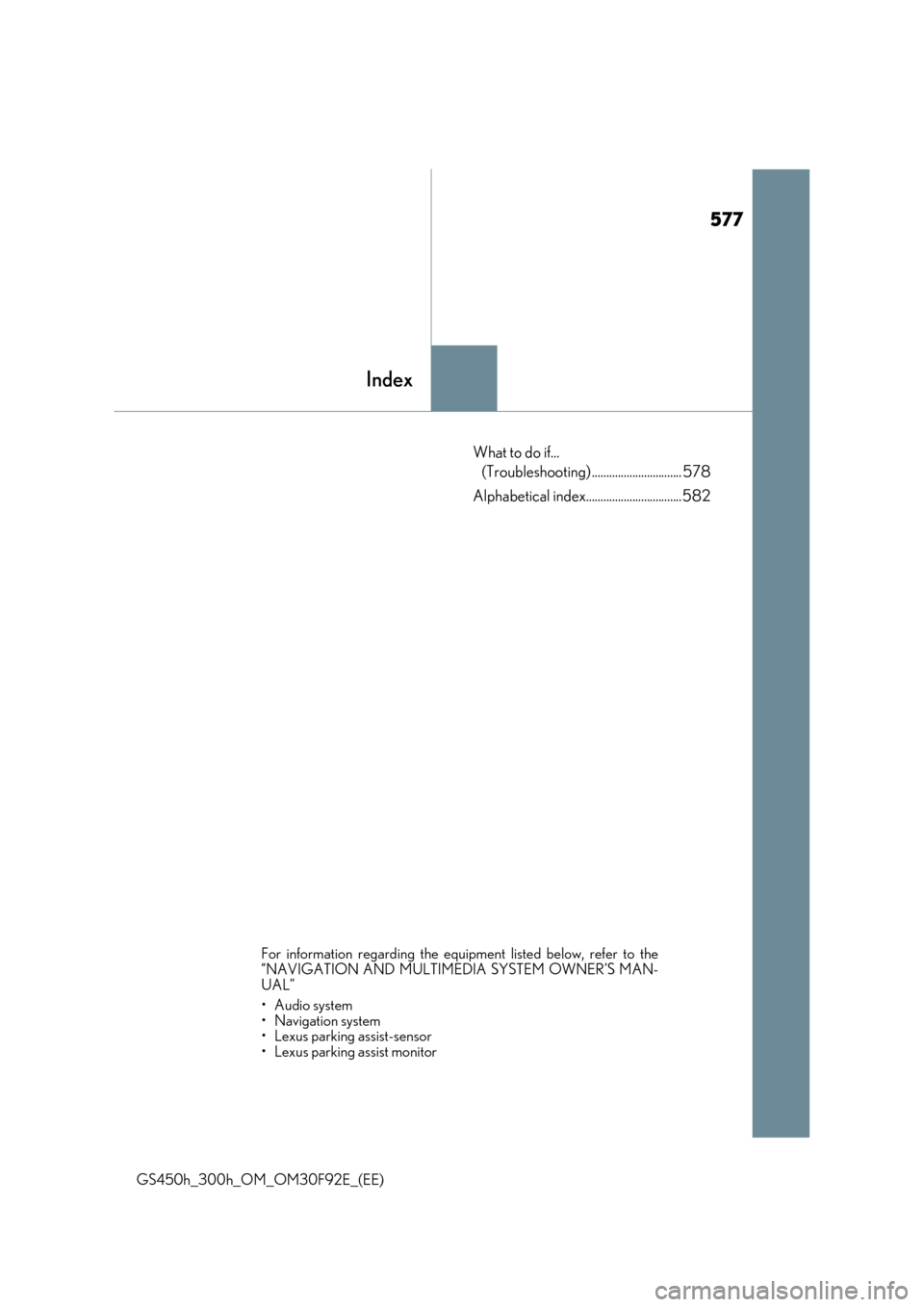

Index
