dimensions Lexus GS450h 2017 Owner's Manual

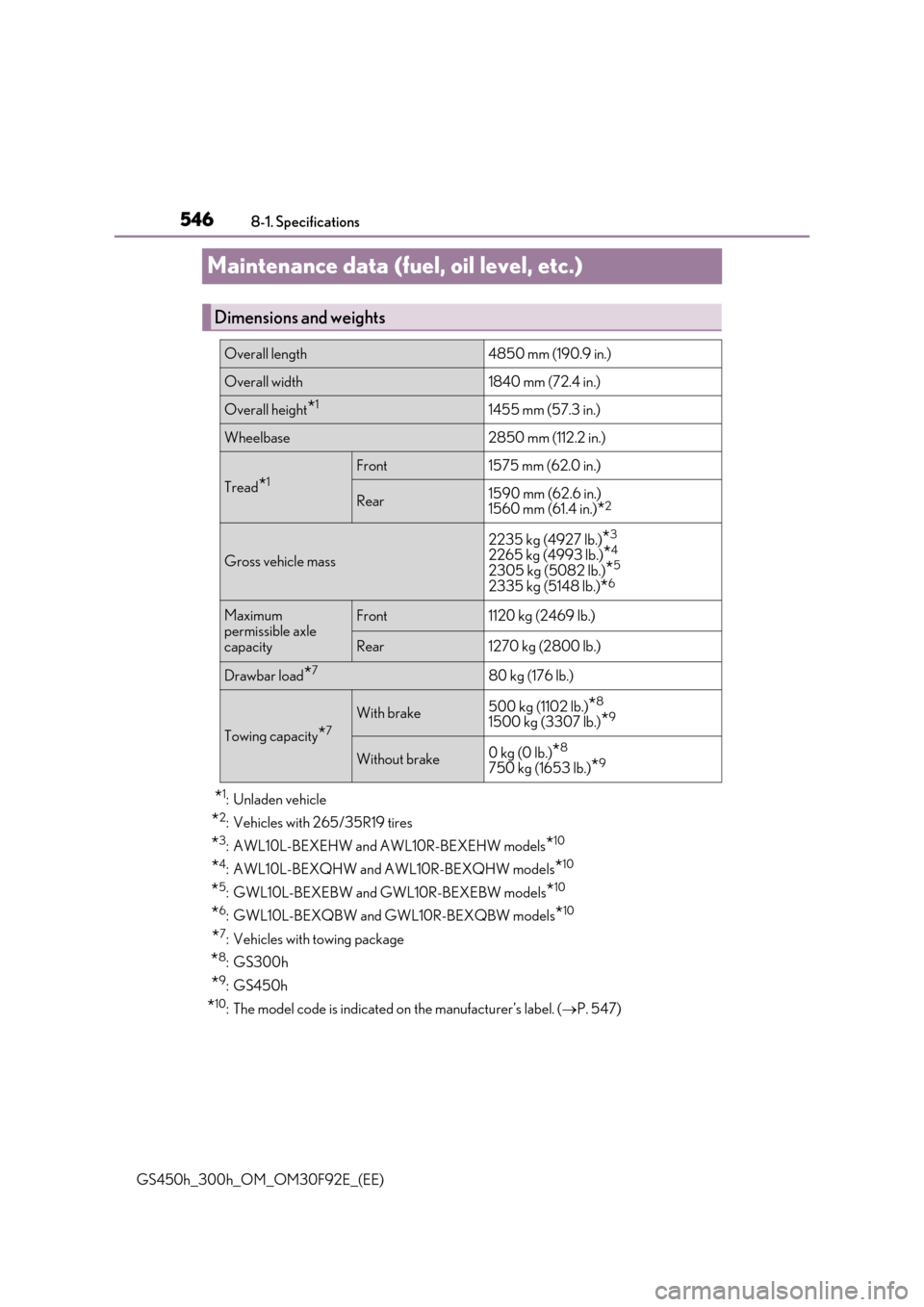

5468-1. Specifications
GS450h_300h_OM_OM30F92E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with 265/35R19 tires
*3: AWL10L-BEXEHW and AWL10R-BEXEHW models*10
*4: AWL10L-BEXQHW and AWL10R-BEXQHW models*10
*5: GWL10L-BEXEBW and GWL10R-BEXEBW models*10
*6: GWL10L-BEXQBW and GWL10R-BEXQBW models*10
*7: Vehicles with towing package
*8:GS300h
*9:GS450h
*10: The model code is indicated on the manufacturer’s label. (P. 547)
Dimensions and weights
Overall length 4850 mm (190.9 in.)
Overall width 1840 mm (72.4 in.)
Overall height*11455 mm (57.3 in.)
Wheelbase 2850 mm (112.2 in.)
Tread*1Front 1575 mm (62.0 in.)
Rear 1590 mm (62.6 in.) 1560 mm (61.4 in.)*2
Gross vehicle mass
2235 kg (4927 lb.)*3
2265 kg (4993 lb.)*4
2305 kg (5082 lb.)*5
2335 kg (5148 lb.)*6
Maximum permissible axle
capacity
Front 1120 kg (2469 lb.)
Rear 1270 kg (2800 lb.)
Drawbar load*780 kg (176 lb.)
Towing capacity*7
With brake 500 kg (1102 lb.)*8
1500 kg (3307 lb.)*9
Without brake0 kg (0 lb.)*8
750 kg (1653 lb.)*9

585Alphabetical index
GS450h_300h_OM_OM30F92E_(EE)
DAB (Digital Audio Broadcast)*
Daytime running light system ......... 240
Defogger
Front windshield ................................. 352
Outside rear view mirrors............. 352
Rear window ........................................ 352
Differential ...............................................554
Digital Audio Broadcast (DAB)*
Dimensions.............................................. 546
Display
12.3-inch display ................................ 344
Drive information .................................. 113
Dynamic radar cruise control
with full-speed range.................... 296
Energy monitor.....................................126
LKA (Lane-Keeping Assist) .........286
Multi-information display .................... 111
Trip information ................................... 104
Warning message.............................466
Do-it-yourself maintenance .............399
Door courtesy lights
Location..................................................366
Wattage................................................. 558
Door lock
Doors .........................................................139
Smart entry & start system ............. 153
Wireless remote control ..................134
Doors...........................................................139
Automatic door locking and
unlocking system ............................. 143
Door glasses.......................................... 193
Door lock ................................................ 142
Open door warning buzzer .......... 154
Outside rear view mirrors ..............190
Rear door child-protector ............. 143
Double locking system.......................... 90
Drive info 1/Drive info 2/
Drive info 3 ............................................. 113
Drive information .................................... 116
Drive-Start Control ................... 201, 228
Driver’s seat position memory ..........178
Driving position memory ................ 179
Memory recall function ..................... 181
Power easy access system............. 178
Driving ...................................................... 200
Break-in tips......................................... 202
Correct driving posture.................... 36
Driving mode select switch.............. 311
Hybrid vehicle driving tips .............. 331
Procedures........................................... 200
Winter drive tips ................................ 334
DRS (Dynamic Rear Steering) ....... 325
Function.................................................. 325
Warning message ............................ 466
D
*: Refer to the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.
