16Pictorial index
GS450h_300h_OM_OM30F92E_(EE)
■Instrument panel (Left-hand drive vehicles)
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Starting the hybrid system/changing the modes . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 453 When the hybrid system will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 523Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 477, 493
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 224
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454 When the shift lever does not move. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 104
Reading the meters/adjusting the instrument panel light . . . . . . . . . . . . . . . . P. 104 Warning lights/indicator lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 98When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
1
2
3

18Pictorial index
GS450h_300h_OM_OM30F92E_(EE)
■Switches (Left-hand drive vehicles)
VSC OFF switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 326
Heated steering wheel switch* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 362
Automatic High Beam switch*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Adaptive High-beam System switch* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 107
Odometer/trip meter and trip meter reset butt on . . . . . . . . . . . . . . . . . P. 107
HUD (Head-up display) switches*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 119
Brake hold switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 235
1
2
3
4
5
6
7

24Pictorial index
GS450h_300h_OM_OM30F92E_(EE)
■Instrument panel (Right-hand drive vehicles)
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Starting the hybrid system/changing the modes . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 453 When the hybrid system will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 523Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 477, 493
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 224
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454 When the shift lever does not move. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 104
Reading the meters/adjusting the instrument panel light . . . . . . . . . . . . . . . . P. 104 Warning lights/indicator lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 98When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
1
2
3

26Pictorial index
GS450h_300h_OM_OM30F92E_(EE)
■Switches (Right-hand drive vehicles)
Brake hold switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 235
Odometer/trip meter and trip meter reset butt on . . . . . . . . . . . . . . . . . P. 107
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 107
HUD (Head-up display) switches*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 119
VSC OFF switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 326
Automatic High Beam switch*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Adaptive High-beam System switch* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Heated steering wheel switch* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 362
1
2
3
4
5
6
7

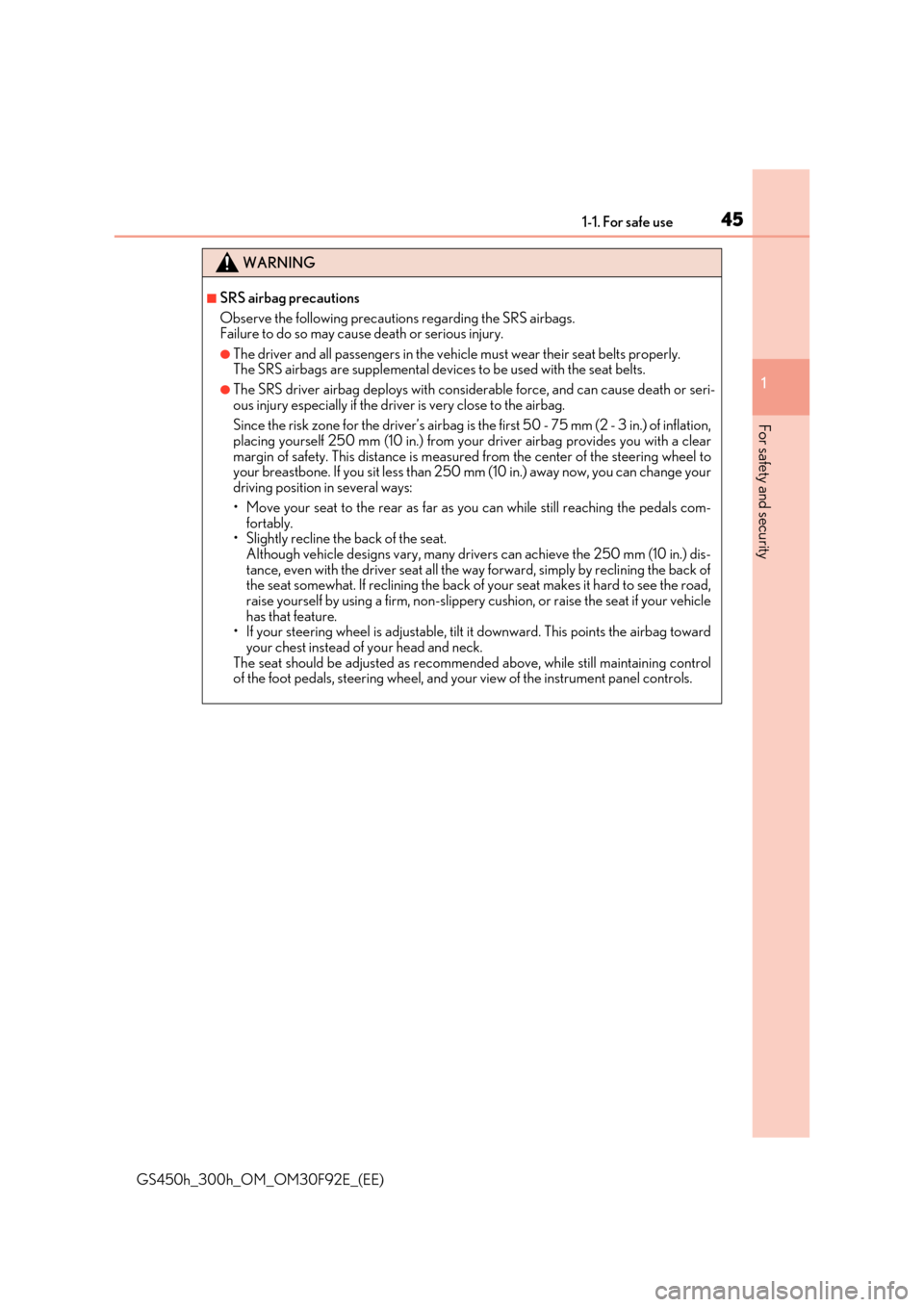

451-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags. Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicl e must wear their seat belts properly. The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or seri-
ous injury especially if the driv er is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of inflation, placing yourself 250 mm (10 in.) from your driver airbag provides you with a clear
margin of safety. This distance is measured from the center of the steering wheel to your breastbone. If you sit less than 250 mm (10 in.) away now, you can change yourdriving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals com- fortably.• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 250 mm (10 in.) dis- tance, even with the driver seat all the way forward, simply by reclining the back ofthe seat somewhat. If reclining the back of your seat makes it hard to see the road,
raise yourself by using a firm, non-slippery cushion, or raise the seat if your vehicle has that feature.• If your steering wheel is adjustable, tilt it downward. This points the airbag toward
your chest instead of your head and neck. The seat should be adjusted as recommend ed above, while still maintaining control of the foot pedals, steering wheel, and your view of the instrument panel controls.

471-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■SRS airbag precautions
●Do not hang coat hangers or other hard objects on the coat hooks. All of these items
could become projectiles and may cause deat h or serious injury, should the SRS cur- tain shield airbags deploy.
●If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to
remove it.
●Do not use seat accessories which cover the parts where the SRS side airbags inflate as they may interfere with inflation of th e airbags. Such accessories may prevent the
side airbags from activating correctly, disable the system or cause the side airbags to inflate accidentally, resulting in death or serious injury.
●Do not allow anyone to kneel on the passen-
ger seat toward the door or put their head or hands outside the vehicle.
●Do not attach anything to or lean anythingagainst areas such as the dashboard, steeringwheel pad, lower portion of the instrument
panel and door of the glove box. These items can become projectiles when theSRS driver, front passenger and knee airbags
deploy.
●Do not attach anything to areas such as a door, windshield glass, side door glass, front or rearpillar, roof side rail and assist grip. (Except for
the speed limit sticker P. 516)

481-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■SRS airbag precautions
●Do not strike or apply significant levels of force to the area of the SRS airbag compo- nents.
Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component parts immediately after the SRS airbags have deployed (inflated) as they may be hot.
●If breathing becomes difficult after the SRS airbags have deployed, open a door orwindow to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any resi-due as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad, door ofthe glove box and front and rear pillar garnishes are damaged or cracked, have themreplaced by any authorized Lexus retailer or Lexus authorized repairer, or any reli-
able repairer.
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications without
consulting any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer. The SRS airbags may malfunction or deploy (inflate) accidentally, causingdeath or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or repl acement of the steering wheel, instrument panel, dashboard, glove box, seats or seat upholstery, front, side and rear pillars or
roof side rails
●Repairs or modifications of the front fender, front bumper, or side of the occupant compartment
●Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows or winches
●Modifications to the vehicle’s suspension system
●Installation of electronic devices such as mobile two-way radios (RF-transmitter) and
CD players
●Modifications to your vehicle for a person with a physical disability

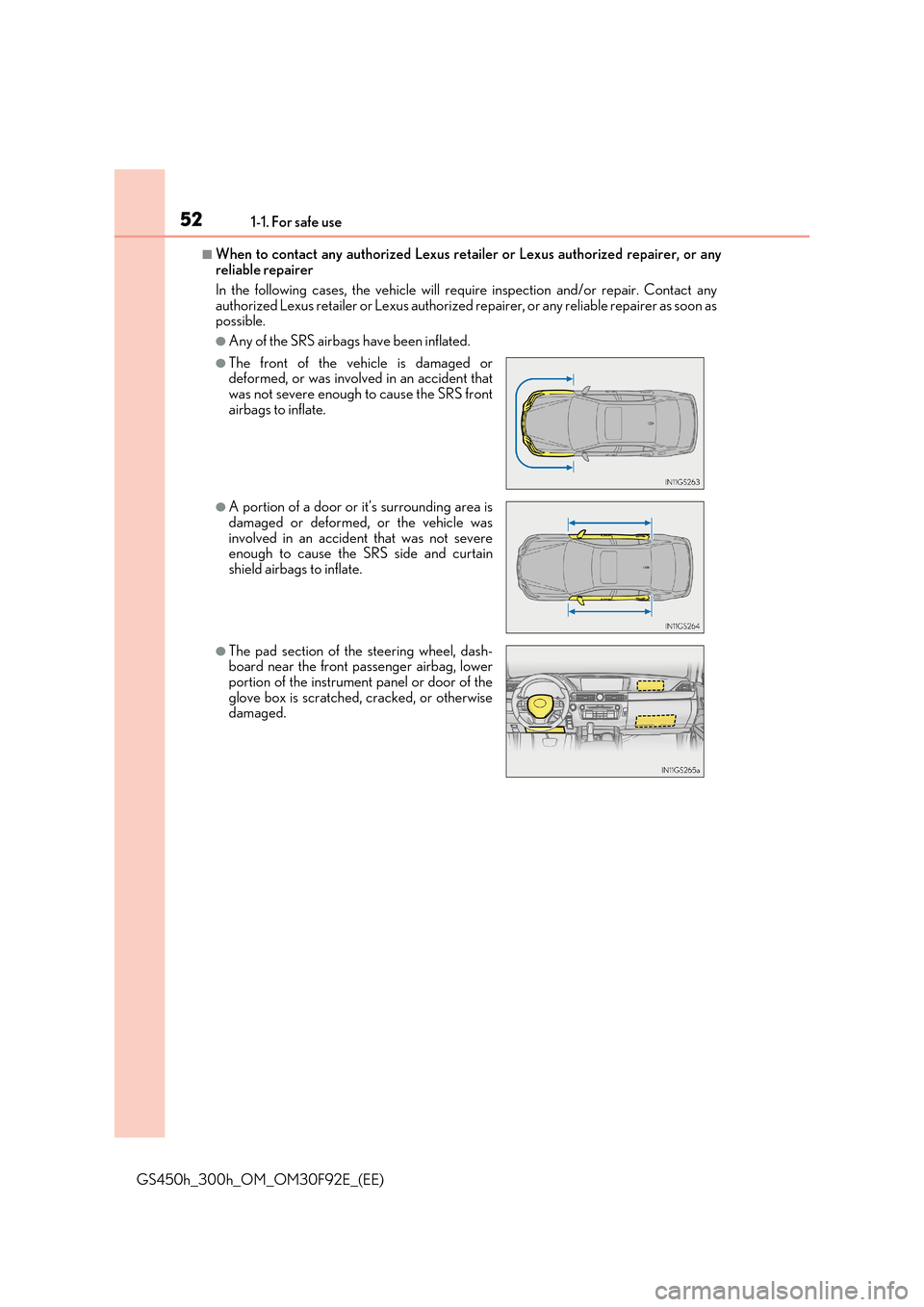

521-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)
■When to contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer
In the following cases, the vehicle will requ ire inspection and/or repair. Contact any
authorized Lexus retailer or Le xus authorized repairer, or any reliable repairer as soon as possible.
●Any of the SRS airbags have been inflated.
●The front of the vehicle is damaged ordeformed, or was involved in an accident that
was not severe enough to cause the SRS front airbags to inflate.
●A portion of a door or it’s surrounding area isdamaged or deformed, or the vehicle was
involved in an accident that was not severe enough to cause the SRS side and curtainshield airbags to inflate.
●The pad section of the steering wheel, dash-board near the front passenger airbag, lowerportion of the instrument panel or door of the
glove box is scratched, cracked, or otherwise damaged.

982. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
Warning lights and indicators
Except F SPORT models
F SPORT models
The units used on the speedometer may differ depending on the target region.
The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driv er of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the foll owing illustration displays all warning
lights and indicators illuminated.

1032. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
*1: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”
*2: These lights turn on when the power switch is turned to ON mode to indicate that a
system check is being perfor med. They will turn off after the “READY” indicator turns
on. There may be a malfunction in a system if a light does not come on, or turn off.
Have the vehicle inspected by any author ized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
*3: These lights turn on when the power switch is turned to ON mode to indicate that a
system check is being performed. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunct ion in a system if the lights do not come
on, or turn off. Have the vehicle inspected by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
*4: This light illuminates on the Center panel.
*5: The light flashes to indicate that the system is operating.
*6: When the outside temperature is approximately 3 C (37F) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
*7: The light turns on when the system is turned off.
*8: In order to confirm operation, the BSM outside rear view mirror indicators illuminate
in the following situations:
• When the power switch is in ON mode, the BSM function is enabled on of the multi-information display.
• When the BSM function is enabled on of the multi-information display, the
power switch is turned to ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off, there may be a malfunction with the system. If this occurs, have the vehicle inspected by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
*9: This light illuminates on the outside rear view mirrors.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when you start the hybrid system, this could mean that these systems are not available to helpprotect you in an accident, which could result in death or serious injury. Have the vehi-
cle inspected by any authorized Lexus retaile r or Lexus authorized repairer, or any reli- able repairer immediately if this occurs.
