Lexus GS450h 2018 Owner's Manual / LEXUS 2018 GS450H OWNER'S MANUAL (OM30G62U)

281
GS450h_OM_OM30G62U_(U)
5Interior features
5-1. Remote Touch screen Remote Touch/12.3-inch display ..........................................282
5-2. Using the air conditioning system and defogger
Front automatic air conditio ning system .........287
Rear air conditioning system ......................................... 298
Heated steering wheel/ seat heaters/seat
ventilators .................................... 301
5-3. Using the interior lights Interior lights list......................... 304• Interior lights ......................... 305
• Personal lights ...................... 305 5-4. Using the storage features
List of storage features ............ 307
• Glove box .............................. 308
• Console box.......................... 308
• Cup holders ...........................309
• Auxiliary boxes ........................ 311
Trunk features .............................. 312
5-5. Using the other interior features Other interior features ............. 314• Sun visors ................................. 314
• Vanity mirrors ........................ 314
• Clock ......................................... 315
• Power outlets.......................... 315
• Armrest ......................................317
•Rear sunshade/rear door sunshades............ 318
• Coat hooks .............................320
• Assist grips..............................320
Garage door op ener ................ 321
LEXUS Enform Safety Connect ...................................... 329

282
GS450h_OM_OM30G62U_(U)
5-1. Remote Touch screen
Remote Touch/12.3-inch display
“∧ •∨ ” button
Press this button to change map scale and scroll through lists.
Back button
Press this button to display the previous screen.
“MENU” button
Press this button to display the “Menu” screen.
Remote Touch knob
Move in the desired direction to select a function, letter and screen button.
Press the knob to enter the selected function, letter or screen button.
“ENTER” buttons
Press this button to enter the selected function, letter or screen button.
“MAP” button
Press this button to display the vehicle’s current position.
The Remote Touch can be used to operate the Remote Touch screens.
Owners of models equipped with a navi gation system should refer to the
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
Remote Touch operation
1
2
3
4
5
6

GS450h_OM_OM30G62U_(U)
2835-1. Remote Touch screen
5
Interior features
■Using the Remote Touch knobSelect: Move the knob in the
desired direction.
Enter: Press the knob or “ENTER”
button.
■Screen display during low temperatures
When the ambient temperature is extremely low, screen response may be delayed even
if the Remote Touch is operated.
1
2
WARNING
■When using the Remote Touch
●Do not allow fingers, fingernails or hair to become caught in the Remote Touch as this
may cause an injury.
●Be careful when selecting the Remote Touch in extreme temperatures as it may
become very hot or cold due to the temperature inside the vehicle.
NOTICE
■To prevent damage to the Remote Touch
●Do not allow the Remote Touch to come into contact with food, liquid, stickers or lit
cigarettes as doing so may cause it to change color, emit a strange odor or stop func-
tioning.
●Do not subject the Remote Touch to excessive pressure or strong impact as the knob
may bend or break off.
●Do not allow coins, contact lenses or ot her such items to become caught in the
Remote Touch as this may cause it to stop functioning.
●Items of clothing may rip if they become caught on the Remote Touch knob.
●If your hand or any object is on the Re mote Touch knob when the power switch is
turned to ACCESSORY mode, the Remote Touch knob may not operate properly.

2845-1. Remote Touch screen
GS450h_OM_OM30G62U_(U)
Press the “MENU” button on the Remote Touch to display the “Menu” screen.
The display may differ depending on the type of the system.
When an interruption screen is being displayed on the side display, the “Menu” screen
will be shown on the main display.
*1: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: If equipped
“Menu” screen
SwitchFunction
Select to display the “Destination” screen.*1
Select to display the radio control screen.*1
Select to display the media control screen.*1
Select to display the hand s-free operation screen.*1
Select to display the “LEXUS App Suite” screen.*1, 2
Select to display the “Information” screen.*1
Select to display the air conditioning control screen. ( →P. 287)
Select to display the “Setup” screen.*1
“Display”Select to adjust the contrast and brightness of the screens, turn the
screen off, etc.
*1

GS450h_OM_OM30G62U_(U)
2855-1. Remote Touch screen
5
Interior features
■Full screen display
The following functions can be displayed full screen:
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-UAL”.
■Split-screen display
Different information can be displayed on the left and right of the screen. For
example, air conditioning system scre en can be displayed and operated while
the fuel consumption information screen is being displayed. The large screen
on the left of the display is called the main display, and the small screen to the
right is called the side display.
12.3-inch display operation
●Initial screen*
●“Menu” screen ( →P. 284)
●Map screen*

2865-1. Remote Touch screen
GS450h_OM_OM30G62U_(U)
For details of the functions and operation of the main display, refer to the respec-
tive section.
■Display the side display
Basic screens
The following functions can be displaye d and operated on the side display.
Select the desired button. Navigation system
*
Audio*
Phone*
Vehicle information ( →P. 114)
Air conditioning system
(→ P. 291)
To turn off the side display, press the “MAP” button on Remote Touch to display the
map screen, and then press .
If the item displayed on the main displa y is full screen display compatible (→P. 285),
it will be displayed full screen.
Interruption screens
Each of the following screens is displayed automatically in accordance with
conditions. • Intuitive parking assist
* (if equipped)
•Phone
*
• Destination Assist*
•Driving mode ( →P. 258)
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.
12.3-inch display function
1
2
3
4
5

287
GS450h_OM_OM30G62U_(U)5-2. Using the air conditio ning system and defogger
5
Interior features

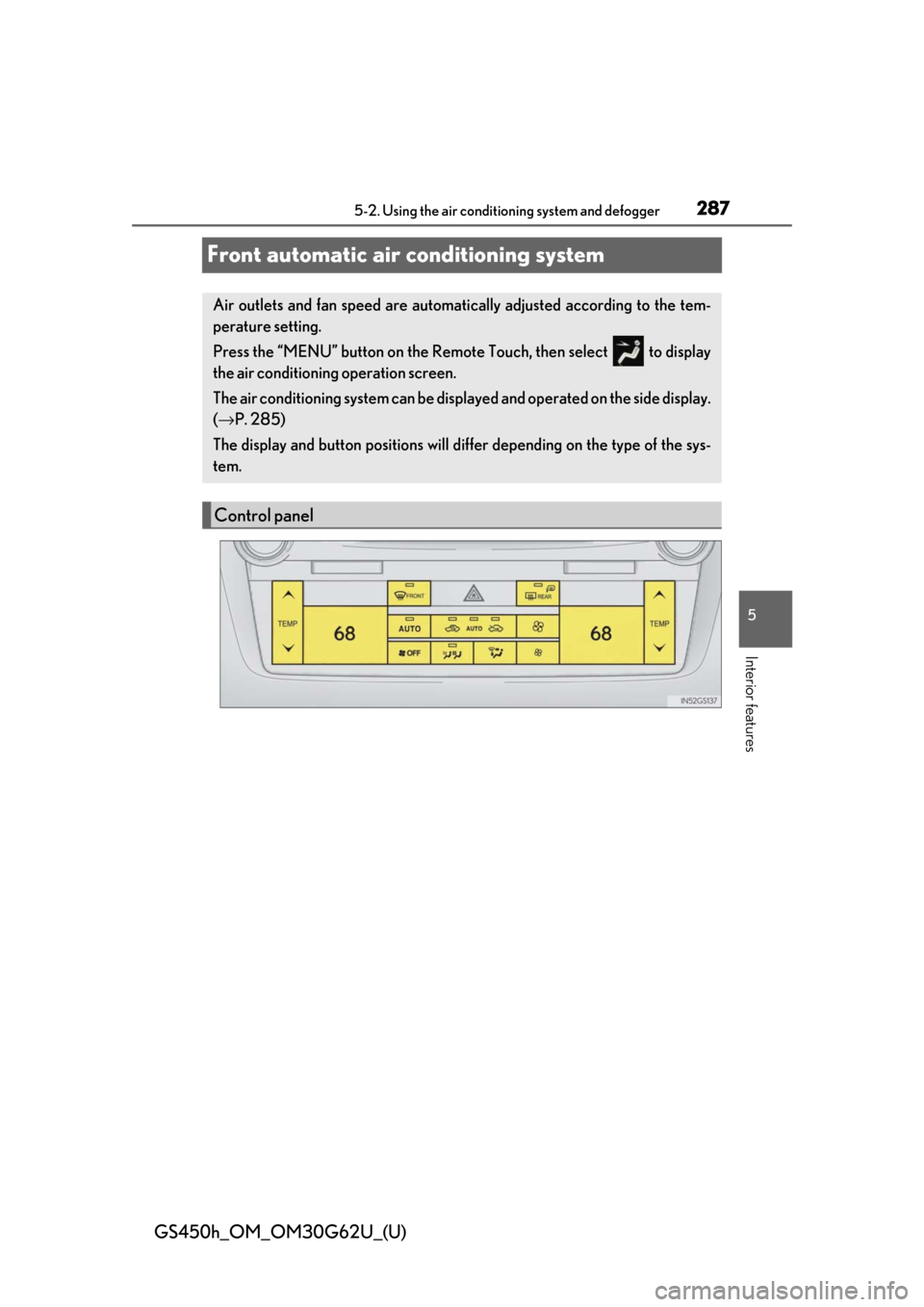

Front automatic air conditioning system
Air outlets and fan speed are automati cally adjusted according to the tem-
perature setting.
Press the “MENU” button on the Remote Touch, then select to display
the air conditioning operation screen.
The air conditioning system can be disp layed and operated on the side display.
( → P. 285)
The display and button positions will diffe r depending on the type of the sys-
tem.
Control panel

288
GS450h_OM_OM30G62U_(U)
5-2. Using the air conditioning system and defogger
■Adjusting the temperature setting
Press “∧”on to increase the temperature and “ ∨” to decrease the tem-
perature.
Without rear air conditioning system
When “DUAL” on the control screen is selected or the passenger’s side tem-
perature control button is pressed, th e temperature for the driver and passen-
ger seats can be adjusted separately.
With rear air conditioning system
When “3-ZONE” on the control screen is selected or the passenger’s side
temperature control button is pressed, the temperature for the driver’s, front
passenger’s and rear seats ( →P. 298) can be adjusted separately.
The air conditioning system switches between individual and simultaneous
modes each time 3-ZONE is selected.
■Adjusting the fan speed setting
Press to increase the fan speed and to decrease the fan speed.
Press the “OFF” button to turn the fan off.
■Change the airflow mode
To change the air outlets, press .
The air outlets used are switched each time the button is pressed. ( →P. 289)
■S-FLOW mode
Press .
When is pressed, the airflow changes as follows.
Without rear air conditioning system : Air flows to the front seats only.
*
With rear air conditioning system:
Air flows to the front seats only, and if the passenger seat is unoccupied, the set
temperature, outside humidity and temper ature inside the cabin are assessed, and
air flows to the driver seat only.
*
*
: Air may also flow to the rear seats depending on the situation.
■Other functions
●Switching between outside air and recirculated air modes (→P. 293)
●Defogging the windshield (→P. 293)
●Defogging the rear window and outside rear view mirrors (→P. 293)

GS450h_OM_OM30G62U_(U)
2895-2. Using the air conditioning system and defogger
5
Interior features
Adjust the left-hand side temperature setting
Select the air flow to the feet an d operate the windshield defogger
Adjust the fan speed setting
Select the air flow mode
* (the front seats)
Function on/off indicators on the option control screen
Display the option control screen ( →P. 290)
Adjust the right-hand side temperature setting
Set eco air conditioning mode ( →P. 296)
Air conditioning and heater output is limited to prioritize fuel economy.
Adjust the temperature for the driver ’s and front passenger’s seats sepa-
rately (DUAL mode) ( →P. 288)
Set cooling and dehumidification function on/off
Select to set automatic mode on/off
Select the air flow mode
* (the left-hand side)
Select the air flow mode
* (the right-hand side)
Display the rear air conditioning operation screen ( →P. 291)
Adjust the temperature for the driver’s, front passenger’s and rear seats
(→ P. 298) separately (3-ZONE mode) ( →P. 288)
To adjust or select settings, move the Remote Touch knob to select the
screen button, and then press the Re mote Touch knob or the “ENTER” but-
ton of Remote Touch to enter the selected function.
Control screen
Without rear air conditioning systemWith rear air conditioning system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

290
GS450h_OM_OM30G62U_(U)
5-2. Using the air conditioning system and defogger
*: ⎯Air flows to the upper body
⎯ Air flows to the upper body and feet
⎯ Air flows to the feet
■Option control screen
Select on the control screen to display the option control screen. The
functions can be switched on and off.
When the function is on, the indicator illuminates on the control screen.
(→P. 289)
Prevent ice from building up on
the windshield and wiper blades
(if equipped) ( →P. 293)
Remove pollen from the air
(Micro dust an d pollen filter)
(→ P. 293)
1
2
