oil level Lexus GS460 2008 Scheduled Maintenace Guide / LEXUS 2008 GS460/350 OWNER'S MANUAL (OM30A87U)

1
2
3
4
5
6
7
5
GS_G_U
May 13, 2008 5:14 pm
5-1. Essential information .............. 478If your vehicle needs 
to be towed .................................. 478
If you think something is 
wrong ............................................. 484
Fuel pump shut off system ....... 485
Event data recorder ................... 486
5-2. Steps to take in an 
emergency .............................. 488
If a warning light turns on or a 
warning buzzer sounds... ...... 488
If a warning message is 
displayed....................................... 497
If you have a flat tire (Vehicles 
with standard tires) .................... 512
If you have a flat tire (Vehicles 
with run-flat tires) ...................... 522
If the engine will not start .......... 523
If the shift lever cannot be 
shifted from “P” .......................... 524
If you lose your keys .................... 525
If the electronic key does not 
operate properly ....................... 526
If the 12 volt battery is 
discharged ................................... 529
If your vehicle overheats .......... 533
If the vehicle becomes 
stuck................................................ 536 6-1. Specifications............................ 540
Maintenance data 
(fuel, oil level, etc.).................... 540
Fuel information ........................... 553
Tire information ............................ 556
6-2. Customization .......................... 569 Customizable features .............. 569
6-3. Initialization ............................... 575 Items to initialize ........................... 575
Reporting safety defects for 
U.S. owners.................................. 578
Seat belt instructions for 
Canadian owners 
(in French) .................................... 579
Abbreviation list ....................... 582
Alphabetical index................... 584
What to do if............................... 594
5When trouble arises6Vehicle specifications
7For owners
Index

199
2-5. Driving information
2
When driving
GS_G_U
May 13, 2008 5:14 pm

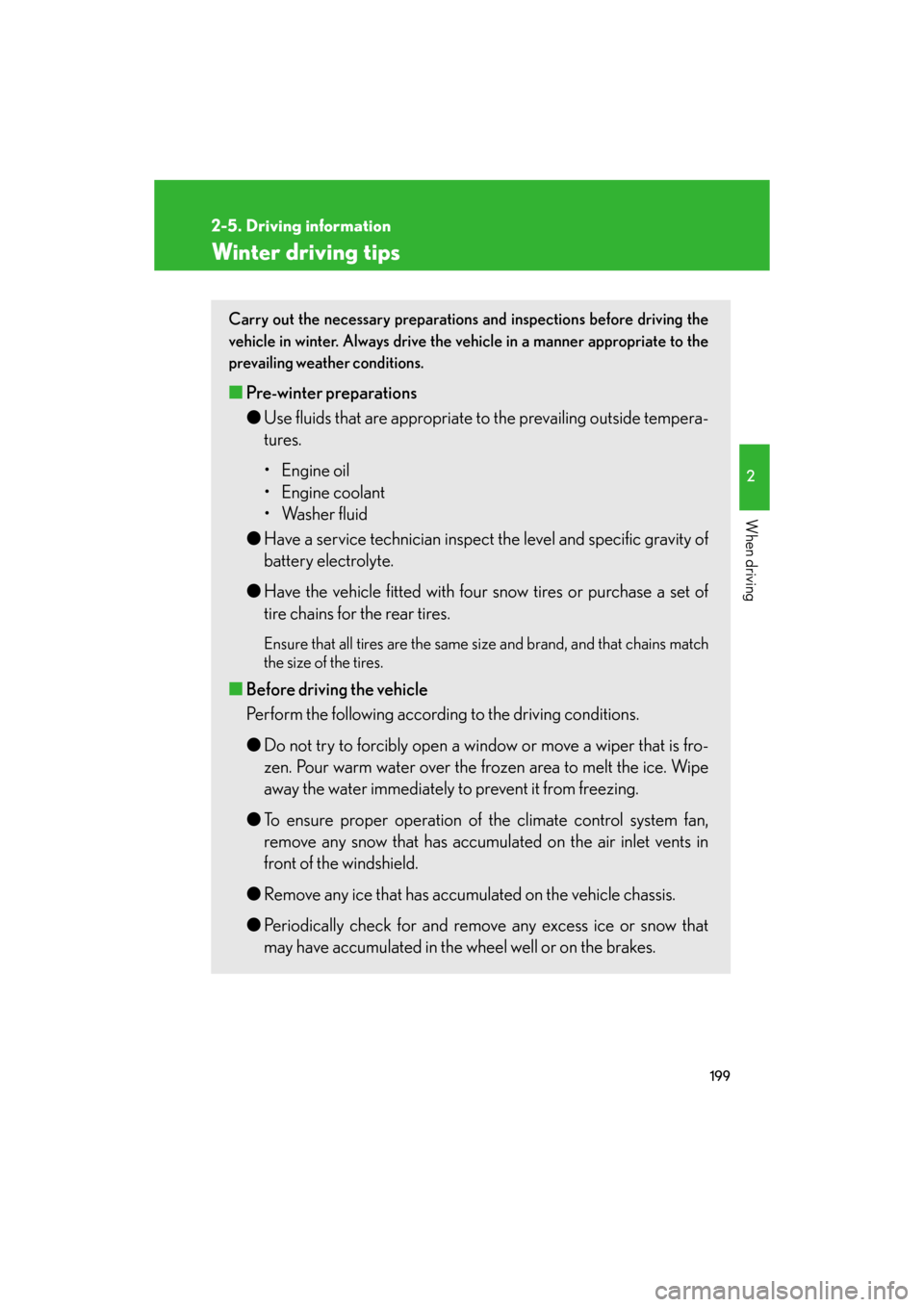

Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■ Pre-winter preparations
●Use fluids that are appropria te to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect th e level and specific gravity of
battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the same si ze and brand, and that chains match
the size of the tires.
■ Before driving the vehicle
Perform the following according to the driving conditions.
● Do not try to forcibly open a w indow or move a wiper that is fro-
zen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Remove any ice that has accumul ated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow that
may have accumulated in the wheel well or on the brakes.

396
4-2. Maintenance
GS_G_U
May 13, 2008 5:14 pm

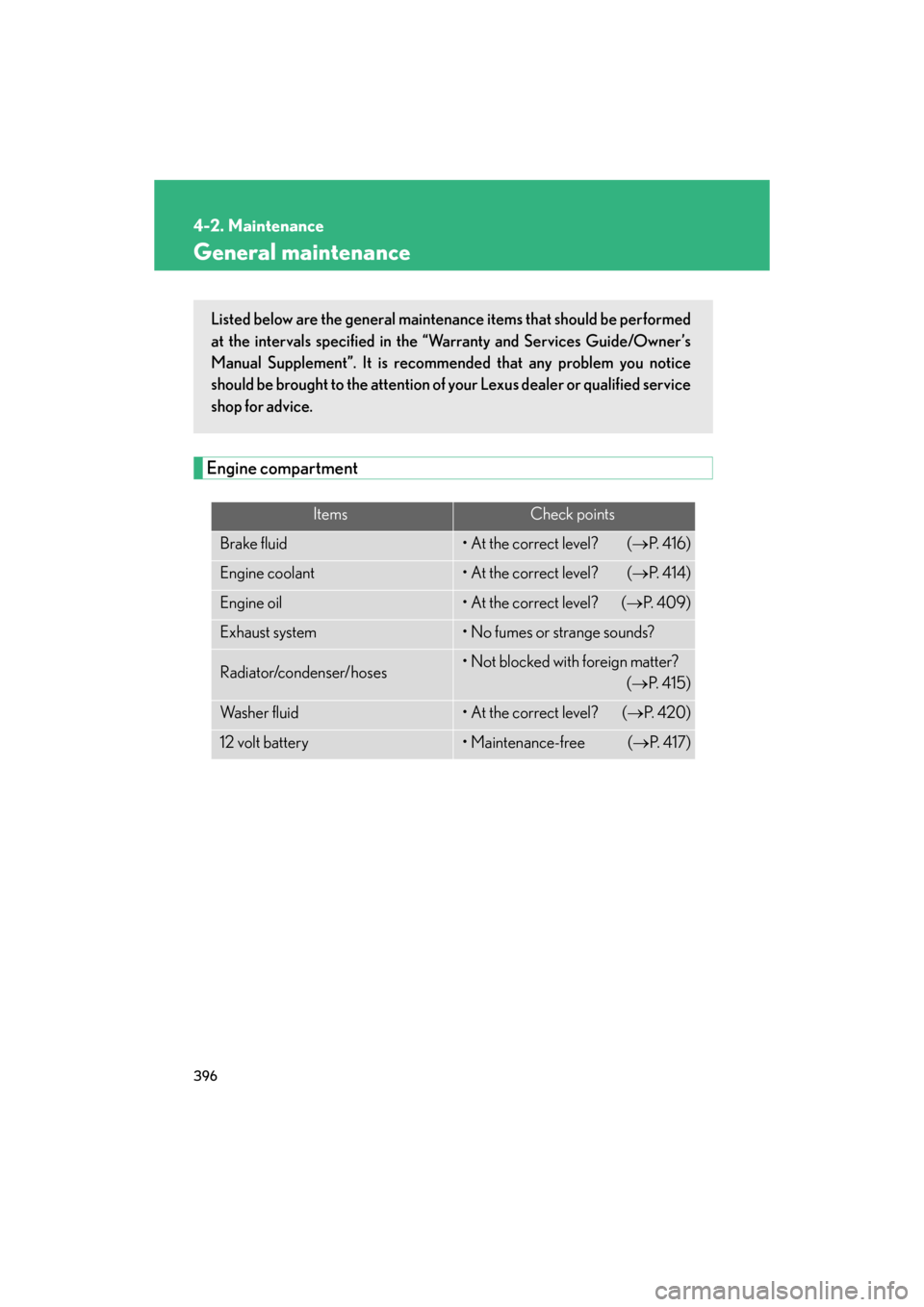

General maintenance
Engine compartment
ItemsCheck points
Brake fluid• At the correct level? (P. 4 1 6 )
Engine coolant• At the correct level? ( P. 4 1 4 )
Engine oil• At the correct level? ( P. 4 0 9 )
Exhaust system• No fumes or strange sounds?
Radiator/condenser/hoses• Not blocked with foreign matter? 
( P. 4 1 5 )
Wa s h e r f l u i d• At the correct level? ( P. 4 2 0 )
12 volt battery• Maintenance-free ( P. 4 1 7 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Services Guide/Owner’s
Manual Supplement”. It is recommend ed that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.

401
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm

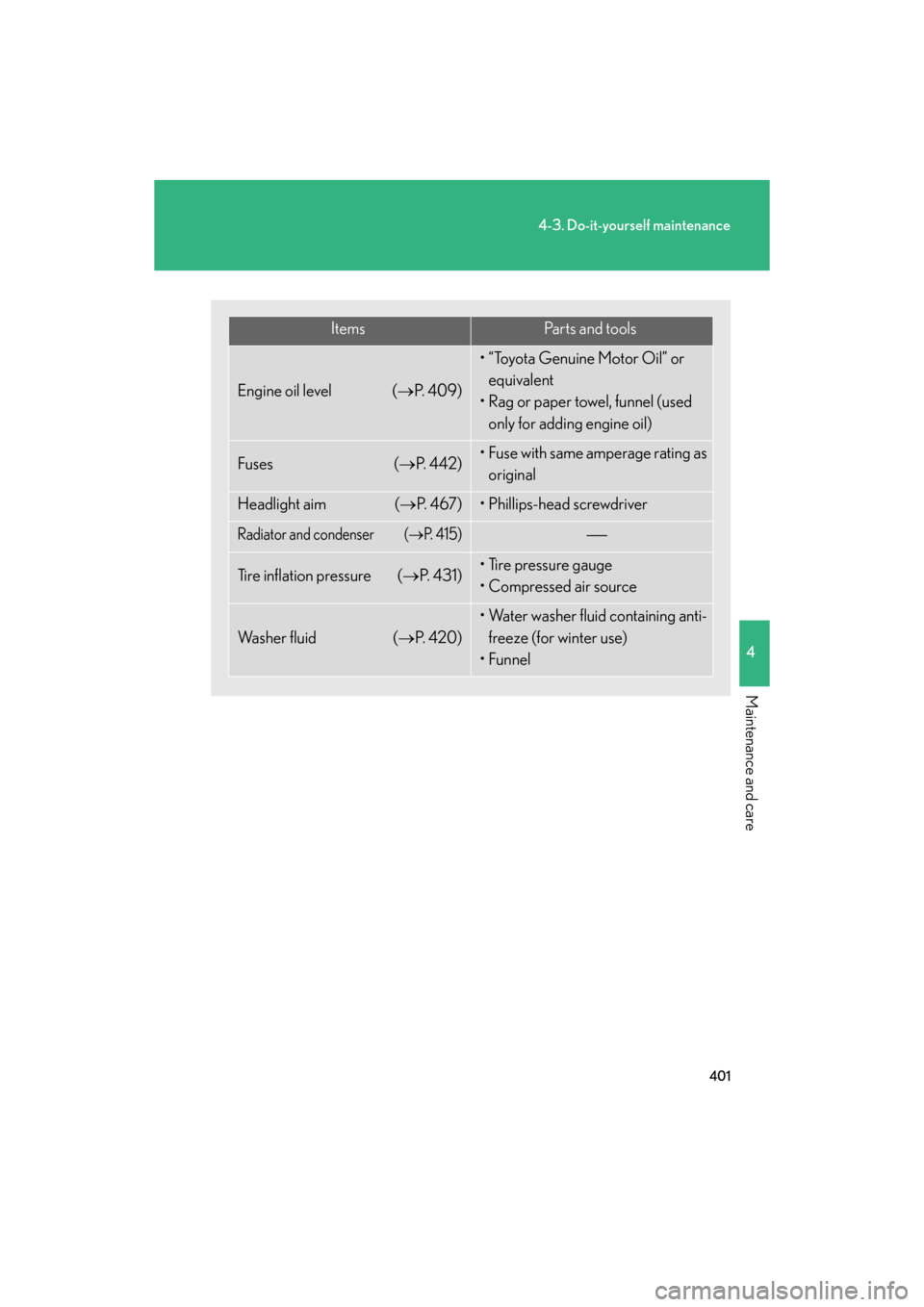

ItemsPa r t s a n d t o o l s
Engine oil level (P. 4 0 9 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses ( P. 4 4 2 )• Fuse with same amperage rating as
original
Headlight aim ( P. 4 6 7 )• Phillips-head screwdriver
Radiator and condenser (P. 4 1 5 )
Tire inflation pressure (P. 4 3 1 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( P. 4 2 0 )
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel

406
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm

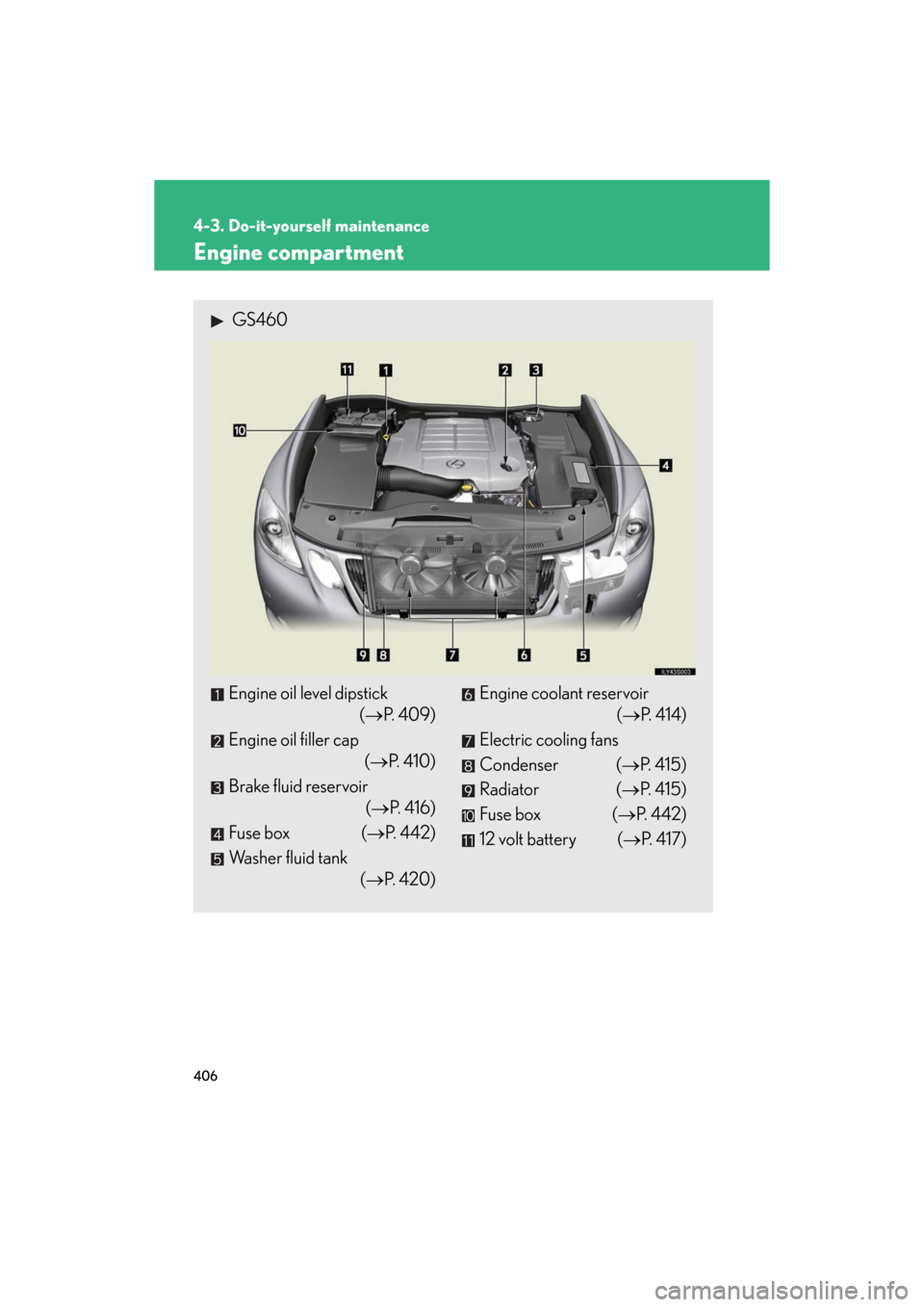

Engine compartment
GS460
Engine oil level dipstick
( P. 4 0 9 )
Engine oil filler cap 
( P. 410)
Brake fluid reservoir 
( P. 4 1 6 )
Fuse box ( P. 4 4 2 )
Washer fluid tank 
( P. 420)Engine coolant reservoir 
( P. 4 1 4 )
Electric cooling fans
Condenser ( P. 415)
Radiator ( P. 415)
Fuse box ( P. 4 4 2 )
12 volt battery ( P. 417)

407
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm

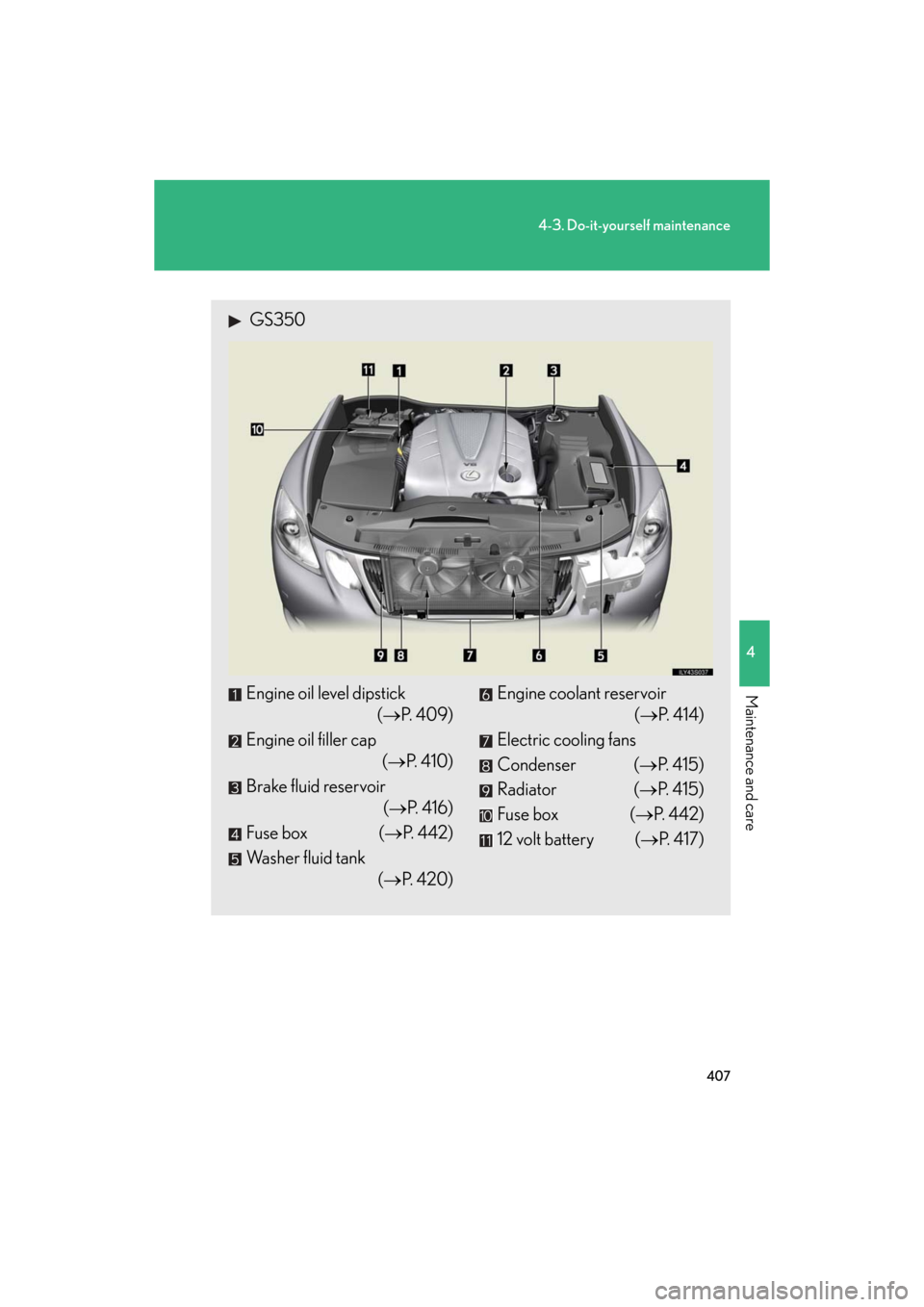

GS350
Engine oil level dipstick
( P. 4 0 9 )
Engine oil filler cap 
( P. 410)
Brake fluid reservoir (P. 4 1 6 )
Fuse box ( P. 4 4 2 )
Washer fluid tank 
( P. 420)Engine coolant reservoir 
( P. 4 1 4 )
Electric cooling fans
Condenser ( P. 415)
Radiator ( P. 415)
Fuse box ( P. 4 4 2 )
12 volt battery ( P. 417)

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
■Installing the clips
Push up center portion
Insert
Press
Engine oil
With the engine at operating temperat ure and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After turning off the engine, wait
a few minutes for the oil to drain back into the bottom of the
engine.
Hold a rag under the end and pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
STEP1
STEP2
STEP3
STEP4
STEP5

410
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
Wipe the dipstick and reinsert it fully.Low
Full
■ Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.STEP6
Oil gradeILSAC multigrade engine oil
Oil quantity
(Low  Full)1.6 qt. (1.5 L, 1.3 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3

412
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
■Engine oil consumption
●The amount of engine oil consumed depends on the oil viscosity, the quality of
the oil and the way the vehicle is driven.
●More oil is consumed under driving conditions such as high speeds, frequent
acceleration and deceleration.
●A new engine consumes more oil.
●When judging the amount of oil consumpt ion, keep in mind that the oil may
have become diluted, making it difficult to judge the true level accurately.
●Oil consumption: Max. 1.1 qt./600 miles, 0.9 lmp.qt./600 miles (1.0 L per 1000
km). If the vehicle consumes more than this amount, contact your Lexus dealer.
■Resetting the engine oil main tenance data (U.S.A. only)
Perform the following steps:
Press the “DISP” switch ( P. 140) to change the multi-information dis-
play to blank.
Turn the “ENGINE START STOP” switch to OFF.
Turn the “ENGINE START STOP” switch to IGNITION ON mode with
the trip meter reset button held down.
Keep pressing the button for longer than 7 seconds after the “ENGINE
START STOP” switch is in IGNITION ON mode.
STEP1
STEP2
STEP3
STEP4
After the above operation, the message
shown in the left will appear on the display.
The master warning light and tone will turn
on. After 5 seconds, the system reset is com-
pleted.

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation or skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in househol d trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information con-
cerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
