Lexus GS460 2011 Quick Guide /LEXUS 2011 GS350/GS460 QUICK GUIDE (OM30C25U) Workshop Manual

51
Quick_GS_G_U_(OM30C25U)
Fuel Tank Cap
Press the fuel filler door opener.
Slowly remove the cap by turning it counter-
clockwise.
Hood
Pull the hood lock release lever.
Insert your fingers under the hood, pull the
hood catch and lift the hood.

Quick_GS_G_U_(OM30C25U)
52
Tr u n k
■Trunk opener
To open the trunk from inside the cabin, simply
press the trunk opener.
To disable the trunk opener, turn OFF the main
switch in the glove box.
ON
OFF
When the trunk opener is disabled, the trunk can-
not be opened using the entry function or the
wireless remote control.
■Entry function and wireless remote control
P. 8 , 9
1
2

What to do if ...
53
Quick_GS_G_U_(OM30C25U)
List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
(Canada)Brake system warning light
Stop the vehicle immediately.
Charging system warning light
Have the vehicle inspected immediately.
(U.S.A.)
(Canada)Malfunction
indicator lampSRS warning light
ECB*1 warning light
(U.S.A.)
(Canada)ABS warning light
Electric power steering
warning light
Pre-collision system
warning light*2
(Flashing and
then continu-
ously on)Tire pressure warning light
For further information, refer to the Owner’s Manual.

Quick_GS_G_U_(OM30C25U)
54
*1: Electronically Controlled Brake System
*2: If equipped
*3: Turns on due to natural causes such as natural air leaks or tire inflation pressure changes
caused by temperature excluding compact spare tire. Adjust the tire inflation pressure.
Have the malfunction repaired immediately.
Open door warning light
(On the cen-
ter panel)
Front passenger’s seat belt
reminder light
Low fuel level warning light
(Illuminate no
flashing)Tire pressure warning light *3
a
(On the
instrument
cluster)
Driver’s seat belt
reminder light
Master warning light
See the Owner’s Manual
Tu r n s i g n a l i n d i c a t o r“ECT PWR” indicator
Headlight high beam indicatorCruise control indicator
Headlight indicator (U.S.A.)“SPORT” mode indicator
Tail light indicator (Canada)“AFS OFF” indicator *2
Fog light indicatorIntuitive parking assist indica-
tor
*2
“ECT SNOW” indicatorSlip indicator
Shift position and shift range
indicatorsSlip off indicator
“A I R B A G O N ” a n d “A I R
BAG OFF” indicators
For further information, refer to the Owner’s Manual.

What to do if ...
55
Quick_GS_G_U_(OM30C25U)

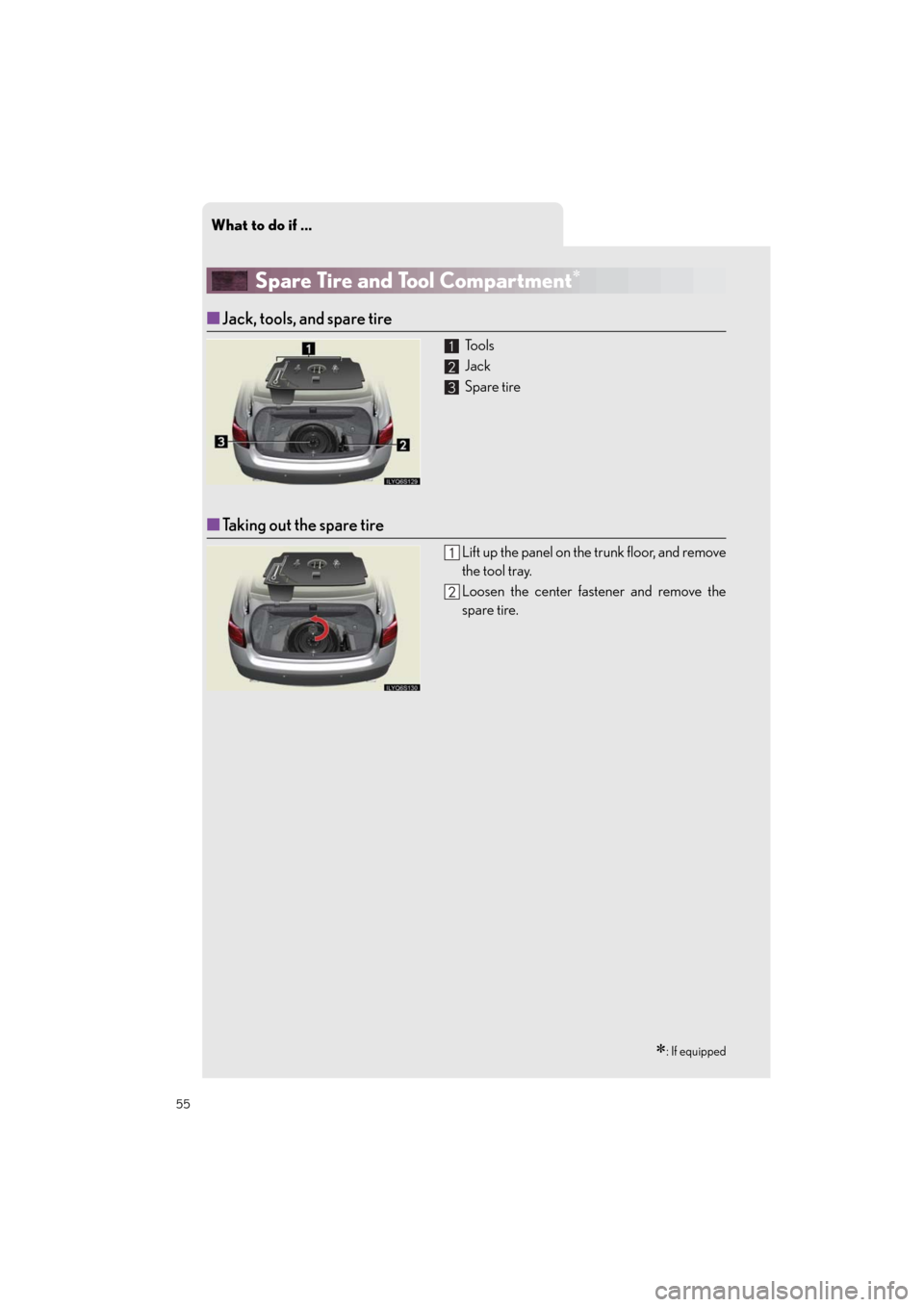

Spare Tire and Tool Compartment
■Jack, tools, and spare tire
To o l s
Jack
Spare tire
■Taking out the spare tire
Lift up the panel on the trunk floor, and remove
the tool tray.
Loosen the center fastener and remove the
spare tire.
: If equipped
1
2
3

Quick_GS_G_U_(OM30C25U)
56
If the electronic key does not operate properly
■Unlocking and locking the doors
To unlock or lock the vehicle, use the mechanical
key. The mechanical key is stored inside the elec-
tronic key.
Unlocks
Locks
■Starting the engine
Depress the brake pedal.
Touch the Lexus emblem side of the electronic
key to the “ENGINE START STOP” switch.
Press the “ENGINE START STOP” switch
within 10 seconds after the buzzer sounds,
keeping the brake pedal depressed
*: If equipped
1
2
Card key*
If the electronic key battery becomes depleted, replace it with a new battery. For instruc-
tions on replacing the battery, refer to the Owner’s Manual. If you need further assistance,
contact your Lexus dealer.

What to do if ...
57
Quick_GS_G_U_(OM30C25U)
If the engine does not start
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the engine.
(P.1 7 )
u
Make sure that the steering lock is released.
To release the steering lock, gently turn the wheel
left or right while pressing the “ENGINE START
STOP” switch. (P.1 0 )
Brake pedal
Steering lock
If the engine still does not start, see the Owner’s Manual for more information or contact
your Lexus dealer.

Quick_GS_G_U_(OM30C25U)
58
Electronic Key Alarm
The electronic key alarm uses an alarm and warning messages to indicate that the electronic
key has been used improperly. Take appropriate measure in response to any warning mes-
sages that are displayed. In some cases, an alarm may sound without an accompanying
warning message. If so, follow the correction procedure in the table below.
AlarmSituationCorrection procedure
Exterior alarm sounds
once for 2 seconds
Tried to lock the doors
using the entry function
while the electronic key is
still inside the passenger
compartmentRetrieve the electronic key
from the passenger com-
partment and lock the
doors again.
Closed the trunk while the
electronic key is still inside
and all doors are lockedRetrieve the electronic key
from the trunk and close
the trunk lid.
Exterior alarm sounds
once for 60 seconds
Tried to exit the vehicle
with the electronic key and
lock the doors without first
turning the “ENGINE
START STOP” switch OFF
Turn the “ENGINE START
STOP” switch OFF and
lock the doors again.
Exterior alarm sounds
once for 10 secondsTried to lock the vehicle
using the entry function
while a door is openClose all of the doors and
lock the doors again.
Interior alarm sounds
continuouslyTried to open the door and
exit the vehicle without
shifting the shift lever to “P”
Shift the shift lever to “P”.
Interior alarm rings
continuously
Switched to ACCES-
SORY mode while the
driver’s door is open
(Opened the driver’s door
when the “ENGINE
START STOP” switch is in
ACCESSORY mode.)
Turn the “ENGINE START
STOP” switch OFF and
close the driver’s door.
Tu r n e d t h e “ E N G I N E
START STOP” switch OFF
while the driver’s door is
open
Close the driver’s door.

Customizing Your Lexus
59
Quick_GS_G_U_(OM30C25U)
.Your vehicle includes a variety of electronic features that can be personalized to your
preferences. Programming these preferences requires specialized equipment and may
be performed by an authorized Lexus dealership.
Some function settings are changed simultaneously with other functions being customized.
Contact your Lexus dealer for further details.
ItemFunctionDefault
settingCustomized
setting
Smart access
system with
push-button start
Smart access system with
push-button startONOFF
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer)ONOFF
Wireless remote
control
Unlocking operation
Driver’s door
unlocked in 1-
step, all doors
unlocked in 2-
steps
All doors
unlocked in 1-
step
Time elapsed before auto-
matic door lock function is
activated if door is not opened
after being unlocked
60 seconds
OFF
30 seconds
120 seconds
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer)ONOFF
Trunk unlocking functionONOFF
Trunk unlocking operationPush and hold Push twice
One short push
Panic functionONOFF
Buzzer sounds when pushing
with any door not closedONOFF

Quick_GS_G_U_(OM30C25U)
60
ItemFunctionDefault
settingCustomized
setting
Door lock
Unlocking using a key
Driver’s door
unlocked in 1-
step, all doors
unlocked in 2-
steps
All doors
unlocked in 1-
step
Speed-detecting automatic
door lock functionOFFON
Opening driver’s door unlocks
all doors OFFON
Shifting the shift lever to “P”
unlocks all doors.ONOFF
Shifting the shift lever to posi-
tion other than “P” locks all
doors
ONOFF
Pow e r w i n d o w s
Linked door key operationOpen and
closeOpen only
Close only
Wireless remote control linked
operationOFFOpen
