brake Lexus GS460 2011 Quick Guide /LEXUS 2011 GS350/GS460 OWNERS MANUAL QUICK GUIDE (OM30C25U)

2
Quick_GS_G_U_(OM30C25U)
Depending on specifications, the vehicle shown in the illustration may
differ from your vehicle in terms of color and equipment.
Inside Rear View Mirror ..................................................................................................................... 15
Instrument Panel Light Control ..................................................................................................... 30
Interior Lights .......................................................................................................................................... 41
Intuitive Parking Assist ........................................................................................................................ 21
Keys...............................................................................................................................................................8
Lexus Enform with Safety Connect .............................................................................................. 47
Luggage Mat.......................................................................................................................................... 42
Mode Select Switch ............................................................................................................................20
Moon Roof ............................................................................................................................................. 50
Multi-Information Display.................................................................................................................. 19
Odometer/Trip Meter and Trip Meter Reset Buttons ........................................................... 16
Outside Rear View Mirrors .............................................................................................................. 15
Overview .................................................................................................................................................... 3
Parking Brake.......................................................................................................................................... 18
Power Windows ................................................................................................................................... 50
Rear Sunshade ....................................................................................................................................... 41
Rear Window and Outside Rear View Mirror Defoggers ................................................ 30
Safety Connect ..................................................................................................................................... 45
Seat Belts .................................................................................................................................................. 14
Seat Heaters/Ventilators ................................................................................................................. 38
Seats .............................................................................................................................................................11
Smart Access System with Push-button Start............................................................................. 9
Steering Wheel ...................................................................................................................................... 16
Theft Deterrent System ...................................................................................................................... 10
Touch Screen........................................................................................................................................... 31
TRAC/VSC Off Mode......................................................................................................................25
Trunk .......................................................................................................................................................... 52
Turn Signal Lever ..................................................................................................................................20
Windshield Wipers and Washers ..................................................................................................28

3
Quick_GS_G_U_(OM30C25U)
OverviewInstrument Panel
Windshield wipers and
washer switch
P.28Headlight switch
Turn signal lever
Fog light switch P.26
P.20
P.27
See P.5
Inside door lock button P.49
Door lock switch P.49
Power window switches P.50
Window lock switch P.50
Multi-information
display
P.19
Driving position
memory switches
P.12
Parking brake pedal P. 18
Trunk opener P.52
Fuel filler door opener P.51
See P. 6
Hood lock release lever P.51

17
Quick_GS_G_U_(OM30C25U)
Starting
■Starting the engine
Make sure the parking brake is engaged and the
shift lever is in “P”.
Depress the brake pedal.
The “ENGINE START STOP” switch indi-
cator light turns green.
Press the “ENGINE START STOP” switch.
■Stopping the engine
Engage the parking brake and shift the shift lever to “P”.
Press the “ENGINE START STOP” switch.
■Changing “ENGINE START STOP” switch modes
To change “ENGINE START STOP” switch modes without turning on the engine, press the
“ENGINE START STOP” switch without depressing the brake pedal. The modes can be
changed in the following order:
With the electronic key on your person, the engine can be started by simply pressing the
“ENGINE START STOP” switch, while depressing the brake pedal.
(The mechanical key cannot be used to start the engine.)
ACCESSORY modeIGNITION ON mode
(Indicator light: amber) OFF
(Indicator light: off)

Quick_GS_G_U_(OM30C25U)
18
Automatic Transmission
■Shift positions
PPa r k *
RReverse
NNeutral (drive not engaged)
DDrive
S“S” mode
*: The engine can only be started in “P”.
The vehicle can only be shifted out of “P”
when the “ENGINE START STOP” switch is
in IGNITION ON mode and the brake pedal
is depressed.
■“S” mode
“S” mode allows the driver to select the shift range manually based on driving conditions.
Shift the shift lever to “S”.
To u p s h i f t : shift the shift lever toward “+”.
To d o w n s h i f t : shift the shift lever toward “-”.
The selected shift range is displayed on the
instrument cluster.
Parking Brake
To s e t: firmly depress the parking brake pedal.
To r e l e a s e: depress the parking brake pedal
again.

What to do if ...
53
Quick_GS_G_U_(OM30C25U)

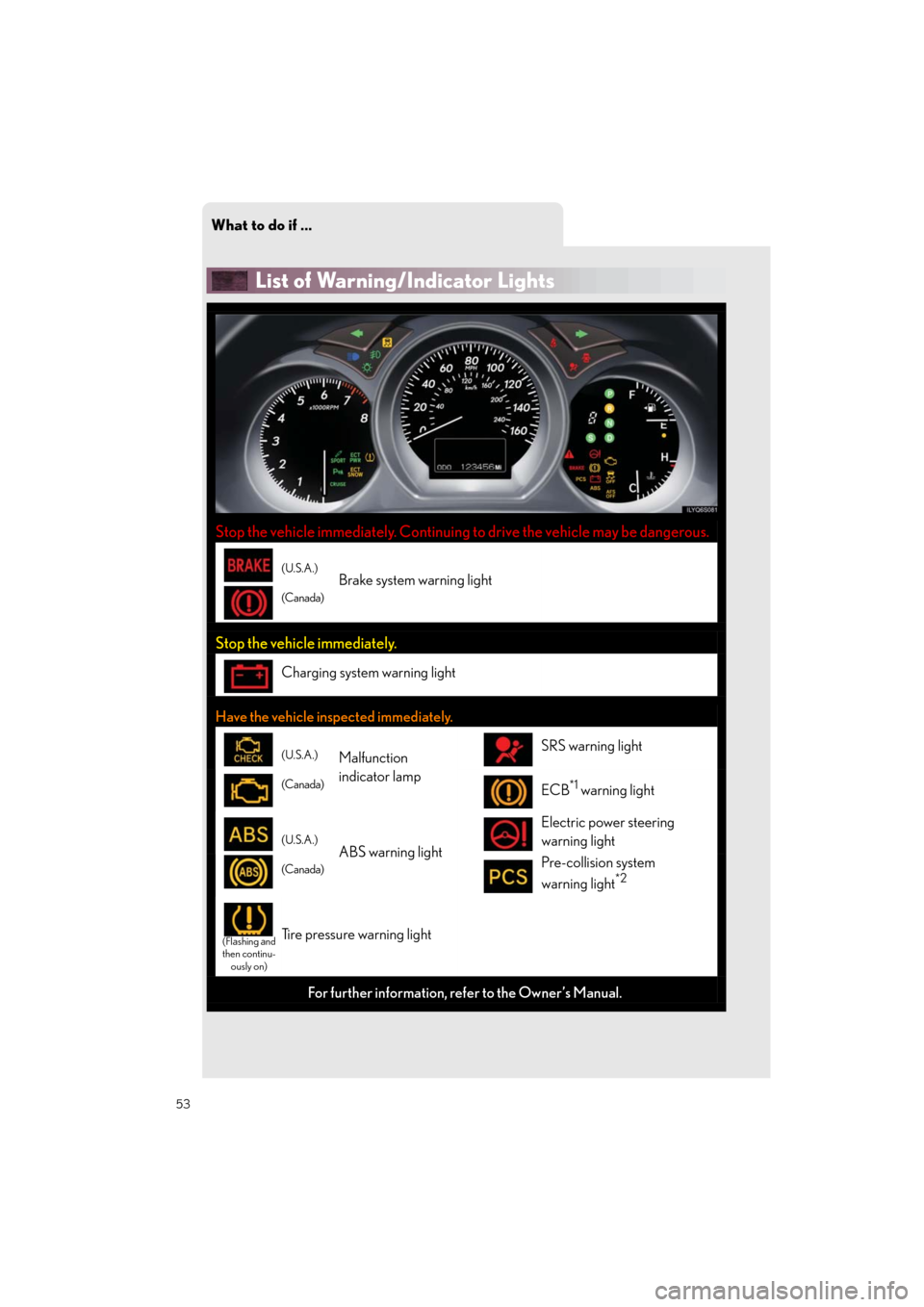

List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
(Canada)Brake system warning light
Stop the vehicle immediately.
Charging system warning light
Have the vehicle inspected immediately.
(U.S.A.)
(Canada)Malfunction
indicator lampSRS warning light
ECB*1 warning light
(U.S.A.)
(Canada)ABS warning light
Electric power steering
warning light
Pre-collision system
warning light*2
(Flashing and
then continu-
ously on)Tire pressure warning light
For further information, refer to the Owner’s Manual.

Quick_GS_G_U_(OM30C25U)
54
*1: Electronically Controlled Brake System
*2: If equipped
*3: Turns on due to natural causes such as natural air leaks or tire inflation pressure changes
caused by temperature excluding compact spare tire. Adjust the tire inflation pressure.
Have the malfunction repaired immediately.
Open door warning light
(On the cen-
ter panel)
Front passenger’s seat belt
reminder light
Low fuel level warning light
(Illuminate no
flashing)Tire pressure warning light *3
a
(On the
instrument
cluster)
Driver’s seat belt
reminder light
Master warning light
See the Owner’s Manual
Tu r n s i g n a l i n d i c a t o r“ECT PWR” indicator
Headlight high beam indicatorCruise control indicator
Headlight indicator (U.S.A.)“SPORT” mode indicator
Tail light indicator (Canada)“AFS OFF” indicator *2
Fog light indicatorIntuitive parking assist indica-
tor
*2
“ECT SNOW” indicatorSlip indicator
Shift position and shift range
indicatorsSlip off indicator
“A I R B A G O N ” a n d “A I R
BAG OFF” indicators
For further information, refer to the Owner’s Manual.

Quick_GS_G_U_(OM30C25U)
56
If the electronic key does not operate properly
■Unlocking and locking the doors
To unlock or lock the vehicle, use the mechanical
key. The mechanical key is stored inside the elec-
tronic key.
Unlocks
Locks
■Starting the engine
Depress the brake pedal.
Touch the Lexus emblem side of the electronic
key to the “ENGINE START STOP” switch.
Press the “ENGINE START STOP” switch
within 10 seconds after the buzzer sounds,
keeping the brake pedal depressed
*: If equipped
1
2
Card key*
If the electronic key battery becomes depleted, replace it with a new battery. For instruc-
tions on replacing the battery, refer to the Owner’s Manual. If you need further assistance,
contact your Lexus dealer.

What to do if ...
57
Quick_GS_G_U_(OM30C25U)
If the engine does not start
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the engine.
(P.1 7 )
u
Make sure that the steering lock is released.
To release the steering lock, gently turn the wheel
left or right while pressing the “ENGINE START
STOP” switch. (P.1 0 )
Brake pedal
Steering lock
If the engine still does not start, see the Owner’s Manual for more information or contact
your Lexus dealer.
