remote control Lexus GS460 2011 Quick Guide /LEXUS 2011 GS350/GS460 OWNERS MANUAL QUICK GUIDE (OM30C25U)

Quick_GS_G_U_(OM30C25U)
8
Keys
■Electronic key
Smart access system with push-button start
(P. 9 , 1 7 )
*: If equipped
■Mechanical key
●Locks and unlocks the doors
●Opens the trunk
●Locks and unlocks the glove box
The mechanical key is stored inside the electronic
key. To extract the key, release the latch and pull,
or if equipped with a card key, press the button
and pull.
■Wireless remote control
Locks the doors
Unlocks the doors
Opens the trunk
Sounds the alarm
(To stop the alarm, push any button on the
wireless remote control.)
Card key*
1
2
3
4

49
Quick_GS_G_U_(OM30C25U)
Door Locks
■Locking the vehicle from inside
Inside lock button
Locks
Unlocks
Door lock switch
Operates all door locks.
Locks
Unlocks
■Locking the vehicle from outside
Using the entry function or wireless remote control (P. 8 , 9 )
■Rear door child-protector lock
Setting the switch to the LOCK position prevents
the rear doors from being opened from the inside.
1
2
1
2

Quick_GS_G_U_(OM30C25U)
52
Tr u n k
■Trunk opener
To open the trunk from inside the cabin, simply
press the trunk opener.
To disable the trunk opener, turn OFF the main
switch in the glove box.
ON
OFF
When the trunk opener is disabled, the trunk can-
not be opened using the entry function or the
wireless remote control.
■Entry function and wireless remote control
P. 8 , 9
1
2

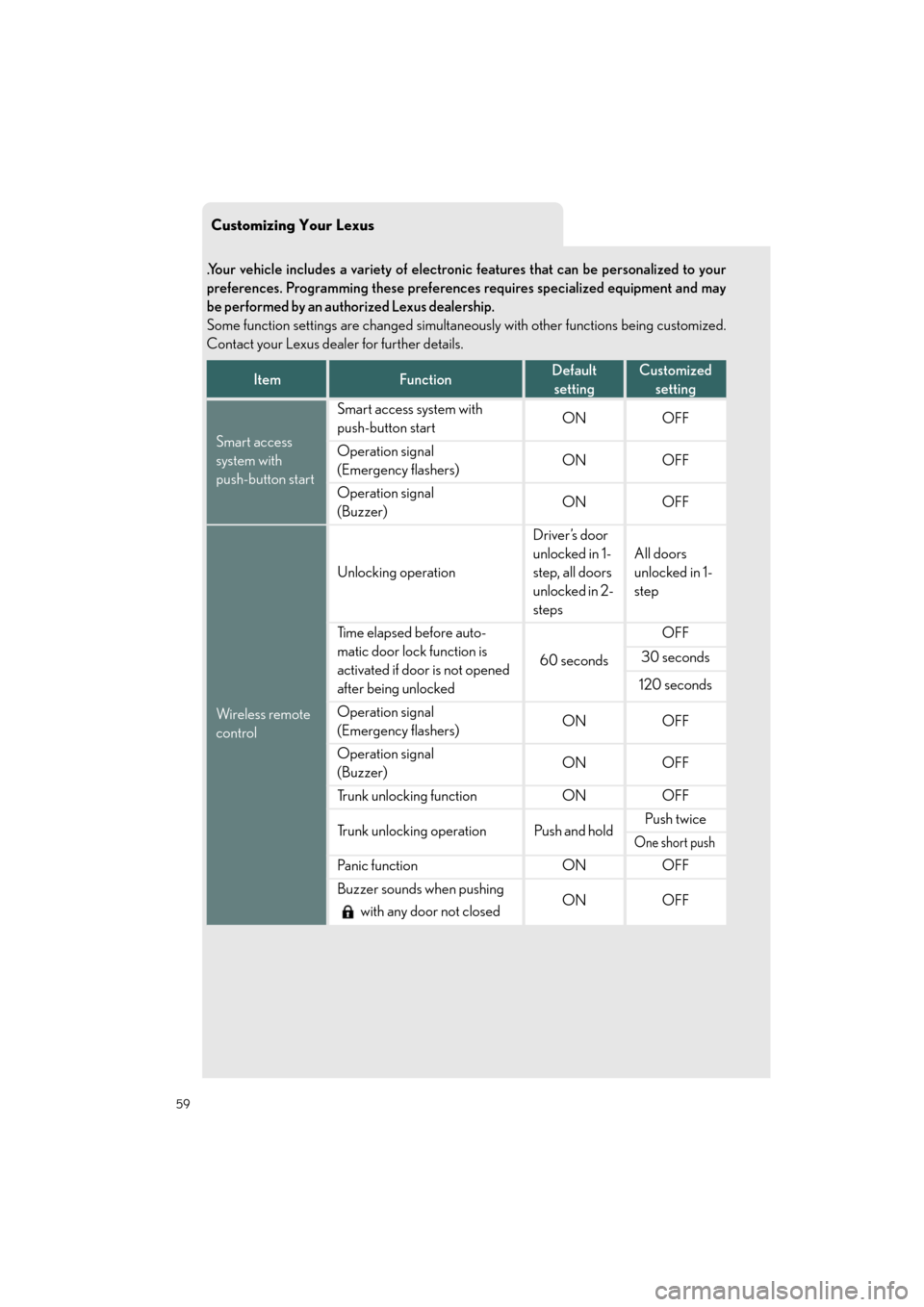

Customizing Your Lexus
59
Quick_GS_G_U_(OM30C25U)
.Your vehicle includes a variety of electronic features that can be personalized to your
preferences. Programming these preferences requires specialized equipment and may
be performed by an authorized Lexus dealership.
Some function settings are changed simultaneously with other functions being customized.
Contact your Lexus dealer for further details.
ItemFunctionDefault
settingCustomized
setting
Smart access
system with
push-button start
Smart access system with
push-button startONOFF
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer)ONOFF
Wireless remote
control
Unlocking operation
Driver’s door
unlocked in 1-
step, all doors
unlocked in 2-
steps
All doors
unlocked in 1-
step
Time elapsed before auto-
matic door lock function is
activated if door is not opened
after being unlocked
60 seconds
OFF
30 seconds
120 seconds
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer)ONOFF
Trunk unlocking functionONOFF
Trunk unlocking operationPush and hold Push twice
One short push
Panic functionONOFF
Buzzer sounds when pushing
with any door not closedONOFF

Quick_GS_G_U_(OM30C25U)
60

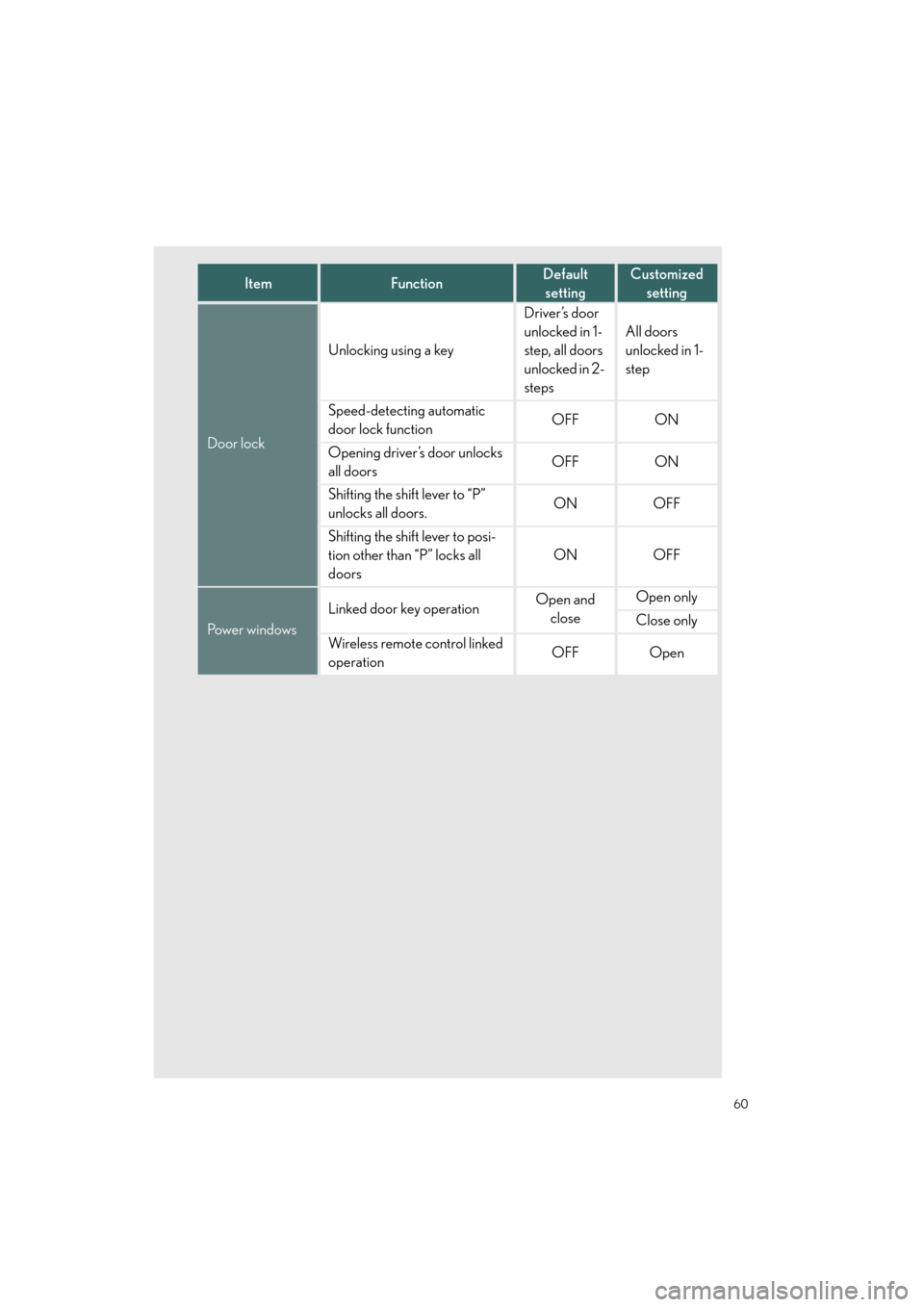

ItemFunctionDefault
settingCustomized
setting
Door lock
Unlocking using a key
Driver’s door
unlocked in 1-
step, all doors
unlocked in 2-
steps
All doors
unlocked in 1-
step
Speed-detecting automatic
door lock functionOFFON
Opening driver’s door unlocks
all doors OFFON
Shifting the shift lever to “P”
unlocks all doors.ONOFF
Shifting the shift lever to posi-
tion other than “P” locks all
doors
ONOFF
Pow e r w i n d o w s
Linked door key operationOpen and
closeOpen only
Close only
Wireless remote control linked
operationOFFOpen

Customizing Your Lexus
61
Quick_GS_G_U_(OM30C25U)
*1: This function cannot be customized unless power window operation using the wireless
remote control is enabled.
*
2: Vehicles sold outside Canada

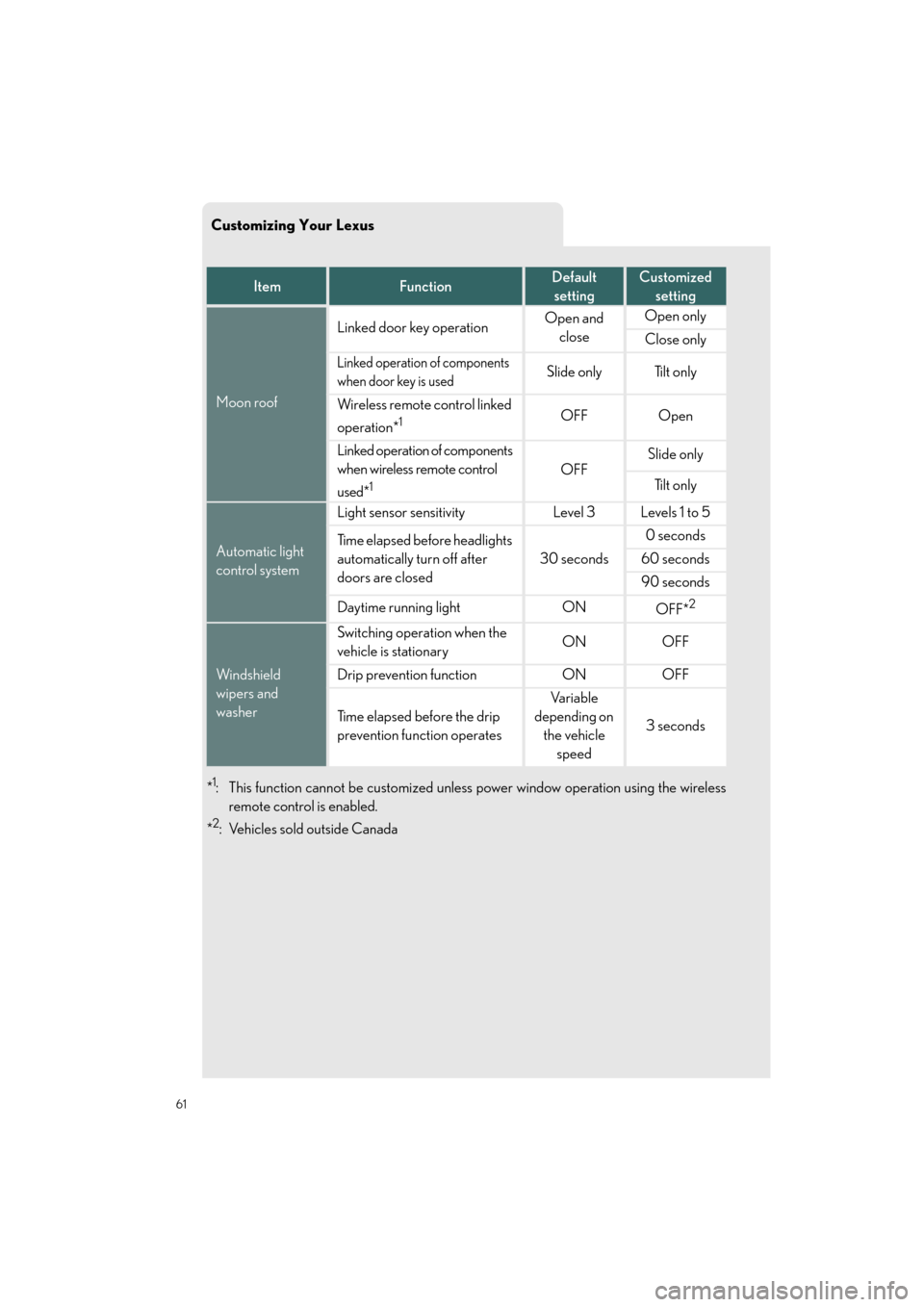

ItemFunctionDefault
settingCustomized
setting
Moon roof
Linked door key operationOpen and
closeOpen only
Close only
Linked operation of components
when door key is usedSlide onlyTilt only
Wireless remote control linked
operation*
1OFFOpen
Linked operation of components
when wireless remote control
used*
1
OFFSlide only
Tilt only
Automatic light
control system
Light sensor sensitivityLevel 3Levels 1 to 5
Time elapsed before headlights
automatically turn off after
doors are closed
30 seconds
0 seconds
60 seconds
90 seconds
Daytime running lightONOFF*2
Windshield
wipers and
washer
Switching operation when the
vehicle is stationaryONOFF
Drip prevention functionONOFF
Time elapsed before the drip
prevention function operates
Va r i a b l e
depending on
the vehicle
speed
3 seconds
