GX460_U.S.A. (OM60E69U)
3-6. Using the storage featuresList of storage fe atures................ 515
• Glove box ..................................... 516
• Console box ................................. 517
• Coin holder................................... 519
• Bottle holders/ 
door pockets .............................. 520
• Cup holders................................. 522
• Auxiliary boxes........................... 525
3-7. Other interior features Cool box ......................................... 528
Sun visors.......................................... 531
Vanity mirror .................................. 532
Clock ................................................ 533
Conversation mirror ................... 534
Power outlet (12 V DC) .................................... 535
Power outlet  (120 V AC [type A]) ................ 537
Power outlet  (120 V AC [type B]) ................ 542
Heated steering wheel............... 549
Seat heaters and 
ventilators ...................................... 551
Armrest ............................................ 554
Coat hooks .................................... 555
Floor mats........................................ 556
Luggage compartment 
features.......................................... 557
Garage door opener.................. 567
Compass.......................................... 575
Safety Connect ............................ 580 4-1. Maintenance and care
Cleaning and protecting 
the vehicle exterior.................. 588
Cleaning and protecting 
the vehicle interior .................... 592
4-2. Maintenance Maintenance requirements.............................. 595
General maintenance ................ 597
Emission inspection and 
maintenance (I/M) 
programs ....................................... 601
4-3. Do-it-yourself maintenance Do-it-yourself service 
precautions .................................. 602
Hood ................................................. 607
Engine compartment................. 608
Tires ................................................... 627
Tire inflation pressure................. 634
Wheels ............................................ 638
Air conditioning filter.................. 640
Electronic key battery ................ 642
Checking and replacing 
fuses ................................................ 645
Headlight aim (vehicles with low 
beam halogen bulbs) ............. 658
Light bulbs ....................................... 660
4Maintenance and care

10
GX460_U.S.A. (OM60E69U)

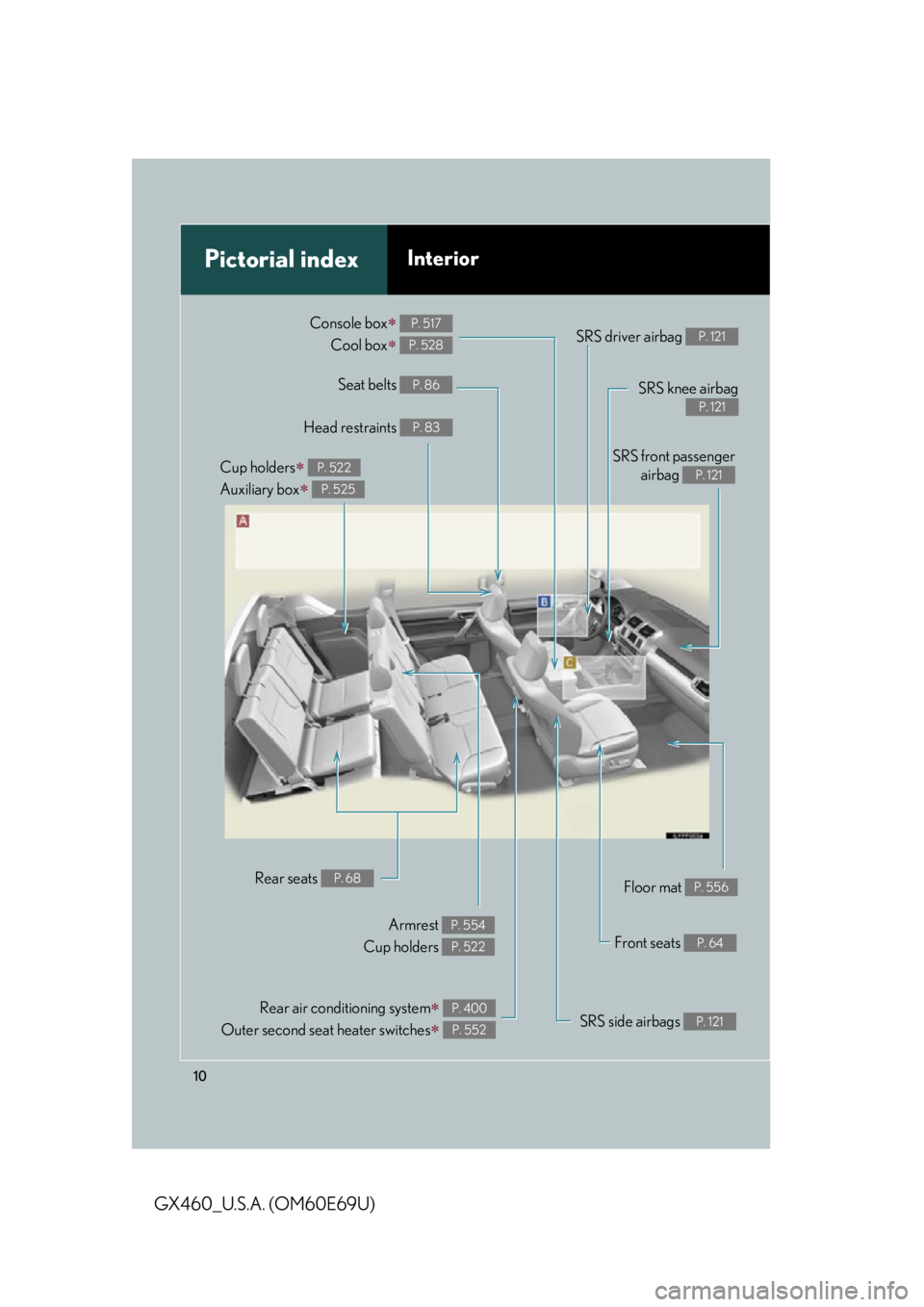

Pictorial indexInterior
Seat belts P. 86
SRS driver airbag P. 121
Floor mat P. 556
Rear air conditioning system
Outer second seat heater switches

P. 400
P. 552
Head restraints P. 83
Front seats P. 64
SRS side airbags P. 121
Console box
Cool box

P. 517
P. 528
Cup holders
Auxiliary box

P. 522
P. 525
Rear seats P. 68
Armrest
Cup holders P. 554
P. 522
SRS knee airbag
P. 121
SRS front passenger airbag
P. 121

13
GX460_U.S.A. (OM60E69U)
Shift lever P. 186
AVS switch P. 316
Shift lock override button P. 736
Four-wheel drive control switch
P. 317
Front seat heater/ventilator 
switch
P. 551
AUX/USB adapter 
P. 433, 440, 451
Height control switch P. 310
Cup holders
P. 522
C
Front seat heater/ventilator switch P. 551
Power outlet 
P. 535
Crawl Control switch
DAC switch

P. 323
P. 327
: If equipped

99
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_U.S.A. (OM60E69U)
■Mirror angle can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■When the mirrors are fogged up
Turn on the mirror heaters to defog the mirrors. (P. 404)
■Linked mirror function when reversing
The outside rear view mirrors will automa tically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between “L” and
“R”).
■Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. ( P. 7 9 )
■Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirr or is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light.

274
2-4. Using other driving systems
GX460_U.S.A. (OM60E69U)
NOTICE
■Camera sensor
●Keep the windshield clean at all times.
LDA performance may deteriorate due to the presence of raindrops, condensa-
tion, ice or snow on the windshield.
●Do not subject the camera sensor to stro ng impact or force, and do not disas-
semble the camera sensor.
●Do not change the installation position of the camera sensor or remove it. The
direction of the camera sensor is precisely adjusted.
●When it is cold, using the heater with air blowing to the feet may cause the upper
part of the windshield to fog up. This will have a negative effect on the images. In
such a case, use the windshield defogger to provide warm, dry air to the wind-
shield.
●Do not place anything on the dashboard. 
The camera sensor may recognize the image reflected on the windshield as lane
markings by mistake.
●Do not scratch the camera lens, or let it get dirty.
●Do not attach stickers or other items to the windshield near the camera sensor.
●Adjust the inside rear view mirror correctly so that it does not interfere with the
camera sensor.
Observe the following to ensure that the
LDA system functions correctly.

Interior features3
383
GX460_U.S.A. (OM60E69U)
3-4. Using the hands-free system 
(for cellular phone)
Hands-free system for 
cellular phones..................... 477
Using the hands-free system 
(for cellular phones) ............ 481
Making a phone call .............. 489
Setting a cellular phone ....... 494
Security and system 
setup ........................................ 499
Using the phone book.......... 503
3-5. Using the interior lights Interior lights list ....................... 511
• Personal/interior light main switch ................................ 512
• Personal/interior lights ......... 513
3-6. Using the storage features List of storage features .......... 515
• Glove box .................................. 516
• Console box .............................. 517
• Coin holder................................ 519
• Bottle holders/ 
door pockets ........................... 520
• Cup holders.............................. 522
• Auxiliary boxes........................ 525 3-7. Other interior features
Cool box ................................... 528
Sun visors .................................. 531
Vanity mirror ........................... 532
Clock ......................................... 533
Conversation mirror............. 534
Power outlet (12 V DC)........ 535
Power outlet 
(120 V AC [type A]) ........... 537
Power outlet 
(120 V AC [type B]) ........... 542
Heated steering wheel ........ 549
Seat heaters and 
ventilators .............................. 551
Armrest .................................... 554
Coat hooks .............................. 555
Floor mats ................................ 556
Luggage compartment  features .................................. 557
Garage door opener ............. 567
Compass ................................... 575
Safety Connect ...................... 580

397
3-1. Using the air conditioning system and defogger
3
Interior features
GX460_U.S.A. (OM60E69U)Rear outlets (vehicles without a rear automatic air conditioning sys-
tem)
Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.
■Air conditioning system settings
When the “ENGINE START STOP” switch is turned on, the air conditioning system
settings will be set to thos e that were in use the last time the “ENGINE START
STOP” switch was turned off. 
Air conditioning system settings are memori zed individually on each electronic key,
so the settings reproduc ed will be specific to the key that is used.
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and ambi-
ent conditions. As a result, the following may occur.
●Immediately after the switch is pressed, the fan may stop for a while until warm
or cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.

540
3-7. Other interior features
GX460_U.S.A. (OM60E69U)
CAUTION
■To prevent unexpected accidents, such as electric shocks, do not perform any of
the following actions:
●Using the power outlet for electric heaters while sleeping.
●Contaminating the power outlet wi th liquid substances or mud.
●Handling electrical appliance plugs at th e power outlet with wet hands or feet.
●Inserting foreign objects into the power outlet.
●Using malfunctioning electric appliances.
●Inserting inappropriate or badly fitting plugs into the power outlet.
NOTICE
■To avoid damaging the power outlet and the plug
●Close the power outlet lid when not in use.
●Do not allow foreign objects or liquids to enter the power outlet, as this may
cause a short circuit.
●Do not use plug adaptors to connect too many plugs to the power outlet.
●After removing a plug, gently close the power outlet lid.
■To prevent the fuse from being blown
Do not use a 120 V AC appliance that requires more than 100 W. 
If a 120 V AC appliance that consumes more than 100 W is used, the protection
circuit will cut the power supply.

546
3-7. Other interior features
GX460_U.S.A. (OM60E69U)
CAUTION
■To prevent injuries and accidents, secure all electric appliances before use and
do not use any appliances that may do any of the following:
●Distract the driver while driving, or hamper safe driving.
●Result in a fire or burn injuries due to the appliance rolling, falling or overheating
while driving.
●Emit steam while the windows of the cabin are closed.
■To prevent unexpected accidents, such as electric shocks, do not perform any of
the following actions:
●Using the power outlet for electric heaters while sleeping.
●Contaminating the power outlet wi th liquid substances or mud.
●Handling electrical appliance plugs at th e power outlet with wet hands or feet.
●Inserting foreign objects into the power outlet.
●Using malfunctioning electric appliances.
●Inserting inappropriate or badly fitting plugs into the power outlet.

549
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)
Heated steering wheel
: If equipped
■The heated steering wheel can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Timer
The heated steering wheel will automatically turn off after about 30 minutes.
■If the indicator light flashes
Press the button to turn the heated steer ing wheel off and then press the button
again. If the indicator light still flashes, a malfunction may be occurring. Turn the
heated steering wheel off and have the vehicle inspected by your Lexus dealer.
The heated steering wheel heats the le ather portion of the steering wheel.
Turns the heater on/off
The indicator light comes on
when the heater is operating.
