clock Lexus GX460 2010 User Guide

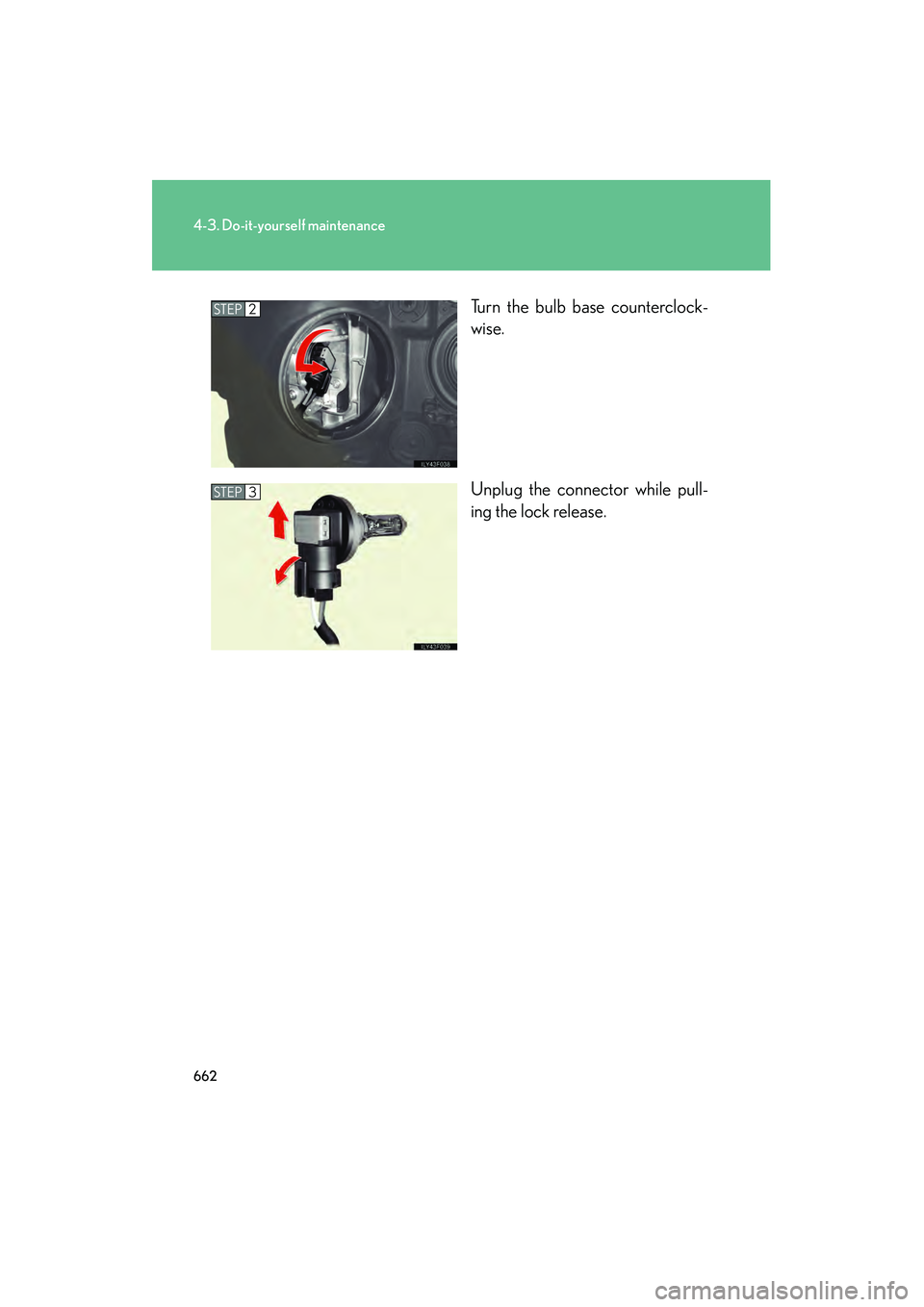

662
4-3. Do-it-yourself maintenance
GX460_CANADA (OM60F29U)Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
STEP2
STEP3
GX460_CANADA.book Page 662 Thursday, February 4, 2010 11:54 AM

663
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_CANADA (OM60F29U)■
Headlight high beams and daytime running lights
Turn the bulb base counterclock-
wise.
Unplug the connector while push-
ing the lock release.
STEP1
STEP2
GX460_CANADA.book Page 663 Thursday, February 4, 2010 11:54 AM

664
4-3. Do-it-yourself maintenance
GX460_CANADA (OM60F29U)■
Fog lights
Remove the fender liner bolt
and partly remove the fender
liner.
Unplug the connector while
pushing the lock release.
Turn the bulb base counterclock-
wise.
STEP1
STEP2
GX460_CANADA.book Page 664 Thursday, February 4, 2010 11:54 AM

665
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_CANADA (OM60F29U)■
Parking/front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
GX460_CANADA.book Page 665 Thursday, February 4, 2010 11:54 AM

666
4-3. Do-it-yourself maintenance
GX460_CANADA (OM60F29U)■
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
GX460_CANADA.book Page 666 Thursday, February 4, 2010 11:54 AM

668
4-3. Do-it-yourself maintenance
GX460_CANADA (OM60F29U)Unplug the connector while push-
ing the lock release.
Turn the bulb bases counterclock-
wise.
Rear turn signal light
Rear side marker light
Remove the light bulb. Rear turn signal light
Rear side marker light
STEP2
STEP3
STEP4
GX460_CANADA.book Page 668 Thursday, February 4, 2010 11:54 AM

669
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_CANADA (OM60F29U)■
Back-up lights
Remove the bolts and pull down
the under cover.
Turn the bulb base counterclock-
wise.
STEP1
STEP2
GX460_CANADA.book Page 669 Thursday, February 4, 2010 11:54 AM

813
Alphabetical index
GX460_CANADA (OM60F29U)
Back-up lightsReplacing light bulbs ....................... 669
Wattage ................................................. 763
Battery
Battery......................................................622
Checking ................................................622
If the vehicle has discharged battery.................................................... 741
Preparing and checking before winter...................................... 361
Bluetooth
®...................................456, 477
Bottle holders/door pockets........... 520
Brake Fluid ............................................................618
Parking brake ........................................ 193
Brake assist ............................................. 330
Brake in tips .............................................. 169
Brightness control
Multi-information display light control ................................................... 216
Instrument cluster light control.....196
Care Exterior .................................................. 588
Interior..................................................... 592
Seat belts ............................................... 593
Cargo capacity ..................................... 354
Cargo hooks .......................................... 558
Cargo net hooks .................................. 559
CD player/changer .............................. 416
Center differential lock/unlock .......318
Chains......................................................... 361
Child restraint system Booster seats, definition................... 147
Booster seats, installation ................155
Convertible seats, definition .......... 147 Convertible seats, installation ....... 155
Front passenger occupant
classification system ....................... 140
Infant seats, definition .........................147
Infant seats, installation ..................... 155
Installing CRS with lower
anchorages......................................... 153
Installing CRS with seatbelts ......... 155
Installing CRS with top straps......... 161
Child safety
Airbag precautions ............................ 133
Battery precautions .............. 622, 743
Child restraint system ........................147
Child-protectors ................................... 52
How your child should wear the seatbelt............................................89
Installing child restraints................... 152
Moon roof precautions....................108
Power window lock switch .............. 101
Power window precautions .......... 103
Removed electronic key battery precautions .......................644
Seat belt extender precautions...... 93
Seat belt precautions ..........................90
Seat heater precautions................. 553
Child-protectors ...................................... 52
Cleaning Exterior................................................... 588
Interior .....................................................592
Seat belts ............................................... 593
Clock .........................................................533
Coat hooks ..............................................555
Coin holder .............................................. 519
Compass .................................................. 575
Condenser ................................................617
Console box ............................................ 517
C
GX460_CANADA.book Page 813 Thursday, February 4, 2010 11:54 AM
