157
1-7. Safety information
1
Before driving
GX460_CANADA (OM60F29U)■
Forward facing  Convertible seat
Fold the seatback forward. Then
return the seatback and secure it
at the first lock position (most
upright position). (→P. 6 8 )
Place the child restraint system on
the seat facing the front of the vehi-
cle.
Run the seat belt through the child
restraint system and insert the
plate into the buckle. Make sure
that the belt is not twisted.
STEP1
STEP2
STEP3
GX460_CANADA.book Page 157 Thursday, February 4, 2010 11:54 AM

158
1-7. Safety information
GX460_CANADA (OM60F29U)Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system into the rear seat, allow the
shoulder belt to retract until the
child restraint system is securely in
place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (
→P. 161)
STEP4
STEP5
STEP6
GX460_CANADA.book Page 158 Thursday, February 4, 2010 11:54 AM

159
1-7. Safety information
1
Before driving
GX460_CANADA (OM60F29U)■
Booster seat
Fold the seatback forward. Then
return the seatback and secure it
at the first lock position (most
upright position). (→P. 6 8 )
Place the child restraint system on
the seat facing the front of the vehi-
cle.
STEP1
STEP2
GX460_CANADA.book Page 159 Thursday, February 4, 2010 11:54 AM

161
1-7. Safety information
1
Before driving
GX460_CANADA (OM60F29U)
Child restraint systems with a top tether strapSecure the child restraint using a seat belt or the LATCH anchors,
and do the following. Move the head restraint in place at
the upmost position.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is securely
latched.
STEP1
STEP2
GX460_CANADA.book Page 161 Thursday, February 4, 2010 11:54 AM

163
1-7. Safety information
1
Before driving
GX460_CANADA (OM60F29U)
CAUTION
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passen-
gers may be seriously injured or even killed in the event of sudden braking or an
accident.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand second seat.
●Adjust the front passenger seat so that it
does not interfere with the child restraint
system.
●Child restraint system installed on the third
seat should not contact the second seat-
backs.
●Only put a forward-facing child restraint
system on the front seat when unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as possible
even if the “AIR BAG OFF” indicator light is
illuminated. Failing to do so may result in
death or serious injury if the airbags deploy
(inflate).
GX460_CANADA.book Page 163 Thursday, February 4, 2010 11:54 AM

164
1-7. Safety information
GX460_CANADA (OM60F29U)
CAUTION
■When installing a child restraint system
●When installing a child restraint system in the second center seat, adjust both
seatbacks at the same angle.
●When using the LATCH anchors for a child restraint system, move the seat as far
back as possible, with the seatback close to the child restraint system.
●When a booster seat is installed, always ensure that the shoulder belt is posi-
tioned across the center of the child’s shoulder. The belt should be kept away from
the child’s neck, but not so that it could fall off the child’s shoulder. Failing to do so
may result in death or serious injury in the event of an accident or sudden braking.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Push and pull the child restraint system from side to side and forward to be sure it
is secure.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufac-
turer.
■Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the seat belt
will not securely hold the child restraint system, which could cause death or serious
injury to the child or other passengers in the event of an accident.
GX460_CANADA.book Page 164 Thursday, February 4, 2010 11:54 AM

165
1-7. Safety information
1
Before driving
GX460_CANADA (OM60F29U)
CAUTION
■To correctly attach a child restraint system to the anchors
●When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child restraint.
Make sure the child restraint system is securely attached, or it may cause death or
serious injury to the child or other passengers in the event of a sudden stop or
accident.
●When using the left side LATCH anchors
for the child restraint system, do not sit in
the center seat.
Seat belt function may be impaired, such as
being positioned overly high or loose-fit-
ting, which may result in death or serious
injury in the event of sudden braking, sud-
den swerving or an accident.
GX460_CANADA.book Page 165 Thursday, February 4, 2010 11:54 AM

174
2-1. Driving procedures
GX460_CANADA (OM60F29U)
CAUTION
■If you hear a squealing or scraping noise (brake pad wear limit indicators)
Have your Lexus dealer check and replace the brake pads as soon as possible.
Rotor damage may result if the pads are not replaced when needed.
It is dangerous to drive the vehicle when the wear limits of the brake pads and/or
those of the brake discs are exceeded.
■When the vehicle is stopped
●Do not race the engine.
If the vehicle is in any gear other than P or N, the vehicle may accelerate suddenly
and unexpectedly, causing an accident.
●Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
check that exhaust fumes do not enter the vehicle interior.
●In order to prevent accidents due to the vehicle rolling away, always keep
depressing the brake pedal while the engine is running, and apply the parking
brake as necessary.
●If the vehicle is stopped on an incline, in order to prevent accidents caused by the
vehicle rolling forward or backward, always depress the brake pedal and securely
apply the parking brake as needed.
●Avoid revving or racing the engine. Running the engine at high speed while the
vehicle is stopped may cause the exhaust system to overheat, which could result
in a fire if combustible material is nearby.
GX460_CANADA.book Page 174 Thursday, February 4, 2010 11:54 AM

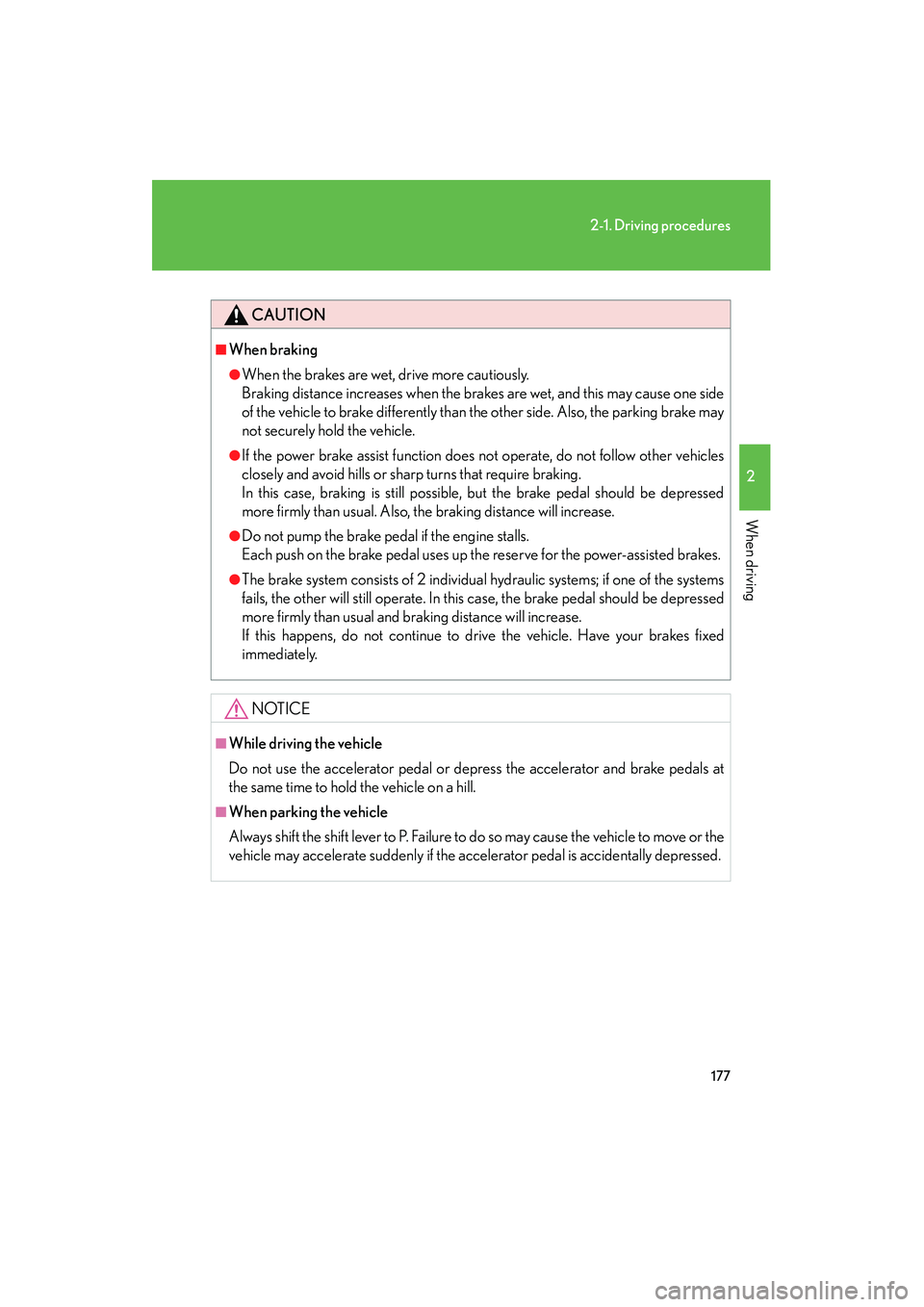

177
2-1. Driving procedures
2
When driving
GX460_CANADA (OM60F29U)
CAUTION
■When braking
●When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and this may cause one side
of the vehicle to brake differently than the other side. Also, the parking brake may
not securely hold the vehicle.
●If the power brake assist function does not operate, do not follow other vehicles
closely and avoid hills or sharp turns that require braking.
In this case, braking is still possible, but the brake pedal should be depressed
more firmly than usual. Also, the braking distance will increase.
●Do not pump the brake pedal if the engine stalls.
Each push on the brake pedal uses up the reserve for the power-assisted brakes.
●The brake system consists of 2 individual hydraulic systems; if one of the systems
fails, the other will still operate. In this case, the brake pedal should be depressed
more firmly than usual and braking distance will increase.
If this happens, do not continue to drive the vehicle. Have your brakes fixed
immediately.
NOTICE
■While driving the vehicle
Do not use the accelerator pedal or depress the accelerator and brake pedals at
the same time to hold the vehicle on a hill.
■When parking the vehicle
Always shift the shift lever to P. Failure to do so may cause the vehicle to move or the
vehicle may accelerate suddenly if the accelerator pedal is accidentally depressed.
GX460_CANADA.book Page 177 Thursday, February 4, 2010 11:54 AM

223
2-3. Operating the lights and windshield wipers
2
When driving
GX460_CANADA (OM60F29U)
AFS (Adaptive Front-lighting System) (if equipped)AFS (Adaptive Front-lighting System) secures excellent visibility at inter-
sections and on curves by automatically adjusting the direction of the
light axis of the headlights according to vehicle speed and the degree of
the tire’s angle as controlled by steering input.
AFS operates at speeds of 6 mph (10 km/h) or higher.
■ Deactivating AFS
Press the menu switch.
The multi-information display will
change modes to electronic fea-
tures control mode.
Press the “ENTER” switch
upwards or downwards until
“AFS” appears.
Press the “ENTER” switch to
change to “OFF”.
The “AFS OFF” indicator will be
displayed.
Each pressing of the switch turns
“AFS” on and off.
Press the menu switch to change
to the normal display.
STEP1
STEP2
