indicator Lexus GX460 2010 Owner's Guide

149
1-7. Safety information
1
Before driving
GX460_CANADA (OM60F29U)
■Selecting an appropriate child restraint system
●Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
●If the child is too large for a child restraint system, sit the child on a rear seat and
use the vehicle’s seat belt. (→P. 8 6 )
CAUTION
■Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child must
be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a child in your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the wind-
shield, or between you and the vehicle’s interior.
●Lexus strongly urges the use of a proper child restraint system that conforms to
the size of the child, installed on the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear seat than in the front seat.
●Never install a rear-facing child restraint system on the front passenger seat even
if the “AIR BAG OFF” indicator light illuminated. In the event of an accident, the
force of the rapid inflation of the front passenger airbag can cause death or seri-
ous injury to the child if the rear-facing child restraint system is installed on the
front passenger seat.
GX460_CANADA.book Page 149 Thursday, February 4, 2010 11:54 AM

150
1-7. Safety information
GX460_CANADA (OM60F29U)
CAUTION
■Child restraint precautions
●A forward-facing child restraint system may be installed on the front passenger
seat only when it is unavoidable. A child restraint system that requires a top tether
strap should not be used in the front passenger seat since there is no top tether
strap anchor for the front passenger seat. Adjust the seatback as upright as possi-
ble and always move the seat as far back as possible even if the “AIR BAG OFF”
indicator light is illuminated, because the front passenger airbag could inflate with
considerable speed and force. Otherwise, the child may be killed or seriously
injured.
●Do not use the seat belt extender when installing a child restraint system on the
front or rear passenger seat. If installing a child restraint system with the seat belt
extender connected to the seat belt, the seat belt will not securely hold the child
restraint system, which could cause death or serious injury to the child or other
passengers in the event of collision.
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front, center and rear pillars or roof side rail from
which the SRS side airbags or SRS curtain shield airbags deploy even if the child
is seated in the child restraint system. It is dangerous if the SRS side airbags and
curtain shield airbags inflate, and the impact could cause death or serious injury
to the child.
●Make sure you have complied with all installation instructions provided by the
child restraint manufacturer and that the system is properly secured. If it is not
secured properly, it may cause death or serious injury to the child in the event of a
sudden stop or accident.
GX460_CANADA.book Page 150 Thursday, February 4, 2010 11:54 AM

163
1-7. Safety information
1
Before driving
GX460_CANADA (OM60F29U)
CAUTION
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passen-
gers may be seriously injured or even killed in the event of sudden braking or an
accident.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand second seat.
●Adjust the front passenger seat so that it
does not interfere with the child restraint
system.
●Child restraint system installed on the third
seat should not contact the second seat-
backs.
●Only put a forward-facing child restraint
system on the front seat when unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as possible
even if the “AIR BAG OFF” indicator light is
illuminated. Failing to do so may result in
death or serious injury if the airbags deploy
(inflate).
GX460_CANADA.book Page 163 Thursday, February 4, 2010 11:54 AM

166
GX460_CANADA (OM60F29U)
2-1. Driving proceduresDriving the vehicle ................. 168
Engine (ignition) switch ......... 179
Automatic transmission ........ 186
Turn signal lever....................... 192
Parking brake........................... 193
Horn............................................ 194
2-2. Instrument cluster Gauges and meters................ 195
Indicators and warning lights ......................................... 198
Multi-information display (Optitron meters) ............... 204
Multi-information display (Accessory meters) ............. 212
2-3. Operating the lights and windshield wipers
Headlight switch .................... 220
Automatic High Beam ......... 226
Fog light switch ....................... 233
Windshield wipers and washer .................................... 235
Rear window wiper and washer .................................... 239
Headlight cleaner switch ..... 241
GX460_CANADA.book Page 166 Thursday, February 4, 2010 11:54 AM

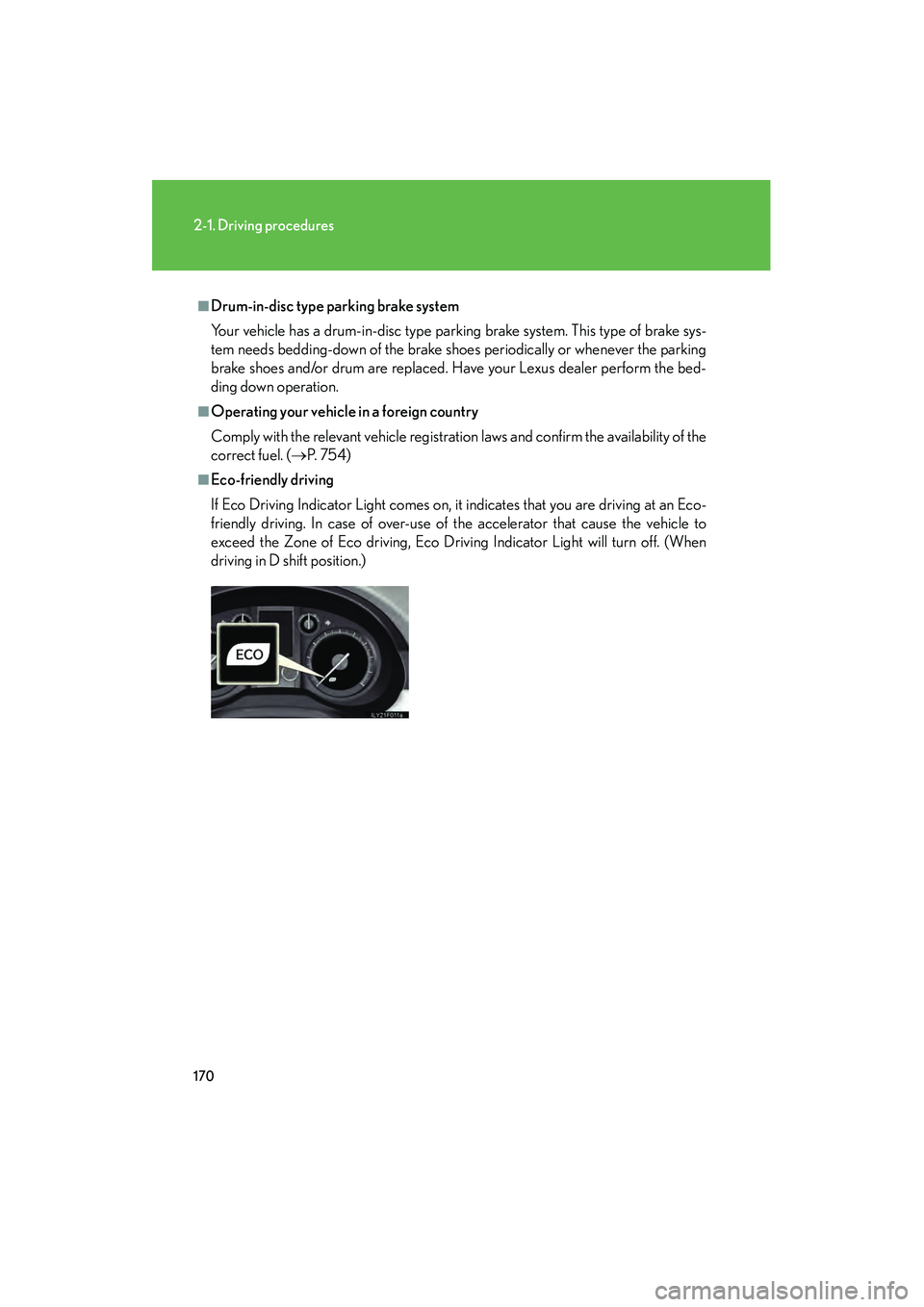

170
2-1. Driving procedures
GX460_CANADA (OM60F29U)
■Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system. This type of brake sys-
tem needs bedding-down of the brake shoes periodically or whenever the parking
brake shoes and/or drum are replaced. Have your Lexus dealer perform the bed-
ding down operation.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the
correct fuel. (→P. 7 5 4 )
■Eco-friendly driving
If Eco Driving Indicator Light comes on, it indicates that you are driving at an Eco-
friendly driving. In case of over-use of the accelerator that cause the vehicle to
exceed the Zone of Eco driving, Eco Driving Indicator Light will turn off. (When
driving in D shift position.)
GX460_CANADA.book Page 170 Thursday, February 4, 2010 11:54 AM

174
2-1. Driving procedures
GX460_CANADA (OM60F29U)
CAUTION
■If you hear a squealing or scraping noise (brake pad wear limit indicators)
Have your Lexus dealer check and replace the brake pads as soon as possible.
Rotor damage may result if the pads are not replaced when needed.
It is dangerous to drive the vehicle when the wear limits of the brake pads and/or
those of the brake discs are exceeded.
■When the vehicle is stopped
●Do not race the engine.
If the vehicle is in any gear other than P or N, the vehicle may accelerate suddenly
and unexpectedly, causing an accident.
●Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
check that exhaust fumes do not enter the vehicle interior.
●In order to prevent accidents due to the vehicle rolling away, always keep
depressing the brake pedal while the engine is running, and apply the parking
brake as necessary.
●If the vehicle is stopped on an incline, in order to prevent accidents caused by the
vehicle rolling forward or backward, always depress the brake pedal and securely
apply the parking brake as needed.
●Avoid revving or racing the engine. Running the engine at high speed while the
vehicle is stopped may cause the exhaust system to overheat, which could result
in a fire if combustible material is nearby.
GX460_CANADA.book Page 174 Thursday, February 4, 2010 11:54 AM

179
2-1. Driving procedures
2
When driving
GX460_CANADA (OM60F29U)
Engine (ignition) switch
Performing the following operations when carrying the electronic key on
your person starts the engine or changes “ENGINE START STOP” switch
modes.
■ Starting the engine
Check that the parking brake is set.
Check that the shift lever is set in P.
Firmly depress the brake pedal.
The “ENGINE START STOP” switch indicator will turn green. If the
indicator does not turn green, the engine cannot be started.
Press the “ENGINE START
STOP” switch.
The engine will crank until it
starts or for up to 25 seconds,
whichever is less.
Continue depressing the brake
pedal until the engine is com-
pletely started.
The engine can be started from
any mode.
STEP1
STEP2
STEP3
STEP4
GX460_CANADA.book Page 179 Thursday, February 4, 2010 11:54 AM

180
2-1. Driving procedures
GX460_CANADA (OM60F29U)
■Stopping the engine
Stop the vehicle.
Shift the shift lever to P.
Set the parking brake. ( →P. 1 9 3 )
Press the “ENGINE START STOP” switch.
Release the brake pedal and chec k that the indicator on the
“ENGINE START STOP” switch is off.STEP1
STEP2
STEP3
STEP4
STEP5
GX460_CANADA.book Page 180 Thursday, February 4, 2010 11:54 AM

181
2-1. Driving procedures
2
When driving
GX460_CANADA (OM60F29U)
■Changing “ENGINE STAR T STOP” switch modes
Modes can be changed by pressing the “ENGINE START STOP”
switch with brake pedal released. (The mode changes each time the
switch is pressed.)
Off
*
The emergency flashers can be
used.
ACCESSORY mode
Some electrical components
such as the audio system can be
used.
The “ENGINE START STOP”
switch indicator turns amber.
IGNITION ON mode
All electrical components can
be used.
The “ENGINE START STOP”
switch indicator turns amber.
*: If the shift lever is in a positionother than P when turning off
the engine, the “ENGINE
START STOP” switch will be
turned to ACCESSORY mode,
not to OFF.
GX460_CANADA.book Page 181 Thursday, February 4, 2010 11:54 AM

182
2-1. Driving procedures
GX460_CANADA (OM60F29U)
When stopping the engine with the shift lever in a position other than PIf the engine is stopped with the shift lever in a position other than P, the
“ENGINE START STOP” switch will not be turned off but instead be
turned to ACCESSORY mode. Perform the following procedure to turn
the switch off: Check that the parking brake is set.
Shift the shift lever to P.
Check that the indicator on the “ENGINE START STOP” switch
is illuminated in amber and then press the “ENGINE START
STOP” switch once.
Check that the indicator on the “ENGINE START STOP” switch
is off.
■Auto power off function
If the vehicle is left in ACCESSORY or IGNITION ON mode (the engine is not
running) for more than an hour with the shift lever in P, the “ENGINE START STOP”
switch will automatically turn off. However, this function cannot entirely prevent bat-
tery discharge. Do not leave the vehicle with the “ENGINE START STOP” switch in
ACCESSORY or IGNITION ON mode for long periods of time when the engine
is not running.
■Operation of the “ENGINE START STOP” switch
When operating the “ENGINE START STOP” switch, one short, firm press is
enough. If the switch is pressed improperly, the engine may not start or the
“ENGINE START STOP” switch mode may not change. It is not necessary to press
and hold the switch.
STEP1
STEP2
STEP3
STEP4
GX460_CANADA.book Page 182 Thursday, February 4, 2010 11:54 AM
