Specifications Lexus GX460 2010 Owner's Manual

TABLE OF CONTENTS
1
GX460_CANADA (OM60F29U)
1Before drivingAdjusting and operating features such as door locks, mir-
rors, and steering column.
2When drivingDriving, stopping and safe-driving information.
3Interior featuresAir conditioning and audio systems, as well as other interior
features for a comfortable driving experience.
4Maintenance
and careCleaning and protecting your vehicle, performing do-it-your-
self maintenance, and maintenance information.
5When trouble
arisesWhat to do if the vehicle needs to be towed, gets a flat tire,
or is involved in an accident.
6Ve h i c l e
specificationsDetailed vehicle information.
7For ownersReporting safety defects for U.S. owners and seat belt in-
structions for Canadian owners.
IndexAlphabetical listing of information contained in this manual.
GX460_CANADA.book Page 1 Thursday, February 4, 2010 11:54 AM

TABLE OF CONTENTSIndex
6
GX460_CANADA (OM60F29U)
5-1. Essential informationEmergency flashers..................... 674
If your vehicle needs to be towed .................................. 675
If you think something is wrong .............................................. 681
Fuel pump shut off system ....... 682
Event data recorder ................... 683
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer sounds... ...... 686
If a warning message is displayed ...................................... 698
If you have a flat tire..................... 720
If the engine will not start .......... 734
If the shift lever cannot be shifted from P .............................. 736
If you lose your keys .................... 737
If the electronic key does not operate properly ............... 738
If the vehicle battery is discharged .................................... 741
If your vehicle overheats ........... 744
If the vehicle becomes stuck................................................ 747
If your vehicle has to be stopped
in an emergency ........................ 749 6-1. Specifications
Maintenance data (fuel, oil level, etc.)..................... 752
Fuel information ............................ 764
Tire information............................. 767
6-2. Customization Customizable features............... 783
6-3. Initialization Items to initialize .......................... 803
Reporting safety defects for U.S. owners.......................... 806
Seat belt instructions for Canadian owners
(in French) ................................... 807
Abbreviation list......................... 810
Alphabetical index .................... 812
What to do if... ........................... 822
5When trouble arises6Vehicle specifications
7For owners
Index
GX460_CANADA.book Page 6 Thursday, February 4, 2010 11:54 AM

20
GX460_CANADA (OM60F29U)
For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not installed
on your vehicle.
All specifications provided in this manual are current at the time of printing. How-
ever, because of the Lexus policy of continual product improvement, we reserve the
right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustration may differ from
your vehicle in terms of color and equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound coming
from under the vehicle for several minutes. This is the sound of a fuel evaporation
leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Lexus
A wide variety of non-genuine spare parts and accessories for Lexus vehicles are
currently available in the market. You should know that Toyota does not warrant
these products and is not responsible for their performance, repair, or replacement,
or for any damage they may cause to, or adverse effect they may have on, your
Lexus vehicle.
This vehicle should not be modified with non-genuine Lexus products. Modification
with non-genuine Lexus products could affect its performance, safety or durability,
and may even violate governmental regulations. In addition, damage or perfor-
mance problems resulting from the modification may not be covered under war-
ranty.
GX460_CANADA.book Page 20 Thursday, February 4, 2010 11:54 AM

162
1-7. Safety information
GX460_CANADA (OM60F29U)
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the shoulder
belt. ALR mode causes the belt to tighten only. This could cause injury or discom-
fort to the child. (→P. 88)
GX460_CANADA.book Page 162 Thursday, February 4, 2010 11:54 AM

458
3-3. Using the Bluetooth® audio system
GX460_CANADA (OM60F29U)
■Compatible models
●Bluetooth® specifications:
Ver. 1.2, or higher (Recommended: Ver. 2.0+EDR or higher)
●Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher
• AVRCP (Audio/Video Remote Control Pr ofile) Ver. 1.0 or higher (Ver. 1.3 or
higher recommended)
Portable players must correspond to the above specifications in order to be con-
nected to the Bluetooth
® audio system. However, please note that some functions
may be limited depending on the type of portable player.
■Certification for the Bluetooth® audio system
FCC ID: AJDK018
IC ID: 775E-K018
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
GX460_CANADA.book Page 458 Thursday, February 4, 2010 11:54 AM

Vehicle specifications6
751
GX460_CANADA (OM60F29U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) .............. 752
Fuel information ...................... 764
Tire information....................... 767
6-2. Customization Customizable features ........ 783
6-3. Initialization Items to initialize .................... 803
GX460_CANADA.book Page 751 Thursday, February 4, 2010 11:54 AM

752
GX460_CANADA (OM60F29U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1:Unladen vehicle
*2: Vehicles without rear height control air suspension
*3: Vehicles with rear height control air suspension
*4: Vehicles without an antenna and roof rails
*5: Vehicles without an antenna and with roof rails
*6: Vehicles with an antenna
Overall length189.2 in. (4805 mm)
Overall width74.2 in. (1885 mm)
Overall height*1
72.0 in. (1830 mm)*2,4
71.7 in. (1820 mm)*3,4
72.6 in. (1845 mm)*2,5
72.2 in. (1835 mm)*3,5
74.2 in. (1885 mm)*2,6
73.8 in. (1875 mm)*3,6
Wheelbase109.8 in. (2790 mm)
Tr e a dFront62.4 in. (1585 mm)
Rear62.4 in. (1585 mm)
Vehicle capacity weight
(Occupants + luggage)
With third seat
Without third seat1315 lb. (595 kg)*2
1280 lb. (580 kg)*3
1525 lb. (690 kg)
Towing capacity6500 lb. (2948 kg)
GX460_CANADA.book Page 752 Thursday, February 4, 2010 11:54 AM

753
6-1. Specifications
6
Vehicle specifications
GX460_CANADA (OM60F29U)
Vehicle identification■ Vehicle identification number
The vehicle identification number (V IN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the
front right frame.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certifi-
cation Label on the left-hand side
center pillar.
GX460_CANADA.book Page 753 Thursday, February 4, 2010 11:54 AM

754
6-1. Specifications
GX460_CANADA (OM60F29U)■
Engine number
The engine number is stamped on the engine block as shown.
Engine
Fuel
Model1UR-FE
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement281.2 cu.in. (4608 cm3)
Drive belt tensionAutomatic adjustment
Fuel typePremium unleaded gasoline only
Octane rating91 (Research Octane Number 96) or higher
Fuel tank capacity23.0 gal. (87 L, 19.1 Imp.gal)
GX460_CANADA.book Page 754 Thursday, February 4, 2010 11:54 AM

755
6-1. Specifications
6
Vehicle specifications
GX460_CANADA (OM60F29U)

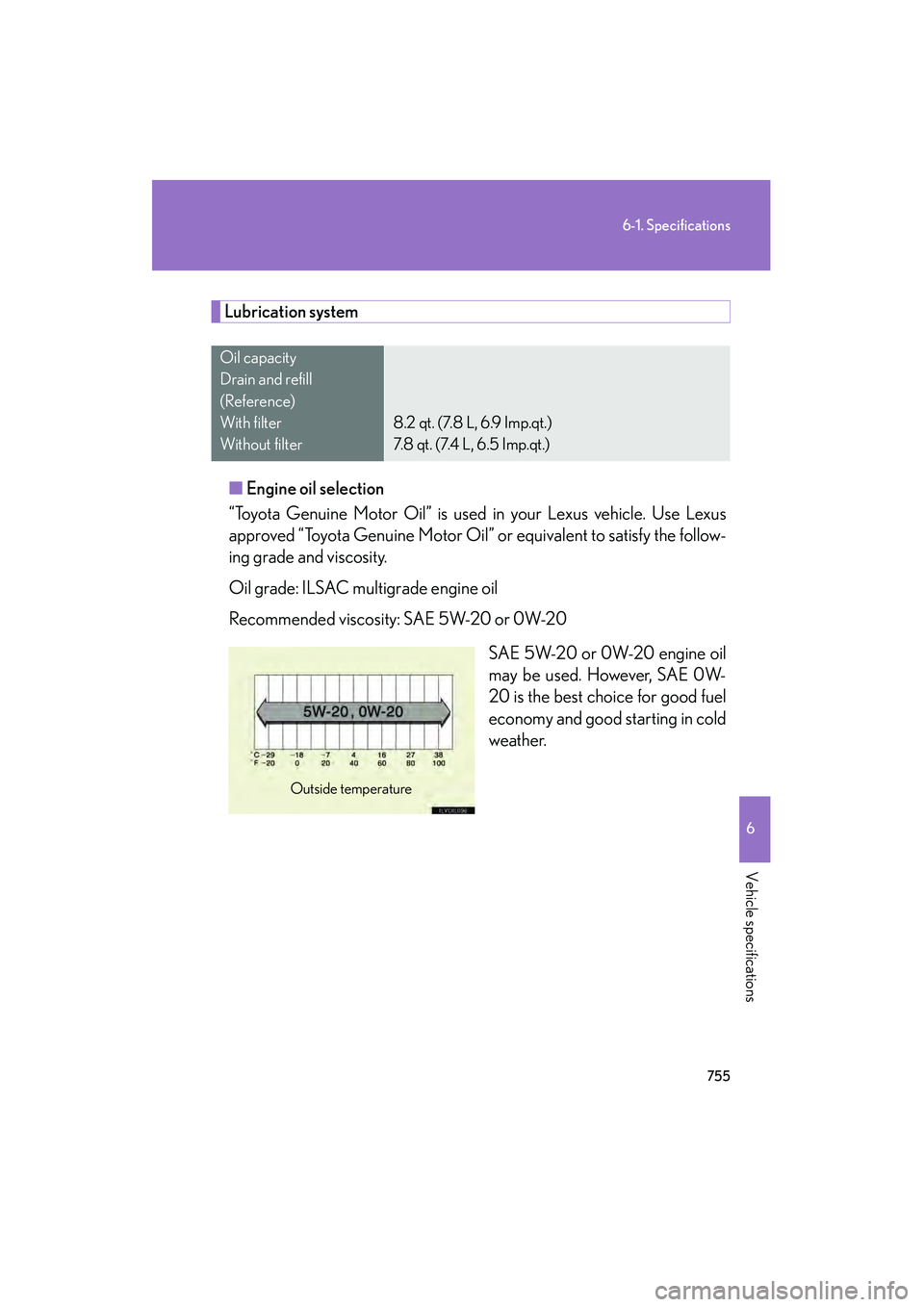

Lubrication system■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-20 or 0W-20
SAE 5W-20 or 0W-20 engine oil
may be used. However, SAE 0W-
20 is the best choice for good fuel
economy and good starting in cold
weather.
Oil capacity
Drain and refill
(Reference)
With filter
Without filter
8.2 qt. (7.8 L, 6.9 Imp.qt.)
7.8 qt. (7.4 L, 6.5 Imp.qt.)
Outside temperature
GX460_CANADA.book Page 755 Thursday, February 4, 2010 11:54 AM
