452
3-2. Using the audio system
GX460_U.S.A. (OM60E69U)

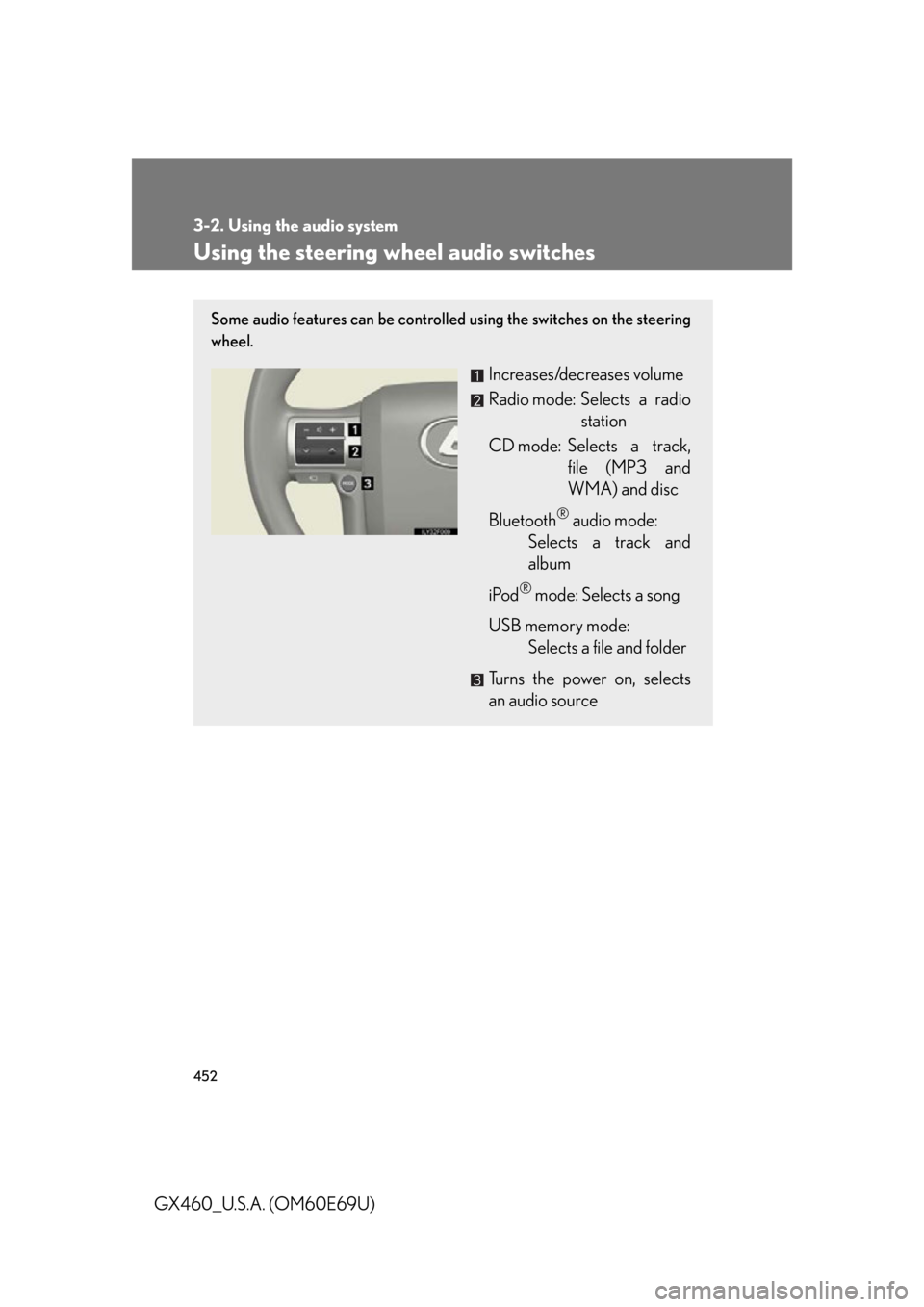

Using the steering wheel audio switches
Some audio features can be controlled using the switches on the steering
wheel.
Increases/decreases volume
Radio mode: Selects a radio station
CD mode: Selects a track, file (MP3 and
WMA) and disc
Bluetooth
® audio mode: 
Selects a track and
album
iPod
® mode: Selects a song
USB memory mode: 
Selects a file and folder
Turns the power on, selects
an audio source

597
4-2. Maintenance
4
Maintenance and care
GX460_U.S.A. (OM60E69U)
General maintenance
Engine compartment
ItemsCheck points
BatteryCheck the indicator and 
connections. ( P. 622)
Brake fluidIs the brake fluid at the correct level? 
(  P. 6 1 8 )
Engine coolantIs the engine coolant at the correct
level? ( P. 6 1 5 )
Engine oilIs the engine oil at the correct level? 
( P. 6 1 0 )
Exhaust systemThere should not be any fumes or
strange sounds.
Power steering fluidIs the power steering fluid at the 
correct level? ( P. 6 2 0 )
Radiator/condenser
The radiator and condenser should
be free from foreign objects. 
( P. 6 1 7 )
Wa s h e r f l u i dIs there sufficient washer fluid? 
(  P. 6 2 6 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Service Guide” or “Owner’s
Manual Supplement”. It is recommend ed that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.

604
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60E69U)
ItemsPa r t s a n d t o o l s
Fuses( P. 6 4 5 )• Fuse with same amperage rating as
original
Headlight aim ( P. 6 5 8 )• Phillips-head screwdriver
Light bulbs( P. 6 6 0 )
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Power steering fluid level 
( P. 6 2 0 )
• Automatic transmission fluid
DEXRON® II or III
•Rag or paper towel
• Clean funnel
Radiator and condenser ( P. 6 1 7 )
Tire inflation pressure ( P. 6 3 4 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( P. 6 2 6 )
• Water washer fluid containing anti-
freeze (for winter use)
• Funnel (used only for adding water or washer fluid)

608
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60E69U)
Engine compartment
Engine coolant reservoir
( P. 615)
Engine oil level dipstick 
( P. 610)
Engine oil filler cap 
( P. 611)
Brake fluid reservoir 
( P. 6 1 8 )Fuse box ( P. 645)
Battery ( P. 622)
Radiator ( P. 617)
Condenser ( P. 617)
Electric cooling fan
Washer fluid tank ( P. 6 2 6 )
Power steering fluid reservoir 
( P. 6 2 0 )

620
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60E69U)
Power steering fluid■ Fluid level
The fluid level should be within the appropriate range.
Full (when cold)
Add fluid (when cold)
Full (when hot)
Add fluid (when hot)
Hot: The vehicles has been driven around 50 mph (80 km/h) for 20
minutes, or slightly longer in frigid temperatures. (Fluid temper-
ature, 140 F - 175 F [60 C - 80 C]).
Cold: The engine has not been ru n for about 5 hours. (Room tempera-
ture, 50 F - 85 F [10 C - 30 C]).

651
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60E69U)
37RAD NO.115 AAudio system, navigation system, rear
seat entertainment system
38AM27. 5 AStarter system
39RAD NO.210 ANavigation system
40MAYDAY7. 5 AMAYDAY
41AMP30 AAudio system
42ABS NO.150 AABS, VSC
43ABS NO.230 AABS, VSC
44AIR PMP50 AAir pump
45SECURITY10 ASecurity horn, self power siren, double
lock ECU
46SMART7. 5 ASmart access system with push button
start
47STRG LOCK20 ASteering lock system
48TOW I N G B R K30 ATo w i n g
49WIP RR15 ARear window wiper
50DOME10 A
Interior lights, personal lights, vanity
lights, door courtesy lights, footwell
lights, outer foot lights, overhead
module
FuseAmpereCircuit

654
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60E69U)
74WD20 A4WD system, rear differential lock
8P/ S E AT F L30 AFront power seat (left)
9D/L NO.225 ADouble lock system
10PSB30 APSB ECU
11TI & TE15 ATilt and telescopic steering
12FOG FR15 AFront fog lights
13OBD7. 5 ADLC 3
14A/C7. 5 AAir conditioning system
15AM17. 5 AStarting system
16DOOR RL25 ARear power window (left)
17ECU-IG NO.110 A
Shift lock ECU, VSC ECU, ABS
ECU, steering sensor, yaw rate sensor,
sequential switch, auto wiper ECU,
back up relay, tilt & telescopic steer-
ing, PSB ECU, DSS#1 ECU, front
radar sensor, AFS ECU, TIRE PRESS
ECU, DRIVER MON ECU
18IG17. 5 A
Emergency flashers, ALT, towing,
VSC, SROP LP relay, MGC relay,
condenser fan relay
FuseAmpereCircuit

655
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60E69U)
19ECU-IG NO.210 A
Rear window defogger, outside rear
view mirror memory, seat heater/ ven-
tilator switch, inverter relay, air condi-
tioning system, EC mirror, Body ECU,
exhaust gas sensor, parking assist sen-
sor, navigation system, DSS#2 ECU,
meter switch, accessory meter, folding
seat ECU, O/H IG, head light cleaner,
rear air conditioning system, deicer,
4.2-in. display, D-module, rain sensor,
air suspension, RR VLV ECU, steering
heater, LKA
20S/HTR FR20 ASeat heater and ventilator
21P/ S E AT F R30 AFront power seat (right)
22DOOR P30 A
Front power window (passenger’s
side), outside rear view mirror mem-
ory
23DOOR10 APo w e r w i n d o w
24DOOR D25 AFront power window (driver’s side)
25DOOR RR25 ARear power window (right)
26S/ROOF25 AMoon roof
27WIP30 AWindshield wipers and washer
28WA S H E R20 AWindshield wipers and washer, rear
window wipers and washer
29COOLING10 ACool box
FuseAmpereCircuit

5
When trouble arises
679
5-1. Essential information
GX460_U.S.A. (OM60E69U)
■Before emergency towingThe “ENGINE START STOP” switch must be in the ACCESSORY mode
(engine off) or IGNITION ON mode (engine running).
Put the four-wheel drive control switch in H4. (The center differential is
unlocked.)
Put the vehicle height in the N mode and press height control switch to
turn off the rear height control air suspension.
Shift the shift lever in N.
Release the parking brake.
CAUTION
■Caution while towing
●Use extreme caution when towing the vehicle. 
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelets and the cables or chains. Always use caution for
the surroundings and other vehicles while towing.
●Do not turn the “ENGINE START STOP” switch off. 
Doing so will lock the steering wheel and prevent operation, possibly causing an
accident and result ing in death or serious injury.
●If the engine is not running, the power assi st for the brakes and steering will not
function, making steering and braking more difficult.
STEP1
STEP2
STEP3
STEP4
STEP5

5
When trouble arises
695
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
CAUTION
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Lexus dealer. The
vehicle will become extremely unstable during braking, and the ABS system may
fail, which could cause an accident resulting in death or serious injury.
■When the power steering system warning light comes on
The steering wheel may become extremely heavy. 
If the steering wheel becomes heavier than usual when operating, hold firmly and
operate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precaution s. Failure to do so could cause loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pres-
sure immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If the tire is flat,
change to the spare tire and have the flat tire repaired by the nearest Lexus
dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
