warning Lexus GX460 2010 Scheduled Maintenance Guide / LEXUS 2010 GX460 (OM60E69U) Repair Manual

5
When trouble arises
695
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
CAUTION
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Lexus dealer. The
vehicle will become extremely unstable during braking, and the ABS system may
fail, which could cause an accident resulting in death or serious injury.
■When the power steering system warning light comes on
The steering wheel may become extremely heavy. 
If the steering wheel becomes heavier than usual when operating, hold firmly and
operate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precaution s. Failure to do so could cause loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pres-
sure immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If the tire is flat,
change to the spare tire and have the flat tire repaired by the nearest Lexus
dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

696
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure re commended by the vehicle manufacturer on
the vehicle placard or tire inflation pressu re label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [tire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure warning system) that illuminates a low tire
pressure telltale (tire pressure warning light) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale (tire pres-
sure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver’s responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).

5
When trouble arises
697
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
CAUTION
■Maintenance of the tires
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when th e system is not operating properly. The
TPMS (tire pressure warning system) malf unction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists . When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended. 
TPMS (tire pressure warning system) malfunctions may occur for a variety of rea-
sons, including the installation of replacem ent or alternate tires or wheels on the
vehicle that prevent the TPMS (tire pressure warning system) from functioning
properly. Always check the TPMS (tire pressure warning system) malfunction tell-
tale after replacing one or more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS (tire pressure warning
system) to continue to function properly.
NOTICE
■Precaution when insta lling a different tire
When a tire of a different specification or maker is installed, the tire pressure warn-
ing system may not operate properly.

698
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
If a warning message is displayed
If a warning is shown on the instrument cluster, stay calm and perform the
following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
instrument cluster.
Multi-information display
Rear height control air sus-
pension display
If any of the warning lights comes on again after the following actions
have been performed, contact your Lexus dealer.

5
When trouble arises
699
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
Stop the vehicle immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warning ind icates the possibility of damage to
the vehicle that may lead to an acci dent. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil pres-
sure is too low.

700
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
Have the vehicle inspected by your Lexus dealer immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
Indicates that the automatic transmission fluid tem-
perature is too high
Indicates a malfunction in the automatic transmission
system
Indicates a malfunction in the steering lock system

5
When trouble arises
703
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)

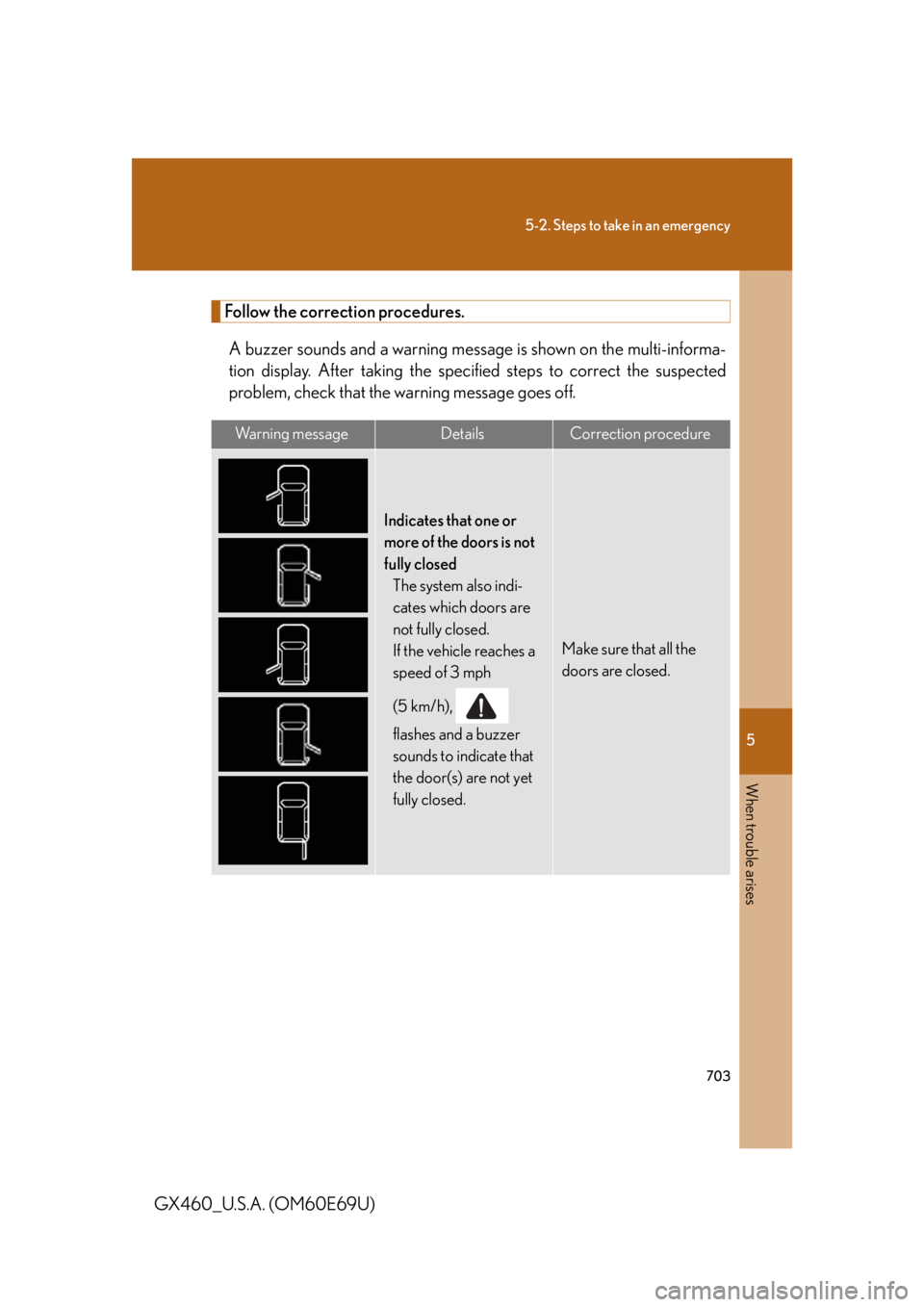

Follow the correction procedures.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message goes off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed
The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches a
speed of 3 mph 
(5 km/h),
flashes and a buzzer
sounds to indicate that
the door(s) are not yet
fully closed.
Make sure that all the
doors are closed.

5
When trouble arises
709
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem, check
that the warning message and light go off.
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Sounds
once
(Flashes)
The electronic key
is not detected
when an attempt
is made to start
the engine.
Confirm the loca-
tion of the elec-
tronic key.

5
When trouble arises
719
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
Other messagesIf the following message is displayed, take appropriate action and confirm
that the message has disappeared. ( P. 323)
MessageCorrection procedure
(If equipped)
Select the four-wheel driving position switch in L4
and shift the shift lever to D or R.
(If equipped)
Confirm the operating conditions.
■Warning light display in radar cruise mode (if equipped)
In the following cases, the warning light may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■After changing the engine oil (U.S.A. only)
Make sure to reset the oil maintenance data. ( P. 6 1 3 )

5
When trouble arises
733
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
CAUTION
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden
braking.
NOTICE
■Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire. 
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair.
■When stowing the flat tire
●Ensure that there is no object caught between the tire and the vehicle underbody.
●To avoid damaging the suspension system, make sure that the spare tire does not
interfere with the suspension components when stowed.
■When replacing the tires
When removing or fitting the wheels, tire s or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and trans-
mitter may be damaged if not handled correctly.
■To avoid damaging the tire pressu re warning valves and transmitters
Do not use liquid sealants on flat tires.
