191
2-1. Driving procedures
2
When driving
GX460_U.S.A. (OM60E69U)
CAUTION
■When driving on slippery road surfaces
Do not accelerate or shift gears suddenly. Sudden changes in engine braking may
cause the vehicle to spin or sk id, resulting in an accident.

192
2-1. Driving procedures
GX460_U.S.A. (OM60E69U)
Turn signal lever
■Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
The turn signal lever can be used to show the following intentions of the
driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever part-
way)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash
until you release the lever.

193
2-1. Driving procedures
2
When driving
GX460_U.S.A. (OM60E69U)
Parking brake
■Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. (P. 3 6 1 )
NOTICE
■Before driving
Fully release the parking brake. 
Driving the vehicle with the parking brake set will lead to brake components over-
heating, which may affect braking performance and increase brake wear.
To set the parking brake, fully
depress the parking brake pedal
with your left foot while
depressing the brake pedal with
your right foot. 
(Depressing the pedal again
releases the parking brake.)
U.S.A. Canada

194
2-1. Driving procedures
GX460_U.S.A. (OM60E69U)

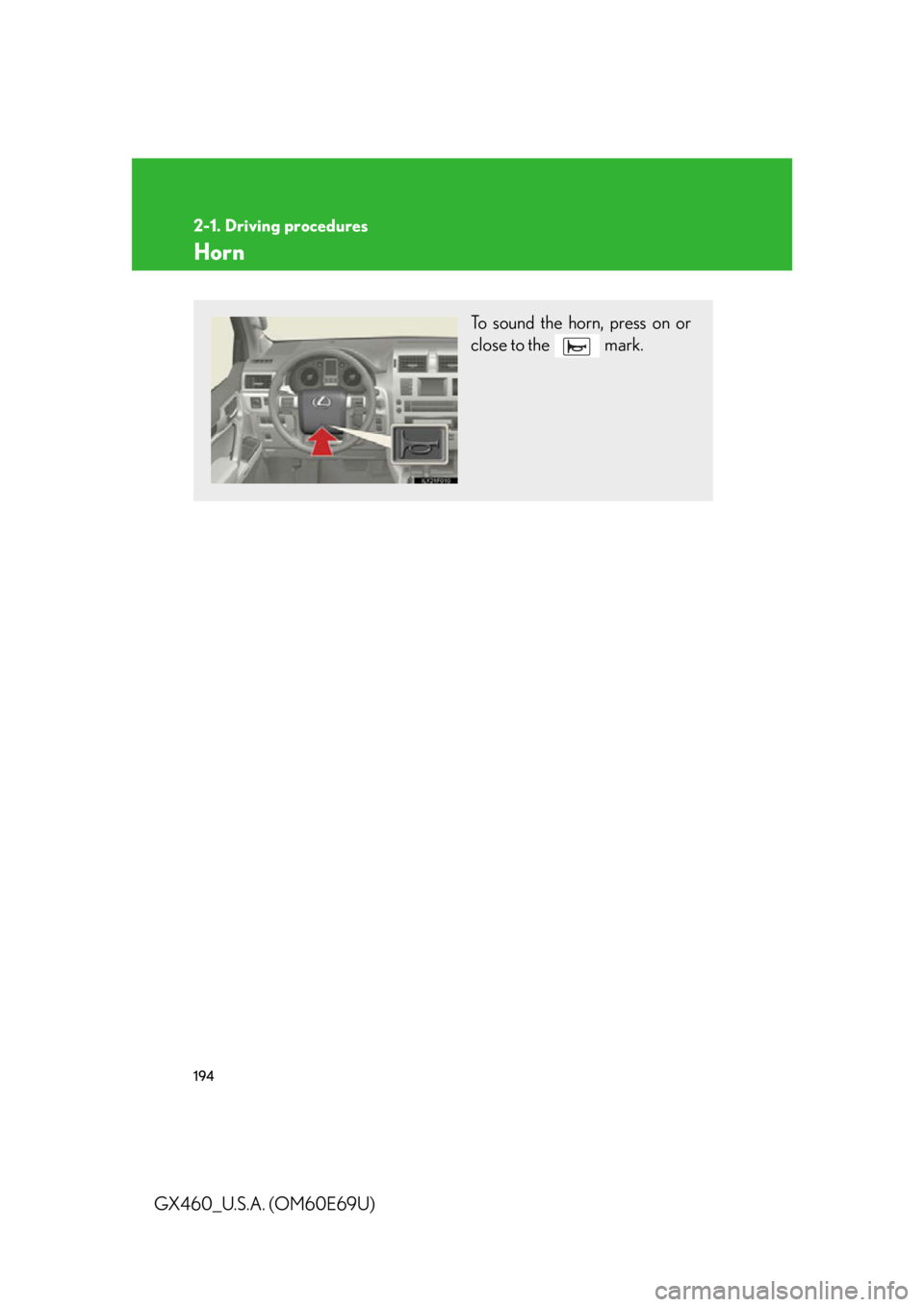

Horn
To sound the horn, press on or
close to the mark.

195
2
When driving
GX460_U.S.A. (OM60E69U)
2-2. Instrument cluster
Gauges and meters
Tachometer
Displays the engine speed in revolutions per minute.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Multi-information display
P. 2 0 4
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Speedometer
Displays the vehicle speed.
Rear height control air suspension display (if equipped)
P. 3 1 0
Shift position and shift range display
P. 1 8 6

196
2-2. Instrument cluster
GX460_U.S.A. (OM60E69U)
Changing the displaySwitches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the
trip meter.
Instrument cluster light control switchThe brightness of the instrument cluster lights can be adjusted.
Brighter
Darker
Odometer and trip meter display
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to
record and display different distances independently.

197
2-2. Instrument cluster
2
When driving
GX460_U.S.A. (OM60E69U)
■The meters and display illuminate when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Instrument cluster brightness adjustment
The instrument cluster brightne ss levels when the tail lights are on and off can be
adjusted.
■The brightness of the instrument cluster lights
When the tail lights are on, the brightness will change. However, when the sur-
roundings are bright (daytime, etc.) turning on the tail lights will not change the
instrument cluster brightness. 
In addition, the brightness of the instrument cluster lights is automatically adjusted
based on the light sensor detecting how bright the surroundings are.
■When disconnecting and reconnecting battery terminals
The trip meter data will be reset. 
If the trip meter was displayed last, the ODO screen will be displayed after reset-
ting.
■Customization
Setting of sensitivity of the ambient light sensor used for dimming the meter lights
can be changed. (Customizable features P. 7 8 1 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( P. 744)

198
2-2. Instrument cluster
GX460_U.S.A. (OM60E69U)
Indicators and warning lights
The indicators and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
Center panel (vehicles without a navigation system)

199
2-2. Instrument cluster
2
When driving
GX460_U.S.A. (OM60E69U)
Center panel (vehicles with a navigation system)

200
2-2. Instrument cluster
GX460_U.S.A. (OM60E69U)
■Indicators
The indicators inform the driver of th e operating state of the vehi-
cle’s various systems.
Turn signal indicator 
( P. 1 9 2 )Cruise control indicator 
( P. 242, 246)
Headlight high beam 
indicator ( P. 220)“SET” indicator 
( P. 242, 246)
(U.S.A.)
Headlight indicator 
(  P. 2 2 0 )
(if equipped)
Dynamic radar cruise
control indicator 
( P. 2 4 6 )
(Canada)
Tail light indicator 
( P. 220)
(if equipped)
“LDA” indicator 
( P. 2 6 8 )
(if equipped)
Automatic High Beam
indicator ( P. 2 2 6 )Slip indicator ( P. 3 3 2 )
Fog light indicator 
( P. 2 3 3 )VSC OFF indicator 
( P. 3 3 3 )
Eco Driving Indicator
Light ( P. 2 1 0 )
(if equipped)
Multi-terrain Select 
indicator ( P. 2 9 0 )
*1*1, 2
*1
*1
