3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)Test the HomeLink
® operation by
pressing the newly programmed
button.
If a HomeLink® button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
garage transmitter is of the rolling
code type. Press and hold the pro-
grammed HomeLink
® button. The
remote control transmitter is of the
rolling code type if the HomeLink
®
indicator light flashes rapidly for 2
seconds and then remains lit. If
your transmitter is the rolling code
type, proceed to the heading “Pro-
gramming a rolling code system”.
Repeat the steps above to progra m another device for any of the
remaining HomeLink® buttons.
STEP3
STEP4

571
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)■
Programming an entry gate (for U.S. owners)/Programming a
device in the Canadian market
Place the remote control transmitter 1 in. (25 mm) away from the
HomeLink
® buttons.
Keep the HomeLink® indicator light in view while programming.
Press and hold the selected HomeLink® button.
Repeatedly press and release (cycle) the remote control trans-
mitter for 2 seconds each until step 4 is completed.
When the HomeLink
® indicator light starts to flash rapidly,
release the buttons.
Test the HomeLink
® operation by pressing the newly pro-
grammed button. Check to see if the gate/device operates cor-
rectly.
Repeat the steps above to program another device for each of
the remaining HomeLink
® buttons.
■ Programming other devices
To program other devices such as home security systems, home door
locks or lighting, contact your Lexus dealer for assistance.
■ Reprogramming a button
The individual HomeLink
® buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Reprogramming a
HomeLink
® button” instructions.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

573
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)
■Before programming
●Install a new battery in the remote control transmitter.
●The battery side of the remote control transmitter must be pointed away from
the HomeLink button.
■Certification for the garage door opener
For vehicles sold in the U.S.A.
FCC ID: CB2070NHL4
NOTE:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC WARNING: 
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must a ccept any interference, including interfer-
ence that may cause undesired operation of the device.
■When support is necessary
Visit on the web at www.homelink.com
or call 1-800-355-3515.

574
3-7. Other interior features
GX460_U.S.A. (OM60E69U)
CAUTION
■When programming a garage door or other remote control device
The garage door or other devices may operate, so ensure people and objects are
out of danger to prevent potential harm.
■Conforming to federal safety standards
Do not use the HomeLink
 compatible transceiver with any garage door opener
or device that lacks safety stop and reverse features as required by federal safety
standards. 
This includes any garage door that cannot detect an interfering object. A door or
device without these featur es increases the risk of death or serious injury.

623
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60E69U)
■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:
●If recharging with the battery installed on the vehicle, be sure to disconnect the
ground cable.
●Make sure the power switch on the charger is off when connecting and discon-
necting the charger cables to the battery.
■After recharging/reconnecting the battery
●Unlocking the doors using the smart key system may not be possible immedi-
ately after disconnecting the battery. If this happens, use the wireless remote
control or the mechanical key to lock/unlock the doors.
●Start the engine with the “ENGINE START STOP” switch in ACCESSORY
mode. The engine may not start with the “ENGINE START STOP” switch
turned OFF. However, the engine will operate normally from the second
attempt.
●The “ENGINE START STOP” switch mode is recorded by the vehicle. If the bat-
tery is reconnected, the vehicle will return the “ENGINE START STOP” switch
mode to the status it was in before th e battery was disconnected. Make sure to
turn off the engine before disconnect the battery. Take extra care when con-
necting the battery if the “ENGINE START STOP” switch mode prior to dis-
charge is unknown.
If the system will not start even after mult iple attempts, contact your Lexus dealer.

643
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60E69U)
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, local electrical appliance
shops or camera stores.
●Replace only with the same or equivalent type recommended by the manufac-
turer.
●Dispose of used batteries according to the local laws.
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range is reduced.

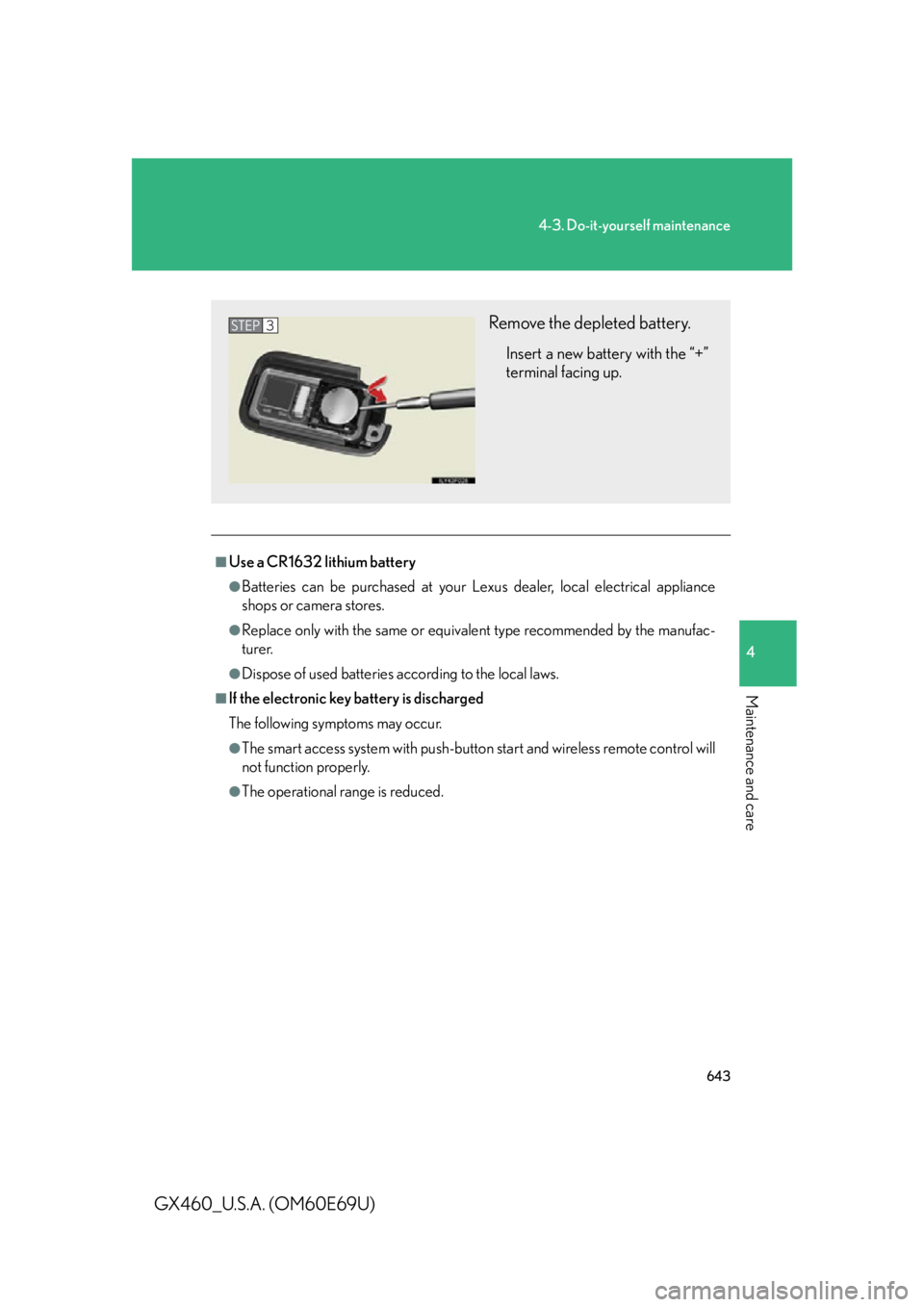

Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
STEP3

644
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60E69U)
CAUTION
■Removed battery and other parts
Keep away from children. 
These parts are small and if swallowed by a child, they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands. 
Moisture may cause the battery to rust.
●Do not touch or move any other comp onents inside the remote control.
●Do not bend the battery terminals.

652
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60E69U)
51ECU-B10 A
Body ECU, meter, heater, steering
sensor, wireless remote control, seat
position memory, tilt and telescopic
steering, multi display, Smart access
system with push button start, folding
seat, cool box, DSS#2 ECU, steering
switch, D-module switch, overhead
module
52WSH FR NO.27. 5 ADSS#1 ECU
53H-LP RH-LO15 AHeadlight low beam (right), headlight
leveling system
54H-LP LH-LO15 AHeadlight low beam (left), headlight
leveling system
55INJ10 ACoil, injector, ignition, noise filter
56EFI NO.210 A
O2 SSR, AFM, ACIS VSV, AI
COMB, KEY OFF PUMP, EYP VSV,
EGR VALVE, CANISTER VSV, AI
VSV RLY, AI PUMP HTR RLY
57WIP FR NO.27. 5 ADSS#1 ECU
58WSH RR15 ARear window washer
59SPARESpare fuse
60SPARESpare fuse
61SPARESpare fuse
FuseAmpereCircuit

738
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
If the electronic key does not operate properly
Locking and unlocking the doors and key linked functions
Use the mechanical key (P. 2 6 )
in order to perform the following
operations (driver’s door only):
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks the door
Turning the key rearward unlocks
the driver’s door. Turning the key
once again unlocks the other
doors.
Opens the windows and moon
roof (turn and hold)
*
*
: This setting must be customized at your Lexus dealer.
If communication between the electron ic key and vehicle is interrupted
(  P. 40) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors can be opened or
the engine can be started by following the procedure below.

786
6-2. Customization
GX460_U.S.A. (OM60E69U)
Smart
access 
system with
push- 
button start
and wire-
less remote
control 
(
P. 2 9 ,
48)
LOCK FEED-
BACK VOL-
UME
(Adjust the vol-
ume of confor-
mation buzzer
sounds when
the vehicle is
locked or
unlocked)
7
Off
O–OO
1 to 6
LO C K /
UNLOCK
ANSWER
BACK
RESPONSE
(Enable/disable
the operation of
the emergency
flashers when
the vehicle is
locked or
unlocked)
OnOffO–OO
ItemFunctionDefault
settingCustomized setting
