560
3-7. Other interior features
GX460_U.S.A. (OM60E69U)

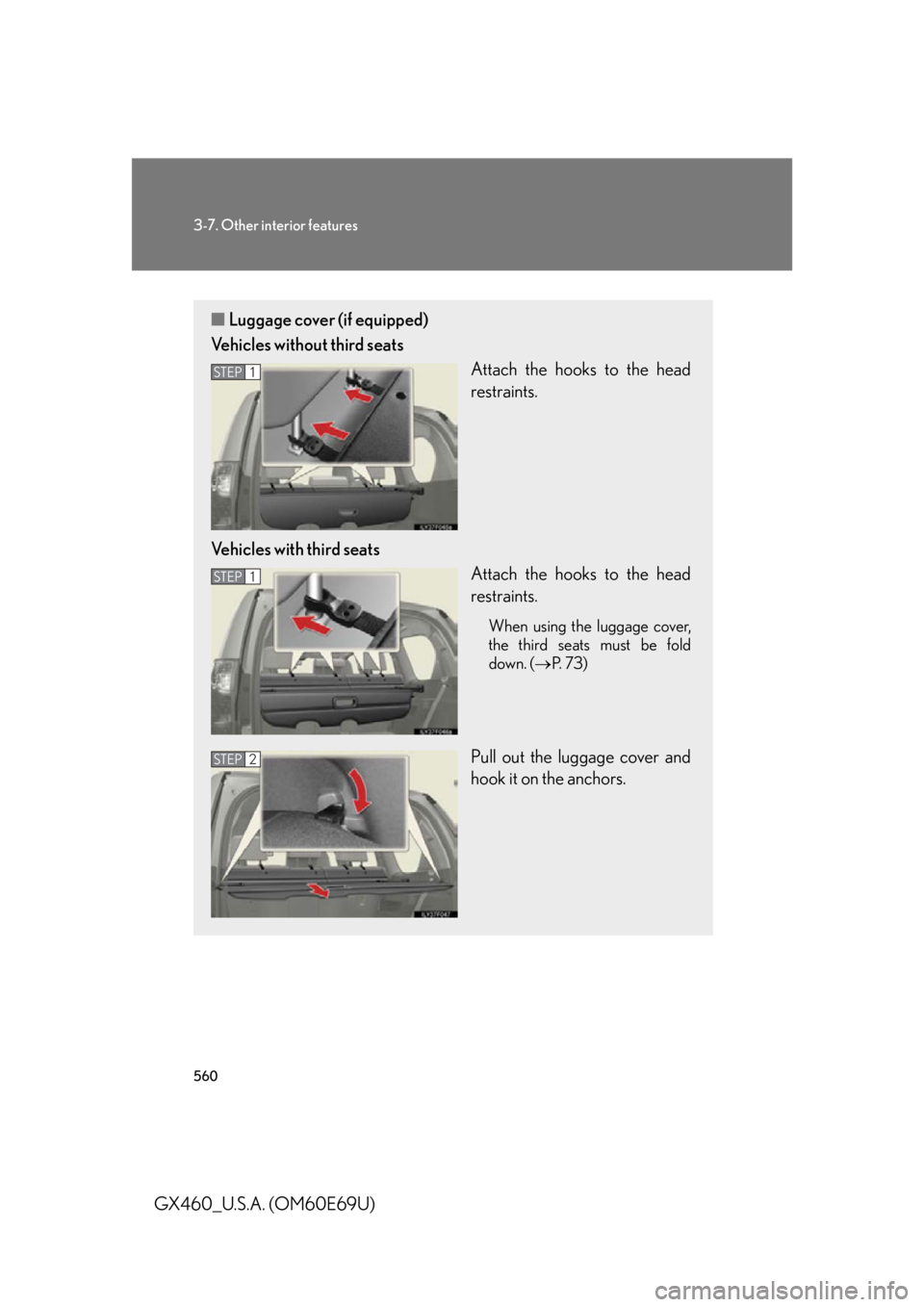

■Luggage cover (if equipped)
Vehicles without third seats Attach the hooks to the head
restraints.
Vehicles with third seats Attach the hooks to the head
restraints.
When using the luggage cover,
the third seats must be fold
down. (P. 7 3 )
Pull out the luggage cover and
hook it on the anchors.
STEP1
STEP1
STEP2

561
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)
Removing the luggage coverThe luggage cover can be removed by following the procedure below. Retract the cover and release both
ends, then lift it out.
Vehicles without third seats: After
removing the luggage cover, place
it somewhere other than the pas-
senger compartment.
Stowing the luggage cover (vehicle with third seat)
Push the case while pressing the
lock release button.
Vehicles without a rear automatic
air conditioning system: Shorten
one side only.
Vehicles with a rear automatic air
conditioning system: Shorten both
sides.
STEP1
Lock release button

562
3-7. Other interior features
GX460_U.S.A. (OM60E69U)Push the case until it locks.
Check that the lock release button
can be seen.
Vehicles without a rear automatic
air conditioning system: Shorten
one side only.
Vehicles with a rear automatic air
conditioning system: Shorten both
sides.
Secure the luggage cover with lug-
gage cover restraining bands.
Check that luggage cover and lug-
gage cover restraining bands are
secured.
Fold over the cover and the sub
cover.
STEP2
Lock release button
STEP3
STEP4

563
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)Stow the hooks.
Fold over the sub cover.
Extending the case
Push the lock release button.
STEP5
STEP6
STEP1
Lock release button

564
3-7. Other interior features
GX460_U.S.A. (OM60E69U)Pull the case until it locks.
Check that the lock release button
can be seen.
STEP2
Lock release button
■Adjusting the sub cover (vehicles with third seats)
Fasten the button when
the second seats are
in the rear-most position.
Unfasten the buttons before sliding the sec-
ond seats forward.

565
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
■Caution while driving
●Keep the auxiliary box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occu pant being struck by an open auxiliary
box or the items stored inside.
●Keep the both sides of the luggage cover case locked. Otherwise, the luggage
cover may fly out in case of the sudden braking, sudden serving or an accident,
resulting in death or serious injury. (vehicles without third seats)
●When stowing the luggage cover in the luggage compartment, use the luggage
cover restraining bands to secure the left and right sides of the luggage cover.
Otherwise, the luggage cover may fly out in case of the sudden braking, sudden
serving or an accident, resulting in death or serious injury. (vehicles without third
seats)
■Caution for the luggage cover
Do not allow children to climb on the luggage cover. Climbing on the luggage
cover could result in damage to the luggage cover, possibly causing death or seri-
ous injury to the child.

566
3-7. Other interior features
GX460_U.S.A. (OM60E69U)
NOTICE
■To prevent damage to the luggage cover (vehicles without third seats)
●When stowing the luggage cover, do not put luggage on the luggage cover.
●Do not use the luggage cover restraining bands for anything other than securing
the luggage cover.
●Do not insert coins etc. into the area shown
in the illustration.

567
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufactured
under license from HomeLink®.
Programming HomeLink® (for U.S. owners)
The HomeLink
® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator light
Buttons
The garage door opener can be programmed to operate garage doors,
gates, entry doors, door locks, home lighting systems, and security systems,
and other devices.

568
3-7. Other interior features
GX460_U.S.A. (OM60E69U)■
Programming HomeLink
®
Point the remote control transmit-
ter for the device 1 in. (25 mm)
from the HomeLink
® buttons.
Keep the HomeLink® indicator
light in view while programming.
Press and hold one of the
HomeLink® buttons and the trans-
mitter button. When the
HomeLink
® indicator light
changes from a slow to a rapid
flash, you can release both buttons.
If the HomeLink® indicator light
comes on but does not flash, or
flashes rapidly for 2 seconds and
remains lit, the HomeLink
® button
is already programmed. Use the
other buttons or follow the “Repro-
gramming a HomeLink
® button”
instructions. ( P. 5 7 2 )
STEP1
STEP2

569
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)Test the HomeLink
® operation by
pressing the newly programmed
button.
If a HomeLink® button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
garage transmitter is of the rolling
code type. Press and hold the pro-
grammed HomeLink
® button. The
remote control transmitter is of the
rolling code type if the HomeLink
®
indicator light flashes rapidly for 2
seconds and then remains lit. If
your transmitter is the rolling code
type, proceed to the heading “Pro-
gramming a rolling code system”.
Repeat the steps above to progra m another device for any of the
remaining HomeLink® buttons.
STEP3
STEP4
