engine Lexus GX460 2010 Using The Bluetooth Audio System / LEXUS 2010 GX460 OWNERS MANUAL (OM60E69U)

5
When trouble arises
675
5-1. Essential information
GX460_U.S.A. (OM60E69U)
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
● The engine is running but the vehicle will not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommen d having your vehicle towed by your
Lexus dealer or a commercial towing service, using a lift-type truck or a flat
bed truck. 
Use a safety chain system for all towing , and abide by all state/provincial
and local laws.
The wheels and axle on the ground must be in good condition.
If they are damaged, use a to wing dolly or flat bed truck.

5
When trouble arises
679
5-1. Essential information
GX460_U.S.A. (OM60E69U)
■Before emergency towingThe “ENGINE START STOP” switch must be in the ACCESSORY mode
(engine off) or IGNITION ON mode (engine running).
Put the four-wheel drive control switch in H4. (The center differential is
unlocked.)
Put the vehicle height in the N mode and press height control switch to
turn off the rear height control air suspension.
Shift the shift lever in N.
Release the parking brake.
CAUTION
■Caution while towing
●Use extreme caution when towing the vehicle. 
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelets and the cables or chains. Always use caution for
the surroundings and other vehicles while towing.
●Do not turn the “ENGINE START STOP” switch off. 
Doing so will lock the steering wheel and prevent operation, possibly causing an
accident and result ing in death or serious injury.
●If the engine is not running, the power assi st for the brakes and steering will not
function, making steering and braking more difficult.
STEP1
STEP2
STEP3
STEP4
STEP5

5
When trouble arises
681
5-1. Essential information
GX460_U.S.A. (OM60E69U)
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■ Visible symptoms
●Fluid leaks under the vehicle 
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temper ature gauge needle continually points
higher than normal
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
●Engine missing, stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor

682
5-1. Essential information
GX460_U.S.A. (OM60E69U)
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is acti-
vated.
Turn the “ENGINE START STOP” switch to ACCESSORY mode
or turn it off.
Restart the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle. 
If you find that fuel has leaked on to th e ground, the fuel system has been damaged
and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an airbag
inflates upon collision, the fuel pump shut off system stops supplying fuel to
the engine.
STEP1
STEP2

684
5-1. Essential information
GX460_U.S.A. (OM60E69U)
In a crash or a near car crash eventThe SRS airbag sensor ass embly contains the EDR. In a crash or a near
car crash event, this devic e may record some or all of the following infor-
mation:
● Engine speed
● Whether the brake pedal was applied or not
● Vehicle speed
● To what extent the accelerator pedal was depressed
● Position of the transmission shift lever
● Whether the driver and front passenger wore seat belts or not
● Driver’s seat position
● SRS airbag deployment data
● SRS airbag system diagnostic data
● Front passenger’s occupant classification
The information abov e is intended to be used for the purpose of improv-
ing vehicle safety performance. Unlike general da ta recorders, the EDR
does not record sound data such as conversation between passengers.

5
When trouble arises
687
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
Stop the vehicle immediately.The following warning indicates the po ssibility of damage to the vehicle
that may lead to an ac cident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Have the vehicle inspected by your Lexus dealer immediately.
Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
while the engine is running.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Malfunction indicator lampMalfunction in:
• The emission control system;
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system.

5
When trouble arises
691
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
*1: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is not
fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]). 
( P. 7 0 3 )
*2: Driver’s and front passenger’s seat belt reminder buzzer:
The driver’s and front passenger’s seat belts reminder buzzer sounds to alert
the driver and front passenger that his/he r seat belt is not fastened. Once the
“ENGINE START STOP” switch is turned to IGNITION ON mode, the buzzer
sounds for 4 to 8 seconds. If the vehicl e reaches a speed of 12 mph (20 km/h),
the buzzer sounds intermittently for 10 se conds. Then, if the seat belt is still
unfastened, the buzzer w ill sound in a different tone for 20 more seconds.
Warning lightWarning light/DetailsCorrection procedure
Master warning light
A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
 P. 6 9 8
Tire pressure warning light
When the light comes on:
Low tire inflation pressure.Adjust the tire inflation pres-
sure.
When the light comes on after
blinking for 1 minute:
Malfunction in the tire pres-
sure warning system.
Have the system checked by
your Lexus dealer.

694
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
The tire pressure warning system may become inoperative in the following condi-
tions: 
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings.
●If non-genuine Lexus wheels are used. (Even if you use genuine Lexus wheels,
the tire pressure warning system may no t work properly with some types of
tires.)
●If tire chains are used.
●If the spare tire is in a location subj ect to poor radio wave signal reception.
● If a large metallic object which can interfere with signal reception is put in the
luggage compartment.
■If the tire pressure warning light comes on after blinking for 1 minute frequently
If the tire pressure warning light comes on after blinking for 1 minute frequently
when the engine switch is turned to the “ON” position, have it checked by your
Lexus dealer.
■After changing the engine oil (U.S.A. only)
Make sure to reset the oil maintenance data. ( P. 6 1 3 )

5
When trouble arises
699
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
Stop the vehicle immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warning ind icates the possibility of damage to
the vehicle that may lead to an acci dent. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil pres-
sure is too low.

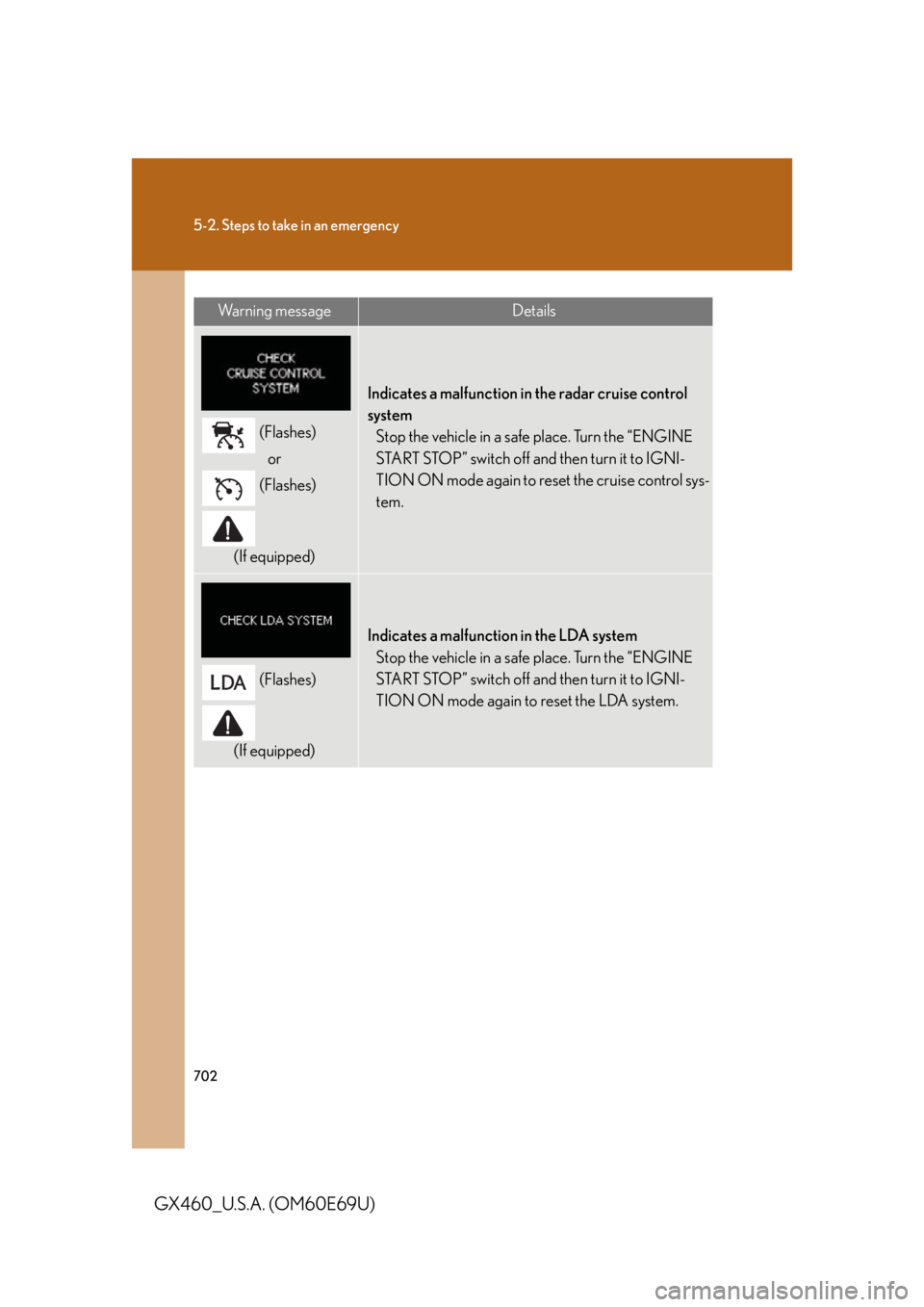

702
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
(Flashes)or
(Flashes)
(If equipped)
Indicates a malfunction in the radar cruise control
system Stop the vehicle in a safe place. Turn the “ENGINE
START STOP” switch off and then turn it to IGNI-
TION ON mode again to re set the cruise control sys-
tem.
(Flashes)
(If equipped)
Indicates a malfunction in the LDA system Stop the vehicle in a safe place. Turn the “ENGINE
START STOP” switch off and then turn it to IGNI-
TION ON mode again to reset the LDA system.
Wa r n i n g m e s s a g eDetails
