224
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60E69U)
■Daytime running light system
To make your vehicle more visible to other drivers, the headlights turn on automati-
cally (at a reduced intensity) whenever the engine is started and the parking brake
is released. Daytime running lights are not designed for use at night.
For the U.S.A.: Daytime running lights can be turned off by operating the switch.
■Headlight control sensor
■Automatic light off system
●When only the tail lights come on: The parking/front side marker, tail, license
plate and fog lights turn off if the “ENGINE START STOP” switch is turned to
ACCESSORY mode or turned off an d the driver’s door is opened.
●When the headlights come on: The headli ghts, parking/front side marker, tail,
license plate and fog lights turn off 30 seconds after a door or the glass hatch is
opened and closed. (The lights turn off immediately if on the key is
pressed after all the doors are locked.)
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNITION
ON mode, or turn the light switch off once and then back to
or .
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield. 
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.

258
2-4. Using other driving systems
GX460_U.S.A. (OM60E69U)
CAUTION
■When the sensor may not be correctly detecting the vehicle ahead
Apply the brakes as necessary when any of the following types of vehicles are in
front of you. 
As the sensor may not be able to correctly detect these types of vehicles, the
approach warning ( P. 255) will not be activated, and a fatal or serious accident
may result.
●Vehicles that cut in suddenly
●Vehicles traveling at low speeds
●Vehicles that are not moving
●Vehicles with small rear ends (tra ilers with no load on board etc.)
●Motorcycles traveling in the same lane
■Conditions under which the vehicle-to-vehicle distance control may not function
correctly
Apply the brakes as necessary in the foll owing conditions as the radar sensor may
not be able to correctly detect vehicles ahead, and a fatal or serious accident may
result:
●When water or snow thrown up by the surrounding vehicles hinders the function-
ing of the sensor
●When your vehicle is pointing upwards (caused by a heavy load in the luggage
compartment etc.)
●When the road curves or when the lanes are narrow
●When steering wheel operation or your position in the lane is unstable
●When the vehicle ahead of you decelerates suddenly

267
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60E69U)
■Sensor detection information
●Certain vehicle conditions and the surrounding environment may affect the
ability of a sensor to correctly detect an obstacle. Particular instances where this
may occur are listed below.
• There is dirt, snow or ice on a sensor.
• A sensor is frozen.
• A sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass.
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines,
air brakes of large vehicles, or other loud noises producing ultrasonic waves.
• There is another vehicle equipped with parking assist sensors in the vicinity.
• A sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or radio antenna.
• Towing eyelets are installed.
• A bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or right-angled curb.
• In harsh sunlight or intense cold weather.
• A non-genuine Lexus suspension (low ered suspension etc.) is installed.
In addition to the examples above, there are instances in which, because of their
shape, signs and other objects may be judged by a sensor to be closer than they
are.
●The shape of the obstacle may prevent a sensor from detecting it. Pay particular
attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materi als that absorb sound waves
• Sharply-angled objects
•Low obstacles
• Tall obstacles with upper sections projecting outwards in the direction of your vehicle

342
2-4. Using other driving systems
GX460_U.S.A. (OM60E69U)
■The pre-collision system is operational when
●Pre-collision warning
• Vehicle speed is greater than about 9 mph (15 km/h).
• The speed at which your vehicle is approaching the obstacle or oncoming vehicle is greater than about 9 mph (15 km/h).
●Pre-collision seat belts (linked to the radar sensor):
• Vehicle speed is greater than about 3 mph (5 km/h).
• The speed at which your vehicle is approaching the obstacle or oncoming vehicle is greater than about 18 mph (30 km/h).
• The front occupants are wearing a seat belt.
●Pre-collision seat belts (linked to brake operation):
• Vehicle speed greater than about 18 mph (30 km/h).
• The system detects sudd en braking or skidding.
• The front occupants are wearing a seat belt.
●Pre-collision brake assist:
• Vehicle speed is greater than about 18 mph (30 km/h).
• The speed at which your vehicle is approaching the obstacle or the vehicle running ahead of you is greate r than about 18 mph (30 km/h).
• The brake pedal is depressed.
●Pre-collision braking:
• The pre-collision braking off switch is not pressed.
• Vehicle speed is greater than about 9 mph (15 km/h).
• The speed at which your vehicle is approaching the obstacle or the vehicle
running ahead of you is greater than about 9 mph (15 km/h).
●AVS (Adaptive Variable Suspension System) control (if equipped):
• Vehicle speed is greater than about 3 mph (5 km/h).
• The speed at which your vehicle is approaching the obstacle or the vehicle running ahead of you is greate r than about 18 mph (30 km/h).

343
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60E69U)
●Pre-collision alert braking (vehicle with driver monitor system):
• The pre-collision braking off switch is not pressed.
• The system determines that the driver is not facing forward.
• Vehicle speed is greater than about 9 mph (15 km/h).
• The speed at which your vehicle is approaching the obstacle or the vehicle running ahead of you is greate r than about 24 mph (40 km/h).
■Conditions that may trigger the system even if there is no possibility of a collision
●When there is an object by the roadside at the entrance to a curve
●When passing an oncoming vehicle on a curve
●When driving over a narrow iron bridge
●When there is a metal object on the road surface
●When driving on an uneven road surface
●When passing an oncoming vehicle on a left-turn
●When your vehicle rapidly closes on the vehicle in front
●When there is an overhead bridge, sign or billboard ahead
●When there are excessive changes in the vehicle height (when it tilts forwards
or backwards)
●When there is an abnormality in the radar sensor
●When an overhead metal object can be seen at the top of an uphill road
●When passing through an electronic toll collection gate (only in countries with
electronic toll collection)
When the system is activated in the situations described above, there is also a possi-
bility that the seat belts will retract quickly and the brakes will be applied with a force
greater than normal. When the seat belt is locked in the restricted position, stop the
vehicle in a safe place, release the seat belt and refasten it.

346
2-4. Using other driving systems
GX460_U.S.A. (OM60E69U)
CAUTION
■When the sensor may not be correctly detecting the vehicle ahead
Apply the brakes as necessary in any of the following situations.
●When water or snow thrown up by the surrounding vehicles hinders the function-
ing of the sensor
●When your vehicle is pointing upwards (caused by a heavy load in the luggage
compartment etc.)
●Vehicles that cut in suddenly
●Vehicles with small rear ends (trailers with no load on board etc.)
●Motorcycles traveling in the same lane
■Handling the radar sensor
Observe the following to ensure the pre-collision system can function effectively:
●Keep the sensor and front grille cover clean at all times. 
Clean the sensor and front grille cover with a soft cloth so you do not mark or
damage them.
●Do not subject the sensor or surrounding area to a strong impact. 
If the sensor moves even slightly off position, the system may malfunction. If the
sensor or surrounding area is subject to a strong impact, always have the area
inspected and adjusted by your Lexus dealer.
●Do not disassemble the sensor.
●Do not attach accessories or stickers to the sensor, grille cover or surrounding
area.
●Do not modify or paint the sensor and grille cover.

684
5-1. Essential information
GX460_U.S.A. (OM60E69U)
In a crash or a near car crash eventThe SRS airbag sensor ass embly contains the EDR. In a crash or a near
car crash event, this devic e may record some or all of the following infor-
mation:
● Engine speed
● Whether the brake pedal was applied or not
● Vehicle speed
● To what extent the accelerator pedal was depressed
● Position of the transmission shift lever
● Whether the driver and front passenger wore seat belts or not
● Driver’s seat position
● SRS airbag deployment data
● SRS airbag system diagnostic data
● Front passenger’s occupant classification
The information abov e is intended to be used for the purpose of improv-
ing vehicle safety performance. Unlike general da ta recorders, the EDR
does not record sound data such as conversation between passengers.

5
When trouble arises

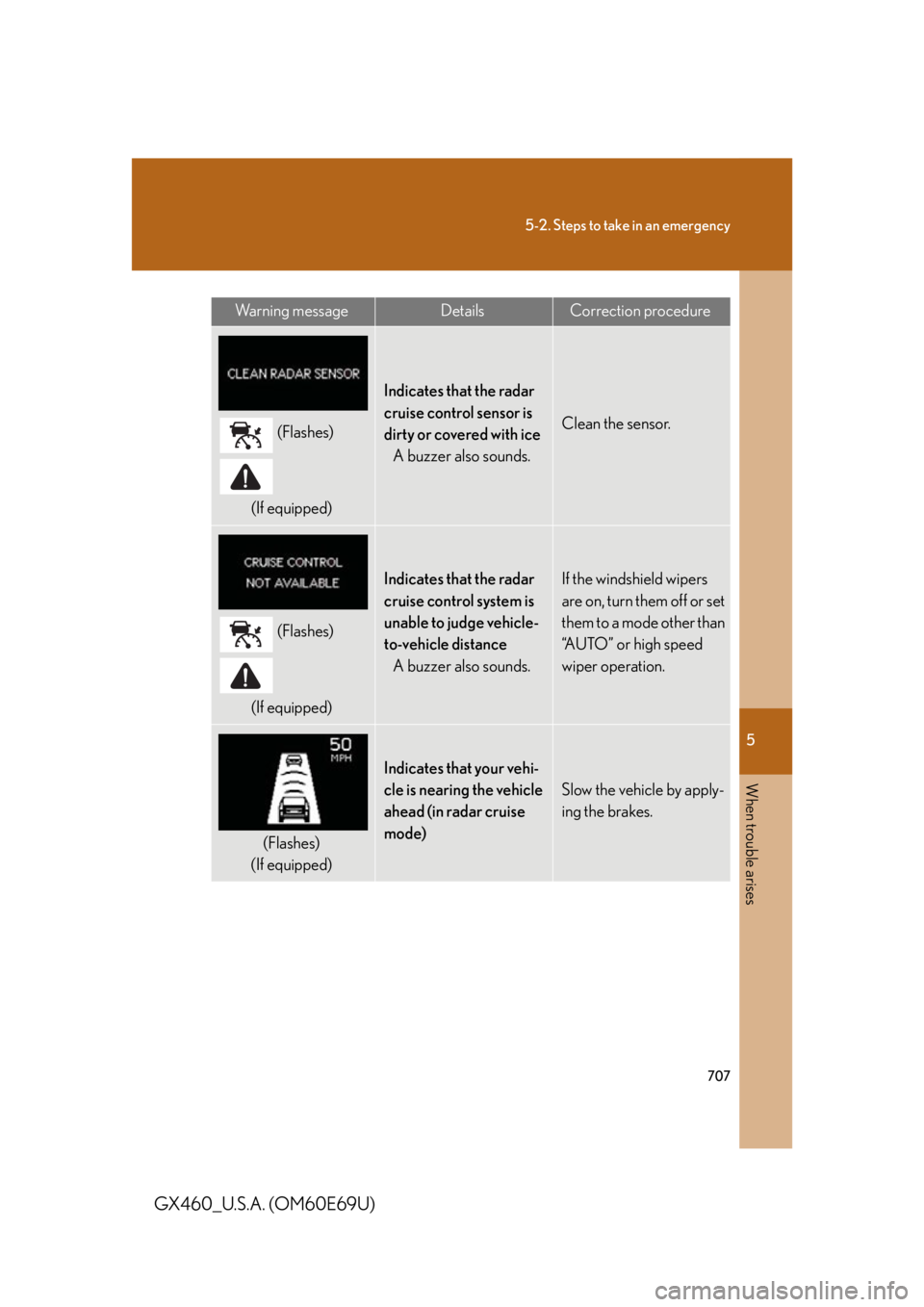

707
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
(Flashes)
(If equipped)
Indicates that the radar
cruise control sensor is
dirty or covered with ice A buzzer also sounds.
Clean the sensor.
(Flashes)
(If equipped)
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance A buzzer also sounds.If the windshield wipers
are on, turn them off or set
them to a mode other than
“A U T O ” o r h i g h s p e e d
wiper operation.
(Flashes)
(If equipped)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in radar cruise
mode)
Slow the vehicle by apply-
ing the brakes.
Wa r n i n g m e s s a g eDetailsCorrection procedure

708
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60E69U)
(Flashes)
(If equipped)
Indicates that there is a
high possibility of a colli-
sion, or that the pre-crash
brake function is operat-
ing
Slow the vehicle by apply-
ing the brakes.
(If equipped)
Indicates that the LDA is
suspended The camera sensor tem-
perature is higher than
the operation tempera-
ture range.
Reactivate the lane depar-
ture alert system.
(If equipped)
Alerts the driver that the
vehicle may deviate from
its lane (while the LDA
system is operating).
The lane markings flash.
Check the road condi-
tions and correct the driv-
ing path appropriately.
Wa r n i n g m e s s a g eDetailsCorrection procedure

816
Alphabetical index
GX460_U.S.A. (OM60E69U)
Parking assist sensors .........................259
Parking brake .......................................... 193
Parking lightsReplacing light bulbs........................665
Switch ...................................................... 220
Wattage.................................................... 761
PCS ........................................................... 338
Personal lights Personal lights ........................................ 511
Switch ........................................................513
Wattage.................................................... 761
Power steering Fluid ..........................................................620
Power outlet.....................535, 537, 542
Power windows ........................................101
Pre-Collision System ......................... 338
Radar cruise control ............................ 246
Radiator ......................................................617
Radio ......................................................... 408
RDS (Radio Date System) ................. 410
Rear height control 
air suspension ...................................... 310
Rear seat Adjustment............................................... 68
Folding down the second 
seatbacks ....................................... 70, 71
Folding down the third seats ...........73
Rear side marker lights Replacing light bulbs........................ 667
Wattage.................................................... 761
Rear step bumper....................................55
Rear turn signal lights Replacing light bulbs........................ 667
Wattage.................................................... 761 Rear view mirror
Compass ............................................... 575
Rear view monitor system .................274
Rear window defogger ...................... 404
Rear window wiper and washer ..... 239
Replacing Electronic key battery ......................642
Fuses ........................................................ 645
Light bulbs ............................................ 660
Tires...........................................................720
Reporting safety defects for 
U.S. owners..........................................804
Scuff lighting .............................................. 511
Seat belts Adjusting the seat belt ........................87
Automatic Locking Retractor ........ 88
Child restraint system 
installation ............................................ 152
Cleaning and maintaining 
the seat belts .................................... 593
Emergency Locking 
Retractor ............................................... 88
How to wear your seat belt ............ 86
How your child should wear 
the seat belt.......................................... 89
Pre-collision seat belts....................... 88
Pregnant women, 
proper seat belt use ........................ 89
Reminder light..................................... 690
Seat belt extenders.............................. 90
Seat belt pretensioners ....................... 91
Seat heaters ............................................. 551
Seat position memory............................ 79
Seat ventilator ......................................... 551
Seating capacity.................................... 359P
R
S
