seat adjustment Lexus GX460 2010 Using The Bluetooth Audio System / LEXUS 2010 GX460 OWNERS MANUAL (OM60E69U)

64
GX460_U.S.A. (OM60E69U)
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
Front seats
Seat position adjustment switch
Seatback angle adjustment
switch
Seat cushion (front) angle
adjustment switch
Vertical height adjustment
switch
Lumber support adjustment
switch

67
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_U.S.A. (OM60E69U)
■Customization
The distance that the driver’s seat moves backward during the auto away function
can be changed. (Customizable features P. 7 8 1 )
CAUTION
■Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary. 
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or yo ur neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident. 
Adjustments should not be made while driv ing as the seat may unexpectedly move
and cause the driver to lose control of the vehicle.

68
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_U.S.A. (OM60E69U)
Rear seats
Second seats (without third seats)
Seatback angle adjustment
lever
Second seats (with third seats) Seatback angle adjustment
lever
Seat position adjustment
lever
Third seats (if equipped) Seatback angle adjustment
switch

69
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_U.S.A. (OM60E69U)
Moving a second seat for third seat access (with third seats)■ Getting in the vehicle (right side only)
Pull the seatback angle adjustment
lever and fold down the seatback.
The seat will slide forward.
Move the seat to the front-most
position
■ Getting out of the vehicle
Pull the release lever and fold
down the seatback. The seat will
slide forward.
Move the seat to the front-most
position
Make sure that no passenger is
seated on the second seat before
pulling the release lever.
■After passengers have entered/exited the vehicle
Lift up the seatback and slide the seat backward until it locks.

77
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_U.S.A. (OM60E69U)
CAUTION
■When folding the seatbacks down
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Do not fold the seatbacks down while driving.
●Stop the vehicle on level ground, set the parking brake and shift the shift lever to
P.
●Do not allow anyone to sit on a folded seatback or in the luggage compartment
while driving.
●Do not allow children to en ter the luggage compartment.
■Seat adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary. 
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or yo ur neck may contact the shoulder belt,
increasing the risk of death or seriou s injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly
move and cause the driver to lose control of the vehicle.
●Be careful not to get hands or feet pinc hed between the rear console box and the
second seat when folding down the rear seatback.

82
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_U.S.A. (OM60E69U)
■Operating the driving position memory after turning the engine off
Memorized positions (except the steering wheel position) can be activated up to
180 seconds after the driver’s door is op ened and another 60 seconds after it is
closed again, even after turning the “ENGINE START STOP” switch off.
■Canceling the linked do or unlock operation
Turn the “ENGINE START STOP” switch off and close the driver’s door.
While pressing “SET” button, press dr iver’s door lock switches (either
lock or unlock) until the signal beeps.
■Stopping seat position op eration part-way through
Perform any of the following operations:
●Press the “SET” button.
●Press button 1 or 2.
●Adjust the seat using the switches (only cancels seat position recall).
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that th e seat does not strike the rear passenger
or squeeze your body against the steering wheel.
STEP1
STEP2

83
1
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
Before driving
GX460_U.S.A. (OM60E69U)

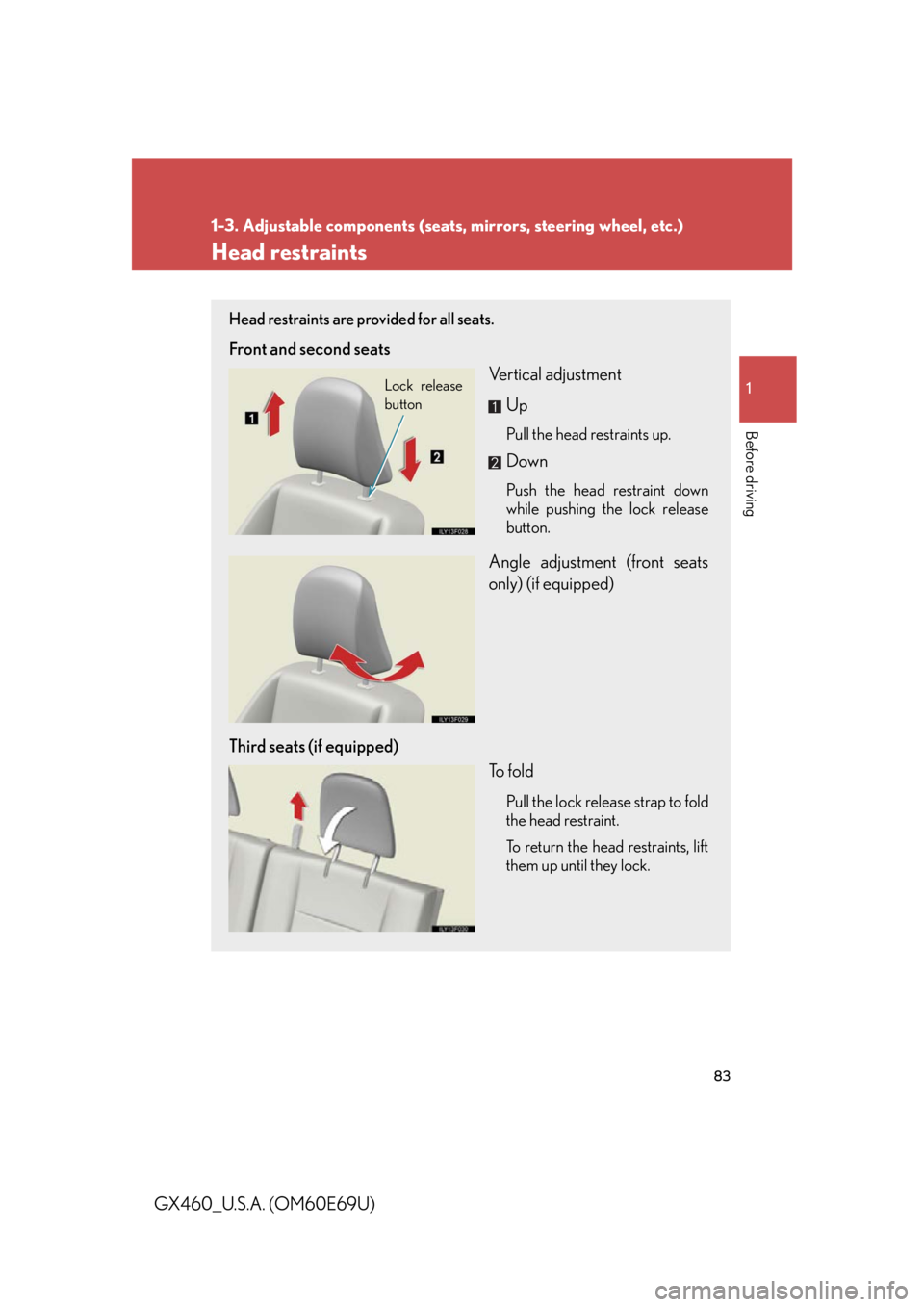

Head restraints
Head restraints are provided for all seats.
Front and second seats
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Angle adjustment (front seats
only) (if equipped)
Third seats (if equipped) To fold
Pull the lock release strap to fold
the head restraint.
To return the head restraints, lift
them up until they lock.
Lock release
button

95
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_U.S.A. (OM60E69U)
■The steering wheel can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of “ENGINE START STOP” switch mode.
■Automatic adjustment of the steering position
A desired steering position can be ente red to memory and recalled automatically
by the driving position memory system. ( P. 7 9 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving. 
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.

99
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_U.S.A. (OM60E69U)
■Mirror angle can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■When the mirrors are fogged up
Turn on the mirror heaters to defog the mirrors. (P. 404)
■Linked mirror function when reversing
The outside rear view mirrors will automa tically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between “L” and
“R”).
■Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. ( P. 7 9 )
■Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirr or is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light.

120
1-7. Safety information
GX460_U.S.A. (OM60E69U)
CAUTION
■While driving
●Do not adjust the position of the driver’s seat.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback. 
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head re straint, increasing the risk of death or
serious injury to the driver or passenger.
●Do not place anything under the front seats. 
Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident, resulting in
death or serious injury. The adjustment mechanism may also be damaged.
■Adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury. 
Fingers or hands may become jammed in the seat mechanism.
