230
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60E69U)
●In the situations below, the system may not be able to correctly detect the sur-
rounding brightness levels, and may flash or expose nearby pedestrians to the
high beam. Therefore, you should consider turning the high beam on or off
manually rather than relying on the Automatic High Beam system.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The inside rear view mirror or camera sensor is deformed or dirty.
• Surrounding brightness levels are equal to those of headlights, tail lights or
fog lights.
• Vehicles ahead have headlights that are either switched off, dirty, are chang-
ing color, or are not aimed properly.
• When driving through an area of intermittently changing brightness and darkness
• When frequently and repe atedly driving ascending/descending roads, or
roads with rough, bumpy or uneven surfaces (such as stone-paved roads,
gravel tracks etc.)
• When frequently and repeatedly taking curves or driving on a winding road
• There is a highly reflective object ahead of the vehicle, such as a sign or a mir- ror.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
• The Automatic High Beam indicator is flashing.
• The high beam and low beam are repeatedly being switched between in an abnormal manner.
• The driver believes that the high beam may be causing problems or distress to
other drivers or pedestrians nearby.

231
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60E69U)
■If the Automatic High Beam indicator flashes...
It may indicate a malfunction in th e system. Contact your Lexus dealer.
■Temporary lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered. 
To lower the sensitivity, push and hold the “AUTO” button on the inside rear view
mirror for 15 to 20 seconds, and release. The indicator light on the inside rear view
mirror will flash to indicate that the sensitivity has been lowered.
When the “ENGINE START STOP” switch is turned off, the sensitivity will be
returned to its normal level.
■Customization that can be conf igured at your Lexus dealer
The Automatic High Beam can be turned off.

232
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60E69U)
NOTICE
■Camera sensor
●Do not touch the camera sensor.
●Do not subject the inside rear view mirror or the camera sensor to a strong
impact.
●Do not disassemble the camera sensor.
●Do not spill liquid onto the inside rear view mirror or the camera sensor.
●Do not apply window tinting or stickers to the camera sensor or the area of wind-
shield near the camera sensor.
●Do not place items on the dashboard. There is a possibility that the camera sensor
will mistake items reflected in the windshield for streetlights, the headlights of
other vehicles, etc.
●Do not install a parking tag or any other accessories near or around the inside
rear view mirror and the camera sensor.
●Do not overload the vehicle.
●Do not modify the vehicle.
●Do not replace windshield wi th a non-genuine windshield. 
Contact your Lexus dealer.
Observe the following to ensure that the
Automatic High Beam functions correctly.

233
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60E69U)
Fog light switch
The fog lights secure excellent visibility in difficult driving conditions, such
as in rain or fog.
U.S.A.
Turns the fog lights off
Turns the fog lights on

234
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60E69U)
■Fog lights can be used when
The head lights are on in low beam.
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.
CanadaTurns the fog lights off
Turns the fog lights on

235
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60E69U)
Windshield wipers and washer
When “AUTO” is selected, the wipers will operate automatically when the
sensor detects falling rain. The syst em automatically adjusts wiper timing
according to rain volume and vehicle speed.
When “AUTO” is selected, the sensor sensitivity can be adjusted as fol-
lows by turning the switch ring:
Off
Rain-sensing wiper
operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation

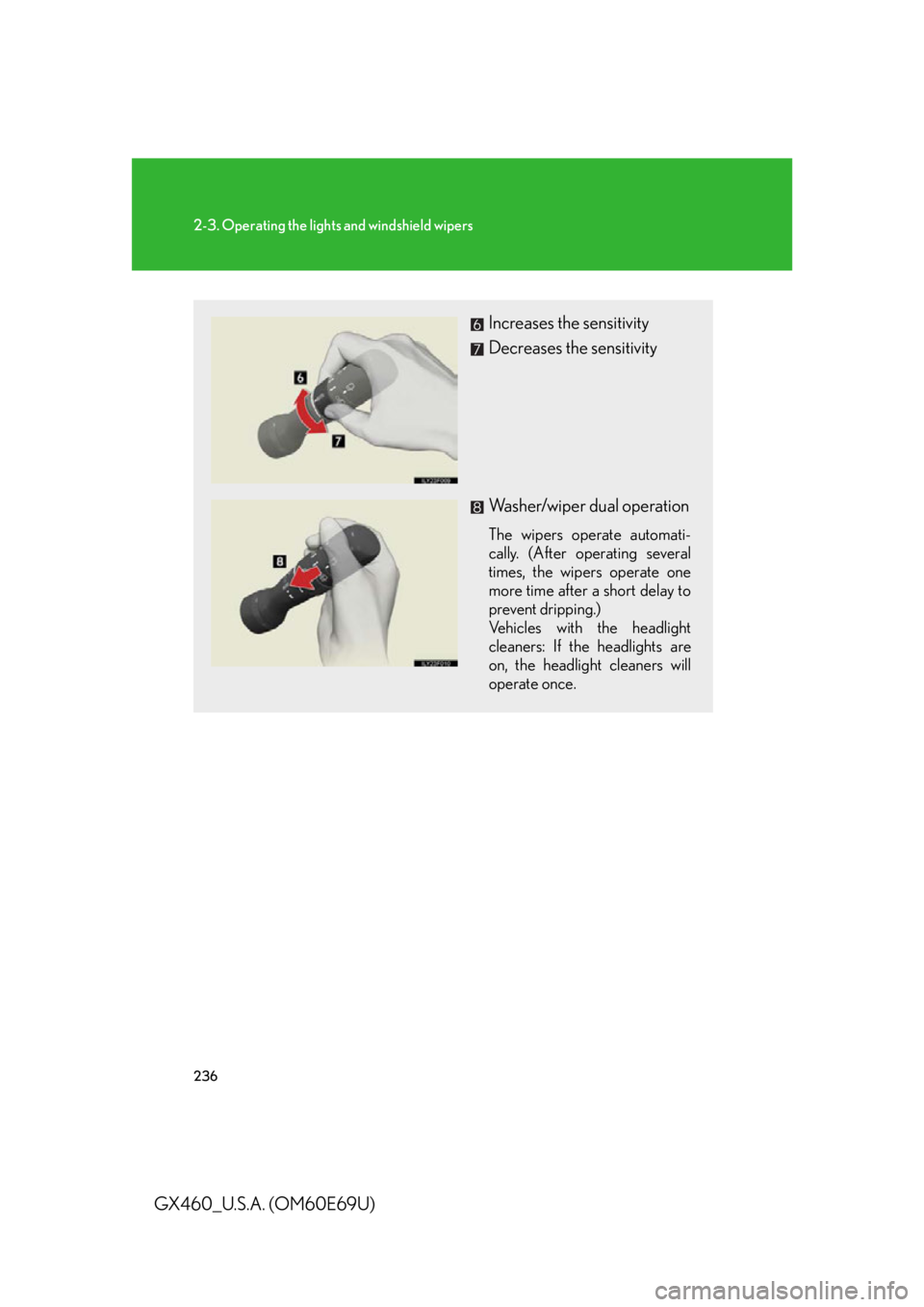

236
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60E69U)
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
The wipers operate automati-
cally. (After operating several
times, the wipers operate one
more time after a short delay to
prevent dripping.)
Vehicles with the headlight
cleaners: If the headlights are
on, the headlight cleaners will
operate once.

237
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60E69U)
■The windshield wipers and wa sher can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Rain drop sensor
●If the wiper switch is turned to the “AUTO” position while the “ENGINE START
STOP” switch is in IGNITION ON mode, the wipers will operate once to show
that “AUTO” mode is activated.
●If the temperature of the rain drop sensor is 194 F (90  C) or higher, or 5 F
(-15 C) or lower, the automatic operation may not occur. In this case, operate
the wipers in any mode other than “AUTO”.
■Effects of vehicle speed on wiper operation
With the settings other than “AUTO” also, the time until drip prevention wiper
sweep occurs is changed depending on vehicle speed. 
With selected, wiper operation will be switched from low speed to intermit-
tent wiper operation only when the vehicle is stationary. (However, when the sensor
sensitivity is adjusted to the highest level, the mode cannot be switched.)
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.

238
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60E69U)
CAUTION
■Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in “AUTO” mode. Take care that your fingers etc.
anything else does not become caught in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
■When a nozzle becomes blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.

239
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60E69U)
Rear window wiper and washer
The wiper operation is selected by moving the lever as follows:
Off
Intermittent window
wiper operation
Normal window
wiper operation
Washer/wiper dual
operation
Washer/wiper dual
operation
