phone Lexus GX460 2010 Using The Bluetooth Audio System /

496
3-4. Using the hands-free system (for cellular phone)
GX460_U.S.A. (OM60E69U)
Changing the registered name of a cellular phoneSelect “Change Name” using a voice command or the “TUNE/
SEL” knob.
Pattern A
Select the name of the cellular phone to be changed by either of
the following methods, and sele ct “Confirm” using a voice com-
mand or the “TUNE/SEL” knob:
a. Press the talk switch and say the name of the desired cellular
phone.
b. Press the talk switch and say “Li st Phones”. When the name of
the desired cellular phone is read aloud, press the talk switch.
Pattern B
Select the desired cellular phone name to be changed using the
“TUNE/SEL” knob.
Press the talk switch or select “Record Name” using the “TUNE/
SEL” knob, and say the new name.
Select “Confirm” using a voic e command or the “TUNE/SEL”
knob.
STEP1
STEP2
STEP2
STEP3
STEP4

497
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_U.S.A. (OM60E69U)
Listing the registered cellular phonesSelect “List Phones” using a voice command or the “TUNE/SEL” knob.
The list of registered cellular phones will be read aloud. 
When listing is complete, the sy stem returns to “Phone Setup”.
Pressing the talk switch while the name of a cellular phone is being read
aloud selects the cellular phone, an d the following functions will become
available:
● Selecting a cellular phone: “Connect Phone (Connect)”
● Changing a registered name: “Change Name”
● Deleting a cellular phone: “Delete Phone”
Changing the passkey
Select “Set Passkey” using a vo ice command or the “TUNE/SEL”
knob.
Pattern A
Press the talk switch, say a 4 to 8-digit number, and select “Con-
firm” using a voice command or the “TUNE/SEL” knob.
Pattern B
Select a 4 to 8-digit number using the “TUNE/SEL” knob.
The number should be input 1 digit at a time.
When the entire number to be re gistered as a passkey has been
input, press the “TUNE/SEL” knob again.
If the number to be registered has 8 digits, pressing of the knob is not
necessary.
STEP1
STEP2
STEP2
STEP3

498
3-4. Using the hands-free system (for cellular phone)
GX460_U.S.A. (OM60E69U)
Deleting a registered cellular phoneSelect “Delete Phone” using a voice command or the “TUNE/
SEL” knob.
Pattern A
Select the cellular phone to be deleted by either of the following
methods and select “Confirm” using a voice command or the
“TUNE/SEL” knob:
a. Press the talk switch and say the name of the desired cellular
phone.
b. Press the talk switch and say “Li st Phones”. When the name of
the desired cellular phone is read aloud, press the talk switch.
Pattern B
Select the desired cellular phone to be deleted using the “TUNE/
SEL” knob.
If the cellular phone to be deleted is paired as a Bluetooth
® audio player,
the registration of the audio player can be deleted at the same time. A
voice guidance instructio n to delete a Bluetooth
® audio player is heard.
Select “Yes” or “No” using a vo ice command or the “TUNE/SEL”
knob. (Bluetooth
® audio player P. 4 5 7 )
■The number of cellular phones that can be registered
Up to 6 cellular phones can be registered in the system.
STEP1
STEP2
STEP2
STEP3

499
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_U.S.A. (OM60E69U)
Security and system setup
■Security setting items and operation procedures
To enter the menu for each function , follow the steps below using a
voice command or the “TUNE/SEL” knob:
●Setting or changing the PIN (Personal Identification Number) 
1. “Setup”  2. “Security”  3. “Set PIN”
● Locking the phone book 
1. “Setup”  2. “Security”  3. “Phonebook Lock (Phbk Lock)”
● Unlocking the phone book 
1. “Setup”  2. “Security”  
3. “Phonebook Unlock (Phbk Unlock)”
■ System setup items and operation procedures
To enter the menu for each function , follow the steps below using the
“TUNE/SEL” knob:
●Setting voice guidance volume 
1. “Setup”  2. “System Setup”  3. “Guidance Vol”
● Displaying the Bluetooth
® device address and name 
1. “Setup”  2. “System Setup”  3. “Device Name”
● Initializing the system 
1. “Setup”  2. “System Setup”  3. “Initialize”

500
3-4. Using the hands-free system (for cellular phone)
GX460_U.S.A. (OM60E69U)
Setting or changing the PIN■ Setting a PIN
Select “Set PIN” using a voice command or the “TUNE/SEL”
knob.
Enter a PIN using a voice command or the “TUNE/SEL” knob.
When using the “TUNE/SEL” knob, input the code 1 digit at a time.
■Changing the PIN
Select “Set PIN” using a voice command or the “TUNE/SEL”
knob.
Enter the registered PIN using a voice command or the “TUNE/
SEL” knob.
Enter a new PIN using a voice command or the “TUNE/SEL”
knob.
When using the “TUNE/SEL” knob, input the code 1 digit at a time.
Locking or unlocking the phone book
Select “Phonebook Lock (Phbk Lock)” or “Phonebook Unlock
(Phbk Unlock)” using a voice command or the “TUNE/SEL”
knob.
Input the PIN by either of the fo llowing methods and select “Con-
firm” using a voice command or the “TUNE/SEL” knob:
a. Press the talk switch and say the registered PIN.
b. Input a new PIN using the “TUNE/SEL” knob.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP1
STEP2

501
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_U.S.A. (OM60E69U)
Setting voice guidance volumeSelect “Guidance Vol” using the “TUNE/SEL” knob.
Change the voice guidance volume.
To decrease the volume: Turn the “TUNE/SEL” knob counterclockwise.
To increase the volume: Turn the “TUNE/SEL” knob clockwise.
Displaying the Bluetooth® device address and name
Select “Device Name” using the “TUNE/SEL” knob.
Turn the “TUNE/SEL” knob to display the Bluetooth
® device
address and name.
Select “Go Back” using the “TUNE/SEL” knob to return to “Sys-
tem Setup”.
Initializing the system
Select “Initialize” and then “Confirm” using the “TUNE/SEL”
knob.
Select “Confirm” again using the “TUNE/SEL” knob.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP1
STEP2

502
3-4. Using the hands-free system (for cellular phone)
GX460_U.S.A. (OM60E69U)
■Initialization
●The following data in the system can be initialized:
•Phone book
• Outgoing and incoming call history
•Speed dials
• Registered cellular phone data
•Security code
• Registered Bluetooth
® enabled portable player data
• Passkey for the cellular phones
• Passkey for the Bluetooth
® audio players
•Guidance volume
• Receiver volume
• Ring tone volume
●Once the initialization has been complete d, the data cannot be restored to its
original state.
■When the phone book is locked
The following functions cannot be used:
●Dialing by inputting a name
●Speed dialing
●Dialing a number stored in the call history memory
●Using the phone book

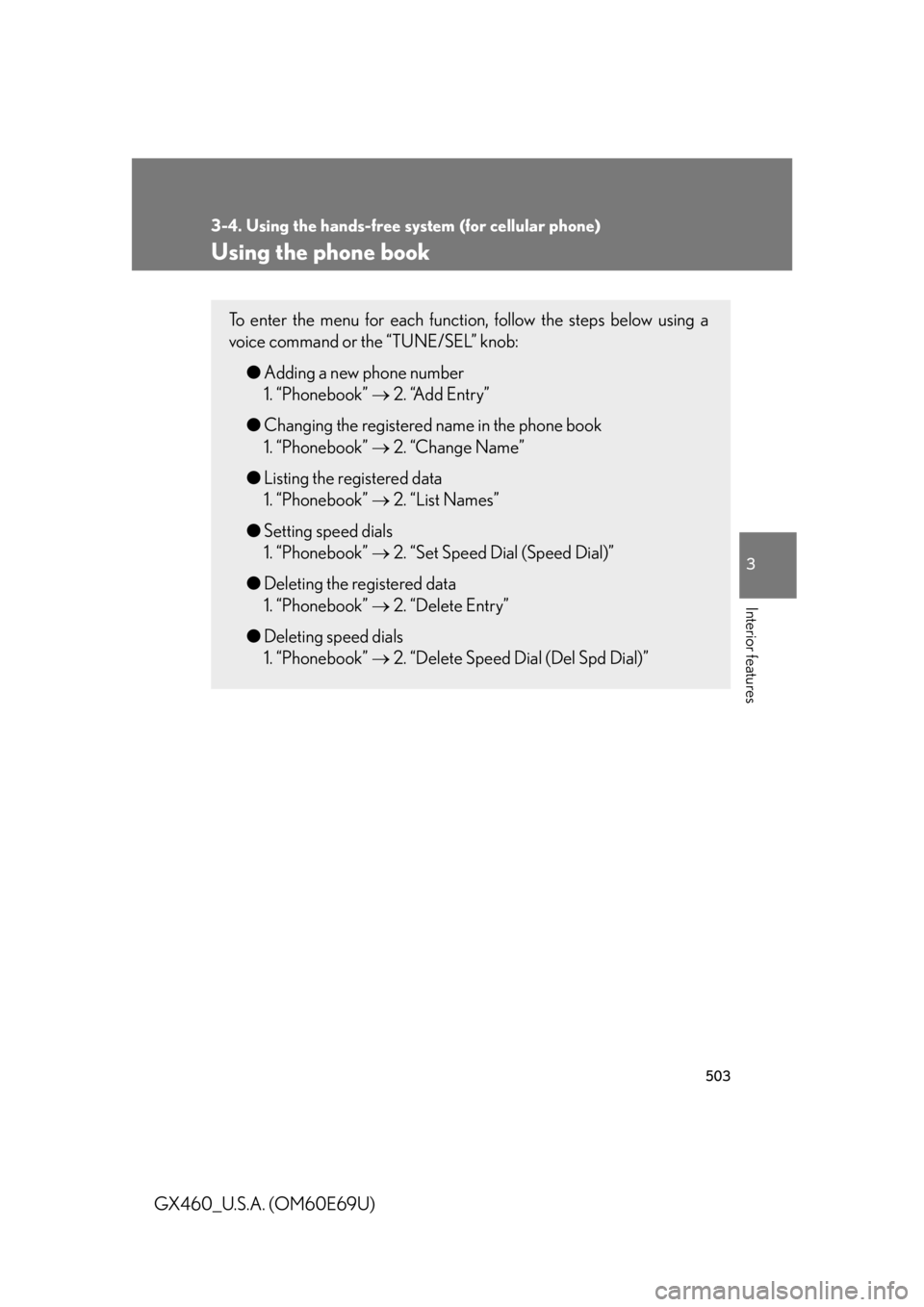

503
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_U.S.A. (OM60E69U)
Using the phone book
To enter the menu for each function, follow the steps below using a
voice command or the “TUNE/SEL” knob:
●Adding a new phone number 
1. “Phonebook”  2. “Add Entry”
● Changing the registered name in the phone book 
1. “Phonebook”  2. “Change Name”
● Listing the registered data 
1. “Phonebook”  2. “List Names”
● Setting speed dials 
1. “Phonebook”  2. “Set Speed Dial (Speed Dial)”
● Deleting the registered data 
1. “Phonebook”  2. “Delete Entry”
● Deleting speed dials 
1. “Phonebook”  2. “Delete Speed Dial (Del Spd Dial)”

504
3-4. Using the hands-free system (for cellular phone)
GX460_U.S.A. (OM60E69U)
Adding a new phone numberThe following methods can be used to add a new phone number:
● Inputting a phone number using a voice command
● Transferring data from the cellular phone
● Inputting a phone number using the “TUNE/SEL” knob
● Selecting a phone number from ou tgoing or incoming call history
■ Adding procedure
Select “Add Entry” using a voice command or the “TUNE/SEL”
knob.
Use one of the following methods to input a telephone number:
Inputting a telephone number using a voice command:
STEP2-1 Select “By Voice” using a voice command or the “TUNE/SEL” knob.
STEP2-2 Press the talk switch , say the desired number, and
select “Confirm” using a voice command.
STEP1
STEP2

505
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_U.S.A. (OM60E69U)Transferring data from the cellular phone:
STEP2-1 Select “By Phone” and then “Confirm” using a voice
command or the “TUNE/SEL” knob.
STEP2-2 Transfer the data from the cellular phone.
Refer to the manual that comes with the cellular phone for
the details of transferring data.
STEP2-3 Select the data to be registered by either of the follow- ing methods:
a. Say “Previous” or “Next” until the desired data is dis-played, and select “Co nfirm” using a voice com-
mand.
b. Select the desired data using the “TUNE/SEL” knob.
Inputting a phone number using the “TUNE/SEL” knob: STEP2-1 Select “Manual Input” using the “TUNE/SEL” knob.
STEP2-2 Input a phone number using the “TUNE/SEL” knob, and press the “TUNE/SEL” knob again.
Input the phone number 1 digit at a time.
