seats Lexus GX460 2010 Using The Bluetooth Audio System /

537
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)

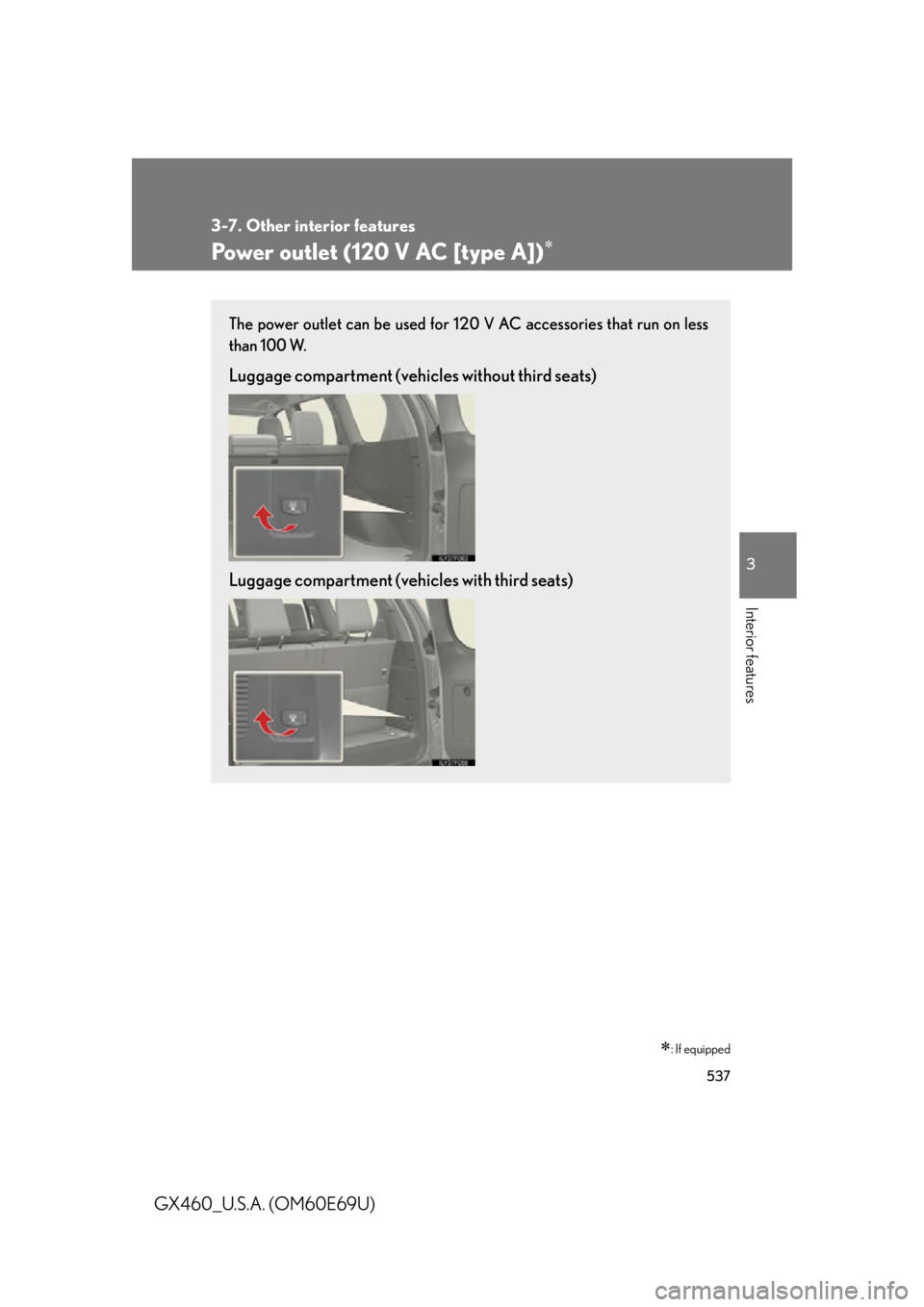

Power outlet (120 V AC [type A])
: If equipped
The power outlet can be used for 120 V AC accessories that run on less
than 100 W.
Luggage compartment (vehicles without third seats)
Luggage compartment (vehicles with third seats)

541
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)
NOTICE
■Appliances that may not operate properly (120 V AC)
The following 120 V AC appliances may not operate even if their power consump-
tion is under 100 W.
●Appliances with high initial peak wattage
●Measuring devices that process precise data.
●Other appliances that require an extremely stable power supply
■To prevent battery discharge
Turn off all the vehicle’s electronic equipment and accessories, such as the head-
lights and air conditioning, when electrical appliances that consume in excess of
100 W are used continuously for long periods of time.
■To prevent any damage caused by heat
●Do not use any electrical appliances that give off intense heat, such as toasters, in
any locations including the internal or external trim, seats and deck.
●Do not use any electrical appliances that are easily affected by vibration or heat
inside the vehicle. Vibration while driving, or the heat of the sun while parking,
may result in damage to th ose electrical appliances.
■If any electrical appliances are to be used while driving
Securely fasten both the appliances and their cables to prevent them from falling or
getting caught in any of the power train components.
■If the power outlet is loose when an electrical appliance plug is connected
Replace the outlet. Contact your Lexus dealer for any necessary replacements.
■If the power outlet gets dirty
Turn the main switch off and use a soft, clean cloth to wipe it gently. Do not use any
cleansing materials, such as organic solvents, wax, or compound cleaners, as these
may damage the power outlet or cause it to malfunction.

548
3-7. Other interior features
GX460_U.S.A. (OM60E69U)
NOTICE
■To prevent any damage caused by heat
●Do not use any electrical appliances that give off intense heat, such as toasters, in
any locations including the internal or external trim, seats and deck.
●Do not use any electrical appliances that are easily affected by vibration or heat
inside the vehicle. Vibration while driving, or the heat of the sun while parking,
may result in damage to th ose electrical appliances.
■If any electrical appliances are to be used while driving
Securely fasten both the appliances and their cables to prevent them from falling or
getting caught in any of the power train components.
■If the power outlet is loose when an electrical appliance plug is connected
Replace the outlet. Contact your Lexus dealer for any necessary replacements.
■If the power outlet gets dirty
Turn the main switch off and use a soft, clean cloth to wipe it gently. Do not use any
cleansing materials, such as organic solvents, wax, or compound cleaners, as these
may damage the power outlet or cause it to malfunction.

551
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)

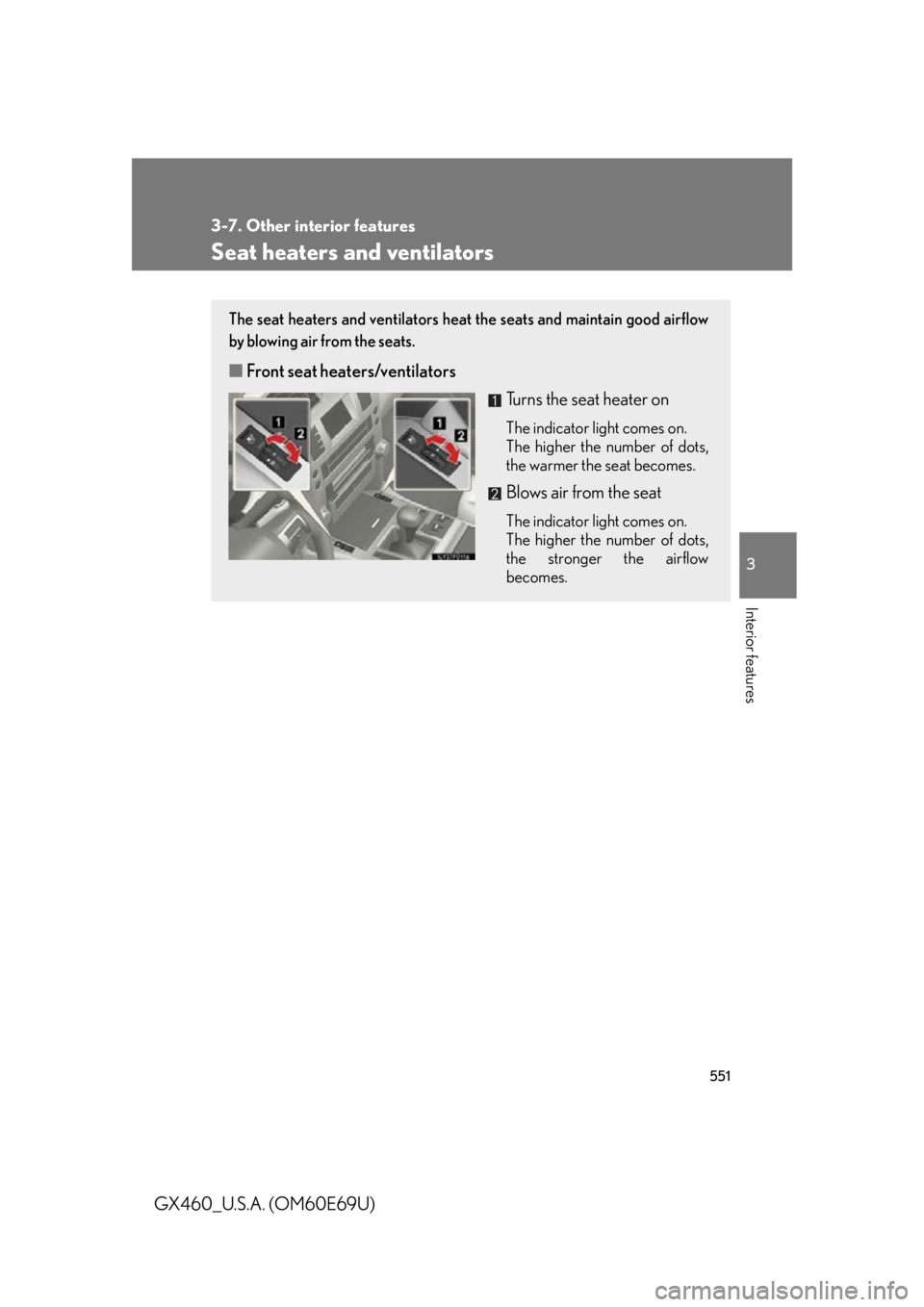

Seat heaters and ventilators
The seat heaters and ventilators heat the seats and maintain good airflow
by blowing air from the seats.
■ Front seat heaters/ventilators
Turns the seat heater on
The indicator light comes on.
The higher the number of dots,
the warmer the seat becomes.
Blows air from the seat
The indicator light comes on. 
The higher the number of dots,
the stronger the airflow
becomes.

557
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)
Luggage compartment features
■Cargo hooks
Vehicles without third seats
Raise the hook to use.
The cargo hooks are provided
for securing loose items.
Vehicles with third seatsRaise the hook to use.
The cargo hooks are provided
for securing loose items.
When using the deck hooks, the
third seat must be fold down.
(P. 7 3 )

559
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)
■Cargo net hooks
Vehicles without third seats
Vehicles with third seats
To hang the cargo net, use the
cargo net hooks.
The cargo net itself is not
included as an original equip-
ment.
■ Auxiliary box (if equipped)
Remove the cover.

560
3-7. Other interior features
GX460_U.S.A. (OM60E69U)
■Luggage cover (if equipped)
Vehicles without third seats Attach the hooks to the head
restraints.
Vehicles with third seats Attach the hooks to the head
restraints.
When using the luggage cover,
the third seats must be fold
down. (P. 7 3 )
Pull out the luggage cover and
hook it on the anchors.
STEP1
STEP1
STEP2

561
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)
Removing the luggage coverThe luggage cover can be removed by following the procedure below. Retract the cover and release both
ends, then lift it out.
Vehicles without third seats: After
removing the luggage cover, place
it somewhere other than the pas-
senger compartment.
Stowing the luggage cover (vehicle with third seat)
Push the case while pressing the
lock release button.
Vehicles without a rear automatic
air conditioning system: Shorten
one side only.
Vehicles with a rear automatic air
conditioning system: Shorten both
sides.
STEP1
Lock release button

564
3-7. Other interior features
GX460_U.S.A. (OM60E69U)Pull the case until it locks.
Check that the lock release button
can be seen.
STEP2
Lock release button
■Adjusting the sub cover (vehicles with third seats)
Fasten the button when
the second seats are
in the rear-most position.
Unfasten the buttons before sliding the sec-
ond seats forward.

565
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60E69U)
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
■Caution while driving
●Keep the auxiliary box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occu pant being struck by an open auxiliary
box or the items stored inside.
●Keep the both sides of the luggage cover case locked. Otherwise, the luggage
cover may fly out in case of the sudden braking, sudden serving or an accident,
resulting in death or serious injury. (vehicles without third seats)
●When stowing the luggage cover in the luggage compartment, use the luggage
cover restraining bands to secure the left and right sides of the luggage cover.
Otherwise, the luggage cover may fly out in case of the sudden braking, sudden
serving or an accident, resulting in death or serious injury. (vehicles without third
seats)
■Caution for the luggage cover
Do not allow children to climb on the luggage cover. Climbing on the luggage
cover could result in damage to the luggage cover, possibly causing death or seri-
ous injury to the child.
