4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60E69U)
23HTR50 AAir conditioning system
24WIP WSH RR30 ARear window wipers and washer
25H-LP CLN30 AHeadlight cleaner
26400W INV80 AAC INVERTER
27ST30 ASteering lock system
28H-LP HI25 ADIM relay, headlights, daytime run-
ning light system
29ALT-S7. 5 AALT
30TURN & HAZ15 A
Front turn signal light, rear turn signal
light, side turn signal light, meter turn
signal light
31D/L NO.125 ADoor lock motor, glass hatch opener
32ETCS10 AEFI ECU
33FUEL PMP15 AFPC
34TOW I N G30 ATo w i n g
35ALT140 A
Air conditioning system, AIR SUS,
headlight cleaner, towing, folding seat,
STOP, rear window defogger, MIR
HTR, CDS FAN, RR FOG, DEICER,
ALT CON, MG-CLT, RR SEAT HTR,
STRG HTR, J/B
36P/ I - B80 AInjector, ignition, meter, EFI, A/F
heater, horn
FuseAmpereCircuit

651
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60E69U)
37RAD NO.115 AAudio system, navigation system, rear
seat entertainment system
38AM27. 5 AStarter system
39RAD NO.210 ANavigation system
40MAYDAY7. 5 AMAYDAY
41AMP30 AAudio system
42ABS NO.150 AABS, VSC
43ABS NO.230 AABS, VSC
44AIR PMP50 AAir pump
45SECURITY10 ASecurity horn, self power siren, double
lock ECU
46SMART7. 5 ASmart access system with push button
start
47STRG LOCK20 ASteering lock system
48TOW I N G B R K30 ATo w i n g
49WIP RR15 ARear window wiper
50DOME10 A
Interior lights, personal lights, vanity
lights, door courtesy lights, footwell
lights, outer foot lights, overhead
module
FuseAmpereCircuit

652
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60E69U)
51ECU-B10 A
Body ECU, meter, heater, steering
sensor, wireless remote control, seat
position memory, tilt and telescopic
steering, multi display, Smart access
system with push button start, folding
seat, cool box, DSS#2 ECU, steering
switch, D-module switch, overhead
module
52WSH FR NO.27. 5 ADSS#1 ECU
53H-LP RH-LO15 AHeadlight low beam (right), headlight
leveling system
54H-LP LH-LO15 AHeadlight low beam (left), headlight
leveling system
55INJ10 ACoil, injector, ignition, noise filter
56EFI NO.210 A
O2 SSR, AFM, ACIS VSV, AI
COMB, KEY OFF PUMP, EYP VSV,
EGR VALVE, CANISTER VSV, AI
VSV RLY, AI PUMP HTR RLY
57WIP FR NO.27. 5 ADSS#1 ECU
58WSH RR15 ARear window washer
59SPARESpare fuse
60SPARESpare fuse
61SPARESpare fuse
FuseAmpereCircuit

653
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60E69U)Under the instrument panel
FuseAmpereCircuit
1P/O U T L E T15 APo w e r o u t l e t
2ACC7. 5 A
Outside rear view mirror motor,
BODY ECU, air conditioning system,
audio system, navigation system,
parking assist system, back up relay,
DSS#2 ECU, AT indicator, EFI ECU,
shift lock ECU, DCM, MAYDAY
ECU
3BKUP LP10 A
Back-up lights, audio system, multi
information display, DSS#2 ECU,
parking assist sensor
4TOW I N G B K L P10 ATo w i n g
5AV S20 AAir suspension system
6KDSS10 AKDSS ECU

654
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60E69U)
74WD20 A4WD system, rear differential lock
8P/ S E AT F L30 AFront power seat (left)
9D/L NO.225 ADouble lock system
10PSB30 APSB ECU
11TI & TE15 ATilt and telescopic steering
12FOG FR15 AFront fog lights
13OBD7. 5 ADLC 3
14A/C7. 5 AAir conditioning system
15AM17. 5 AStarting system
16DOOR RL25 ARear power window (left)
17ECU-IG NO.110 A
Shift lock ECU, VSC ECU, ABS
ECU, steering sensor, yaw rate sensor,
sequential switch, auto wiper ECU,
back up relay, tilt & telescopic steer-
ing, PSB ECU, DSS#1 ECU, front
radar sensor, AFS ECU, TIRE PRESS
ECU, DRIVER MON ECU
18IG17. 5 A
Emergency flashers, ALT, towing,
VSC, SROP LP relay, MGC relay,
condenser fan relay
FuseAmpereCircuit

655
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60E69U)
19ECU-IG NO.210 A
Rear window defogger, outside rear
view mirror memory, seat heater/ ven-
tilator switch, inverter relay, air condi-
tioning system, EC mirror, Body ECU,
exhaust gas sensor, parking assist sen-
sor, navigation system, DSS#2 ECU,
meter switch, accessory meter, folding
seat ECU, O/H IG, head light cleaner,
rear air conditioning system, deicer,
4.2-in. display, D-module, rain sensor,
air suspension, RR VLV ECU, steering
heater, LKA
20S/HTR FR20 ASeat heater and ventilator
21P/ S E AT F R30 AFront power seat (right)
22DOOR P30 A
Front power window (passenger’s
side), outside rear view mirror mem-
ory
23DOOR10 APo w e r w i n d o w
24DOOR D25 AFront power window (driver’s side)
25DOOR RR25 ARear power window (right)
26S/ROOF25 AMoon roof
27WIP30 AWindshield wipers and washer
28WA S H E R20 AWindshield wipers and washer, rear
window wipers and washer
29COOLING10 ACool box
FuseAmpereCircuit

656
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60E69U)
30IGN10 A
EFI ECU, C/OPN RLY, VSC ECU, air
bag ECU, smart entry & start system,
steering lock ECU, CAN gateway
ECU
31GAUGE7. 5 AMeter
32PA N E L7. 5 A
Emergency flasher switch, seat heater
switch, 4WD switch, center differen-
tial lock switch, rear differential lock
switch, air suspension, VSC off switch,
interior light switch, glove box light,
shift position indicator light, audio sys-
tem, navigation system, steering
switch, parking assist system switch,
headlight leveling switch, headlight
cleaner switch, folding seat switch,
outside rear view mirror switch,
ODO/TRIP switch
33TA I L10 A
Front position lights, tail lights, license
plate lights, EFI ECU, rear fog lights,
towing, front fog lights
FuseAmpereCircuit

657
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60E69U)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 6 6 0 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in a circuit
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent. 
Never replace a fuse with a wire, even as a temporary fix. 
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.

658
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60E69U)
Headlight aim (vehicles with low beam halogen bulbs)
: If equipped
■ Vertical movement adjustment bolts
Adjustment bolt A
Adjustment bolt B
■ Before checking the headlight aim
Make sure the vehicle has a full ta nk of gas and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
STEP1
STEP2
STEP3
STEP4

659
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60E69U)

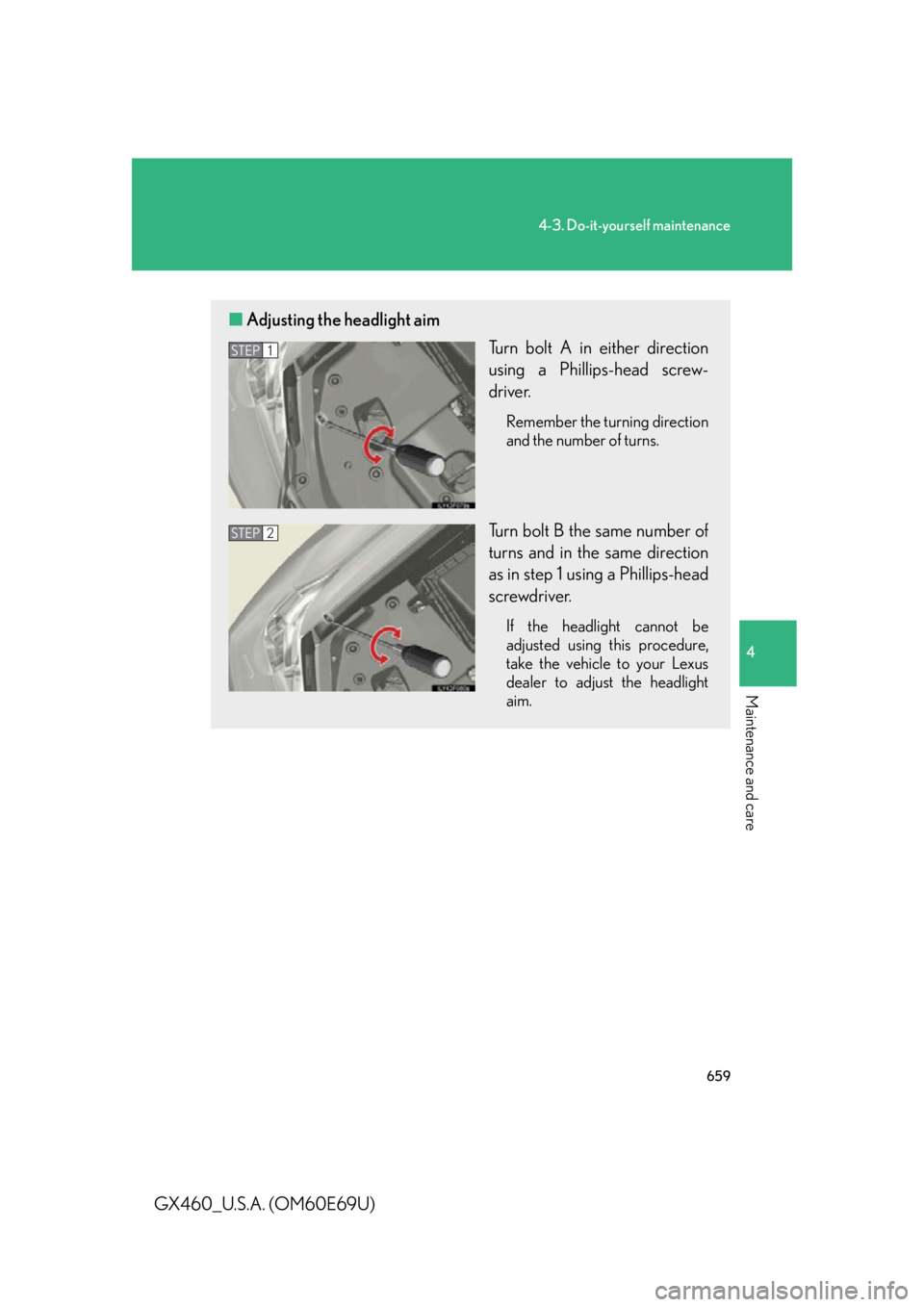

■Adjusting the headlight aim
Turn bolt A in either direction
using a Phillips-head screw-
driver.
Remember the turning direction
and the number of turns.
Turn bolt B the same number of
turns and in the same direction
as in step 1 using a Phillips-head
screwdriver.
If the headlight cannot be
adjusted using th is procedure,
take the vehicle to your Lexus
dealer to adjust the headlight
aim.
STEP1
STEP2
