GX460_U.S.A. (OM60E69U)
2-1. Driving proceduresDriving the vehicle ........................ 168
Engine (ignition) switch .............. 179
Automatic transmission.............. 186
Turn signal lever ............................ 192
Parking brake ................................. 193
Horn.................................................... 194
2-2. Instrument cluster Gauges and meters ..................... 195
Indicators and warning 
lights................................................. 198
Multi-information display 
(Optitron meters) ..................... 204
Multi-information display 
(Accessory meters)................... 212
2-3. Operating the lights and 
windshield wipers
Headlight switch ........................... 220
Automatic High Beam ............... 226
Fog light switch ............................. 233
Windshield wipers and 
washer............................................ 235
Rear window wiper and 
washer............................................ 239
Headlight cleaner switch ........... 241 2-4. Using other driving systems
Cruise control ............................... 242
Dynamic radar cruise 
control............................................ 246
Intuitive parking assist ................ 259
LDA 
(Lane Departure Alert) .......... 268
Rear view monitor system ........ 274
Wide view front & 
side monitor................................. 279
Multi-terrain Select ..................... 290
Multi-terrain Monitor ................. 298
Rear height control air 
suspension .................................... 310
AVS (Adaptive Variable 
Suspension System) .................. 316
Four-wheel drive system............ 317
Crawl Control ............................... 323
DAC (Downhill Assist Control 
system)........................................... 327
Driving assist systems................ 330
PCS 
(Pre-Collision System) .......... 338
2-5. Driving information Off-road precautions ................ 348
Cargo and luggage ..................... 353
Vehicle load limits........................ 359
Winter driving tips ........................ 361
Trailer towing ................................. 365
Dinghy towing .............................. 380
2When driving

8
GX460_U.S.A. (OM60E69U)
Headlights (high beam)
P. 220
Pictorial indexExterior
Fog lights P. 233
Parking/front side marker lights P. 220
Headlights (low beam) P. 220
Hood P. 607
Windshield wipers P. 235
Moon roof P. 104
Outside rear view mirrors P. 97
Front turn signal lights P. 192
Side turn signal lights
P. 192

166
GX460_U.S.A. (OM60E69U)
2-1. Driving proceduresDriving the vehicle ................. 168
Engine (ignition) switch ......... 179
Automatic transmission ........ 186
Turn signal lever....................... 192
Parking brake........................... 193
Horn............................................ 194
2-2. Instrument cluster Gauges and meters................ 195
Indicators and warning 
lights ......................................... 198
Multi-information display 
(Optitron meters) ............... 204
Multi-information display 
(Accessory meters) ............. 212
2-3. Operating the lights and 
windshield wipers
Headlight switch .................... 220
Automatic High Beam ......... 226
Fog light switch ....................... 233
Windshield wipers and 
washer .................................... 235
Rear window wiper and 
washer .................................... 239
Headlight cleaner switch ..... 241
When driving2

200
2-2. Instrument cluster
GX460_U.S.A. (OM60E69U)
■Indicators
The indicators inform the driver of th e operating state of the vehi-
cle’s various systems.
Turn signal indicator 
( P. 1 9 2 )Cruise control indicator 
( P. 242, 246)
Headlight high beam 
indicator ( P. 220)“SET” indicator 
( P. 242, 246)
(U.S.A.)
Headlight indicator 
(  P. 2 2 0 )
(if equipped)
Dynamic radar cruise
control indicator 
( P. 2 4 6 )
(Canada)
Tail light indicator 
( P. 220)
(if equipped)
“LDA” indicator 
( P. 2 6 8 )
(if equipped)
Automatic High Beam
indicator ( P. 2 2 6 )Slip indicator ( P. 3 3 2 )
Fog light indicator 
( P. 2 3 3 )VSC OFF indicator 
( P. 3 3 3 )
Eco Driving Indicator
Light ( P. 2 1 0 )
(if equipped)
Multi-terrain Select 
indicator ( P. 2 9 0 )
*1*1, 2
*1
*1

222
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60E69U)
Turning on the high beam headlightsWith the headlights on, push the
lever away from you to turn on
the high beams.
When the light switch is in “AUTO”
position, the Automatic High Beam
system will be activated. 
(P. 2 2 6 )
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high beams
once.
You can flash the high beams with
the headlights on or off.

226
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60E69U)

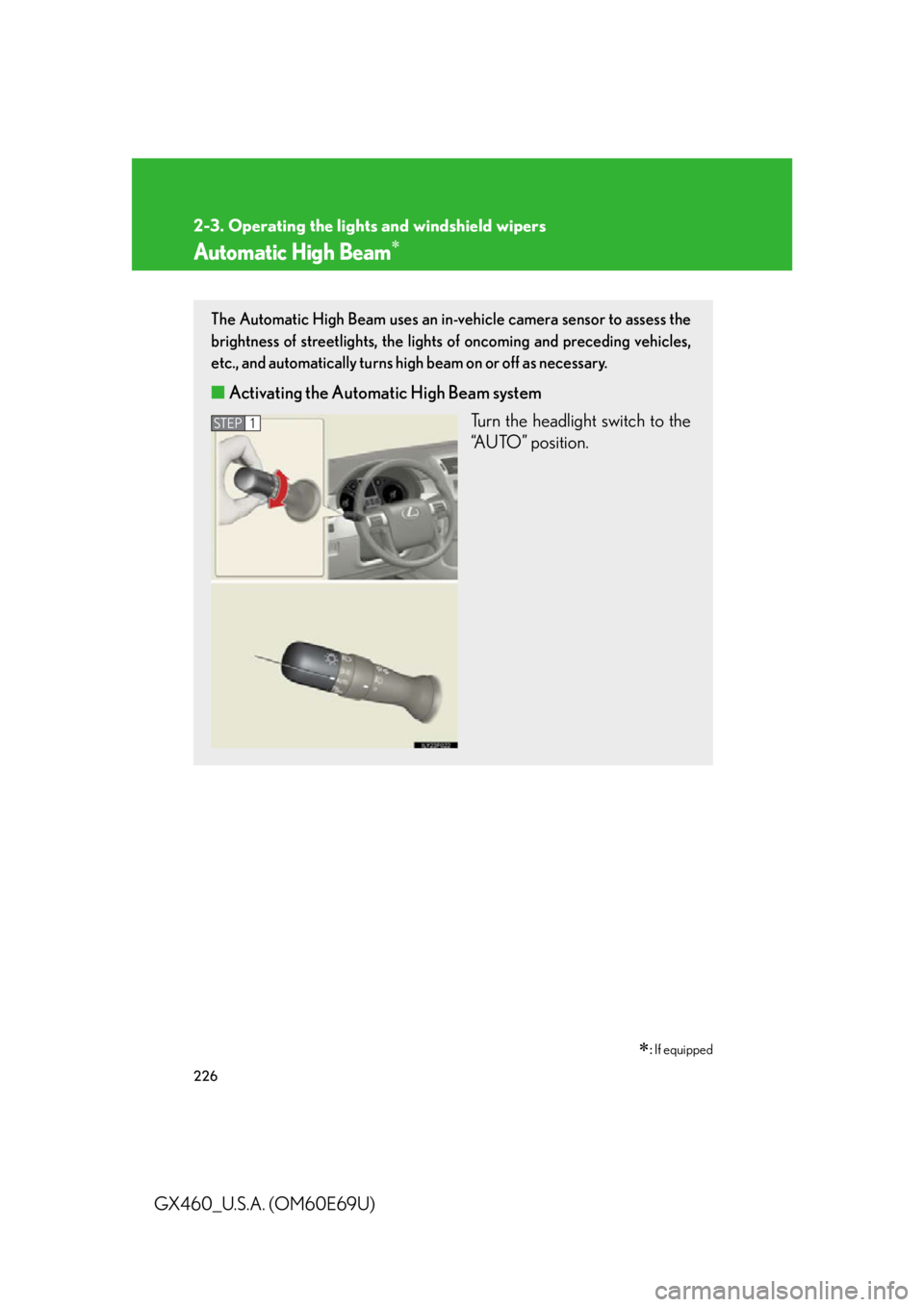

Automatic High Beam
: If equipped
The Automatic High Beam uses an in-vehicle camera sensor to assess the
brightness of streetlights, the lights of oncoming and preceding vehicles,
etc., and automatically turns high beam on or off as necessary.
■Activating the Automatic High Beam system
Turn the headlight switch to the
“AUTO” position.
STEP1

227
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60E69U)
Push the lever away from you.
The Automatic High Beam indi-
cator will come on when the
headlights are turned on auto-
matically to indicate that the sys-
tem is active.
■Turning the high beam on/off manually
Switching to low beam
Pull the lever to original posi-
tion.
Switching to high beam Turn the light switch to
position.
STEP2

228
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60E69U)
■High beam automatic turning on or off conditions
When all of the following conditio ns are fulfilled, high beam will be
automatically turned on (after approximately 1 second):
● Vehicle speed is above approximately 20 mph (32 km/h).
● The area ahead of the vehicle is dark.
● There are no oncoming or preced ing vehicles with headlights or
tail lights turned on.
If any of the following conditions ar e fulfilled, high beam will be auto-
matically turned off:
● Vehicle speed drops below approximately 20 mph (32 km/h).
● The area ahead of the vehicle is not dark.
● Oncoming or preceding vehicles have headlights or tail lights
turned on.

229
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60E69U)
■Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam . Always drive safely, taking care to
observe your surroundings and turning high beam on or off manually if necessary.
■Camera sensor detection information
●High beam may not be automatically turned off in the following situations:
• When oncoming vehicles suddenly appear from a curve.
• When another vehicle cuts across in front of you.
●High beam may be turned off if an oncoming vehicle that is using fog lights with-
out using the headlights is detected.
●Houselights, streetlights, red traffic signals, and illuminated billboards or signs
may cause the high beam to turn off.
●The following factors may affect the amount of time taken to turn high beam on
or off:
• The brightness of headlights, fog lights, and tail lights of oncoming and pre-
ceding vehicles
• Road conditions (wetness, ice, snow etc.)
• The number of passengers and amount of baggage
●High beam may be turned on or off when unexpected by the driver.

230
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60E69U)
●In the situations below, the system may not be able to correctly detect the sur-
rounding brightness levels, and may flash or expose nearby pedestrians to the
high beam. Therefore, you should consider turning the high beam on or off
manually rather than relying on the Automatic High Beam system.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The inside rear view mirror or camera sensor is deformed or dirty.
• Surrounding brightness levels are equal to those of headlights, tail lights or
fog lights.
• Vehicles ahead have headlights that are either switched off, dirty, are chang-
ing color, or are not aimed properly.
• When driving through an area of intermittently changing brightness and darkness
• When frequently and repe atedly driving ascending/descending roads, or
roads with rough, bumpy or uneven surfaces (such as stone-paved roads,
gravel tracks etc.)
• When frequently and repeatedly taking curves or driving on a winding road
• There is a highly reflective object ahead of the vehicle, such as a sign or a mir- ror.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
• The Automatic High Beam indicator is flashing.
• The high beam and low beam are repeatedly being switched between in an abnormal manner.
• The driver believes that the high beam may be causing problems or distress to
other drivers or pedestrians nearby.
