2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60J00U)

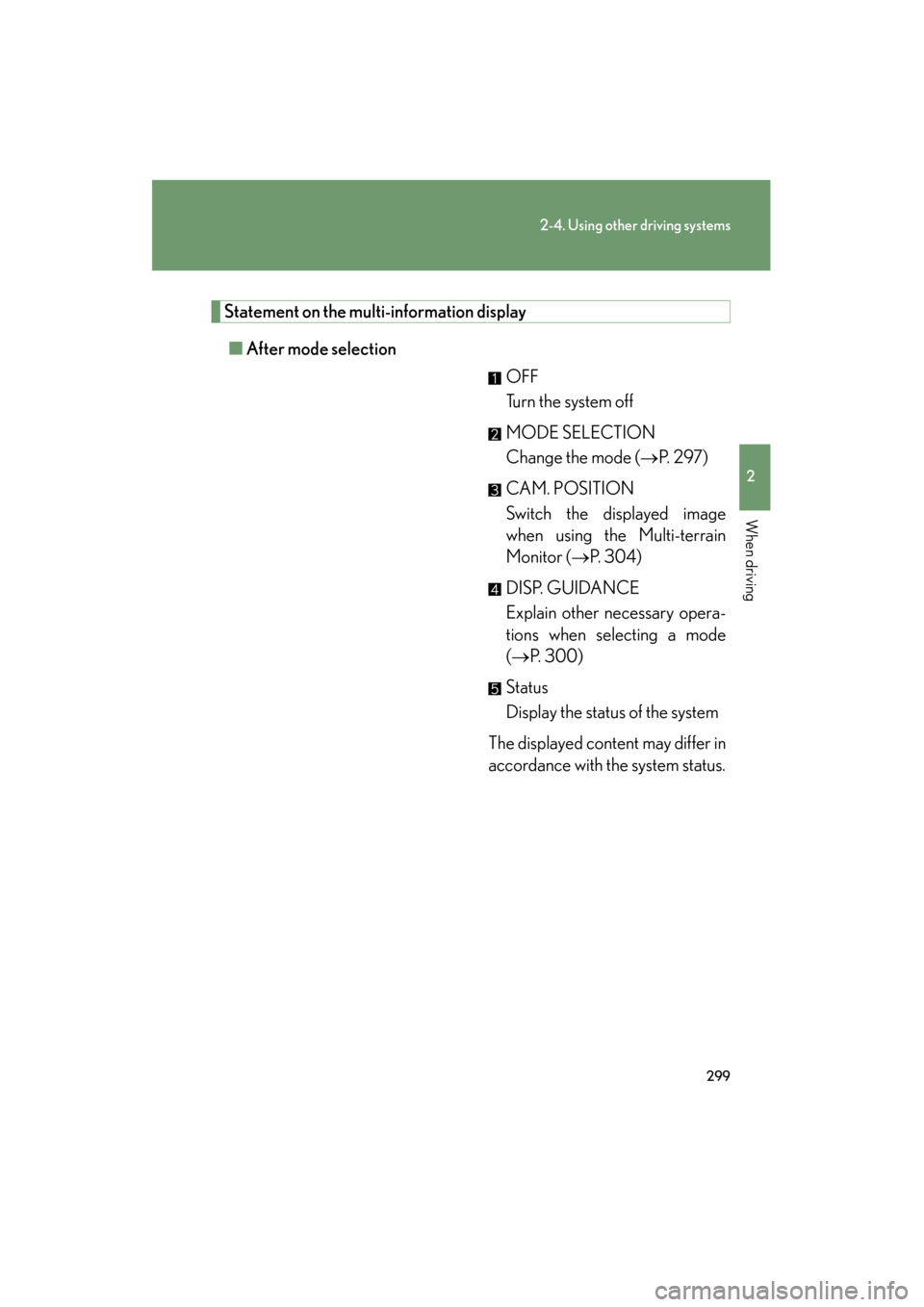

Statement on the multi-information display
■ After mode selection
OFF
Turn the system off
MODE SELECTION
Change the mode (→P. 2 9 7 )
CAM. POSITION
Switch the displayed image
when using the Multi-terrain
Monitor ( →P. 304)
DISP. GUIDANCE
Explain other necessary opera-
tions when selecting a mode
(→ P. 300)
Status
Display the status of the system
The displayed content may differ in
accordance with the system status.

300
2-4. Using other driving systems
GX460_U.S.A. (OM60J00U)■
Operation guidance
Operation guidance is shown on the multi-information display when
you cannot set a mode.
When the operation guidance is shown on the multi-information dis-
play, follow the instructions in the table.

301
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60J00U)

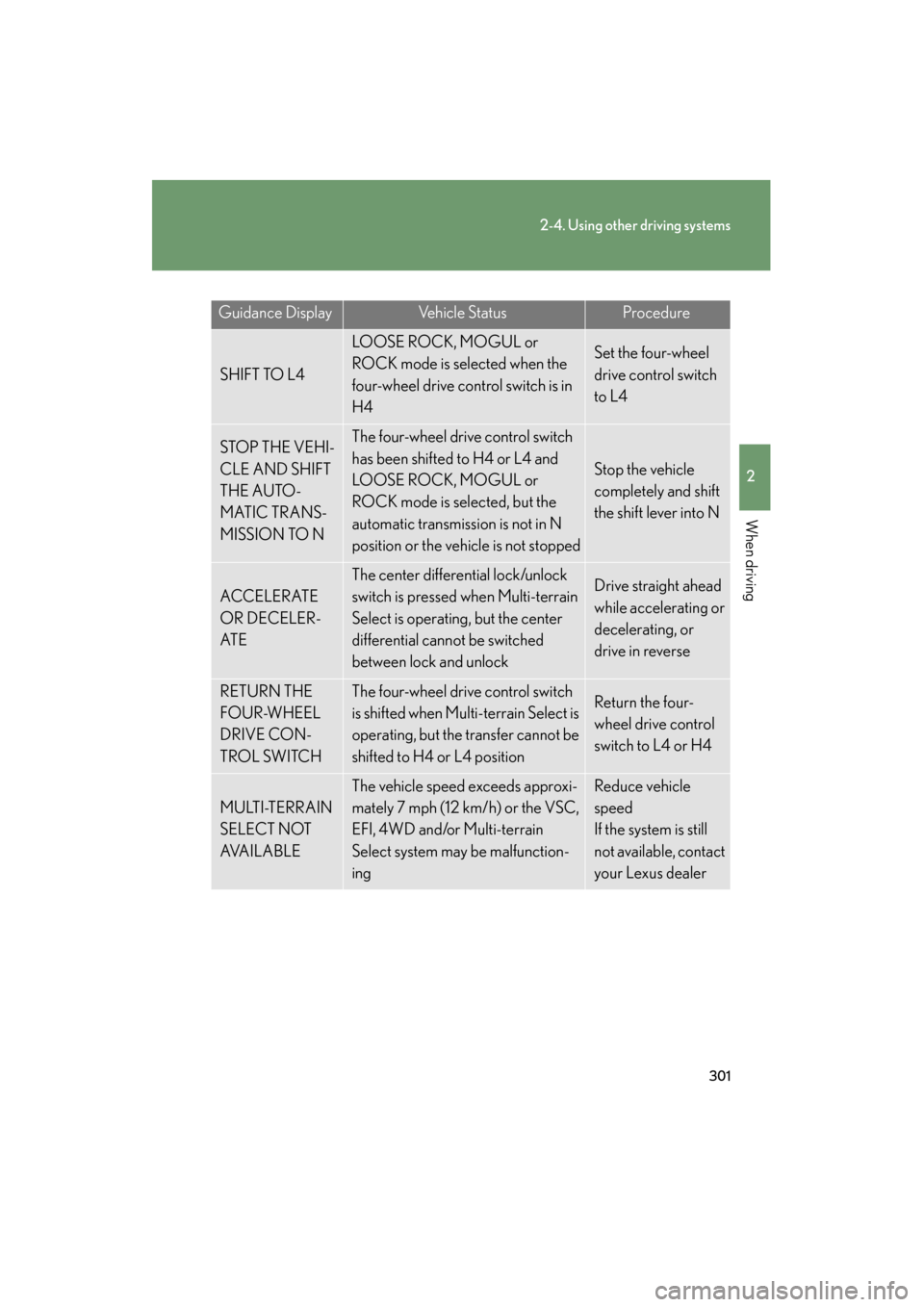

Guidance DisplayVehicle StatusProcedure
SHIFT TO L4
LOOSE ROCK, MOGUL or
ROCK mode is selected when the
four-wheel drive control switch is in
H4Set the four-wheel
drive control switch
to L4
STOP THE VEHI-
CLE AND SHIFT
THE AUTO-
MATIC TRANS-
MISSION TO NThe four-wheel drive control switch
has been shifted to H4 or L4 and
LOOSE ROCK, MOGUL or
ROCK mode is selected, but the
automatic transmission is not in N
position or the vehicle is not stopped
Stop the vehicle
completely and shift
the shift lever into N
ACCELERATE
OR DECELER-
AT E
The center differential lock/unlock
switch is pressed when Multi-terrain
Select is operating, but the center
differential cannot be switched
between lock and unlockDrive straight ahead
while accelerating or
decelerating, or
drive in reverse
RETURN THE
FOUR-WHEEL
DRIVE CON-
TROL SWITCHThe four-wheel drive control switch
is shifted when Multi-terrain Select is
operating, but the transfer cannot be
shifted to H4 or L4 positionReturn the four-
wheel drive control
switch to L4 or H4
MULTI-TERRAIN
SELECT NOT
AVA I L A B L E
The vehicle speed exceeds approxi-
mately 7 mph (12 km/h) or the VSC,
EFI, 4WD and/or Multi-terrain
Select system may be malfunction-
ingReduce vehicle
speed
If the system is still
not available, contact
your Lexus dealer

302
2-4. Using other driving systems
GX460_U.S.A. (OM60J00U)
■The Multi-terrain Select can be operated when
●Vehicle speed is less than 7 mph (12 km/h)
●Crawl Control is off
■When using Multi-terrain Select
The following functions cannot be switched on or off.
●VSC
●Active TRAC
●Second start mode
A message will be shown on the multi-information display stating that these func-
tions cannot be switched using the VSC OFF switch or the menu and “ENTER”
switches.
■When selecting a terrain mode
If you are unsure which mode is appropriate, select MOGUL when the four-wheel
drive control switch is in L4 or select MUD & SAND when it is in H4.
■When it is difficult to generate traction
MUD & SAND mode provides the largest amount of tire slippage, followed by
LOOSE ROCK, MOGUL and ROCK mode.
Drivability can be improved by selecting a mode which provides a smaller amount
of tire slippage than the current mode when the amount of tire slippage is large, or
conversely selecting a mode which provides a larger amount of tire slippage than
the current mode when the amount of tire slippage is small.
■When the vehicle is stuck
Switching the transfer and differential
For the operation of the following functions, refer to the following pages.
●Four-wheel drive system ( →P. 322)
●Center differential lock ( →P. 323)

303
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60J00U)
■When the TRAC or Active TRAC operates continuously
→P. 3 4 0
■When the four-wheel drive control switch is in L4 position
If the Multi-terrain Select system is not operating and the four-wheel drive control
switch is in L4, TRAC OFF will be shown on the multi-information display.
■When there is a malfunction in the system
The Multi-terrain Select indicator light will blink. Have the vehicle inspected by your
Lexus dealer immediately.
CAUTION
■When using the Multi-terrain Select
Observe the following precautions to avoid an accident that could result in death or
serious injuries:
●There is a chance that the selected mode may not be the most appropriate in
terms of road conditions such as pitch, slipperiness, undulation, etc. ( →P. 2 9 7 )
●Multi-terrain Select is not intended to expand the limits of the vehicle. Check the
road conditions thoroughly beforehand, and drive safely and carefully.
NOTICE
■Precaution for use
The Multi-terrain Select is intended for use during off-road driving. Do not use the
system at any other time.

304
2-4. Using other driving systems
GX460_U.S.A. (OM60J00U)
Multi-terrain Monitor∗
∗: If equipped
The Multi-terrain Monitor displays the vehicle surroundings when driving
at low speeds, thus assisting off-ro ad driving and helping the driver to
check the vehicle surroundings.
The Multi-terrain Monitor displays the vehicle surroundings automati-
cally when a mode is being selected on the Multi-terrain Select.
● You can switch between 4 different images (front, side-front, side-
rear and rear) by operating the switch.
● By using the front and side monitors to identify objects in the vicinity
or path of the tires, you can help to prevent the vehicle from becom-
ing stuck unexpectedly while driving.
Multi-information display
Accessory meter (vehicles
without navigation system) or
touch screen (vehicles with
navigation system)
“ENTER” switch
Menu switch

305
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60J00U)
■Switching the image
Select any mode using the Multi-terrain Select system.
(→P. 2 9 6 )
Move the “ENTER” switch
upwards or downwards to
select “CAM. POSITION”, and
press the “ENTER” switch.
The camera view can be
switched by moving the
“ENTER” switch upwards or
downwards.
Each time the switch is oper-
ated, the mark on the multi-
information display will move
and the image displayed on the
monitor will switch.
Front monitor*1
Side-front simultaneous dis-
play monitor
*2
Side-rear simultaneous dis-
play monitor
*2
Rear monitor*3
*1: Cannot be selected if the shift lever is in R.
*2: The displayed icon differs in accordance with shift position.
*3: Cannot be selected if the shift lever is not in R.
STEP1
STEP2
STEP3

306
2-4. Using other driving systems
GX460_U.S.A. (OM60J00U)
Range covered by each cameraFront monitor
Side-front simultaneous display
monitor
Side-rear simultaneous display
monitor
Rear monitor
The illustration shown here is an example. As such, the actual visible area may
be different. See P. 309 for information about the visual range of each camera.
Display■ Front monitor
The image from the front camera is
displayed. Use this monitor to help
check the area in front of the vehi-
cle for safety.

307
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60J00U)■
Side-front simultaneous display monitor
The image from both side cameras
is displayed. Use this monitor to
help check the area on both sides
of the vehicle at the same time, and
to check for objects near the tires
or the sides of the vehicle.
■ Side-rear simultaneous display monitor
The image from both side cameras
is displayed. Use this monitor to
help check the area on both sides
of the vehicle at the same time, and
to check for objects near the tires
or the sides of the vehicle.

308
2-4. Using other driving systems
GX460_U.S.A. (OM60J00U)■
Rear monitor
The image from the rear camera is
displayed. Use this monitor to help
check the area in rear of the vehi-
cle for safety.
■The Multi-terrain Monitor can be operated when
●Any Multi-terrain Select mode is selected.
●The door mirrors are not folded.
●The vehicle speed is less than approximately 7 mph (12 km/h).
■Automatic system cancellation
In the following situations, the image is canceled automatically.
●When the vehicle speed exceeds approximately 7 mph (12 km/h).
After the vehicle speed exceeds approximately 7 mph (12 km/h), the image will
continue to be displayed for a short time.
If the vehicle speed returns to below 7 mph (12 km/h) before the image extin-
guishes, the image will continue to be displayed.
●The Multi-terrain Select is off.
●The door mirrors are folded.
