warning light Lexus GX460 2012 Owner's Guide

5
When trouble arises
695
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level.
■The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such as natural air
leaks or tire inflation pressure changes caused by temperature. In this case, adjust-
ing the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
The spare tire is also equipped with the tire pressure warning valve and transmitter.
The tire pressure warning light will turn on if the tire inflation pressure of the spare
tire is low. If a tire goes flat, even though the flat tire is replaced with the spare tire,
the tire pressure warning light does not turn off. Replace the spare tire with the
repaired tire and adjust the proper tire inflation pressure. The tire pressure warning
light will turn off after a few minutes.
■If the tire pressure warning system is inoperative
The tire pressure warning system will become inoperative in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used.
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer.
●If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or higher.

696
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
The tire pressure warning system may become inoperative in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings.
●If non-genuine Lexus wheels are used. (Even if you use genuine Lexus wheels,
the tire pressure warning system may not work properly with some types of
tires.)
●If tire chains are used.
●If the spare tire is in a location subject to poor radio wave signal reception.
● If a large metallic object which can interfere with signal reception is put in the
luggage compartment.
■If the tire pressure warning light comes on after blinking for 1 minute frequently
If the tire pressure warning light comes on after blinking for 1 minute frequently
when the engine switch is turned to the “ON” position, have it checked by your
Lexus dealer.
■After changing the engine oil (U.S.A. only)
Make sure to reset the oil maintenance data. (→P. 6 1 4 )

5
When trouble arises
697
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
CAUTION
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Lexus dealer. The
vehicle will become extremely unstable during braking, and the ABS system may
fail, which could cause an accident resulting in death or serious injury.
■When the power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold firmly and
operate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pres-
sure immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If the tire is flat,
change to the spare tire and have the flat tire repaired by the nearest Lexus
dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

698
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [tire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure warning system) that illuminates a low tire
pressure telltale (tire pressure warning light) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale (tire pres-
sure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver’s responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).

5
When trouble arises
699
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
CAUTION
■Maintenance of the tires
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when the system is not operating properly. The
TPMS (tire pressure warning system) malfunction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of rea-
sons, including the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS (tire pressure warning system) from functioning
properly. Always check the TPMS (tire pressure warning system) malfunction tell-
tale after replacing one or more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS (tire pressure warning
system) to continue to function properly.
NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pressure warn-
ing system may not operate properly.

700
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)

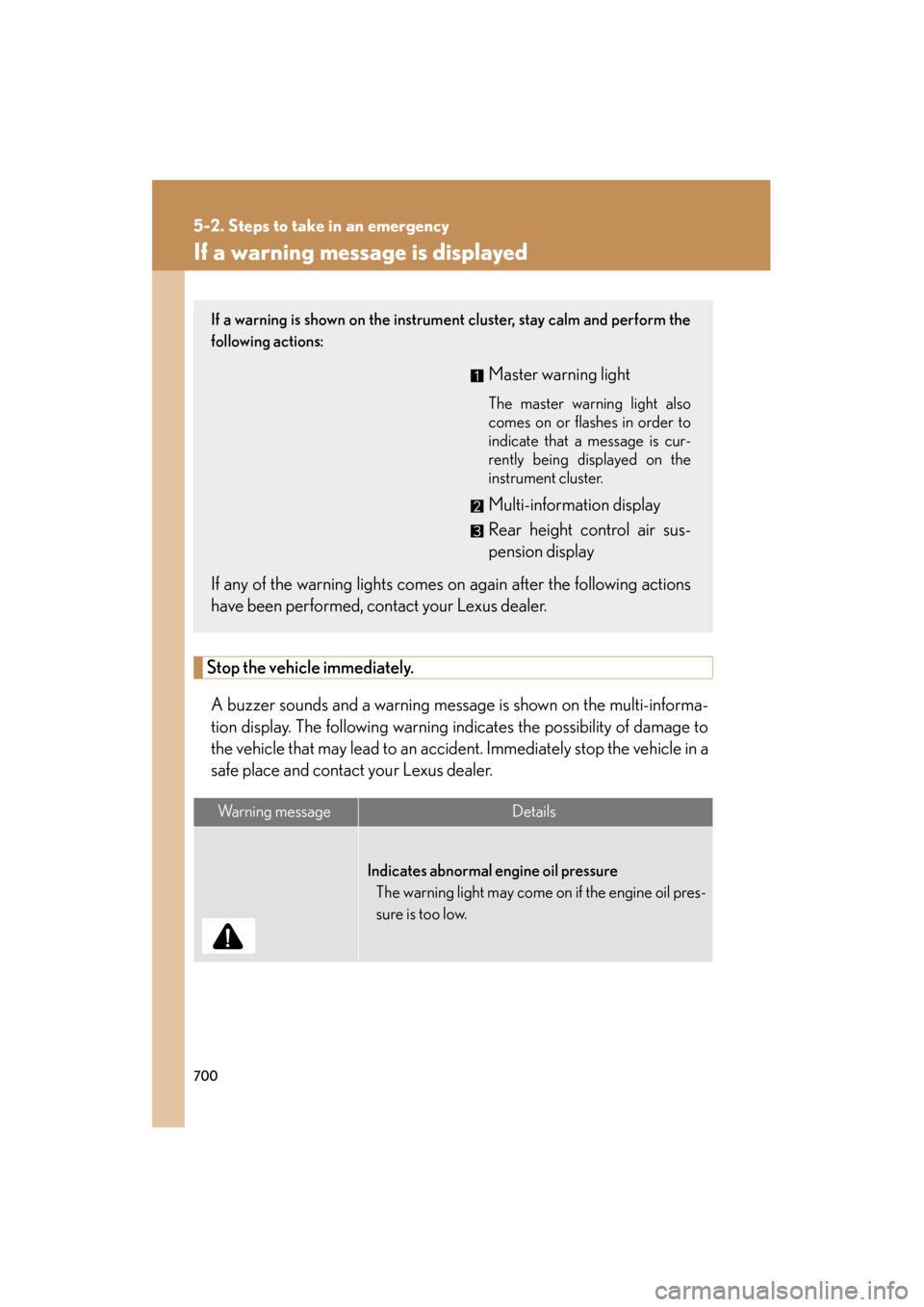

If a warning message is displayed
Stop the vehicle immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warning indicates the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
Indicates abnormal engine oil pressure The warning light may come on if the engine oil pres-
sure is too low.
If a warning is shown on the instrument cluster, stay calm and perform the
following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
instrument cluster.
Multi-information display
Rear height control air sus-
pension display
If any of the warning lights comes on again after the following actions
have been performed, co ntact your Lexus dealer.

710
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem, check
that the warning message and light go off.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
Sounds
once
(Flashes)
The electronic key
is not detected
when an attempt
is made to start
the engine.
Confirm the loca-
tion of the elec-
tronic key.

720
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
Other messagesIf the following message is displayed, take appropriate action and confirm
that the message has disappeared. ( →P. 328)
MessageCorrection procedure
(If equipped)
Select the four-wheel driving position switch in L4
and shift the shift lever to D or R.
(If equipped)
Confirm the operating conditions.
■Warning light display in radar cruise mode (if equipped)
In the following cases, the warning light may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■After changing the engine oil (U.S.A. only)
Make sure to reset the oil maintenance data. ( →P. 6 1 4 )

819
Abbreviation list
GX460_U.S.A. (OM60J00U)
I/MEmission inspection and maintenance
KDSSKinetic Dynamic Suspension System
LATCHLower Anchors and Tethers for Children
LDALane Departure Alert
LEDLight Emitting Diode
LOLow
MMTMethylcy clopentadienyl Manganese Tricarbonyl
M + SMud and Snow
MTBEMethyl Tertiary Butyl Ether
NNormal
OBDOn Board Diagnostics
RDSRadio Data System
RSCARoll Sensing of Curtain Shield Airbag
SRSSupplemental Restraint System
TINTire Identification Number
TPMSTire Pressure Warning System
TRACTr a c t i o n C o n t r o l
VINVehicle Identification Number
VSCVehicle Stability Control
ABBREVIATIONSMEANING

820
GX460_U.S.A. (OM60J00U)
Alphabetical index
Alphabetical index
A/CFront automatic air conditioning
system
*............................................... 392
Rear automatic air conditioning
system
*............................................... 407
ABS.............................................................335
Active traction control........................336
Adaptive front lighting system ........ 223
Adaptive variable suspension system...................................................... 321
AFS ............................................................. 223
Air conditioning filter .......................... 642
Air conditioning system Air conditioning filter ....................... 642
Front automatic air conditioning system
*............................................... 392
Rear automatic air conditioning system
*............................................... 407
Airbags Airbag deployment
conditions............................................. 126
Airbag precautions for your
child......................................................... 132
Airbag warning light ....................... 690
Front passenger occupant classification system........................139
General airbag precautions ............131
Locations of airbags........................... 122
Modification and disposal of airbags ...................................................136
Proper driving posture .....................120
Side airbag precautions ...................133
Side and curtain shield airbags deployment conditions ................. 127
Side and curtain shield airbag precautions .........................................134
SRS airbags ............................................ 122 Alarm............................................................ 117
Antenna .................................................... 420
Anti-lock brake system ...................... 335
Armrest .................................................... 554
Audio input.............................................. 459
Audio system
Antenna.................................................. 420
Audio input........................................... 459
AUX port .............................................. 459
CD player/changer ..........................423
iPod .......................................................... 440
MP3/WMA disc................................. 431
Optimal use ..........................................457
Portable music player ..................... 459
Radio ......................................................... 415
Steering wheel audio switch........ 460
USB memory ...................................... 448
Audio/video remote controls*
Audio/video system*
Automatic air conditioning system
Air conditioning filter ........................642
Front automatic air conditioning system
*...............................................392
Rear automatic air conditioning
system
*.............................................. 407
Automatic light control system.........219
Automatic transmission Automatic transmission ...................186
If the shift lever cannot be shifted from P ................................................... 737
S mode .....................................................189
AUX port
*.............................................. 459
Auxiliary box .............................. 533, 560
AVS..............................................................321
A
