engine Lexus GX460 2012 Repair Manual

197
2-2. Instrument cluster
2
When driving
GX460_U.S.A. (OM60J00U)
■The meters and display illuminate when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Instrument cluster brightness adjustment
The instrument cluster brightness levels when the tail lights are on and off can be
adjusted.
■The brightness of the instrument cluster lights
When the tail lights are on, the brightness will change. However, when the sur-
roundings are bright (daytime, etc.) turning on the tail lights will not change the
instrument cluster brightness.
In addition, the brightness of the instrument cluster lights is automatically adjusted
based on the light sensor detecting how bright the surroundings are.
■When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
If the trip meter was displayed last, the ODO screen will be displayed after reset-
ting.
■Customization
Setting of sensitivity of the ambient light sensor used for dimming the meter lights
can be changed. (Customizable features →P. 7 8 2 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( →P. 74 4 )

201
2-2. Instrument cluster
2
When driving
GX460_U.S.A. (OM60J00U)
*1: These lights turn on when the “ENGINE START STOP” switch is turnedto IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is on, or after a few seconds.
There may be a malfunction in a system if the lights do not come on, or
turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when pre-collision braking is disabled. The lightflashes faster than usual to indica te that the system is operating.
(if equipped)
Crawl Control indicator
(→ P. 3 2 8 )AIR BAG ON/OFF
indicator ( →P. 1 3 9 )
(if equipped)
Downhill assist control
system indicator
(→ P. 3 3 2 )
(if equipped)
Intuitive parking assist
indicator ( →P. 266)
“2nd STRT” indicator
(→ P. 1 8 8 )
(if equipped)
“AFS OFF” indicator
(→ P. 223)
Low speed four-wheel
drive indicator light
(→ P. 322)“RSCA OFF” indicator
(→ P. 1 3 7 )
Center differential lock
indicator ( →P. 3 2 3 )
(if equipped)
“PCS” warning
(→ P. 3 4 3 )
*1
*1
*1
*1
*1, 3

202
2-2. Instrument cluster
GX460_U.S.A. (OM60J00U)

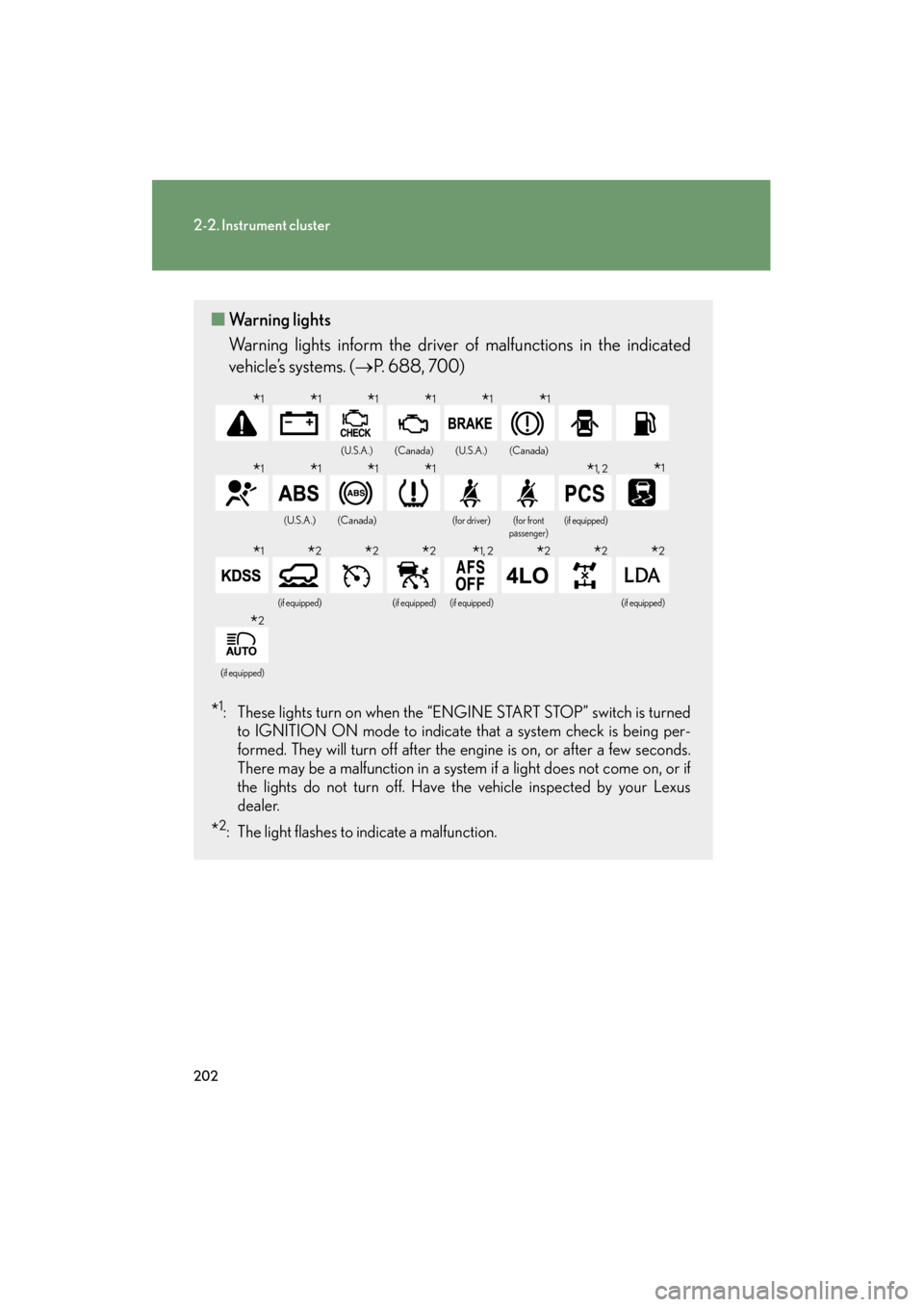

■Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( →P. 688, 700)
*1: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is on, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Lexus
dealer.
*2: The light flashes to indicate a malfunction.
(U.S.A.)(Canada)(U.S.A.)(Canada)
(U.S.A.)(Canada)(for driver)(for front
passenger)(if equipped)
(if equipped)(if equipped)(if equipped)(if equipped)
(if equipped)
*1*1*1*1*1*1
*1*1*1*1*1, 2*1
*1*2*2*2*1, 2*2*2*2
*2

203
2-2. Instrument cluster
2
When driving
GX460_U.S.A. (OM60J00U)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS/Multi Terrain ABS and SRS warning
light not come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death or seri-
ous injury. Have the vehicle inspected by your Lexus dealer immediately if this
occurs.

206
2-2. Instrument cluster
GX460_U.S.A. (OM60J00U)●
Driving range
● Average fuel consumption after refueling
● Current fuel consumption Displays the estimated maximum distance that can
be driven with the quantity of fuel remaining
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
• When refueling, turn the “ENGINE START STOP” switch off. If the vehicle is refueled without
turning the “ENGINE START STOP” switch off,
the display may not be updated.
Displays the average fuel consumption since the
vehicle was last refueled
Use the displayed average fuel consumption as a ref-
erence.
Displays the current rate of fuel consumption

207
2-2. Instrument cluster
2
When driving
GX460_U.S.A. (OM60J00U)●
Average fuel consumption and Eco Driving Indicator Zone Display
(→ P. 2 1 0 )
● Average vehicle speed
● Elapsed time
● Display off
A blank screen is displayed Displays the average fuel consumption since the
function was reset
• The function can be reset by pressing the
“ENTER” switch for longer than 1 second when
the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Displays the average vehicle speed since the
engine was started or the function was reset
The function can be reset by pressing the “ENTER”
switch for longer than 1 second when the average
vehicle speed is displayed.
Displays the elapsed time since the function was
last reset
The function can be reset by pressing the “ENTER”
switch for longer than 1 second when the elapsed
time is displayed.

209
2-2. Instrument cluster
2
When driving
GX460_U.S.A. (OM60J00U)
■Electronic features control can be turned on/off when
“ENGINE START STOP” switch is in IGNITION ON mode.
■System check display
After turning the “ENGINE START STOP” switch to IGNITION ON mode,
“CHECKING” is displayed while system operation is checked. When the system
check is complete, the normal screen will return.
■Conditions for ending electronic features control
In the following situations, the electronic features control will end automatically:
●The menu switch is pressed
●Intuitive parking assist display starts operating
●The Crawl Control is operated
●The dynamic radar cruise control is operated
●LDA (Lane Departure Alert) is operated
●A warning message appears after the electronic features control screen is dis-
played

211
2-2. Instrument cluster
2
When driving
GX460_U.S.A. (OM60J00U)
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change:
●When the vehicle is stopped, or moving at low speeds (less than 12 mph
[20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■When “--” or “E” is displayed
The system may be malfunctioning. Take your vehicle Lexus dealer.
■When disconnecting and reconnecting battery terminals
The following information data will be reset:
●Average fuel consumption after refueling
●Average fuel consumption
●Average vehicle speed
●Elapsed time
CAUTION
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the information display. At
extremely low temperatures, the information display monitor may respond slowly,
and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
serious injury.

213
2-2. Instrument cluster
2
When driving
GX460_U.S.A. (OM60J00U)
Switching the displayItems displayed can be switched
by pressing the “MODE” switch.“MODE” switch
“RESET” switch
“DISP” switch
Display adjustment switch
Display items
■ Driving range
Displays the estimated maximum
distance that can be driven with
the quantity of fuel remaining
• This distance is computed basedon your average fuel consump-
tion. As a result, the actual dis-
tance that can be driven may
differ from that displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
•When refueling, turn the “ENGINE START STOP” switch
off. If the vehicle is refueled with-
out turning the “ENGINE
START STOP” switch off, the
display may not be updated.

219
2
When driving
GX460_U.S.A. (OM60J00U)
2-3. Operating the lights and windshield wipers
Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
Ty p e AThe daytime running
lights turn off.
The headlights, park-
ing lights and so on
turn on and off auto-
matically (when the
“ENGINE START
STOP” switch is in
IGNITION ON
mode).
The side marker,
parking, tail, license
plate and instrument
panel lights turn on.
The headlights and all
the lights listed above
turn on.
