Lexus GX460 2012 Owner's Manual

5
When trouble arises
699
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
CAUTION
■Maintenance of the tires
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when the system is not operating properly. The
TPMS (tire pressure warning system) malfunction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of rea-
sons, including the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS (tire pressure warning system) from functioning
properly. Always check the TPMS (tire pressure warning system) malfunction tell-
tale after replacing one or more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS (tire pressure warning
system) to continue to function properly.
NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pressure warn-
ing system may not operate properly.

700
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
If a warning message is displayed
Stop the vehicle immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warning indicates the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
Indicates abnormal engine oil pressure The warning light may come on if the engine oil pres-
sure is too low.
If a warning is shown on the instrument cluster, stay calm and perform the
following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
instrument cluster.
Multi-information display
Rear height control air sus-
pension display
If any of the warning lights comes on again after the following actions
have been performed, co ntact your Lexus dealer.

5
When trouble arises
701
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
Have the vehicle inspected by your Lexus dealer immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
Indicates that the automatic transmission fluid tem-
perature is too high Stop the vehicle in a safe place, shift the shift lever to
P and wait until the message goes off. If the message
goes off, you may start the vehicle again.
Indicates a malfunction in the automatic transmission
system
Indicates a malfunction in the steering lock system

702
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
(If equipped)
Indicates a malfunction in the rear height control air
suspension system
(Flashes)
(If equipped)Indicates a malfunction in the pre-collision system
(If equipped)
Indicates a malfunction in the intuitive parking assist The malfunctioning assist-sensor is flashing.
Wa r n i n g m e s s a g eDetails

5
When trouble arises
703
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
(Flashes)or
(Flashes)
(If equipped)
Indicates a malfunction in the radar cruise control
system Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
(Flashes)
(If equipped)
Indicates a malfunction in the LDA system Stop the vehicle in a safe place. Turn the “ENGINE
START STOP” switch off and then turn it to IGNI-
TION ON mode again to reset the LDA system.
Wa r n i n g m e s s a g eDetails

704
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
Follow the correction procedures.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message goes off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed
The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches a
speed of 3 mph
(5 km/h),
flashes and a buzzer
sounds to in dicate that
the door(s) are not yet
fully closed.
Make sure that all the
doors are closed.

5
When trouble arises

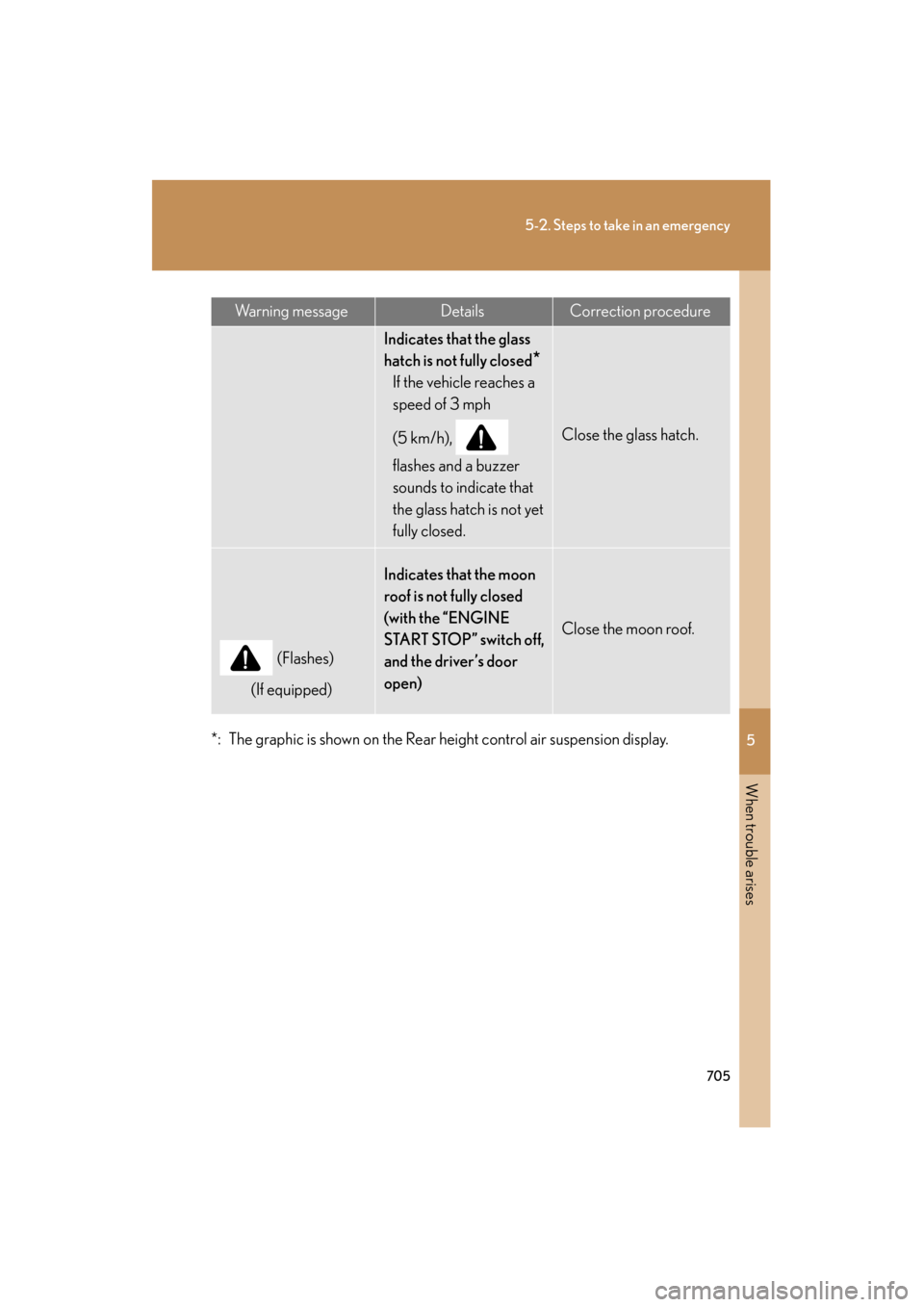

705
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
*: The graphic is shown on the Rear height control air suspension display.
Indicates that the glass
hatch is not fully closed
*
If the vehicle reaches a
speed of 3 mph
(5 km/h),
flashes and a buzzer
sounds to indicate that
the glass hatch is not yet
fully closed.
Close the glass hatch.
(Flashes)
(If equipped)
Indicates that the moon
roof is not fully closed
(with the “ENGINE
START STOP” switch off,
and the driver’s door
open)
Close the moon roof.
Wa r n i n g m e s s a g eDetailsCorrection procedure

706
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that the parking
brake is still engagedIf the vehicle reaches a
speed of 3 mph
(5 km/h),
flashes and a buzzer
sounds to in dicate that
the parking brake is still
engaged.
Release the parking
brake.
Indicates that the washer
fluid level is lowAdd washer fluid.
(U.S.A. only)
Indicates that the engine
oil is scheduled to be
changed
Check the engine oil, and
change if necessary.
Comes on approximately
4500 miles (7200 km)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance data has been
reset.)

5
When trouble arises
707
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
(U.S.A. only)
Indicates that the engine
oil and oil filter should be
changedHave the engine oil and oil
filter checked and
changed by your Lexus
dealer.
(Turns on)
(If equipped)
Indicates that the pre-
collision system is not
currently functional
Clean the grille and the
sensor. This message appears
when the pre-collision
system is hot. In this case,
wait until the system
cools down.
(If equipped)
Indicates that intuitive
parking assist is dirty or
covered with iceA buzzer also sounds.
Clean the sensor.
Wa r n i n g m e s s a g eDetailsCorrection procedure

708
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
(Flashes)
(If equipped)
Indicates that the radar
cruise control sensor is
dirty or covered with ice A buzzer also sounds.
Clean the sensor.
(Flashes)
(If equipped)
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance A buzzer also sounds.If the windshield wipers
are on, turn them off or set
them to a mode other than
“AUTO” or high speed
wiper operation.
(Flashes)
(If equipped)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in radar cruise
mode)
Slow the vehicle by apply-
ing the brakes.
Wa r n i n g m e s s a g eDetailsCorrection procedure
