VSC Lexus GX460 2012 Owner's Manual

15
GX460_U.S.A. (OM60J00U)
Headlight cleaner switch∗
P. 245
A
Fuel filler door opener P. 109
VSC OFF switch P. 335
Heated steering wheel switch∗
P. 549
ODO/TRIP button P. 196
Instrument cluster light control switch P. 196
Outside rear view mirrorswitches
P. 97
∗: If equipped
*: Refer to “Navigation System Owner’s Manual”.

200
2-2. Instrument cluster
GX460_U.S.A. (OM60J00U)
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator
(→ P. 1 9 2 )Cruise control indicator
(→ P. 2 4 6 , 2 5 0 )
Headlight high beam
indicator ( →P. 2 1 9 )“SET” indicator
(→ P. 2 4 6 , 2 5 0 )
(U.S.A.)
Headlight indicator
(→ P. 2 1 9 )
(if equipped)
Dynamic radar cruise
control indicator
(→ P. 2 5 0 )
(Canada)
Tail light indicator
(→ P. 2 1 9 )
(if equipped)
“LDA” indicator
(→ P. 2 7 5 )
(if equipped)
Automatic High Beam
indicator ( →P. 2 2 6 )Slip indicator ( →P. 337)
Fog light indicator
(→ P. 2 3 3 )VSC OFF indicator
(→ P. 3 3 8 )
Eco Driving Indicator
Light ( →P. 2 1 0 )
(if equipped)
Multi-terrain Select
indicator ( →P. 2 9 6 )
*1*1, 2
*1
*1

248
2-4. Using other driving systems
GX460_U.S.A. (OM60J00U)
■Cruise control can be set when
●The shift lever is in D or range 4 or higher of S has been selected.
●Vehicle speed is above approximately 25 mph (40 km/h).
■Accelerating after setting the vehicle speed
●The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
●Even without cancelling the cruise control, the set speed can be increased by
first accelerating the vehicle to the desired speed and then pushing the lever
down to set the new speed.
■Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following situa-
tions:
●Actual vehicle speed falls more than 10 mph (16 km/h) below the preset vehicle
speed.
At this time, the memorized set speed is not retained.
●Actual vehicle speed is below approximately 25 mph (40 km/h).
●VSC is activated.
●The center differential lock/unlock is not completed within 5 seconds while the
cruise control system is on.
■If the cruise control indicator light flashes
Press the “ON-OFF” button once to deactivate the system, and then press the but-
ton again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels immediately
after being activated, there may be a malfunction in the cruise control system. Have
the vehicle inspected by your Lexus dealer.

259
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60J00U)
■Dynamic radar cruise can be set when
●The shift lever is in D. (Recommended)
Dynamic radar cruise control can also be set when the shift lever is in the S posi-
tion and range 4 or higher has been selected.
●Vehicle speed is above approximately 30 mph (50 km/h).
■Accelerating after setting the vehicle speed
The vehicle can be accelerated normally. After acceleration, the set speed
resumes. However, during vehicle-to-vehicle distance control mode, the vehicle
speed may decrease below the set speed in order to maintain the distance to the
vehicle ahead.
■Set speed
The set speed may be unsustainable depending on driving circumstances.
■Automatic cancelation of vehicle-to-vehicle distance control
Vehicle-to-vehicle distance control driving is automatically canceled in the follow-
ing situations:
●Actual vehicle speed falls below approximately 25 mph (40 km/h).
●VSC is activated.
●The sensor cannot operate correctly because it is covered in some way.
●The windshield wipers are operating at high speed (when the wiper switch is set
to the high speed wiper operation position).
●The driving mode is set to second start mode.
●Bad weather causes the detection function to become extremely unstable.
●Multi-terrain mode is selected other than OFF.
●The center differential lock/unlock is not completed within 5 seconds while the
dynamic radar cruise control system is on.
If vehicle-to-vehicle distance control driving is automatically canceled for any other
reason, there may be a malfunction in the system. Contact your Lexus dealer.

260
2-4. Using other driving systems
GX460_U.S.A. (OM60J00U)
■Automatic cancelation of constant speed control
The cruise control will stop maintaining the vehicle speed in the following situations:
●Actual vehicle speed is more than approximately 10 mph (16 km/h) below the
set vehicle speed.
At this time, the memorized set speed is not retained.
●Actual vehicle speed falls below approximately 25 mph (40 km/h).
●VSC is activated.
●The center differential lock/unlock is not completed within 5 seconds while the
dynamic radar cruise control system is on.
■Radar sensor and grille cover
Always keep the sensor and grille cover clean to ensure that the vehicle-to-vehicle
distance control operates properly. (Some obstructions, such as snow, ice or plastic
objects, cannot be detected by the obstruction sensor.)
Dynamic radar cruise control is canceled if an obstruction is detected.
■Warning lights and messages for dynamic radar cruise control
Warning lights and messages are used to indicate a system malfunction or to inform
the driver of the need for caution while driving. (→P. 700)
Grille cover
Radar sensor

301
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60J00U)
Guidance DisplayVehicle StatusProcedure
SHIFT TO L4
LOOSE ROCK, MOGUL or
ROCK mode is selected when the
four-wheel drive control switch is in
H4Set the four-wheel
drive control switch
to L4
STOP THE VEHI-
CLE AND SHIFT
THE AUTO-
MATIC TRANS-
MISSION TO NThe four-wheel drive control switch
has been shifted to H4 or L4 and
LOOSE ROCK, MOGUL or
ROCK mode is selected, but the
automatic transmission is not in N
position or the vehicle is not stopped
Stop the vehicle
completely and shift
the shift lever into N
ACCELERATE
OR DECELER-
AT E
The center differential lock/unlock
switch is pressed when Multi-terrain
Select is operating, but the center
differential cannot be switched
between lock and unlockDrive straight ahead
while accelerating or
decelerating, or
drive in reverse
RETURN THE
FOUR-WHEEL
DRIVE CON-
TROL SWITCHThe four-wheel drive control switch
is shifted when Multi-terrain Select is
operating, but the transfer cannot be
shifted to H4 or L4 positionReturn the four-
wheel drive control
switch to L4 or H4
MULTI-TERRAIN
SELECT NOT
AVA I L A B L E
The vehicle speed exceeds approxi-
mately 7 mph (12 km/h) or the VSC,
EFI, 4WD and/or Multi-terrain
Select system may be malfunction-
ingReduce vehicle
speed
If the system is still
not available, contact
your Lexus dealer

302
2-4. Using other driving systems
GX460_U.S.A. (OM60J00U)
■The Multi-terrain Select can be operated when
●Vehicle speed is less than 7 mph (12 km/h)
●Crawl Control is off
■When using Multi-terrain Select
The following functions cannot be switched on or off.
●VSC
●Active TRAC
●Second start mode
A message will be shown on the multi-information display stating that these func-
tions cannot be switched using the VSC OFF switch or the menu and “ENTER”
switches.
■When selecting a terrain mode
If you are unsure which mode is appropriate, select MOGUL when the four-wheel
drive control switch is in L4 or select MUD & SAND when it is in H4.
■When it is difficult to generate traction
MUD & SAND mode provides the largest amount of tire slippage, followed by
LOOSE ROCK, MOGUL and ROCK mode.
Drivability can be improved by selecting a mode which provides a smaller amount
of tire slippage than the current mode when the amount of tire slippage is large, or
conversely selecting a mode which provides a larger amount of tire slippage than
the current mode when the amount of tire slippage is small.
■When the vehicle is stuck
Switching the transfer and differential
For the operation of the following functions, refer to the following pages.
●Four-wheel drive system ( →P. 322)
●Center differential lock ( →P. 323)

322
2-4. Using other driving systems
GX460_U.S.A. (OM60J00U)
Four-wheel drive system
Use the four-wheel drive control switch and center differential lock/unlock
switch to select the following transfer and center differential modes.
■Four-wheel drive control switch
H4 (high speed position)
Normal driving on all types of
roads.
L4 (low speed position)
Driving requiring maximum
power and traction such as
climbing or descending steep
hills, off-road driving, and hard
pulling in sand or mud, etc.
The low speed four-wheel
drive and VSC OFF indica-
tors will come on.

326
2-4. Using other driving systems
GX460_U.S.A. (OM60J00U)
■When the center differential lock/unlock switch can be operated
The “ENGINE START STOP” switch is in IGNITION ON mode.
■The center differential lock indicator light
●The indicator light blinks while locking/unlocking the center differential.
●If the center differential lock indicator light blinks and the buzzer sounds when
the center differential is locked, stop the slipping or spinning and push the
switch again.
If the indicator continue to blink even if doing so, have the vehicle inspected by your
Lexus dealer as soon as possible. There may be a trouble in the four-wheel drive
system.
■Locking/unlocking the center differential
●When the four-wheel drive control switch is in L4 with the center differential
locked, VSC is automatically turned off. (The center differential lock and VSC
OFF indicator light will come on.)
●If the operation is not completed, the center differential lock indicator blinks. If
the indicator light does not turn off when unlocking the center differential, drive
straight ahead while accelerating or decelerating, or drive in reverse.
●Avoid turning suddenly while the center differential is locked. If you do turn sud-
denly, the difference in turning speeds between the front and rear wheels may
have a similar effect to braking, thus making driving difficult.

335
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60J00U)

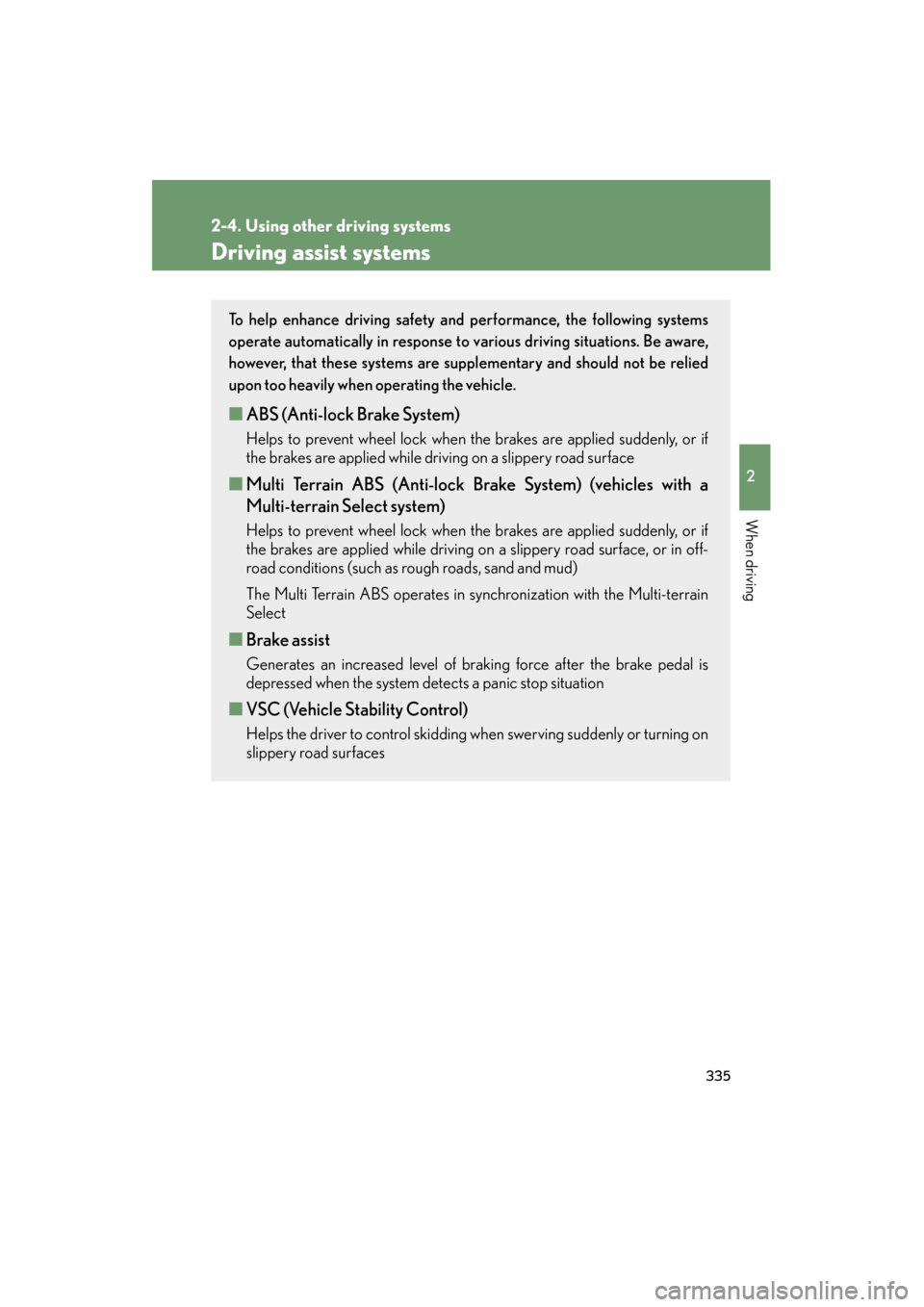

Driving assist systems
To help enhance driving safety and performance, the following systems
operate automatically in response to various driving situations. Be aware,
however, that these systems are supplementary and should not be relied
upon too heavily when operating the vehicle.
■ ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface
■Multi Terrain ABS (Anti-lock Brake System) (vehicles with a
Multi-terrain Select system)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface, or in off-
road conditions (such as rough roads, sand and mud)
The Multi Terrain ABS operates in synchronization with the Multi-terrain
Select
■Brake assist
Generates an increased level of braking force after the brake pedal is
depressed when the system detects a panic stop situation
■VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or turning on
slippery road surfaces
