TABLE OF CONTENTSIndex
6
GX460_U.S.A. (OM60J00U)
5-1. Essential informationEmergency flashers..................... 676
If your vehicle needs to be towed .................................. 677
If you think something is wrong ............................................ 683
Fuel pump shut off system ....... 684
Event data recorder ................... 685
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds... ........................................ 688
If a warning message is displayed ...................................... 700
If you have a flat tire...................... 721
If the engine will not start .......... 735
If the shift lever cannot be shifted from P .............................. 737
If you lose your keys .................... 738
If the electronic key does not operate properly ............... 739
If the vehicle battery is discharged .................................... 741
If your vehicle overheats ........... 744
If the vehicle becomes stuck................................................ 747
If your vehicle has to be stopped in an emergency ........................ 749 6-1. Specifications
Maintenance data (fuel, oil level, etc.)..................... 752
Fuel information ............................ 764
Tire information............................. 768
6-2. Customization Customizable features............... 782
6-3. Initialization Items to initialize .......................... 802
Reporting safety defects for U.S. owners.......................... 804
Seat belt instructions for Canadian owners
(in French) ................................... 805
SRS airbag instructions for Canadian owners
(in French) ................................... 807
5When trouble arises6Vehicle specifications
7For owners

124
1-7. Safety information
GX460_U.S.A. (OM60J00U)
SRS airbag system componentsFront passenger occupant
classification system (ECU
and sensors)
Knee airbag
Curtain shield airbag
Front passenger airbag
“A I R B A G O N ” a n d “A I R B A G
OFF” indicator lights
Side and curtain shield airbag
sensor
Front side airbag
SRS warning light and “RSCA
OFF” indicator light Rear side (if equipped) and
curtain shield airbag sensor
Rear side airbag (outer second
seat) (if equipped)
Driver airbag
Driver’s seat belt buckle switch
Floor sensor
“RSCA OFF” switch
Airbag sensor assembly
Front airbag sensor
Front passenger’s seat belt
buckle switch

135
1-7. Safety information
1
Before driving
GX460_U.S.A. (OM60J00U)
CAUTION
■SRS airbag precautions
●If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to
remove it.
●Do not use seat accessories which cover the parts where the SRS side airbags
inflate as they may interfere with inflation of the airbags. Such accessories may
prevent the side airbags from activating correctly, disable the system or cause the
side airbags to inflate accidentally, resulting in death or serious injury.
●Do not strike or apply significant levels of force to the area of the SRS airbag
components.
Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component parts immediately after the SRS airbags have
deployed (inflated) as they may be hot.
●If breathing becomes difficult after the SRS airbags have deployed, open a door
or window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off
any residue as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad and
front, center and rear pillar garnishes, are damaged or cracked, have them
replaced by your Lexus dealer.

137
1-7. Safety information
1
Before driving
GX460_U.S.A. (OM60J00U)
Deactivating the curtain shield airbags in a vehicle rollover
ON/OFF (Hold for a few seconds)
The “RSCA OFF” indicator light
turns on. (only when the “ENGINE
START STOP” switch is in IGNI-
TION ON mode).
The roll sensing function for the
curtain shield airbags and seat belt
pretensioners will turn back on
automatically each time the
“ENGINE START STOP” switch is
turned to IGNITION ON mode.

138
1-7. Safety information
GX460_U.S.A. (OM60J00U)
■The switch only should be used
In a situation where inflation is not desired (such as during extreme off-road driv-
ing).
■Operating conditions when the “RSCA OFF” indicator is on
●The curtain shield airbag and seat belt pretensioner will not activate in a vehicle
rollover.
●The curtain shield airbag will activate in a severe side impact.
●The seat belt pretensioner will activate in a severe frontal or side collision.
CAUTION
■For normal driving
Make sure the “RSCA OFF” indicator light is not turned on. If it is left on, the curtain
shield airbag will not activate in the event of an accident, which may result in death
or serious injury.

140
1-7. Safety information
GX460_U.S.A. (OM60J00U)
Condition and operation in the front passenger occupant classification system
■Adult*1
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
ON”
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag
Activated
Side airbag on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner

141

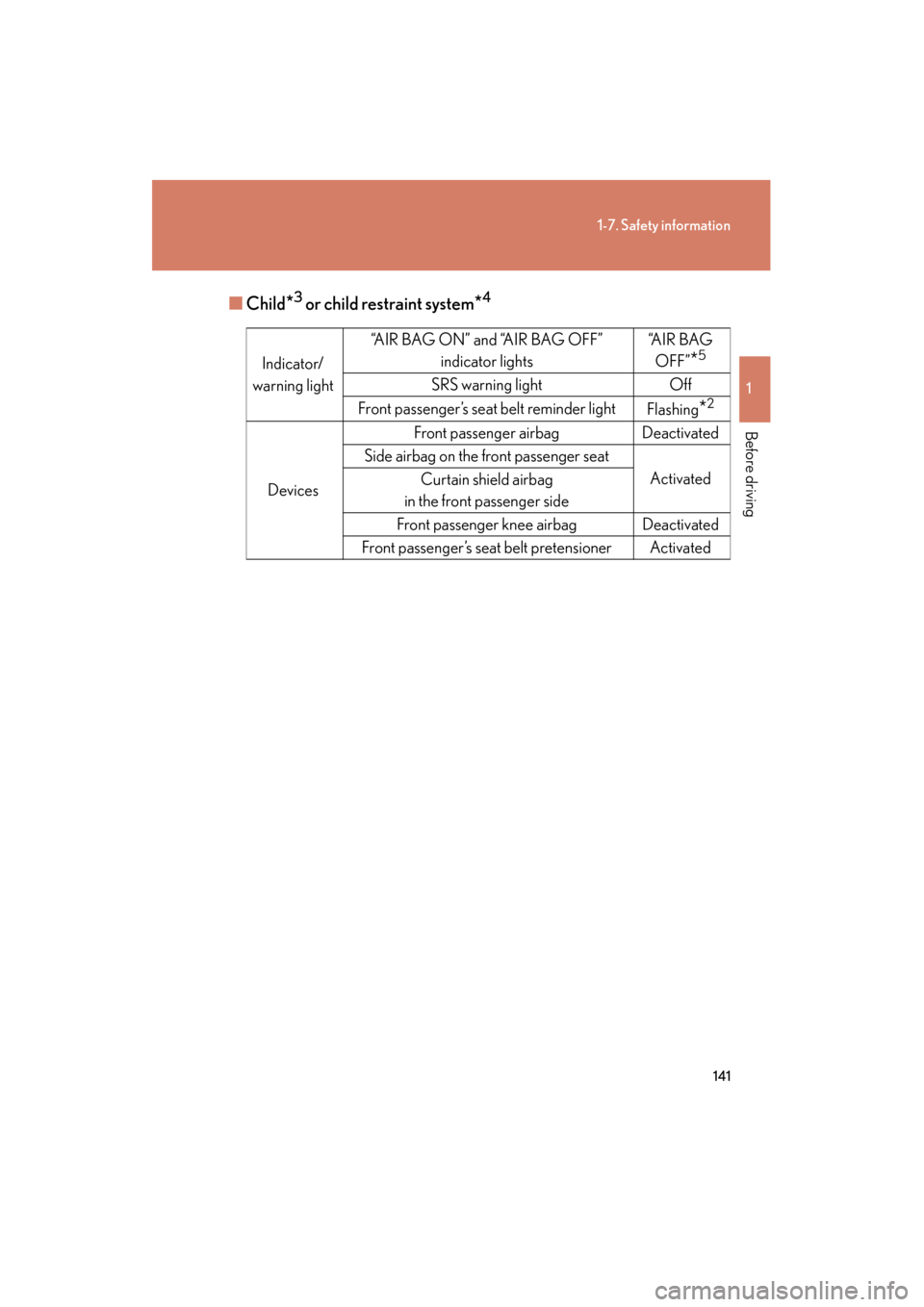

1-7. Safety information
1
Before driving
GX460_U.S.A. (OM60J00U)■
Child
*3 or child restraint system*4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF”*5
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag Deactivated
Side airbag on the front passenger seat Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

142
1-7. Safety information

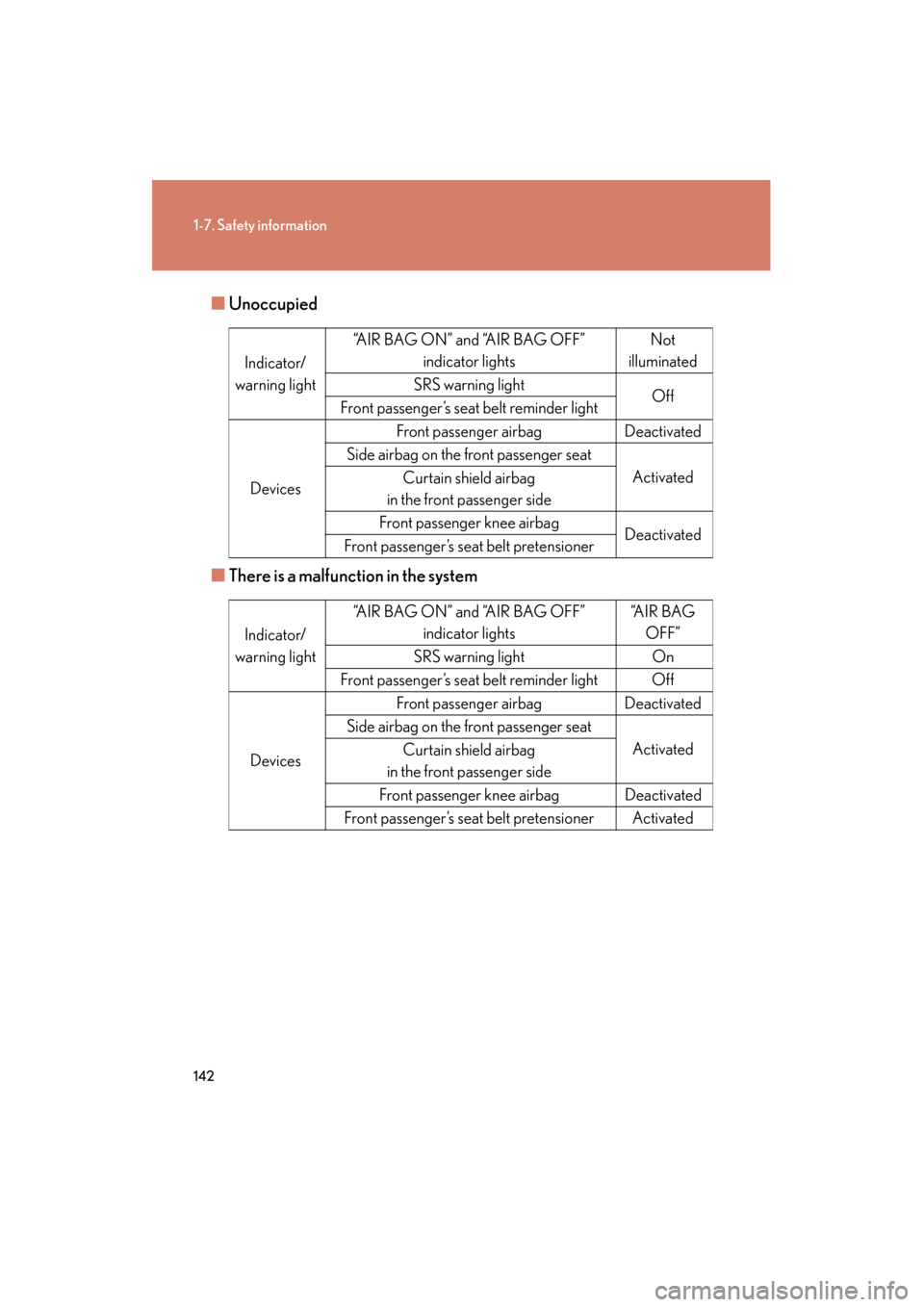

GX460_U.S.A. (OM60J00U)■
Unoccupied
■ There is a malfunction in the system
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights Not
illuminated
SRS warning light Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag Deactivated
Side airbag on the front passenger seat Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF”
SRS warning light On
Front passenger’s seat belt reminder light Off
Devices Front passenger airbag Deactivated
Side airbag on the front passenger seat Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

144

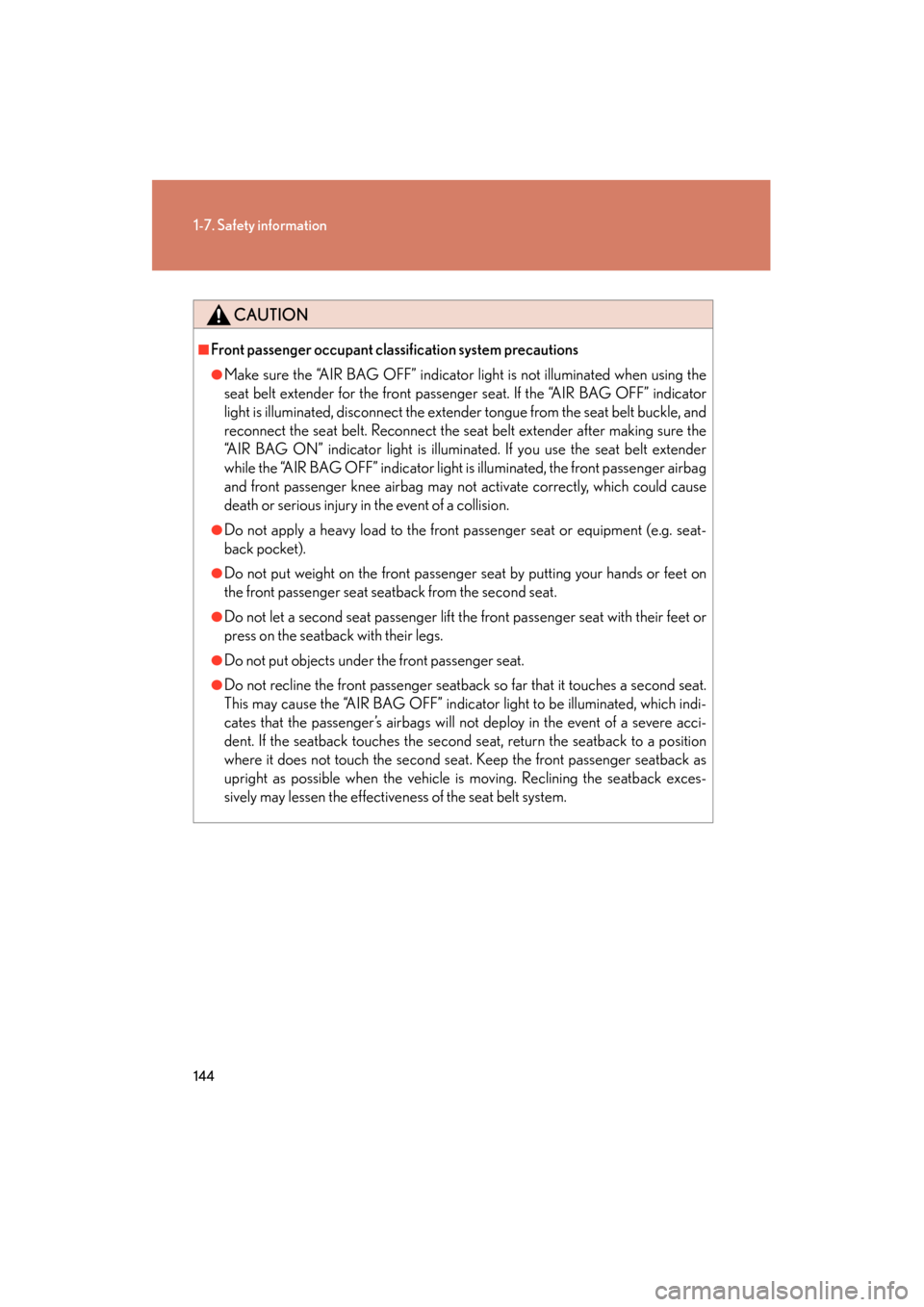

1-7. Safety information
GX460_U.S.A. (OM60J00U)
CAUTION
■Front passenger occupant classification system precautions
●Make sure the “AIR BAG OFF” indicator light is not illuminated when using the
seat belt extender for the front passenger seat. If the “AIR BAG OFF” indicator
light is illuminated, disconnect the extender tongue from the seat belt buckle, and
reconnect the seat belt. Reconnect the seat belt extender after making sure the
“AIR BAG ON” indicator light is illuminated. If you use the seat belt extender
while the “AIR BAG OFF” indicator light is illuminated, the front passenger airbag
and front passenger knee airbag may not activate correctly, which could cause
death or serious injury in the event of a collision.
●Do not apply a heavy load to the front passenger seat or equipment (e.g. seat-
back pocket).
●Do not put weight on the front passenger seat by putting your hands or feet on
the front passenger seat seatback from the second seat.
●Do not let a second seat passenger lift the front passenger seat with their feet or
press on the seatback with their legs.
●Do not put objects under the front passenger seat.
●Do not recline the front passenger seatback so far that it touches a second seat.
This may cause the “AIR BAG OFF” indicator light to be illuminated, which indi-
cates that the passenger’s airbags will not deploy in the event of a severe acci-
dent. If the seatback touches the second seat, return the seatback to a position
where it does not touch the second seat. Keep the front passenger seatback as
upright as possible when the vehicle is moving. Reclining the seatback exces-
sively may lessen the effectiveness of the seat belt system.

148

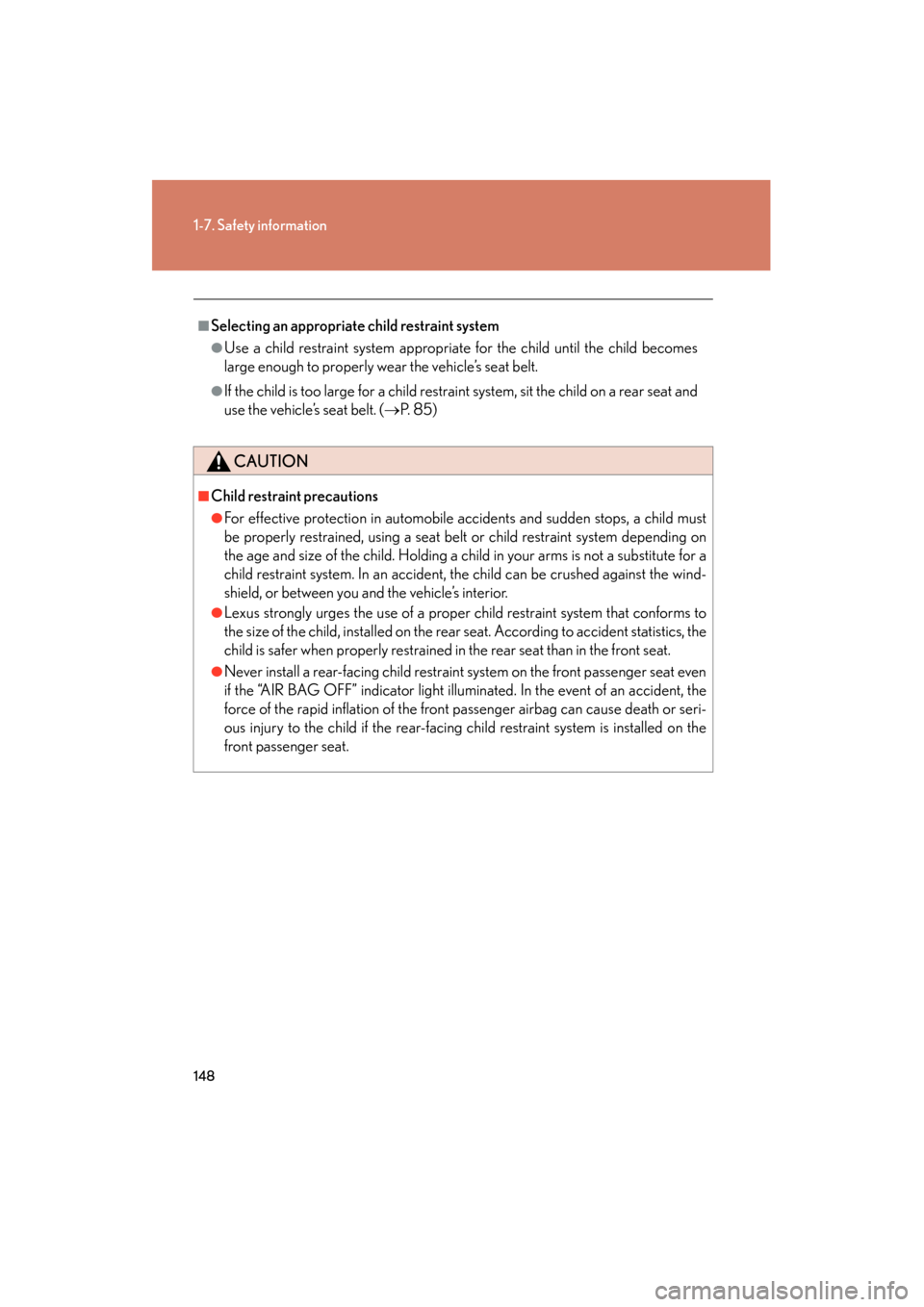

1-7. Safety information
GX460_U.S.A. (OM60J00U)
■Selecting an appropriate child restraint system
●Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
●If the child is too large for a child restraint system, sit the child on a rear seat and
use the vehicle’s seat belt. (→P. 8 5 )
CAUTION
■Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child must
be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a child in your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the wind-
shield, or between you and the vehicle’s interior.
●Lexus strongly urges the use of a proper child restraint system that conforms to
the size of the child, installed on the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear seat than in the front seat.
●Never install a rear-facing child restraint system on the front passenger seat even
if the “AIR BAG OFF” indicator light illuminated. In the event of an accident, the
force of the rapid inflation of the front passenger airbag can cause death or seri-
ous injury to the child if the rear-facing child restraint system is installed on the
front passenger seat.
