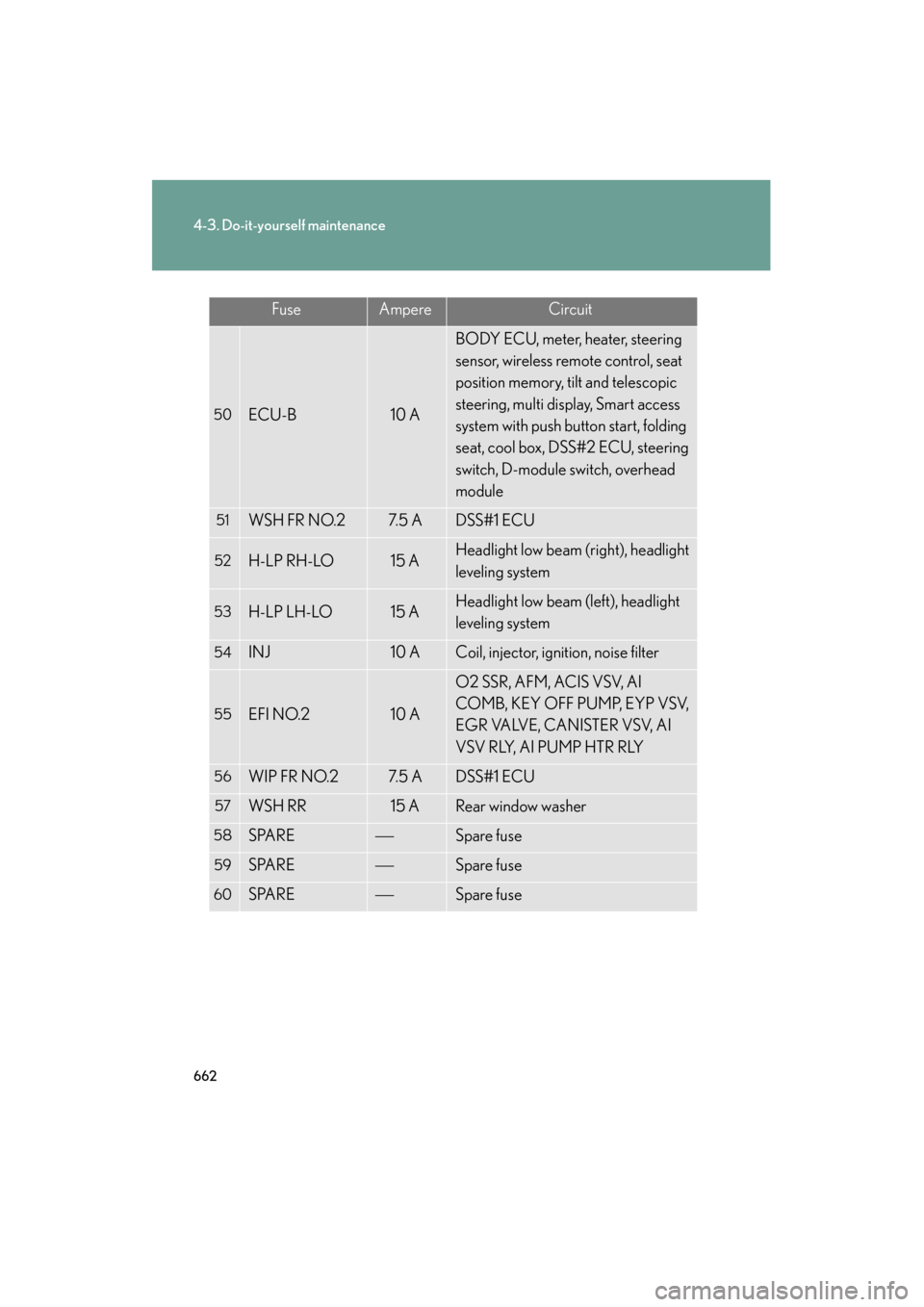

662
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
50ECU-B10 A
BODY ECU, meter, heater, steering
sensor, wireless remote control, seat
position memory, tilt and telescopic
steering, multi display, Smart access
system with push button start, folding
seat, cool box, DSS#2 ECU, steering
switch, D-module switch, overhead
module
51WSH FR NO.27. 5 ADSS#1 ECU
52H-LP RH-LO15 AHeadlight low beam (right), headlight
leveling system
53H-LP LH-LO15 AHeadlight low beam (left), headlight
leveling system
54INJ10 ACoil, injector, ignition, noise filter
55EFI NO.210 A
O2 SSR, AFM, ACIS VSV, AI
COMB, KEY OFF PUMP, EYP VSV,
EGR VALVE, CANISTER VSV, AI
VSV RLY, AI PUMP HTR RLY
56WIP FR NO.27. 5 ADSS#1 ECU
57WSH RR15 ARear window washer
58SPARESpare fuse
59SPARESpare fuse
60SPARESpare fuse
FuseAmpereCircuit
GX460_OM_OM60J63U_(U).book Page 662 Thursday, March 29, 2012 9:10 AM

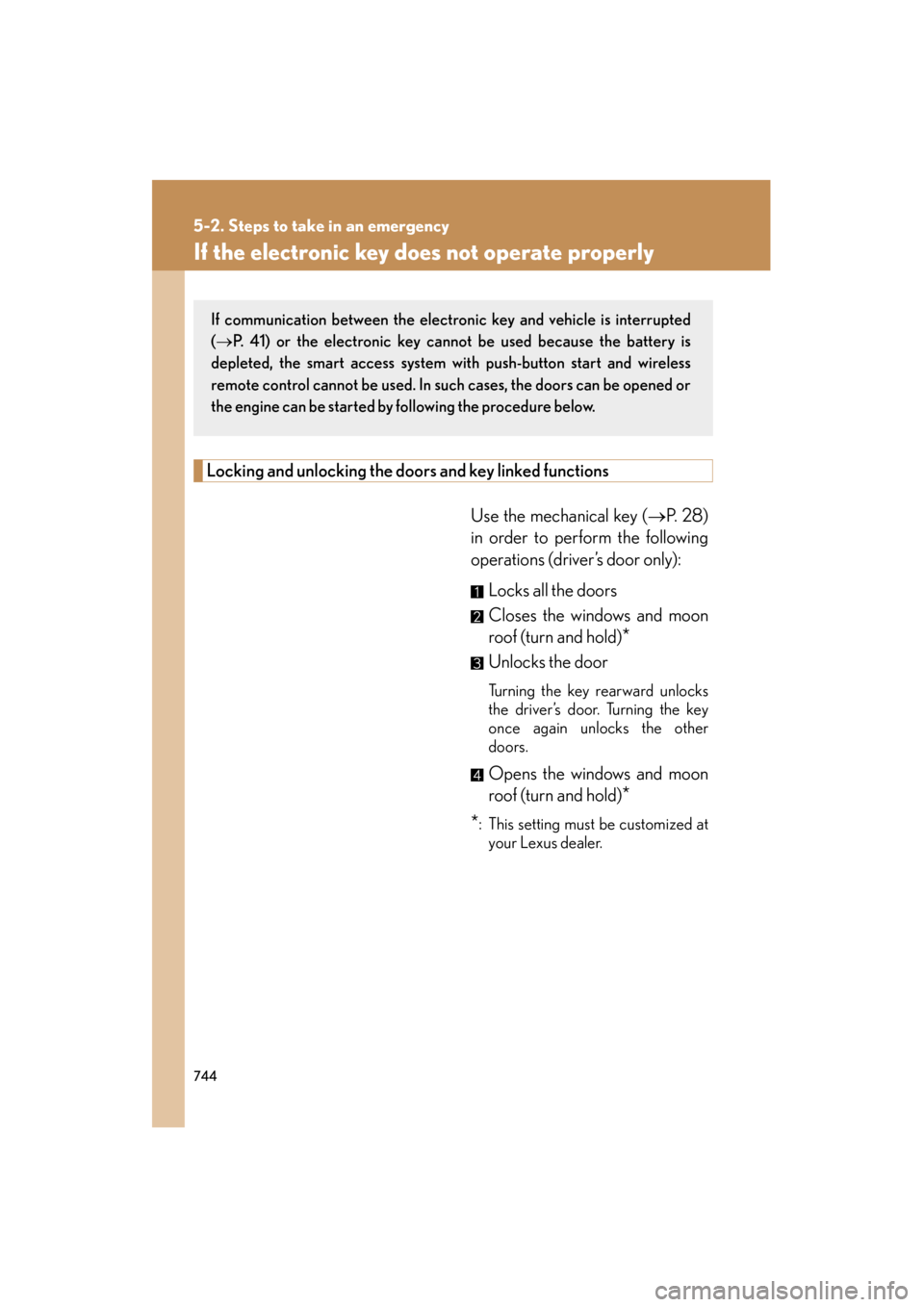

744
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
If the electronic key does not operate properly
Locking and unlocking the doors and key linked functions
Use the mechanical key ( →P. 2 8 )
in order to perform the following
operations (driver’s door only):
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks the door
Tu r n i n g t h e k e y r e a r w a r d u n l o c k s
the driver’s door. Turning the key
once again unlocks the other
doors.
Opens the windows and moon
roof (turn and hold)
*
*
: This setting must be customized at your Lexus dealer.
If communication between the electronic key and vehicle is interrupted
(→ P. 41) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors can be opened or
the engine can be started by following the procedure below.
GX460_OM_OM60J63U_(U).book Page 744 Thursday, March 29, 2012 9:10 AM

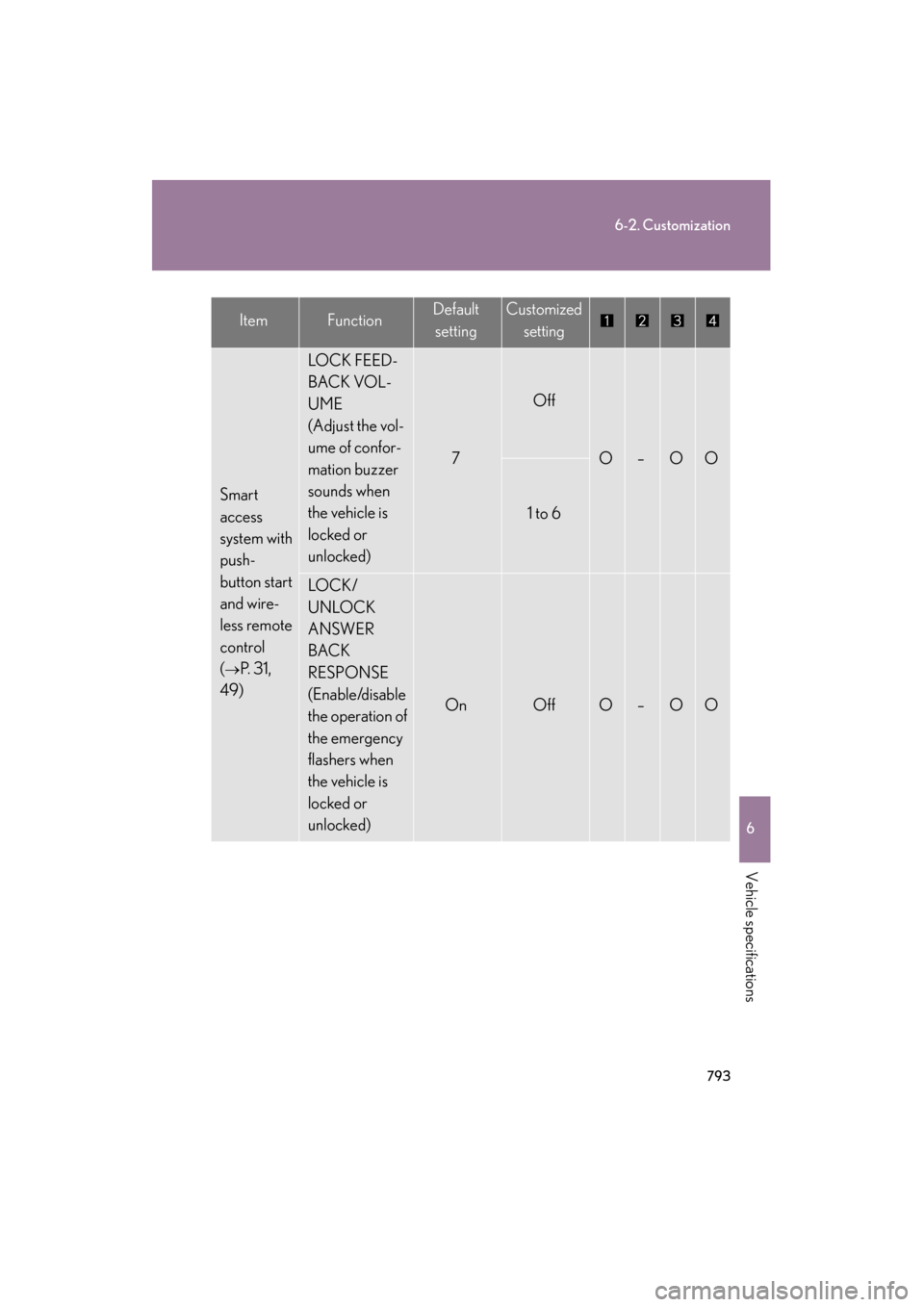

793
6-2. Customization
6
Vehicle specifications
GX460_OM_OM60J63U_(U)
Smart
access
system with
push-
button start
and wire-
less remote
control
(
→P. 3 1 ,
49)
LO C K F E ED -
BACK VOL-
UME
(Adjust the vol-
ume of confor-
mation buzzer
sounds when
the vehicle is
locked or
unlocked)
7
Off
O–OO
1 to 6
LO C K /
UNLOCK
ANSWER
BACK
RESPONSE
(Enable/disable
the operation of
the emergency
flashers when
the vehicle is
locked or
unlocked)
OnOffO–OO
ItemFunctionDefault
settingCustomized setting
GX460_OM_OM60J63U_(U).book Page 793 Thursday, March 29, 2012 9:10 AM

794
6-2. Customization
GX460_OM_OM60J63U_(U)
Smart
access sys-
tem with
push-but-
ton start
and wire-
less remote
control
(
→P. 3 1 ,
49)
AUTO.
RELOCK TIME
ADJUSTMENT
(Adjust the time
elapsed before
the automatic
door lock func-
tion is activated
if a door is not
opened after
being unlocked)
60 seconds
Off
O–OO30 seconds
120 seconds
Open door
reminder
buzzer (When
locking the
vehicle)
OnOff–––O
Glass hatch
opening opera-
tion (When the
electronic key is
used)
Push and
hold (Short)
Push twice
–––O
One short push
Push and
hold (Long)
Off
ItemFunctionDefault settingCustomized setting
GX460_OM_OM60J63U_(U).book Page 794 Thursday, March 29, 2012 9:10 AM

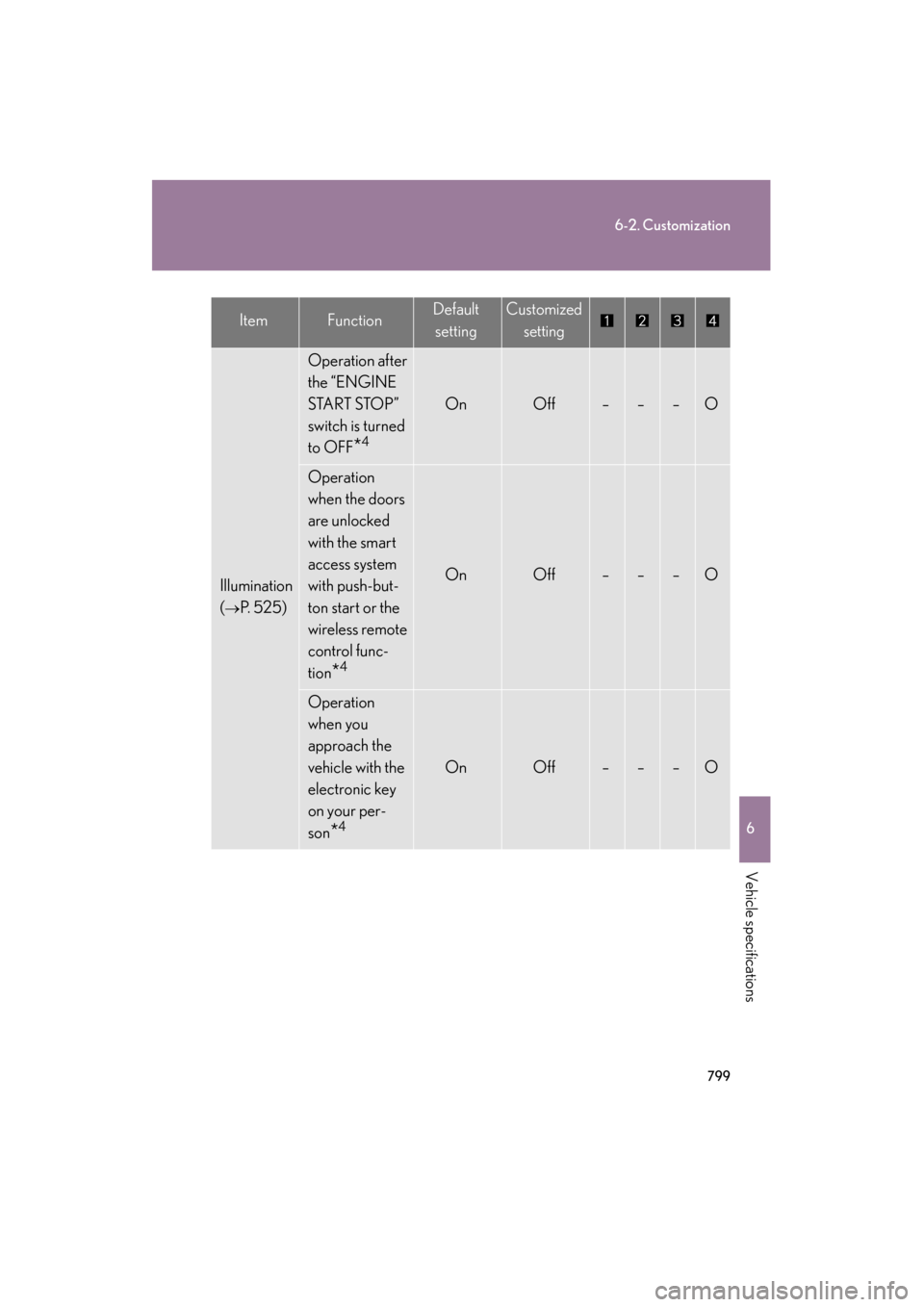

799
6-2. Customization
6
Vehicle specifications
GX460_OM_OM60J63U_(U)
Illumination
(
→P. 5 2 5 )
Operation after
the “ENGINE
START STOP”
switch is turned
to OFF
*4
OnOff–––O
Operation
when the doors
are unlocked
with the smart
access system
with push-but-
ton start or the
wireless remote
control func-
tion
*4
OnOff–––O
Operation
when you
approach the
vehicle with the
electronic key
on your per-
son
*4
OnOff–––O
ItemFunctionDefault settingCustomized setting
GX460_OM_OM60J63U_(U).book Page 799 Thursday, March 29, 2012 9:10 AM

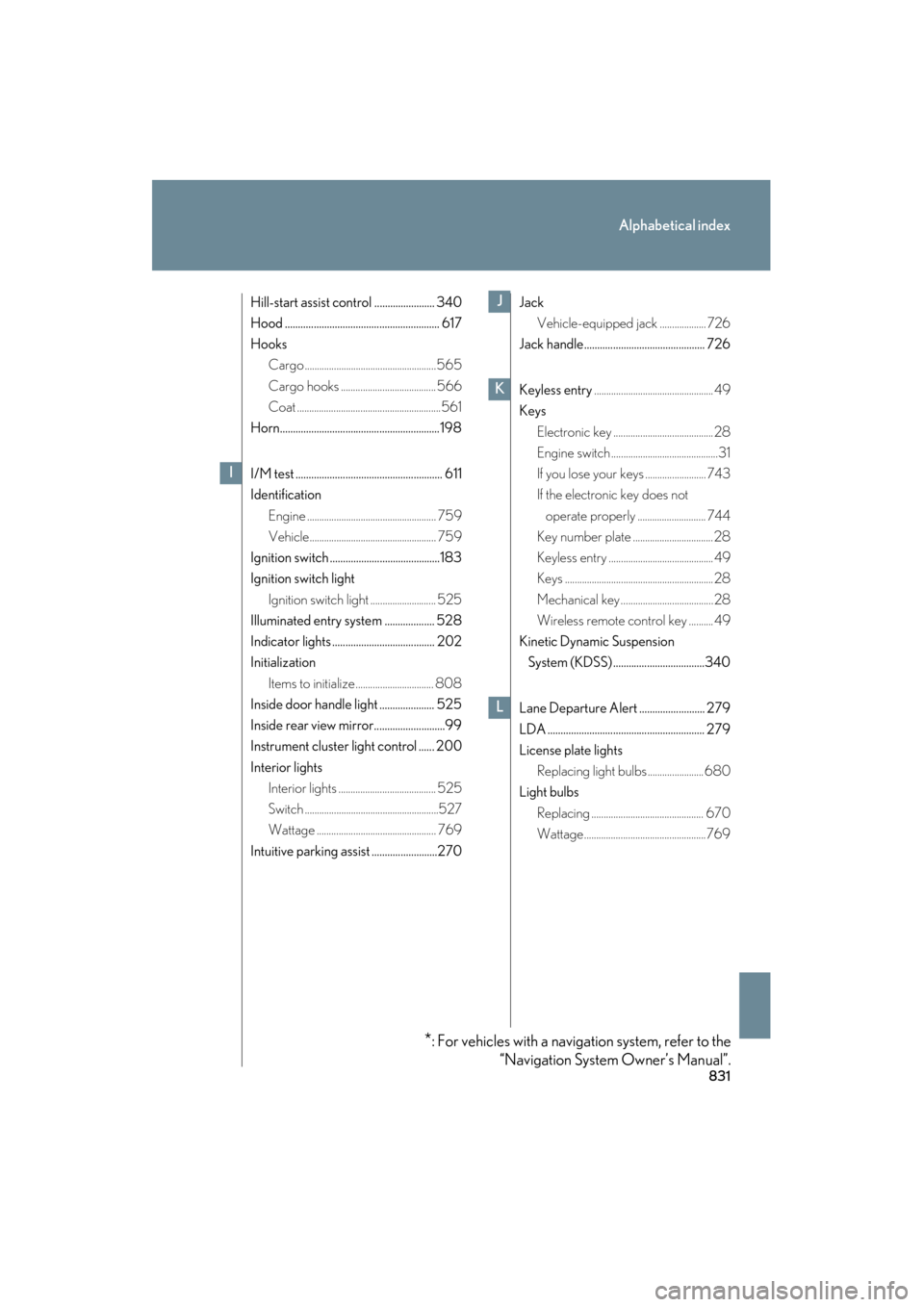

831
Alphabetical index
GX460_OM_OM60J63U_(U)
Hill-start assist control ....................... 340
Hood ........................................................... 617
HooksCargo ......................................................565
Cargo hooks ....................................... 566
Coat ...........................................................561
Horn.............................................................198
I/M test ........................................................ 611
Identification Engine ..................................................... 759
Vehicle.................................................... 759
Ignition switch ..........................................183
Ignition switch light Ignition switch light ........................... 525
Illuminated entry system ................... 528
Indicator lights ....................................... 202
Initialization
Items to initialize ................................ 808
Inside door handle light ..................... 525
Inside rear view mirror...........................99
Instrument cluster light control ...... 200
Interior lights Interior lights ........................................ 525
Switch .......................................................527
Wattage ................................................. 769
Intuitive parking assist .........................270 Jack
Vehicle-equipped jack ................... 726
Jack handle.............................................. 726
Keyless entry ................................................. 49
Keys
Electronic key ......................................... 28
Engine switch ............................................31
If you lose your keys ......................... 743
If the electronic key does not operate properly ............................ 744
Key number plate ................................. 28
Keyless entry ........................................... 49
Keys ............................................................. 28
Mechanical key ...................................... 28
Wireless remote control key .......... 49
Kinetic Dynamic Suspension System (KDSS) ...................................340
Lane Departure Alert ......................... 279
LDA ............................................................ 279
License plate lights Replacing light bulbs ....................... 680
Light bulbs
Replacing .............................................. 670
Wattage..................................................769
I
J
K
L
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
GX460_OM_OM60J63U_(U).book Page 831 Thursday, March 29, 2012 9:10 AM

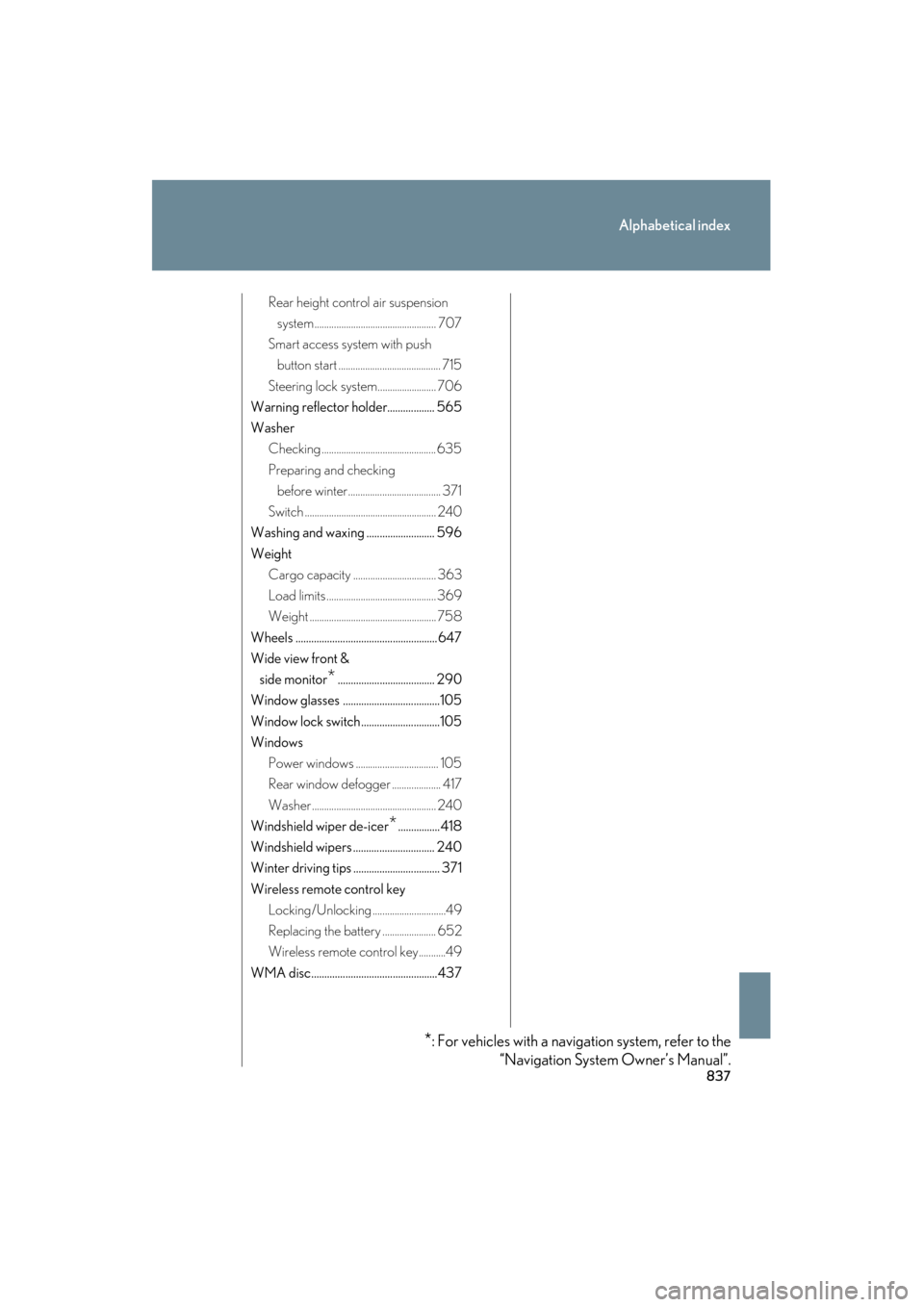

837
Alphabetical index
GX460_OM_OM60J63U_(U)
Rear height control air suspension system.................................................. 707
Smart access system with push button start .......................................... 715
Steering lock system........................ 706
Warning reflector holder.................. 565
Washer Checking ............................................... 635
Preparing and checking before winter...................................... 371
Switch ...................................................... 240
Washing and waxing .......................... 596
Weight Cargo capacity .................................. 363
Load limits ............................................. 369
Weight .................................................... 758
Wheels ......................................................647
Wide view front & side monitor
*..................................... 290
Window glasses .....................................105
Window lock switch..............................105
Windows
Power windows .................................. 105
Rear window defogger .................... 417
Washer ................................................... 240
Windshield wiper de-icer
*................ 418
Windshield wipers ............................... 240
Winter driving tips ................................. 371
Wireless remote control key Locking/Unlocking ..............................49
Replacing the battery ...................... 652
Wireless remote control key...........49
WMA disc................................................437
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
GX460_OM_OM60J63U_(U).book Page 837 Thursday, March 29, 2012 9:10 AM
