ESP Lexus GX460 2013 Owner's Guide

281
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
■When the vehicle has been parked in the sun
The LDA system may not be available for a while after driving has started. In such
cases, turn the LDA system off and turn it on again after normal temperature
returns. When the temperature in the cabin decreases and the temperature around
the camera sensor becomes suitable for its operation, the functions will begin to
operate.
■Warning lights and messages for LDA
Warning lights and messages are used to indicate a system malfunction or to inform
the driver of the need for caution while driving. (→P. 7 0 5 )
CAUTION
■Before using the LDA system
This system provides information to the driver in accordance with the road geome-
try and the driving conditions. Be aware of your surroundings at all times, correct
the driving path while driving appropriately and be responsible for your own safety.
This system operates by using the camera to identify lane markers when the LDA
switch is on and the vehicle is being driven at the system operating speed.
Operation may be temporarily suspended if the camera cannot recognize the lane
markers or if the system cannot operate due to the road environment or driving
conditions. Also, since an alarm may sound unnecessarily if the lane markers cannot
be correctly identified, make sure to drive responsibly even while the system is
operating.
If a malfunction occurs in the system, the driver will be alerted by a buzzer and a dis-
play, and LDA operation will be temporarily suspended. However, this does not
present a problem to normal driving.
If the alert is displayed even after restarting the engine, have your vehicle inspected
by your Lexus dealer.
GX460_OM_OM60J63U_(U).book Page 281 Thursday, March 29, 2012 9:10 AM

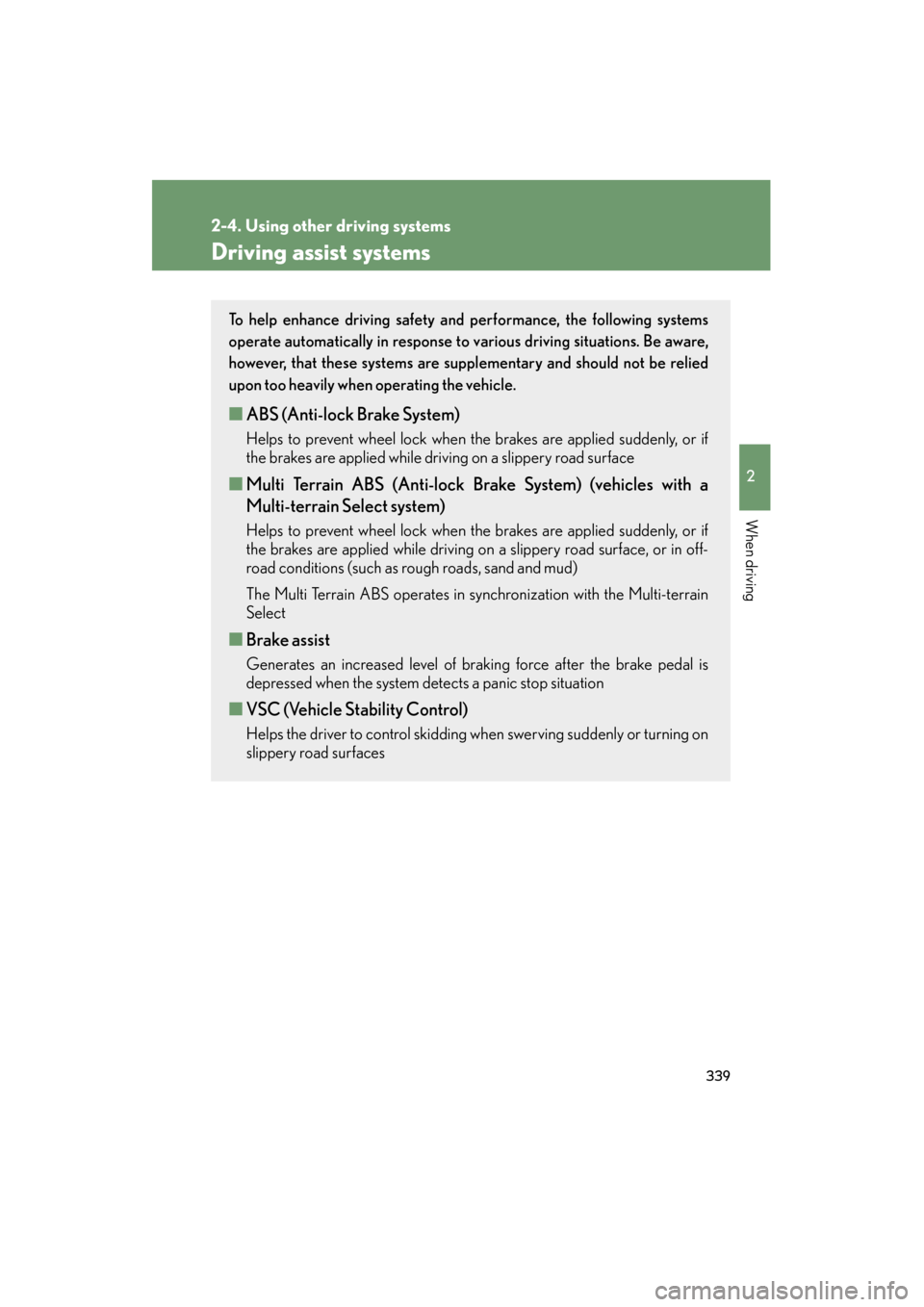

339
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
Driving assist systems
To help enhance driving safety and performance, the following systems
operate automatically in response to various driving situations. Be aware,
however, that these systems are supplementary and should not be relied
upon too heavily when operating the vehicle.
■ ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface
■Multi Terrain ABS (Anti-lock Brake System) (vehicles with a
Multi-terrain Select system)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface, or in off-
road conditions (such as rough roads, sand and mud)
The Multi Terrain ABS operates in synchronization with the Multi-terrain
Select
■Brake assist
Generates an increased level of braking force after the brake pedal is
depressed when the system detects a panic stop situation
■VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or turning on
slippery road surfaces
GX460_OM_OM60J63U_(U).book Page 339 Thursday, March 29, 2012 9:10 AM

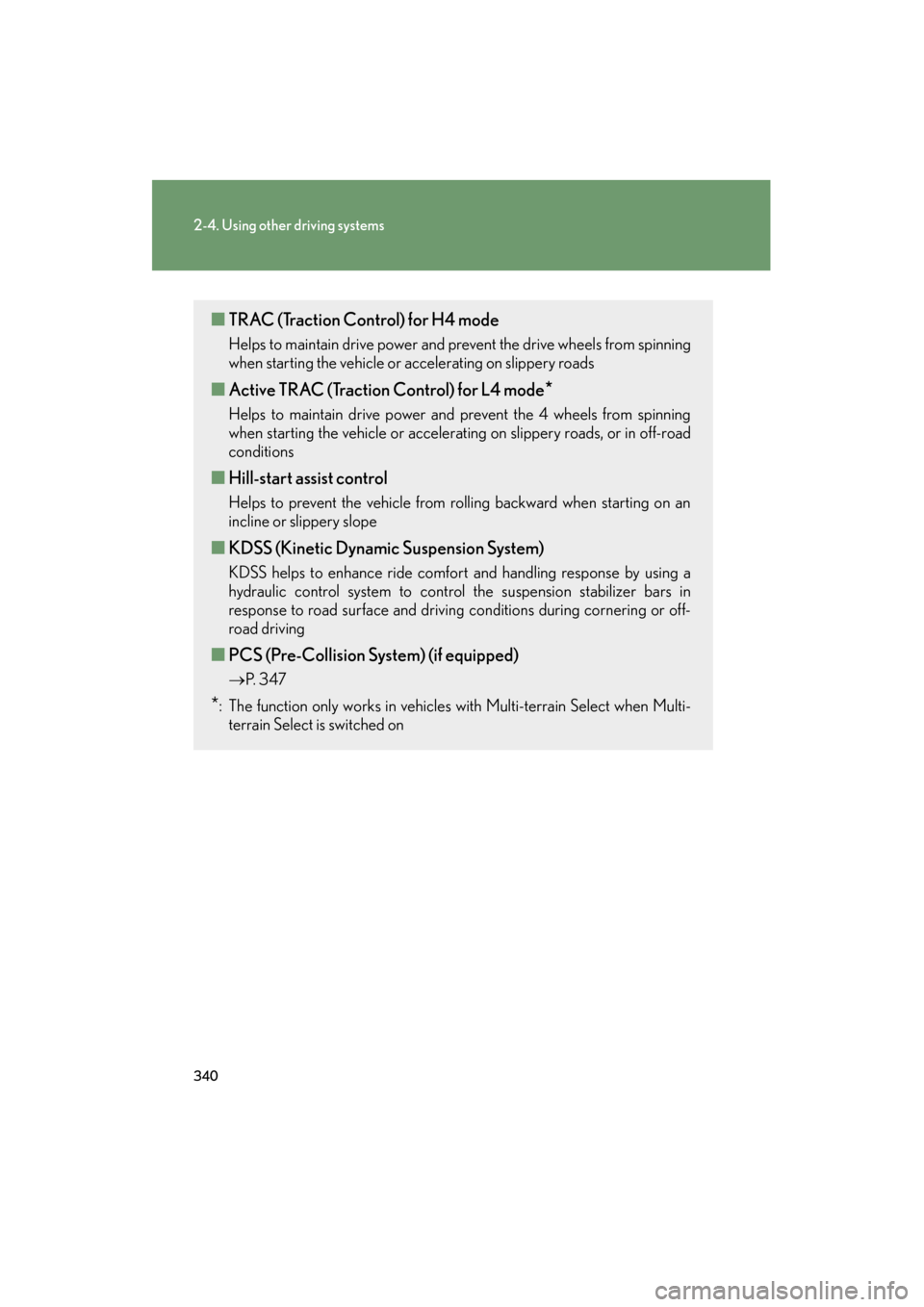

340
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)
■TRAC (Traction Control) for H4 mode
Helps to maintain drive power and prevent the drive wheels from spinning
when starting the vehicle or accelerating on slippery roads
■Active TRAC (Traction Control) for L4 mode*
Helps to maintain drive power and prevent the 4 wheels from spinning
when starting the vehicle or accelerating on slippery roads, or in off-road
conditions
■Hill-start assist control
Helps to prevent the vehicle from rolling backward when starting on an
incline or slippery slope
■KDSS (Kinetic Dynamic Suspension System)
KDSS helps to enhance ride comfort and handling response by using a
hydraulic control system to control the suspension stabilizer bars in
response to road surface and driving conditions during cornering or off-
road driving
■ PCS (Pre-Collision System) (if equipped)
→ P. 3 4 7
*: The function only works in vehicles with Multi-terrain Select when Multi-
terrain Select is switched on
GX460_OM_OM60J63U_(U).book Page 340 Thursday, March 29, 2012 9:10 AM

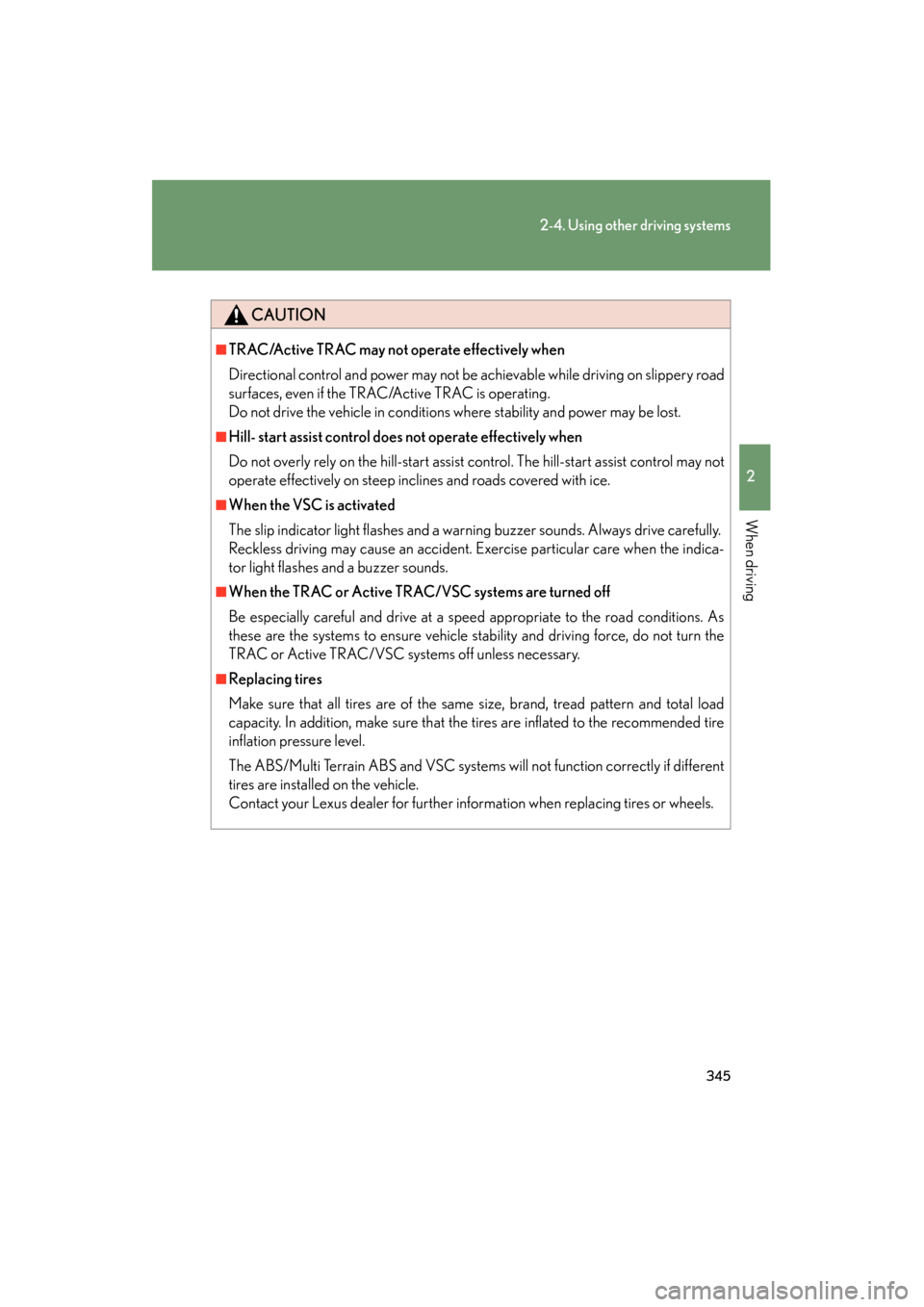

345
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
CAUTION
■TRAC/Active TRAC may not operate effectively when
Directional control and power may not be achievable while driving on slippery road
surfaces, even if the TRAC/Active TRAC is operating.
Do not drive the vehicle in conditions where stability and power may be lost.
■Hill- start assist control does not operate effectively when
Do not overly rely on the hill-start assist control. The hill-start assist control may not
operate effectively on steep inclines and roads covered with ice.
■When the VSC is activated
The slip indicator light flashes and a warning buzzer sounds. Always drive carefully.
Reckless driving may cause an accident. Exercise particular care when the indica-
tor light flashes and a buzzer sounds.
■When the TRAC or Active TRAC/VSC systems are turned off
Be especially careful and drive at a speed appropriate to the road conditions. As
these are the systems to ensure vehicle stability and driving force, do not turn the
TRAC or Active TRAC/VSC systems off unless necessary.
■Replacing tires
Make sure that all tires are of the same size, brand, tread pattern and total load
capacity. In addition, make sure that the tires are inflated to the recommended tire
inflation pressure level.
The ABS/Multi Terrain ABS and VSC systems will not function correctly if different
tires are installed on the vehicle.
Contact your Lexus dealer for further information when replacing tires or wheels.
GX460_OM_OM60J63U_(U).book Page 345 Thursday, March 29, 2012 9:10 AM

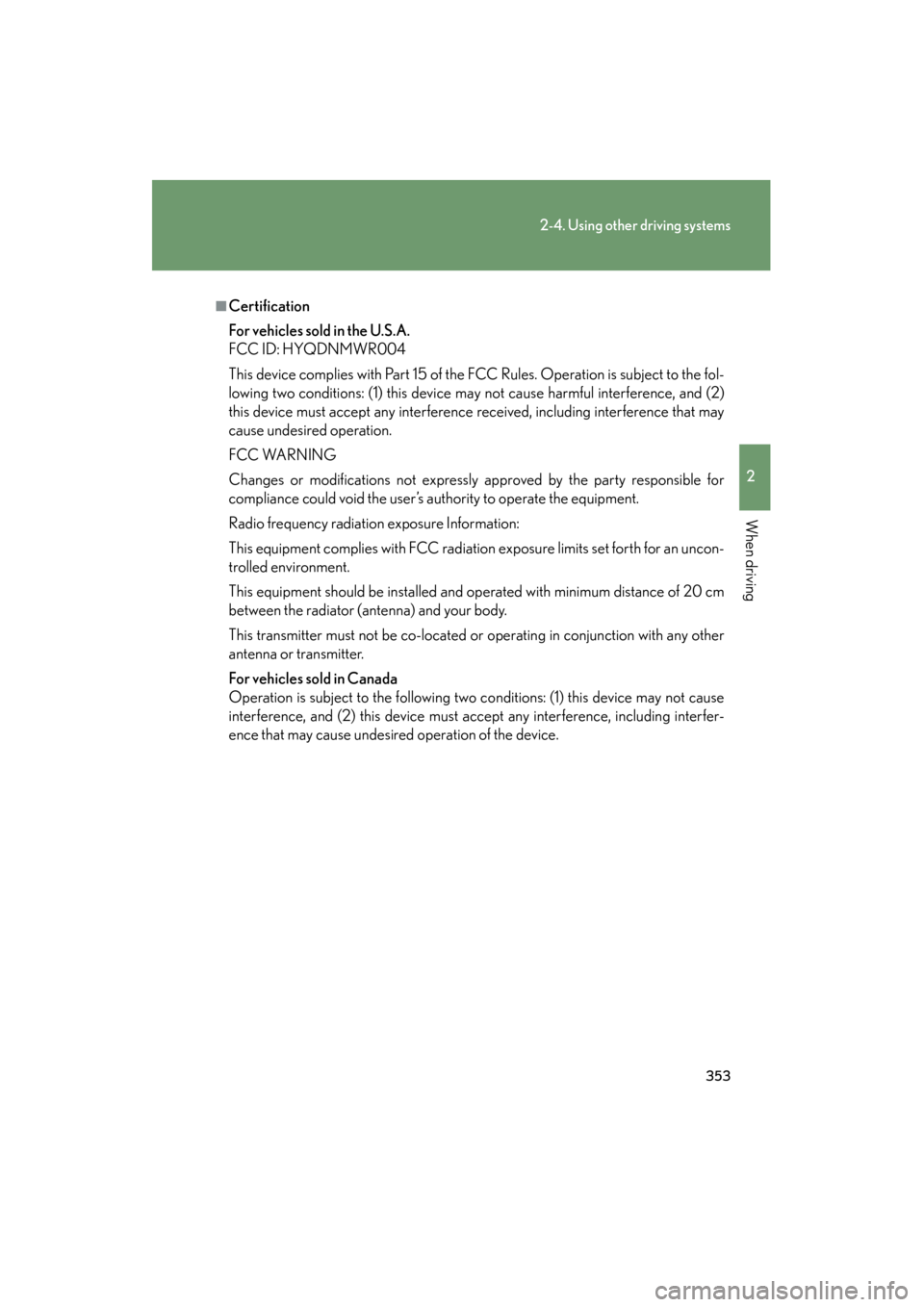

353
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
■Certification
For vehicles sold in the U.S.A.
FCC ID: HYQDNMWR004
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Radio frequency radiation exposure Information:
This equipment complies with FCC radiation exposure limits set forth for an uncon-
trolled environment.
This equipment should be installed and operated with minimum distance of 20 cm
between the radiator (antenna) and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
For vehicles sold in Canada
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
GX460_OM_OM60J63U_(U).book Page 353 Thursday, March 29, 2012 9:10 AM

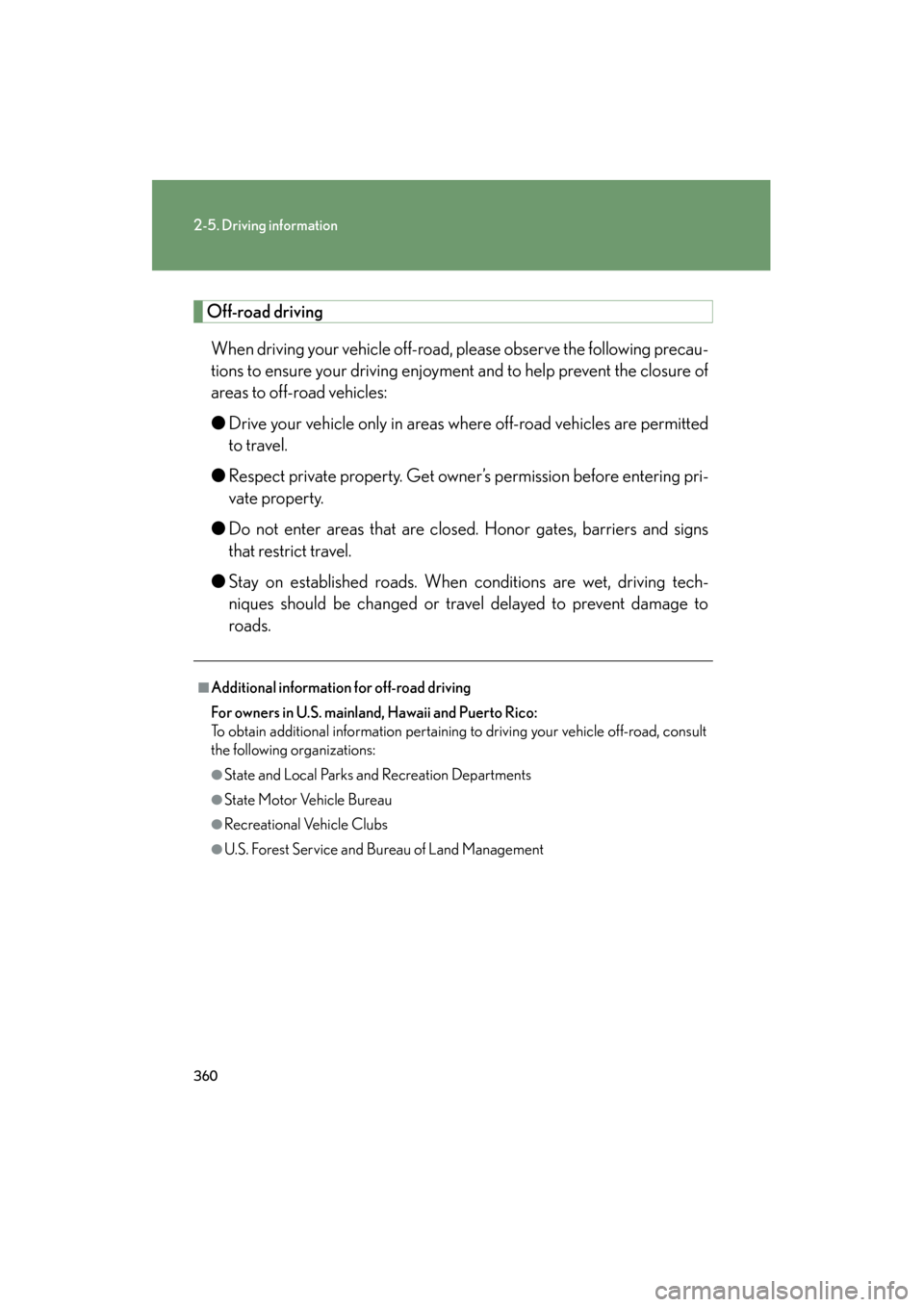

360
2-5. Driving information
GX460_OM_OM60J63U_(U)
Off-road drivingWhen driving your vehicle off-road, please observe the following precau-
tions to ensure your driving enjoyment and to help prevent the closure of
areas to off-road vehicles:
● Drive your vehicle only in areas where off-road vehicles are permitted
to travel.
● Respect private property. Get owner’s permission before entering pri-
vate property.
● Do not enter areas that are closed. Honor gates, barriers and signs
that restrict travel.
● Stay on established roads. When conditions are wet, driving tech-
niques should be changed or travel delayed to prevent damage to
roads.
■Additional informatio n for off-road driving
For owners in U.S. mainland, Hawaii and Puerto Rico:
To obtain additional information pertaining to driving your vehicle off-road, consult
the following organizations:
●State and Local Parks and Recreation Departments
●State Motor Vehicle Bureau
●Recreational Vehicle Clubs
●U.S. Forest Service and Bureau of Land Management
GX460_OM_OM60J63U_(U).book Page 360 Thursday, March 29, 2012 9:10 AM

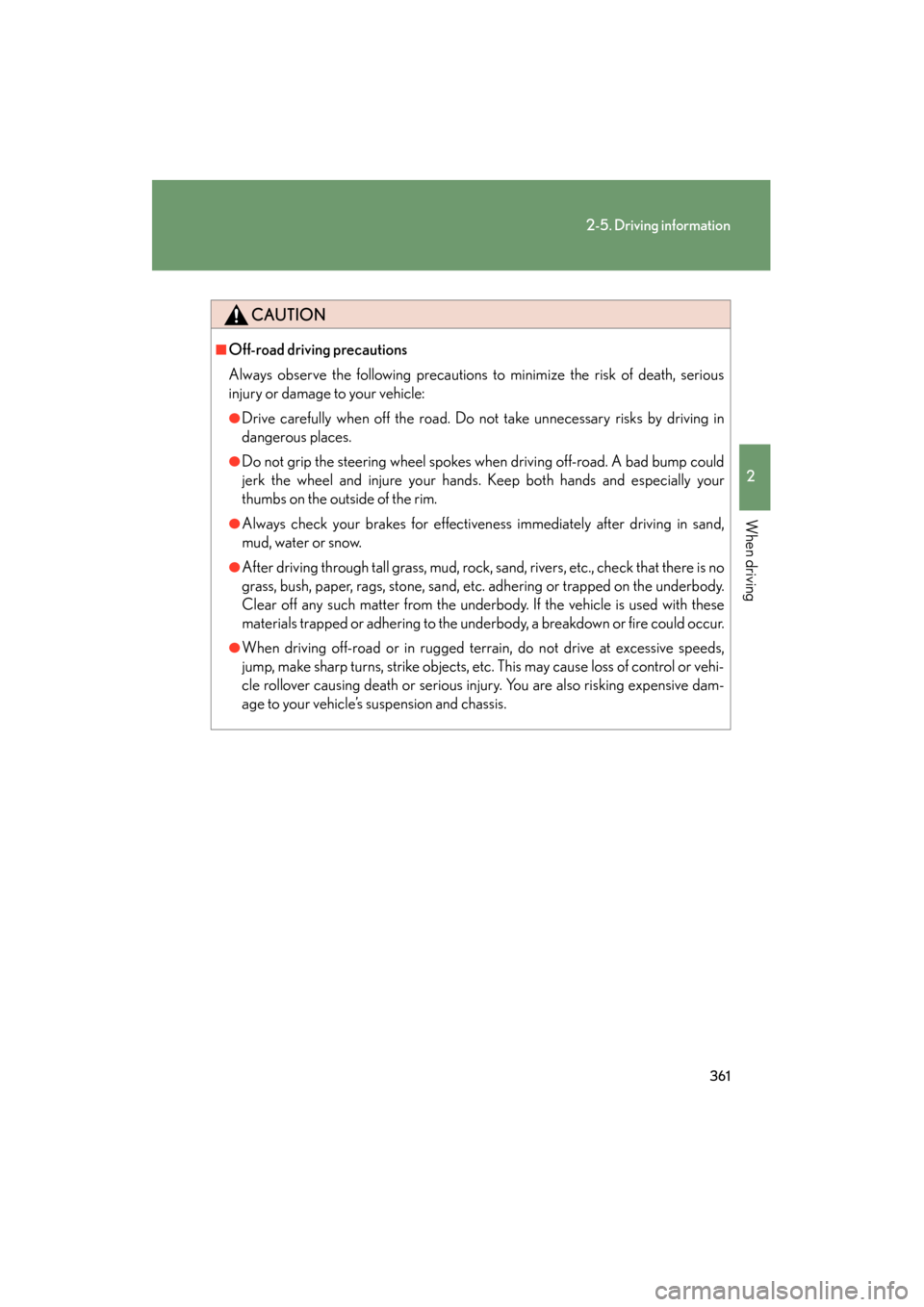

361
2-5. Driving information
2
When driving
GX460_OM_OM60J63U_(U)
CAUTION
■Off-road driving precautions
Always observe the following precautions to minimize the risk of death, serious
injury or damage to your vehicle:
●Drive carefully when off the road. Do not take unnecessary risks by driving in
dangerous places.
●Do not grip the steering wheel spokes when driving off-road. A bad bump could
jerk the wheel and injure your hands. Keep both hands and especially your
thumbs on the outside of the rim.
●Always check your brakes for effectiveness immediately after driving in sand,
mud, water or snow.
●After driving through tall grass, mud, rock, sand, rivers, etc., check that there is no
grass, bush, paper, rags, stone, sand, etc. adhering or trapped on the underbody.
Clear off any such matter from the underbody. If the vehicle is used with these
materials trapped or adhering to the underbody, a breakdown or fire could occur.
●When driving off-road or in rugged terrain, do not drive at excessive speeds,
jump, make sharp turns, strike objects, etc. This may cause loss of control or vehi-
cle rollover causing death or serious injury. You are also risking expensive dam-
age to your vehicle’s suspension and chassis.
GX460_OM_OM60J63U_(U).book Page 361 Thursday, March 29, 2012 9:10 AM

386
2-5. Driving information
GX460_OM_OM60J63U_(U)
Trailer towing tipsYour vehicle will handle differently when towing a trailer. Help to avoid an
accident, death or serious injury, keep the following in mind when towing:
● Speed limits for towing a trailer vary by state or province. Do not
exceed the posted towing speed limit.
● Lexus recommends that the vehicle- trailer speed limit is 65 mph (104
km/h) on a flat, straight, dry road. Do not exceed this limit, the posted
towing speed limit or the speed limit for your trailer as set forth in your
trailer owner’s manual, whichever is lowest. Instability of the towing
vehicle-trailer combination (trailer sway) increases as speed increases.
Exceeding speed limits may cause loss of control.
● Before starting out, check the trailer lights, tires and the vehicle-trailer
connections. Recheck after driving a short distance.
● Practice turning, stopping and reversing with the trailer attached in an
area away from traffic until you become accustomed to the feel of the
vehicle-trailer combination.
● Reversing with a trailer attached is difficult and requires practice. Grip
the bottom of the steering wheel and move your hand to the left to
move the trailer to the left. Move your hand to the right to move the
trailer to the right. (This is generally opposite to reversing without a
trailer attached.) Avoid sharp or prolonged turning. Have someone
guide you when reversing to reduce the risk of an accident.
● As stopping distance is increased when towing a trailer, vehicle-to-
vehicle distance should be increased. For each 10 mph (16 km/h) of
speed, allow at least one vehicle and trailer length.
● Avoid sudden braking as you may skid, resulting in the trailer jackknif-
ing and loss of vehicle control. This is especially true on wet or slippery
surfaces.
GX460_OM_OM60J63U_(U).book Page 386 Thursday, March 29, 2012 9:10 AM

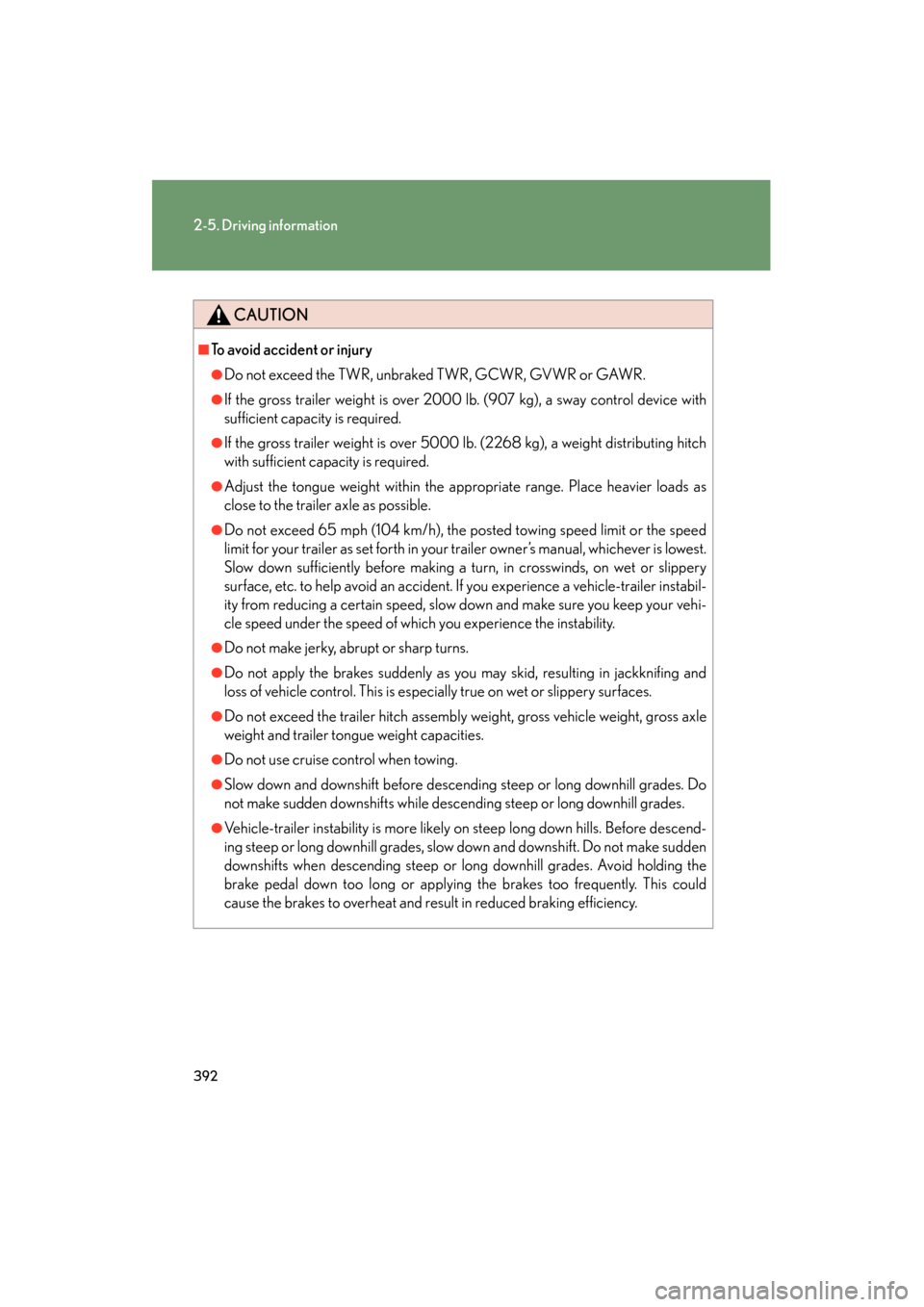

392
2-5. Driving information
GX460_OM_OM60J63U_(U)
CAUTION
■To avoid accident or injury
●Do not exceed the TWR, unbraked TWR, GCWR, GVWR or GAWR.
●If the gross trailer weight is over 2000 lb. (907 kg), a sway control device with
sufficient capacity is required.
●If the gross trailer weight is over 5000 lb. (2268 kg), a weight distributing hitch
with sufficient capacity is required.
●Adjust the tongue weight within the appropriate range. Place heavier loads as
close to the trailer axle as possible.
●Do not exceed 65 mph (104 km/h), the posted towing speed limit or the speed
limit for your trailer as set forth in your trailer owner’s manual, whichever is lowest.
Slow down sufficiently before making a turn, in crosswinds, on wet or slippery
surface, etc. to help avoid an accident. If you experience a vehicle-trailer instabil-
ity from reducing a certain speed, slow down and make sure you keep your vehi-
cle speed under the speed of which you experience the instability.
●Do not make jerky, abrupt or sharp turns.
●Do not apply the brakes suddenly as you may skid, resulting in jackknifing and
loss of vehicle control. This is especially true on wet or slippery surfaces.
●Do not exceed the trailer hitch assembly weight, gross vehicle weight, gross axle
weight and trailer tongue weight capacities.
●Do not use cruise control when towing.
●Slow down and downshift before descending steep or long downhill grades. Do
not make sudden downshifts while descending steep or long downhill grades.
●Vehicle-trailer instability is more likely on steep long down hills. Before descend-
ing steep or long downhill grades, slow down and downshift. Do not make sudden
downshifts when descending steep or long downhill grades. Avoid holding the
brake pedal down too long or applying the brakes too frequently. This could
cause the brakes to overheat and result in reduced braking efficiency.
GX460_OM_OM60J63U_(U).book Page 392 Thursday, March 29, 2012 9:10 AM

419
3
Interior features
GX460_OM_OM60J63U_(U)
3-2. Using the audio system
Audio system
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation system
CD player with a changer and AM/FM radio
Ti t l ePa g e
Using the radioP. 4 2 1
Using the CD playerP. 4 2 9
Playing MP3 and WMA discsP. 4 3 7
Operating an iPodP. 4 4 6
Operating a USB memoryP. 4 5 4
Optimal use of the audio systemP. 4 6 3
Using the AUX portP. 4 6 5
Using the steering wheel audio switchesP. 4 6 6
GX460_OM_OM60J63U_(U).book Page 419 Thursday, March 29, 2012 9:10 AM
