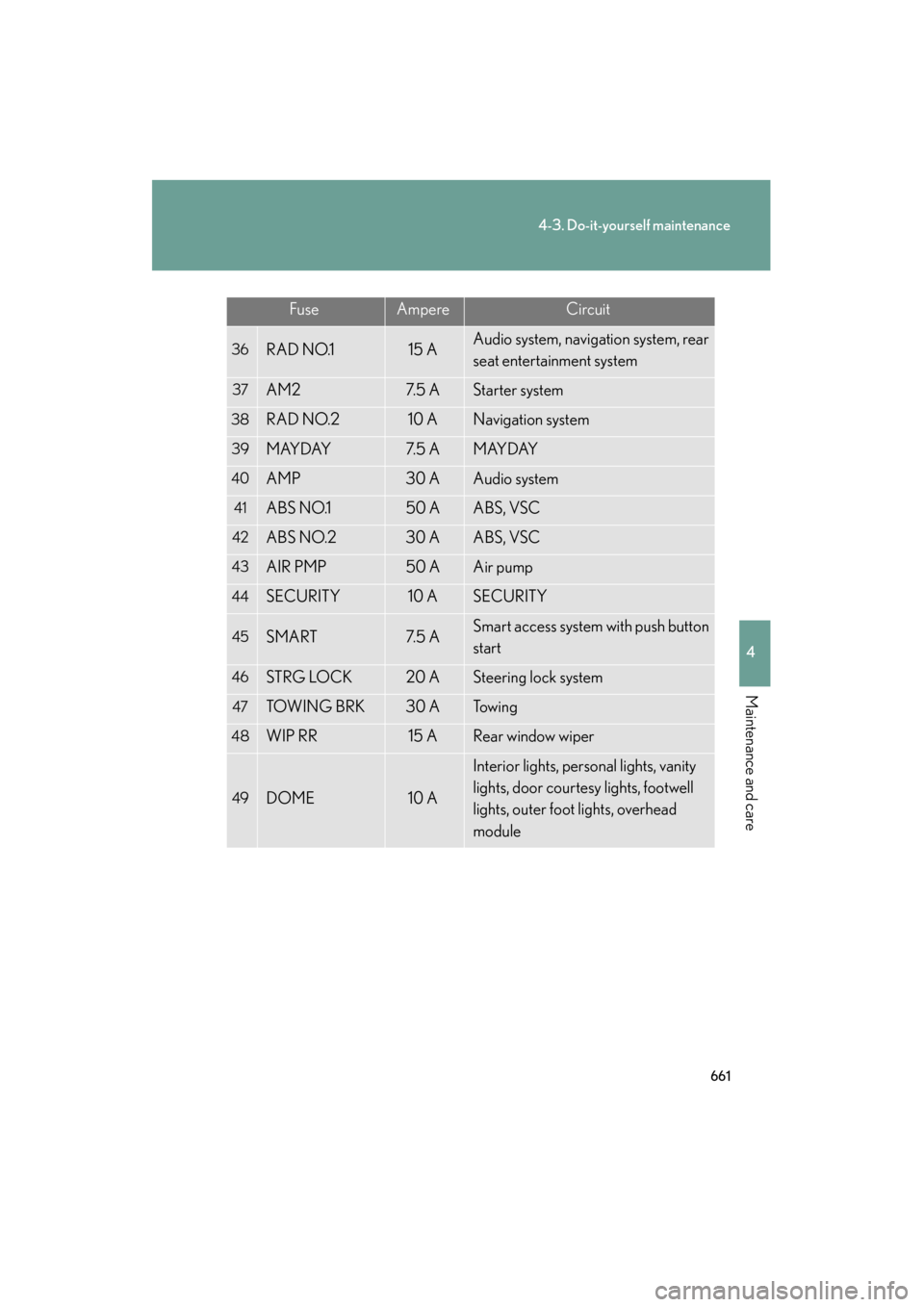

661
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
36RAD NO.115 AAudio system, navigation system, rear
seat entertainment system
37AM27. 5 AStarter system
38RAD NO.210 ANavigation system
39MAYDAY7. 5 AMAYDAY
40AMP30 AAudio system
41ABS NO.150 AABS, VSC
42ABS NO.230 AABS, VSC
43AIR PMP50 AAir pump
44SECURITY10 ASECURITY
45SMART7. 5 ASmart access system with push button
start
46STRG LOCK20 ASteering lock system
47TOW I N G B R K30 ATo w i n g
48WIP RR15 ARear window wiper
49DOME10 A
Interior lights, personal lights, vanity
lights, door courtesy lights, footwell
lights, outer foot lights, overhead
module
FuseAmpereCircuit
GX460_OM_OM60J63U_(U).book Page 661 Thursday, March 29, 2012 9:10 AM

663
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)Under the instrument panel
FuseAmpereCircuit
1P/O U T L E T15 APo w e r o u t l e t
2ACC7. 5 A
Outside rear view mirror motor,
BODY ECU, air conditioning system,
audio system, navigation system,
parking assist system, back up relay,
DSS#2 ECU, AT indicator, EFI ECU,
shift lock ECU, DCM, MAYDAY
ECU
3BKUP LP10 A
Back-up lights, audio system, multi
information display, DSS#2 ECU,
parking assist sensor
4TOW I N G B K L P10 ATo w i n g
5AV S20 AAir suspension system
6KDSS10 AKDSS ECU
GX460_OM_OM60J63U_(U).book Page 663 Thursday, March 29, 2012 9:10 AM

665
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
19ECU-IG NO.210 A
Rear window defogger, outside rear
view mirror memory, seat heater/ven-
tilator switch, inverter relay, air condi-
tioning system, EC mirror, BODY
ECU, exhaust gas sensor, parking
assist sensor, navigation system,
DSS#2 ECU, meter switch, accessory
meter, folding seat ECU, O/H IG,
head light cleaner, rear air condition-
ing system, deicer, D-module, rain
sensor, air suspension, RR VLV ECU,
steering heater, LKA, P/SEAT IND
20S/HTR FR20 ASeat heater and ventilator
21P/ S E AT F R30 AFront power seat (right)
22DOOR P30 A
Front power window (passenger’s
side), outside rear view mirror mem-
ory
23DOOR10 APo w e r w i n d o w
24DOOR D25 AFront power window (driver’s side)
25DOOR RR25 ARear power window (right)
26S/ROOF25 AMoon roof
27WIP30 AWindshield wipers and washer
28WA S H E R20 AWindshield wipers and washer, rear
window wipers and washer
29COOLING10 ACool box
FuseAmpereCircuit
GX460_OM_OM60J63U_(U).book Page 665 Thursday, March 29, 2012 9:10 AM

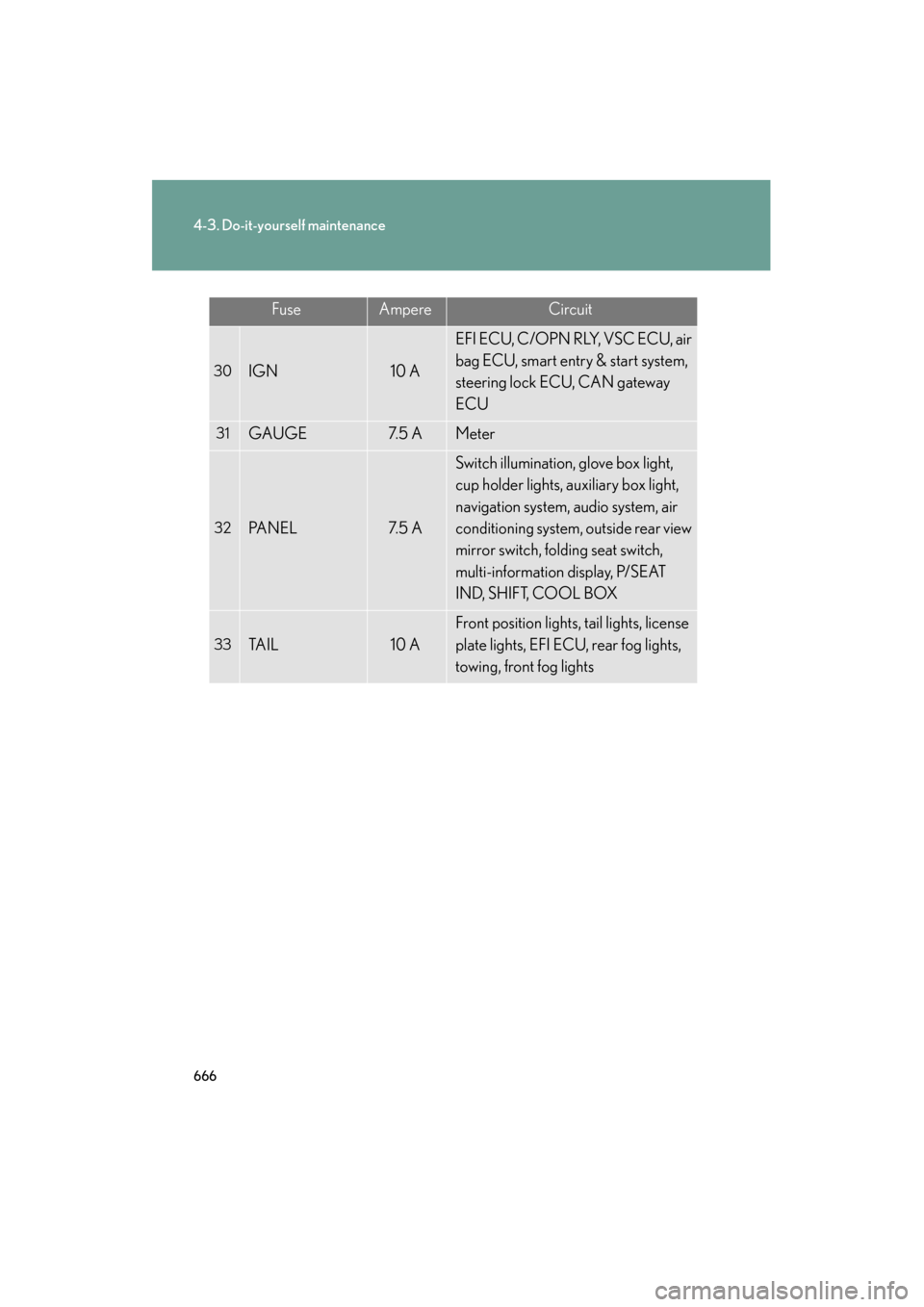

666
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
30IGN10 A
EFI ECU, C/OPN RLY, VSC ECU, air
bag ECU, smart entry & start system,
steering lock ECU, CAN gateway
ECU
31GAUGE7. 5 AMeter
32PA N E L7. 5 A
Switch illumination, glove box light,
cup holder lights, auxiliary box light,
navigation system, audio system, air
conditioning system, outside rear view
mirror switch, folding seat switch,
multi-information display, P/SEAT
IND, SHIFT, COOL BOX
33TA I L10 A
Front position lights, tail lights, license
plate lights, EFI ECU, rear fog lights,
towing, front fog lights
FuseAmpereCircuit
GX460_OM_OM60J63U_(U).book Page 666 Thursday, March 29, 2012 9:10 AM

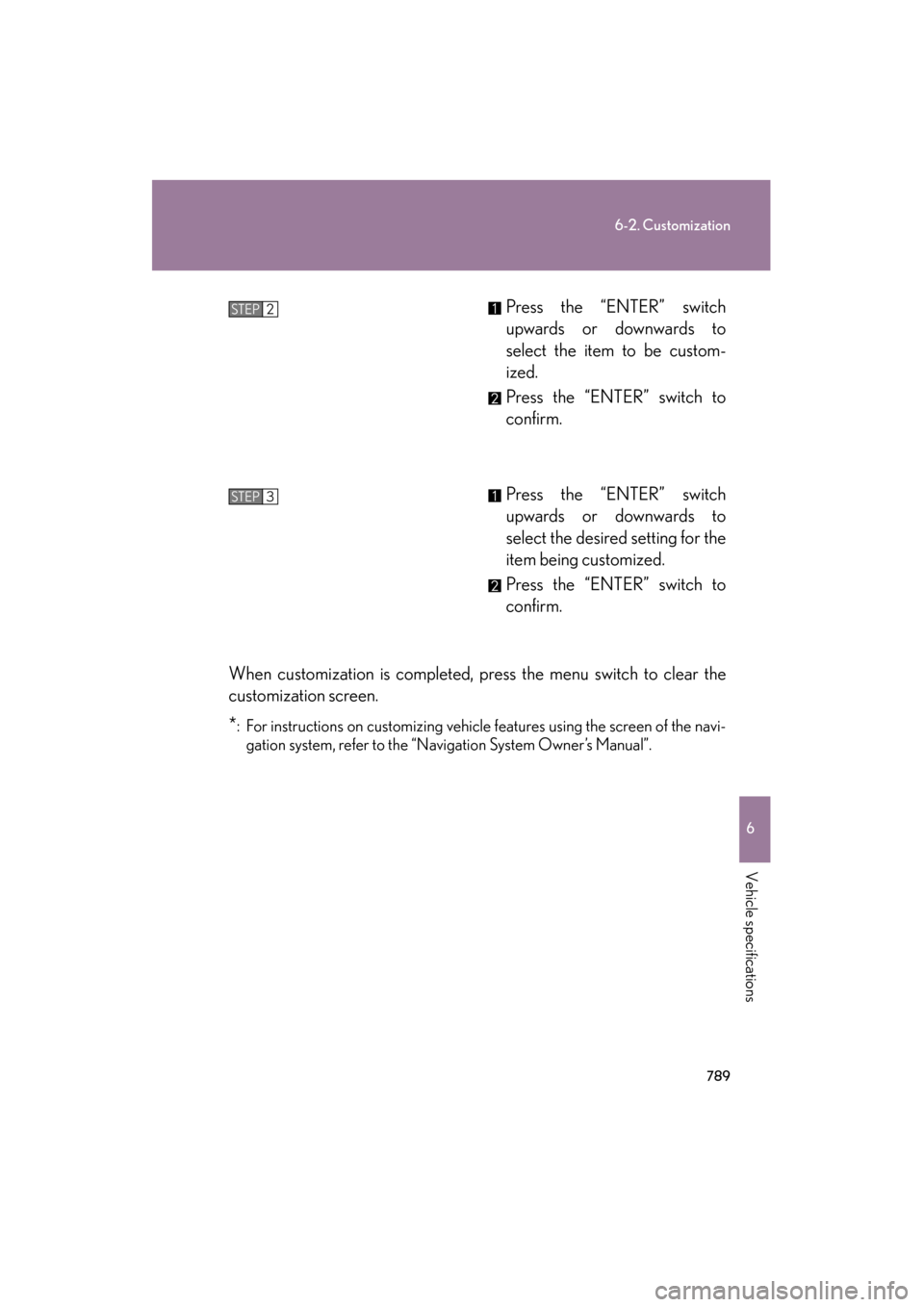

789
6-2. Customization
6
Vehicle specifications
GX460_OM_OM60J63U_(U)Press the “ENTER” switch
upwards or downwards to
select the item to be custom-
ized.
Press the “ENTER” switch to
confirm.
Press the “ENTER” switch
upwards or downwards to
select the desired setting for the
item being customized.
Press the “ENTER” switch to
confirm.
When customization is completed, press the menu switch to clear the
customization screen.
*: For instructions on customizing vehicle features using the screen of the navi- gation system, refer to the “Navigation System Owner’s Manual”.
STEP2
STEP3
GX460_OM_OM60J63U_(U).book Page 789 Thursday, March 29, 2012 9:10 AM

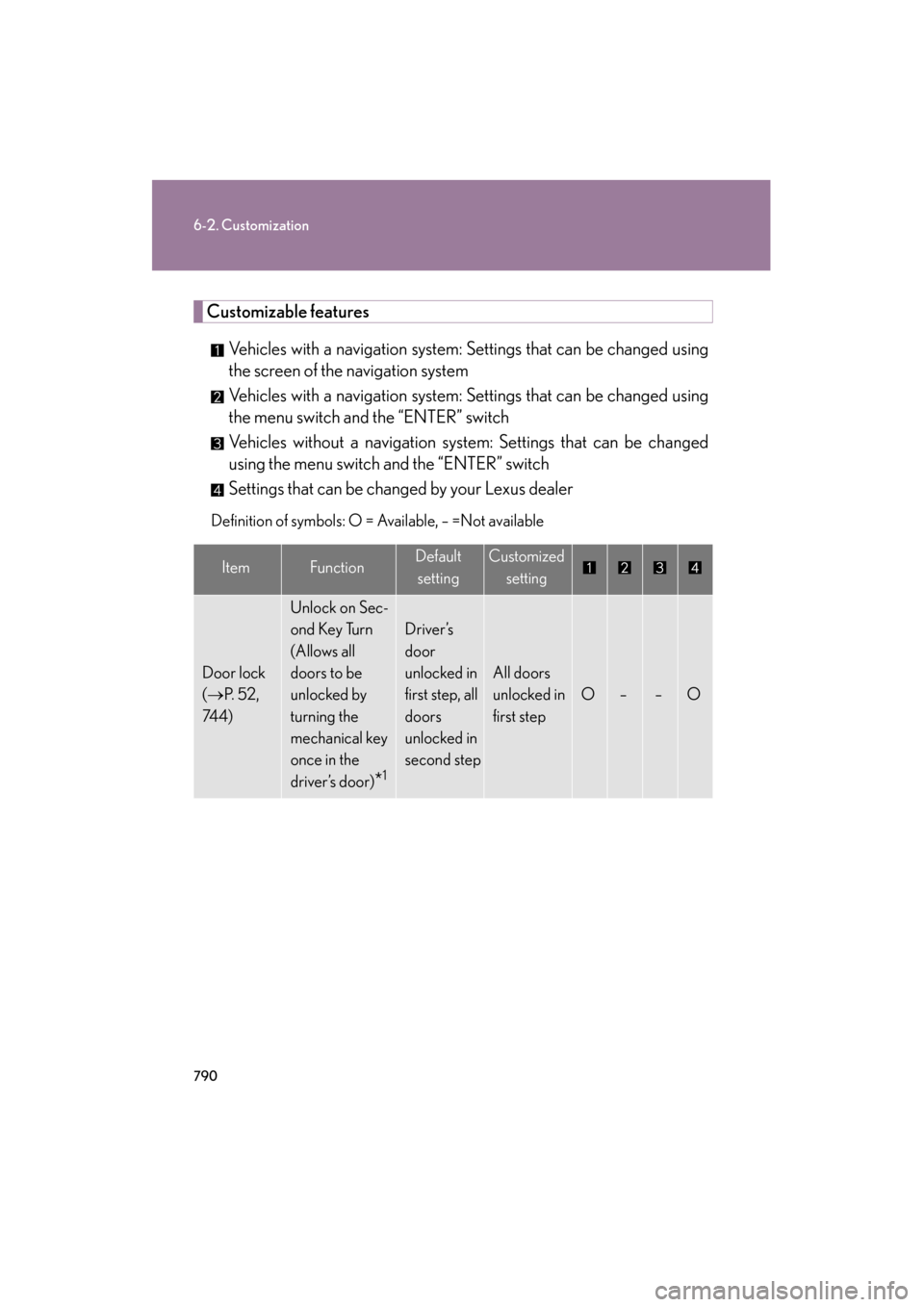

790
6-2. Customization
GX460_OM_OM60J63U_(U)
Customizable featuresVehicles with a navigation system: Settings that can be changed using
the screen of the navigation system
Vehicles with a navigation system: Settings that can be changed using
the menu switch and the “ENTER” switch
Vehicles without a navigation system: Settings that can be changed
using the menu switch and the “ENTER” switch
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, – =Not available
ItemFunctionDefault settingCustomized setting
Door lock
(→ P. 5 2 ,
744)
Unlock on Sec-
ond Key Turn
(Allows all
doors to be
unlocked by
turning the
mechanical key
once in the
driver’s door)
*1
Driver’s
door
unlocked in
first step, all
doors
unlocked in
second step
All doors
unlocked in
first step
O––O
GX460_OM_OM60J63U_(U).book Page 790 Thursday, March 29, 2012 9:10 AM

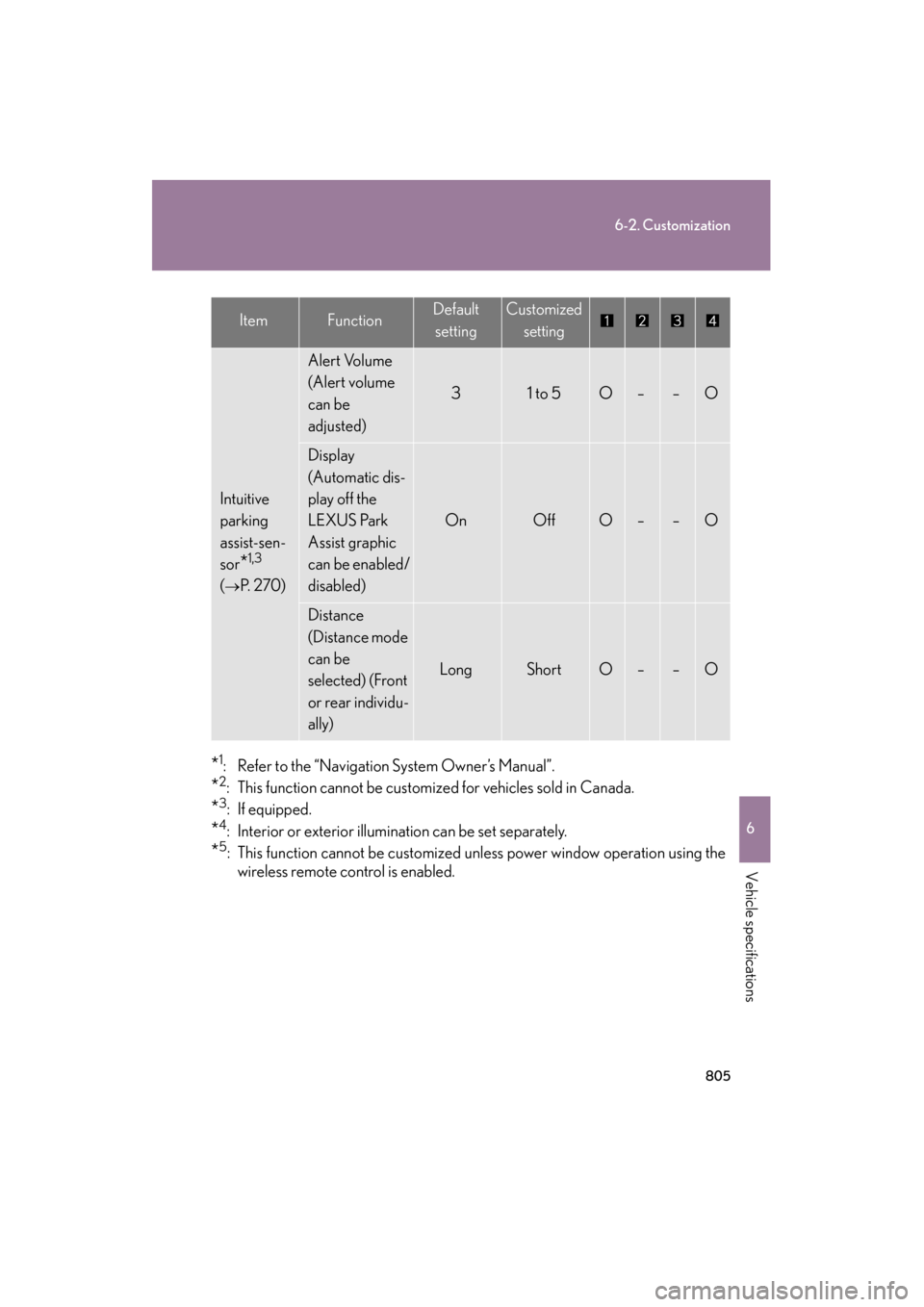

805
6-2. Customization
6
Vehicle specifications
GX460_OM_OM60J63U_(U)
*1: Refer to the “Navigation System Owner’s Manual”.
*2: This function cannot be customized for vehicles sold in Canada.
*3: If equipped.
*4: Interior or exterior illumination can be set separately.
*5: This function cannot be customized unless power window operation using thewireless remote control is enabled.
Intuitive
parking
assist-sen-
sor
*1,3
(
→P. 2 7 0 )
Alert Volume
(Alert volume
can be
adjusted)
31 to 5O––O
Display
(Automatic dis-
play off the
LEXUS Park
Assist graphic
can be enabled/
disabled)
OnOffO––O
Distance
(Distance mode
can be
selected) (Front
or rear individu-
ally)
LongShortO––O
ItemFunctionDefault settingCustomized setting
GX460_OM_OM60J63U_(U).book Page 805 Thursday, March 29, 2012 9:10 AM

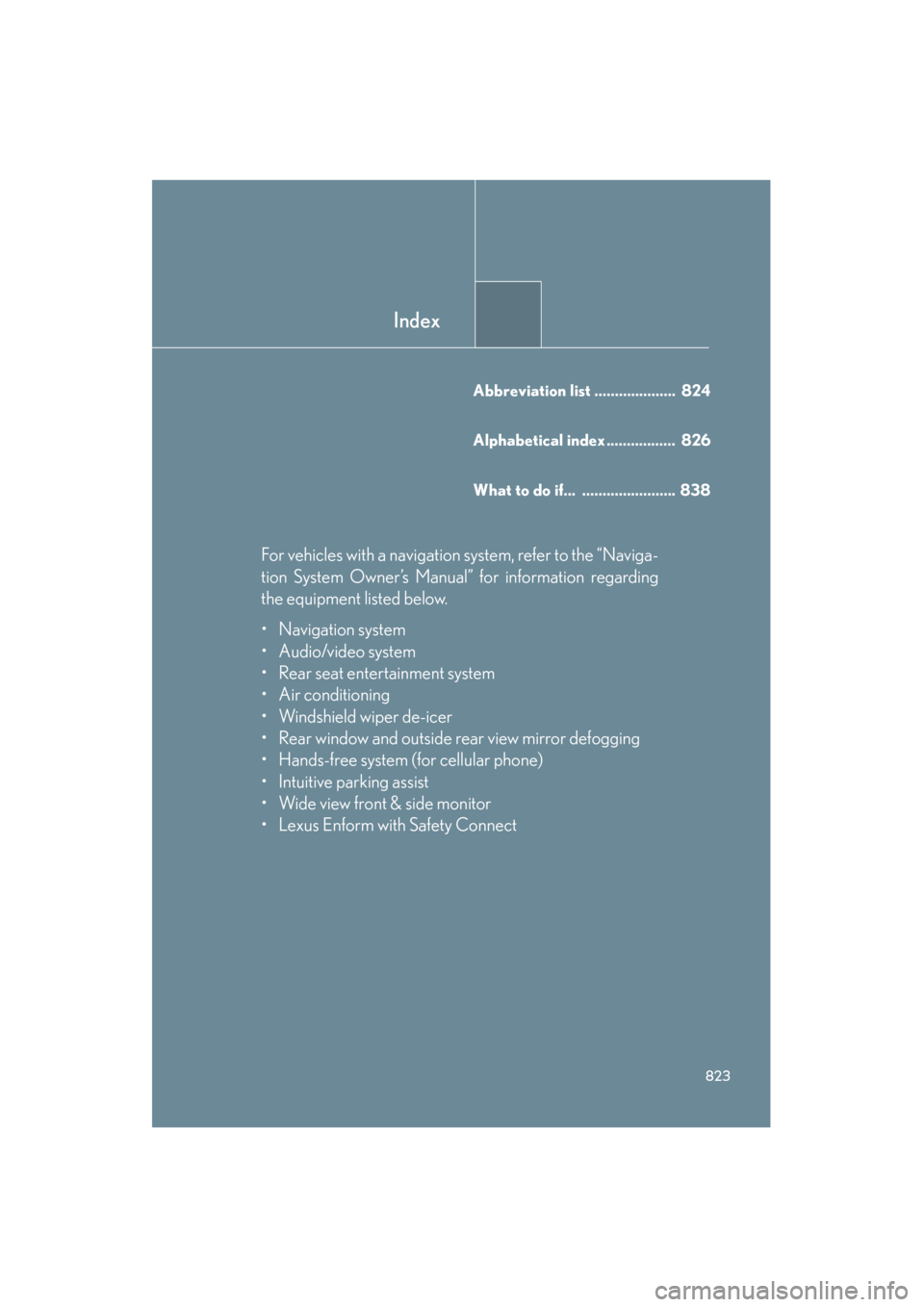

Index
823
GX460_OM_OM60J63U_(U)
Abbreviation list .................... 824
Alphabetical index ................. 826
What to do if... ....................... 838
For vehicles with a navigation system, refer to the “Naviga-
tion System Owner’s Manual” for information regarding
the equipment listed below.
• Navigation system
• Audio/video system
• Rear seat entertainment system
• Air conditioning
• Windshield wiper de-icer
• Rear window and outside rear view mirror defogging
• Hands-free system (for cellular phone)
• Intuitive parking assist
• Wide view front & side monitor
• Lexus Enform with Safety Connect
GX460_OM_OM60J63U_(U).book Page 823 Thursday, March 29, 2012 9:10 AM

827
Alphabetical index
GX460_OM_OM60J63U_(U)
Back doorBack door .................................................57
Wireless remote control....................49
Back-up lights
Replacing light bulbs ....................... 679
Wattage ................................................. 769
Battery Battery.......................................................631
Checking ................................................. 631
If the vehicle has discharged
battery.................................................. 746
Preparing and checking
before winter...................................... 371
Bluetooth
®*.................................470, 491
Bottle holders/door pockets........... 535
Brake Fluid ...........................................................627
Parking brake ........................................ 197
Brake assist ............................................. 339
Brake in tips .............................................. 173
Brightness control Multi-information display light
control ................................................... 219
Instrument cluster light control...200
Care Exterior ...................................................596
Interior.......................................................601
Seat belts ............................................... 602
Cargo capacity ..................................... 364
Cargo hooks .......................................... 565
Cargo net hooks .................................. 566 CD player/changer
*.......................... 429
Center differential lock/unlock ...... 327
Chains .........................................................371
Child restraint system
Booster seats, definition .................. 150
Booster seats, installation ............... 158
Convertible seats, definition.......... 150
Convertible seats, installation ....... 158
Front passenger occupant classification system ....................... 143
Infant seats, definition ........................ 150
Infant seats, installation ..................... 158
Installing CRS with lower anchorages......................................... 156
Installing CRS with seatbelts ......... 158
Installing CRS with top straps....... 164
Child safety Airbag precautions ............................ 136
Battery precautions ............... 631, 748
Child restraint system ....................... 150
Child-protectors ................................... 53
How your child should wear
the seatbelt............................................ 92
Installing child restraints................... 155
Moon roof precautions...................... 112
Power window lock switch ............ 105
Power window precautions .......... 107
Removed electronic key
battery precautions ...................... 654
Seat belt extender precautions......96
Seat belt precautions .......................... 93
Seat heater precautions................. 559B
C
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
GX460_OM_OM60J63U_(U).book Page 827 Thursday, March 29, 2012 9:10 AM

829
Alphabetical index
GX460_OM_OM60J63U_(U)
Electronic keyIf the electronic key does not
operate properly .............................744
Emergency, in case of
If the electronic key does not operate properly .............................744
If the engine will not start ............... 740
If the shift lever cannot be shifted from P.................................... 742
If the vehicle has discharged
battery.................................................. 746
If the warning buzzer sounds...... 693
If the warning light turns on .......... 693
If the warning message is
displayed ............................................ 705
If you have a flat tire .........................726
If you lose your keys .........................743
If you think something is
wrong.....................................................691
If your vehicle becomes stuck .....752
If your vehicle has to be stopped in an emergency ......... 754
If your vehicle needs to be towed ...................................................685
If your vehicle overheats................ 749
Emergency flashers
Switch ......................................................684 Engine
Accessory mode................................. 183
Compartment....................................... 618
Engine switch ........................................ 183
Hood ..........................................................617
How to start the engine ................... 183
Identification number .......................759
If the engine will not start................740
Ignition switch ....................................... 183
Overheating ......................................... 749
Engine compartment cover .............. 619
Engine coolant Capacity ................................................. 763
Checking ............................................... 624
Preparing and checking before winter ......................................371
Engine coolant temperature gauge....................................................... 199
Engine immobilizer system.................. 119
Engine oil Capacity ...................................................761
Checking .............................................. 620
Preparing and checking before winter ......................................371
Engine switch .......................................... 183
Engine switch light................................ 525
Event data recorder (EDR) ................. 23E
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
sec_08-02.fm Page 829 Thursday, March 29, 2012 10:00 AM
