50
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)
■Operation signals
Doors: A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Windows and moon roof: A buzzer sounds to indicate that the windows and moon
roof are operating.
Glass hatch: A buzzer sounds once to indicate that the glass hatch have been
opened.
■Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a buzzer
sounds continuously. Fully close the door to stop the buzzer, and lock the vehicle
once more.
■Pa n ic m o d e
■Security feature
→P. 3 9
■Alarm
Using the wireless remote control to lock the doors will set the alarm system.
(→ P. 1 2 1 ) When is pressed for longer than about
one second, an alarm will sound intermit-
tently and the vehicle lights will flash to deter
any person from trying to break into or dam-
age your vehicle.
To stop the alarm, press any button on the
electronic key.
GX460_OM_OM60J63U_(U).book Page 50 Thursday, March 29, 2012 9:10 AM

51
1-2. Opening, closing and locking the doors
1
Before driving
GX460_OM_OM60J63U_(U)
■Conditions affecting operation
→P. 4 1
■If the wireless remote control does not operate properly
Locking and unlocking the doors: Use the mechanical key. ( →P. 74 4 )
■Key battery depletion
→P. 4 6
■When the electronic key battery is fully depleted
→P. 6 5 2
■Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features →P. 7 8 8 )
GX460_OM_OM60J63U_(U).book Page 51 Thursday, March 29, 2012 9:10 AM

52
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)

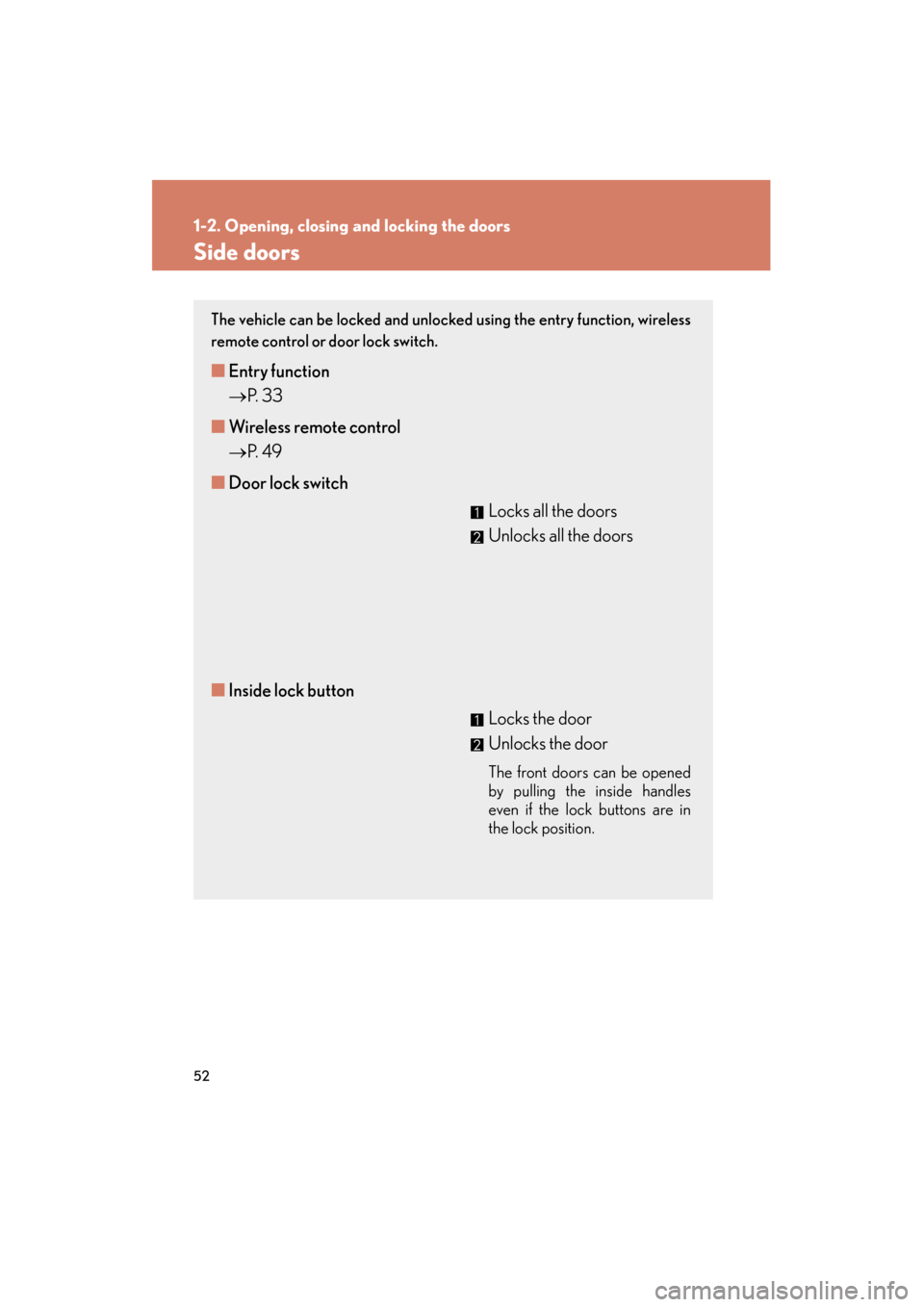

Side doors
The vehicle can be locked and unlocked using the entry function, wireless
remote control or door lock switch.
■Entry function
→ P. 3 3
■ Wireless remote control
→ P. 4 9
■ Door lock switch
Locks all the doors
Unlocks all the doors
■ Inside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.
GX460_OM_OM60J63U_(U).book Page 52 Thursday, March 29, 2012 9:10 AM

53
1-2. Opening, closing and locking the doors
1
Before driving
GX460_OM_OM60J63U_(U)
Locking the driver’s door from the outside without a keyMove the inside lock button to the lock position.
Close the door.
The door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
The key may not be detected correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock is
set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 53 Thursday, March 29, 2012 9:10 AM

54
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)
Automatic door locking and unlocking systems
The following functions can be set or canceled:
FunctionOperation
Shift position linked door
locking functionShifting the shift lever out of P locks all the
doors.
Shift position linked door
unlocking functionShifting the shift lever to P unlocks all the doors.
Speed linked door locking
functionAll the doors are locked when the vehicle
speed is approximately 12 mph (20 km/h) or
higher.
Driver’s door linked door
unlocking functionAll the doors are unlocked when the driver’s
door is opened within 43 seconds after turning
the “ENGINE START STOP” switch off.
GX460_OM_OM60J63U_(U).book Page 54 Thursday, March 29, 2012 9:10 AM

55
1-2. Opening, closing and locking the doors
1
Before driving
GX460_OM_OM60J63U_(U)■
Setting and canceling the functions
To switch between setting and canceling, follow the procedure below.
Close all the doors and turn the “ENGINE START STOP” switch
to IGNITION ON mode. (Perform step 2 within 10 seconds.)
Shift the shift lever to P or N, and
press and hold the driver’s door
lock switch ( or
) for
approximately 5 seconds and then
release.
The shift lever and switch positions
corresponding to the desired func-
tion to be set are shown in the fol-
lowing table.
Use the same procedure to cancel
the function.
When the setting or canceling operation is complete, all the doors are
locked and then unlocked.
STEP1
STEP2
FunctionShift lever positionDriver’s door lock
switch position
Shift position linked door locking
function
PShift position linked door
unlocking function
Speed linked door locking
function
NDriver’s door linked door
unlocking function
GX460_OM_OM60J63U_(U).book Page 55 Thursday, March 29, 2012 9:10 AM

56
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (→P. 744)
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features →P. 788)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out, resulting in
death or serious injury.
●Always use a seat belt.
●Always lock all doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehicle and it
may result in death or serious injury.
Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the second
seat.
GX460_OM_OM60J63U_(U).book Page 56 Thursday, March 29, 2012 9:10 AM

57
1
1-2. Opening, closing and locking the doors
Before driving
GX460_OM_OM60J63U_(U)

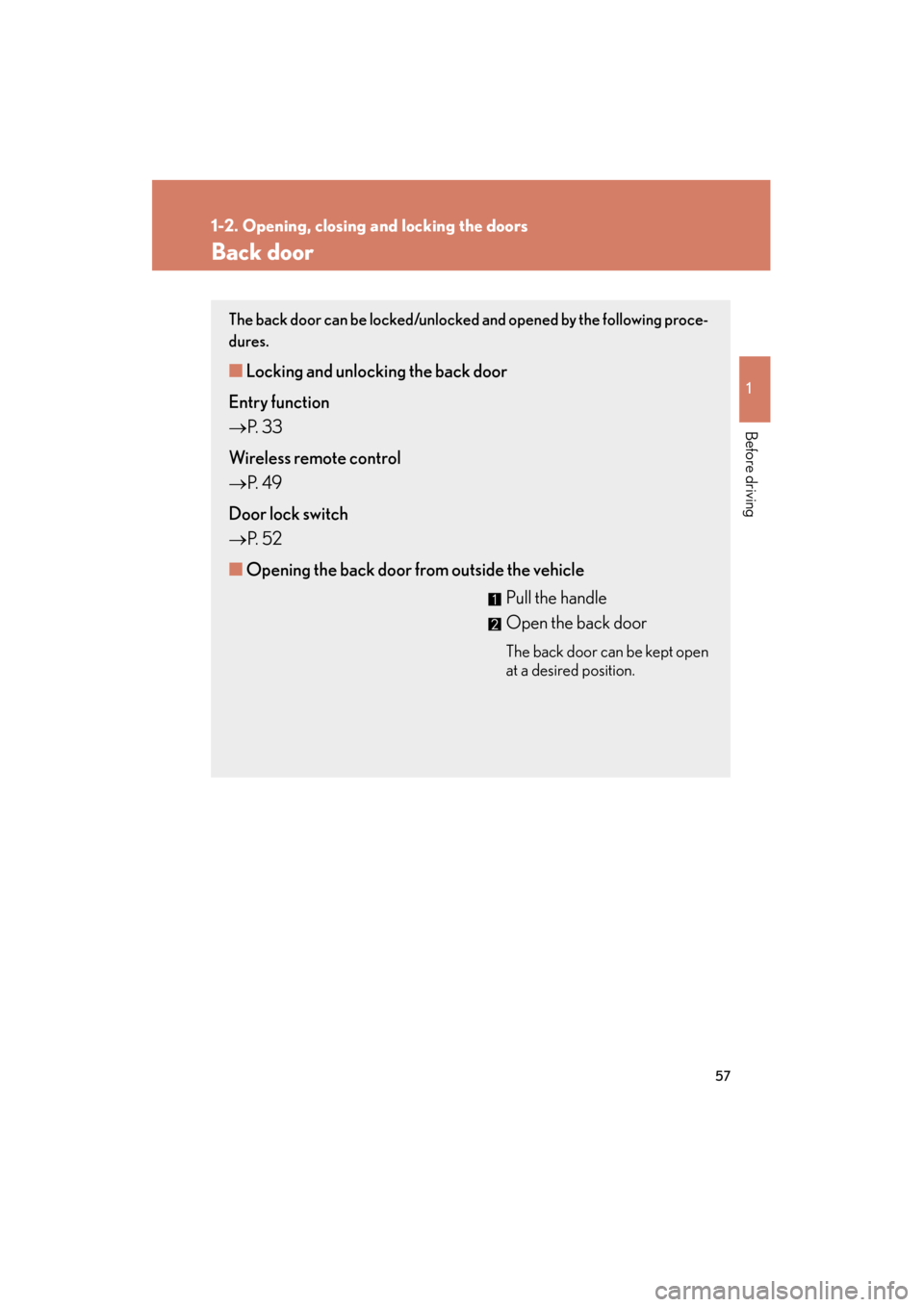

Back door
The back door can be locked/unlocked and opened by the following proce-
dures.
■Locking and unlocking the back door
Entry function
→ P. 3 3
Wireless remote control
→ P. 4 9
Door lock switch
→ P. 5 2
■ Opening the back door fr om outside the vehicle
Pull the handle
Open the back door
The back door can be kept open
at a desired position.
GX460_OM_OM60J63U_(U).book Page 57 Thursday, March 29, 2012 9:10 AM

58
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)
Rear step bumperThe rear step bumper is for rear
end protection and easier step-up
loading.
■Keeping the back door open
Unlocks the back door stop-
per
Locks the back door stopper
The back door stopper can only
be operated when the back
door is fully open.
When closing the back door,
check that the back door stop-
per is unlocked.
GX460_OM_OM60J63U_(U).book Page 58 Thursday, March 29, 2012 9:10 AM

59
1-2. Opening, closing and locking the doors
1
Before driving
GX460_OM_OM60J63U_(U)

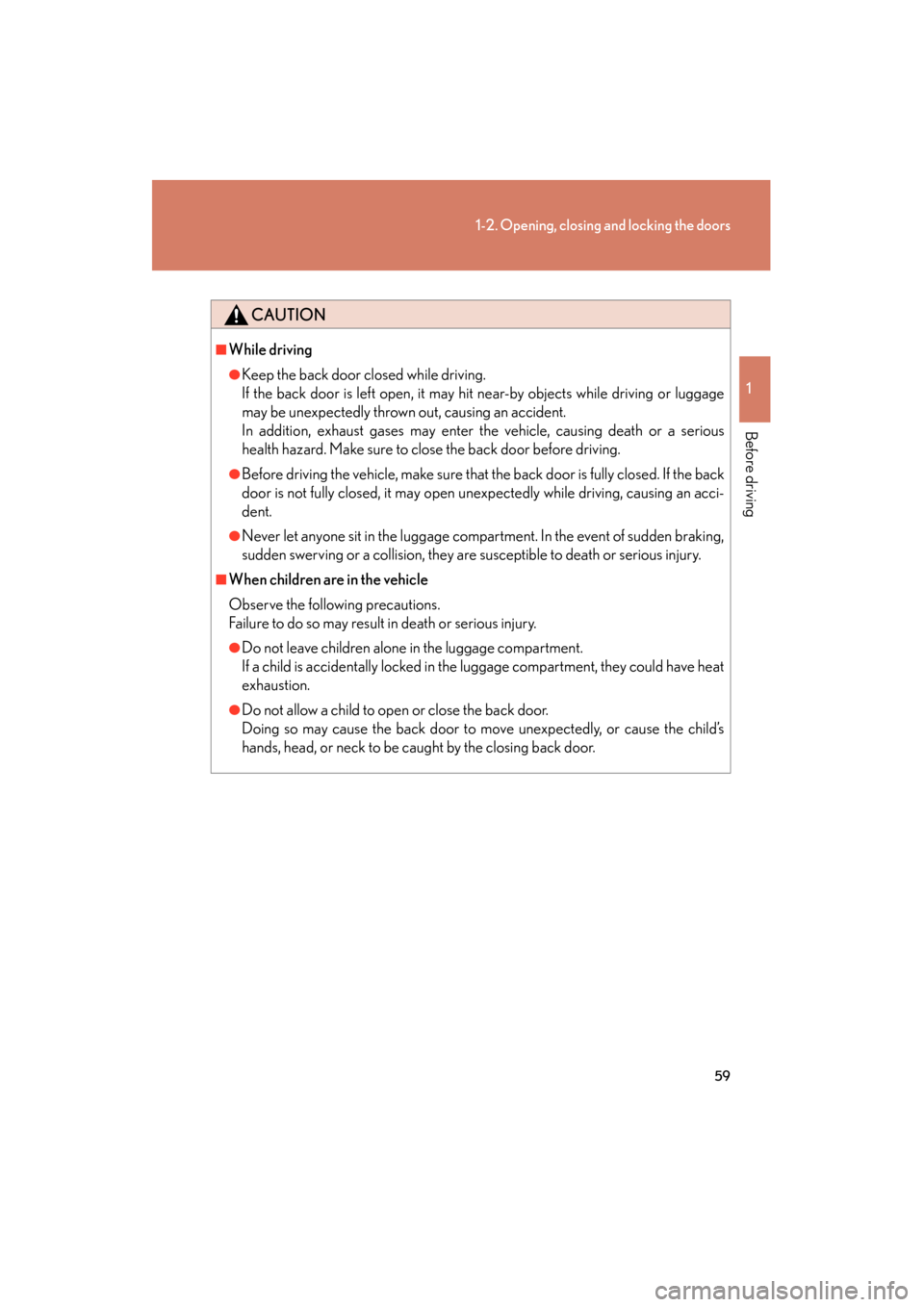

CAUTION
■While driving
●Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or luggage
may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a serious
health hazard. Make sure to close the back door before driving.
●Before driving the vehicle, make sure that the back door is fully closed. If the back
door is not fully closed, it may open unexpectedly while driving, causing an acci-
dent.
●Never let anyone sit in the luggage compartment. In the event of sudden braking,
sudden swerving or a collision, they are susceptible to death or serious injury.
■When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not leave children alone in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could have heat
exhaustion.
●Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the child’s
hands, head, or neck to be caught by the closing back door.
GX460_OM_OM60J63U_(U).book Page 59 Thursday, March 29, 2012 9:10 AM
