power steering Lexus GX460 2013 Owner's Manual

TABLE OF CONTENTSIndex
2
GX460_OM_OM60J63U_(U)
1-1. Key informationKeys ...................................................... 28
1-2. Opening, closing and locking the doors
Smart access system with push-button start ........................... 31
Wireless remote control .............. 49
Side doors .......................................... 52
Back door ........................................... 57
Glass hatch ........................................ 62
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
Front seats .......................................... 67
Rear seats ............................................. 71
Driving position memory (driver’s seat) ................................. 82
Head restraints................................. 86
Seat belts ........................................... 89 Steering wheel.................................. 97
Inside rear view mirror.................. 99
Outside rear view mirrors .......... 101
1-4. Opening and closing the windows and moon roof
Power windows.............................. 105
Moon roof ........................................ 108
1-5. Refueling Opening the fuel tank cap........... 113
1-6. Theft deterrent system Engine immobilizer system ......... 119
Alarm.................................................... 121
1-7. Safety information Correct driving posture ............. 124
SRS airbags ..................................... 126
Front passenger occupant classification system .................. 143
Child restraint systems ............... 150
Installing child restraints ............. 155
1Before driving
For vehicles with a navigation system, refer to the “Navigation System Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Audio/video system
• Rear seat entertainment system
• Air conditioning
• Windshield wiper de-icer
• Rear window and outside rear view mirror defogging •Hands-free system (for cellular
phone)
• Intuitive parking assist
• Wide view front & side monitor
• Lexus Enform with Safety Connect
GX460_OM_OM60J63U_(U).book Page 2 Thursday, March 29, 2012 9:10 AM

1
2
3
4
5
6
7
5
GX460_OM_OM60J63U_(U)

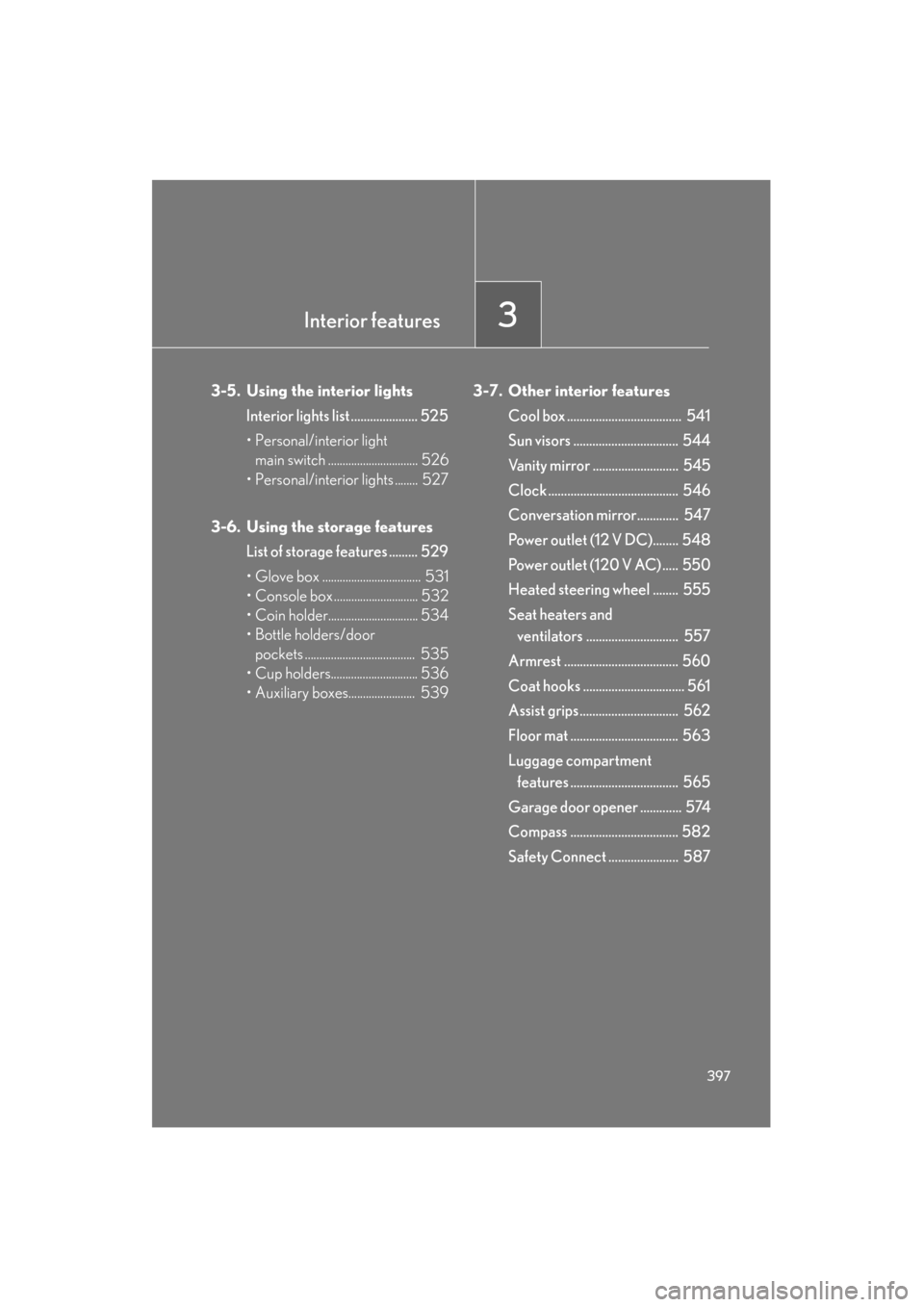

3-6. Using the storage featuresList of storage features............... 529
• Glove box ..................................... 531
• Console box ................................ 532
• Coin holder.................................. 534
• Bottle holders/door pockets ......................................... 535
• Cup holders................................. 536
• Auxiliary boxes........................... 539
3-7. Other interior features Cool box ........................................... 541
Sun visors......................................... 544
Vanity mirror .................................. 545
Clock ................................................. 546
Conversation mirror................... 547
Power outlet (12 V DC) ........... 548
Power outlet (120 V AC) ........ 550
Heated steering wheel.............. 555
Seat heaters and ventilators .... 557
Armrest ........................................... 560
Coat hooks ...................................... 561
Assist grips ...................................... 562
Floor mat.......................................... 563
Luggage compartment features.......................................... 565
Garage door opener.................. 574
Compass......................................... 582
Safety Connect ............................. 587 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior................... 596
Cleaning and protecting the vehicle interior ..................... 601
4-2. Maintenance Maintenance requirements ..... 604
General maintenance ................ 607
Emission inspection and maintenance (I/M)
programs ......................................... 611
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................... 612
Hood ................................................... 617
Engine compartment................... 618
Tires ................................................... 636
Tire inflation pressure................. 643
Wheels ............................................. 647
Air conditioning filter................. 650
Electronic key battery ................ 652
Checking and replacing fuses ................................................ 655
Headlight aim (vehicles with low beam halogen bulbs)....... 668
Light bulbs ....................................... 670
4Maintenance and care
GX460_OM_OM60J63U_(U).book Page 5 Thursday, March 29, 2012 9:10 AM

Before driving1
27
GX460_OM_OM60J63U_(U)
1-1. Key informationKeys .............................................. 28
1-2. Opening, closing and locking the doors
Smart access system with push-button start ..................... 31
Wireless remote control ......... 49
Side doors.................................... 52
Back door .................................... 57
Glass hatch ................................. 62
1-3. Adjustable components (seats, mirrors, steering
wheel, etc.)
Front seats ................................... 67
Rear seats ..................................... 71
Driving position memory (driver’s seat) .......................... 82
Head restraints .......................... 86
Seat belts .................................... 89
Steering wheel ........................... 97
Inside rear view mirror ............ 99
Outside rear view mirrors ..... 101 1-4. Opening and closing the
windows and moon roof
Power windows ........................ 105
Moon roof ................................. 108
1-5. Refueling Opening the fuel tank cap ............................................. 113
1-6. Theft deterrent system Engine immobilizer system ....................................... 119
Alarm........................................... 121
1-7. Safety information Correct driving posture ....... 124
SRS airbags .............................. 126
Front passenger occupant classification system............ 143
Child restraint systems ......... 150
Installing child restraints....... 155
GX460_OM_OM60J63U_(U).book Page 27 Thursday, March 29, 2012 9:10 AM

68
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_OM_OM60J63U_(U)
Power easy access systemWhen the driver enters and exits the vehicle, the driver’s seat and steer-
ing wheel will automatically perform the following operations: Exiting the vehicle: When all of the
following actions have been per-
formed, the steering wheel will
move up and back to the point far-
thest away from the driver and the
seat will move backward (auto
away function):
• The shift lever has been shifted to P
•The “ENGINE START STOP”switch has been turned off
• The driver seat belt has been
unfastened
Entering the vehicle: When either
of the following actions has been
performed, the steering wheel will
move toward the driver and seat
will move forward (auto return
function):
•The “ENGINE START STOP”switch has been turned to ACCES-
SORY mode
• The driver seat belt has been fas- tened
GX460_OM_OM60J63U_(U).book Page 68 Thursday, March 29, 2012 9:10 AM

78
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_OM_OM60J63U_(U)■
Returning the third seats
Press and hold .
Two beeps sound and seatback
and seat cushion begin to move.
When operating is completed, two
beeps sound again.
Lift the head restraints up until they
lock.
STEP1
STEP2
■The third power seats can be operated when
●The “ENGINE START STOP” switch is off.
●The shift lever is in P position with the “ENGINE START STOP” switch in IGNI-
TION ON mode.
■During third power seat stowing operation
Do not remove your hand from the switch until the operation stops automatically. If
you remove your hand from the switch, the operation will stop and the buzzer will
sound continuously. The seat cannot be used in this state. The buzzer will stop when
the switch is pressed again.
GX460_OM_OM60J63U_(U).book Page 78 Thursday, March 29, 2012 9:10 AM

176
2-1. Driving procedures
GX460_OM_OM60J63U_(U)
CAUTION
■When driving the vehicle
●Do not shift the shift lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Do not shift the shift lever to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Do not shift the shift lever to D while the vehicle is moving backward.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Moving the shift lever to N while the vehicle is moving will disengage the engine
from the transmission. Engine braking is not available when N is selected.
●During normal driving, do not turn off the engine. Turning the engine off while
driving will not cause loss of steering or braking control, but the power assist to
these systems will be lost. This will make it more difficult to steer and brake, so you
should pull over and stop the vehicle as soon as it is safe to do so.
However, in the event of an emergency, such as if it becomes impossible to stop
the vehicle in the normal way: →P. 7 5 4
●Use engine braking (downshift) to maintain a safe speed when driving down a
steep hill.
Using the brakes continuously may cause the brakes to overheat and lose effec-
tiveness. ( →P. 1 9 1 )
●Do not adjust the positions of the steering wheel, the seat, or the inside or outside
rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents, resulting
in death or serious injury.
GX460_OM_OM60J63U_(U).book Page 176 Thursday, March 29, 2012 9:10 AM

182
2-1. Driving procedures
GX460_OM_OM60J63U_(U)
NOTICE
■Avoiding damage to vehicle parts
●Do not turn the steering wheel fully in either direction and hold it there for an
extended period of time.
Doing so may damage the power steering pump.
●When driving over bumps in the road, drive as slowly as possible to avoid damag-
ing the wheels, underside of the vehicle, etc.
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually depress the brake pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds or vibrations.
●The vehicle will lean abnormally.
Information on what to do in case of a flat tire ( →P. 7 2 6 )
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause the
following serious damage to the vehicle:
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to
have your Lexus dealer check the following:
●Brake function
●Changes in quantity and quality of oil and fluid used for the engine, transmission,
transfer, differentials, etc.
●Lubricant condition for the propeller shaft, bearings and suspension joints (where
possible), and the function of all joints, bearings, etc.
GX460_OM_OM60J63U_(U).book Page 182 Thursday, March 29, 2012 9:10 AM

188
2-1. Driving procedures
GX460_OM_OM60J63U_(U)

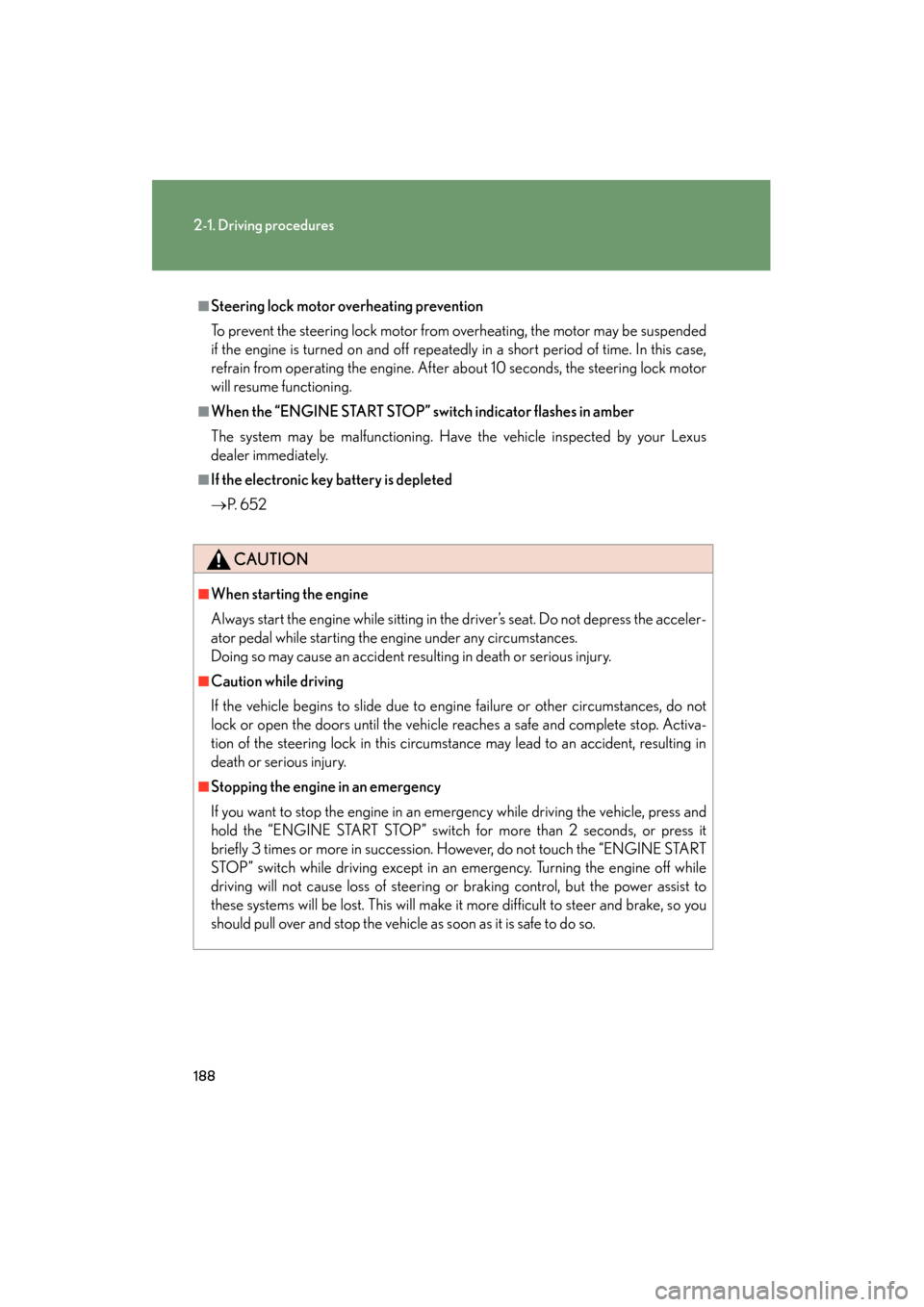

■Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be suspended
if the engine is turned on and off repeatedly in a short period of time. In this case,
refrain from operating the engine. After about 10 seconds, the steering lock motor
will resume functioning.
■When the “ENGINE START STOP” switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your Lexus
dealer immediately.
■If the electronic key battery is depleted
→ P. 6 5 2
CAUTION
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the acceler-
ator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Caution while driving
If the vehicle begins to slide due to engine failure or other circumstances, do not
lock or open the doors until the vehicle reaches a safe and complete stop. Activa-
tion of the steering lock in this circumstance may lead to an accident, resulting in
death or serious injury.
■Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle, press and
hold the “ENGINE START STOP” switch for more than 2 seconds, or press it
briefly 3 times or more in succession. However, do not touch the “ENGINE START
STOP” switch while driving except in an emergency. Turning the engine off while
driving will not cause loss of steering or braking control, but the power assist to
these systems will be lost. This will make it more difficult to steer and brake, so you
should pull over and stop the vehicle as soon as it is safe to do so.
GX460_OM_OM60J63U_(U).book Page 188 Thursday, March 29, 2012 9:10 AM

390
2-5. Driving information
GX460_OM_OM60J63U_(U)
■AVS (adaptive variable suspension system)
The suspension can be switched for improvement in driveability. (→P. 3 2 5 )
■Break-in schedule
If your vehicle is new or equipped with any new power train components (such as
an engine, transmission, differential or wheel bearing), Lexus recommends that you
do not tow a trailer until the vehicle has been driven for over 500 miles (800 km).
After the vehicle has been driven for over 500 miles (800 km), you can start tow-
ing. However, for the next 500 miles (800 km), drive the vehicle at a speed of less
than 50 mph (80 km/h) when towing a trailer, and avoid full throttle acceleration.
■Maintenance
●If you tow a trailer, your vehicle will require more frequent maintenance due to
the additional load. (See “Owner’s Guide”, “Warranty and Services Guide”,
“Owner’s Manual Supplement” or “Warranty Booklet”.)
●Retighten the fixing bolts of the towing ball and bracket after approximately
600 miles (1000 km) of trailer towing.
■If trailer sway occurs
One or more factors (crosswinds, passing vehicles, rough roads, etc.) can adversely
affect handling of your vehicle and trailer, causing instability.
●If trailer swaying occurs:
• Firmly grip the steering wheel. Steer straight ahead.
Do not try to control trailer swaying by turning the steering wheel.
• Begin releasing the accelerator pedal immediately but very gradually to reduce speed.
Do not increase speed. Do not apply vehicle brakes.
If you make no extreme correction with the steering or brakes, your vehicle and
trailer should stabilize.
GX460_OM_OM60J63U_(U).book Page 390 Thursday, March 29, 2012 9:10 AM

Interior features3
397
GX460_OM_OM60J63U_(U)
3-5. Using the interior lightsInterior lights list ..................... 525
• Personal/interior light main switch ............................... 526
• Personal/interior lights ........ 527
3-6. Using the storage features List of storage features ......... 529
• Glove box .................................. 531
• Console box ............................. 532
• Coin holder............................... 534
• Bottle holders/door pockets ...................................... 535
• Cup holders.............................. 536
• Auxiliary boxes....................... 539 3-7. Other interior features
Cool box .................................... 541
Sun visors ................................. 544
Vanity mirror ........................... 545
Clock ......................................... 546
Conversation mirror............. 547
Power outlet (12 V DC)........ 548
Power outlet (120 V AC) ..... 550
Heated steering wheel ........ 555
Seat heaters and ventilators ............................. 557
Armrest .................................... 560
Coat hooks ................................ 561
Assist grips ............................... 562
Floor mat .................................. 563
Luggage compartment features .................................. 565
Garage door opener ............. 574
Compass .................................. 582
Safety Connect ...................... 587
GX460_OM_OM60J63U_(U).book Page 397 Thursday, March 29, 2012 9:10 AM
