82
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_OM_OM60J63U_(U)
Driving position memory (driver’s seat)
Your preferred driving position (the position of the driver’s seat, steering
wheel and angle of the outside rear view mirrors) can be memorized and
recalled with the touch of a button. It is also possible to set this function to
activate automatically when the driver’s door is unlocked.
Two different driving positions can be entered into memory.
■ Entering a positi on into memory
Check that the shift lever is in P.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions.
While pressing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pressed,
press button 1 or 2 until the sig-
nal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3
STEP4
GX460_OM_OM60J63U_(U).book Page 82 Thursday, March 29, 2012 9:10 AM

200
2-2. Instrument cluster
GX460_OM_OM60J63U_(U)
Changing the displaySwitches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the
trip meter.
Instrument cluster light control switch
The brightness of the instrument cluster lights can be adjusted.
Brighter
Darker
Odometer and trip meter display
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to
record and display different distances independently.
GX460_OM_OM60J63U_(U).book Page 200 Thursday, March 29, 2012 9:10 AM

201
2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)
■The meters and display illuminate when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Instrument cluster brightness adjustment
The instrument cluster brightness levels when the tail lights are on and off can be
adjusted.
■The brightness of the instrument cluster lights
When the tail lights are on, the brightness will change. However, when the sur-
roundings are bright (daytime, etc.) turning on the tail lights will not change the
instrument cluster brightness.
In addition, the brightness of the instrument cluster lights is automatically adjusted
based on the light sensor detecting how bright the surroundings are.
■When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
If the trip meter was displayed last, the ODO screen will be displayed after reset-
ting.
■Customization
Setting of sensitivity of the ambient light sensor used for dimming the meter lights
can be changed. (Customizable features →P. 7 8 8 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( →P. 74 9 )
GX460_OM_OM60J63U_(U).book Page 201 Thursday, March 29, 2012 9:10 AM

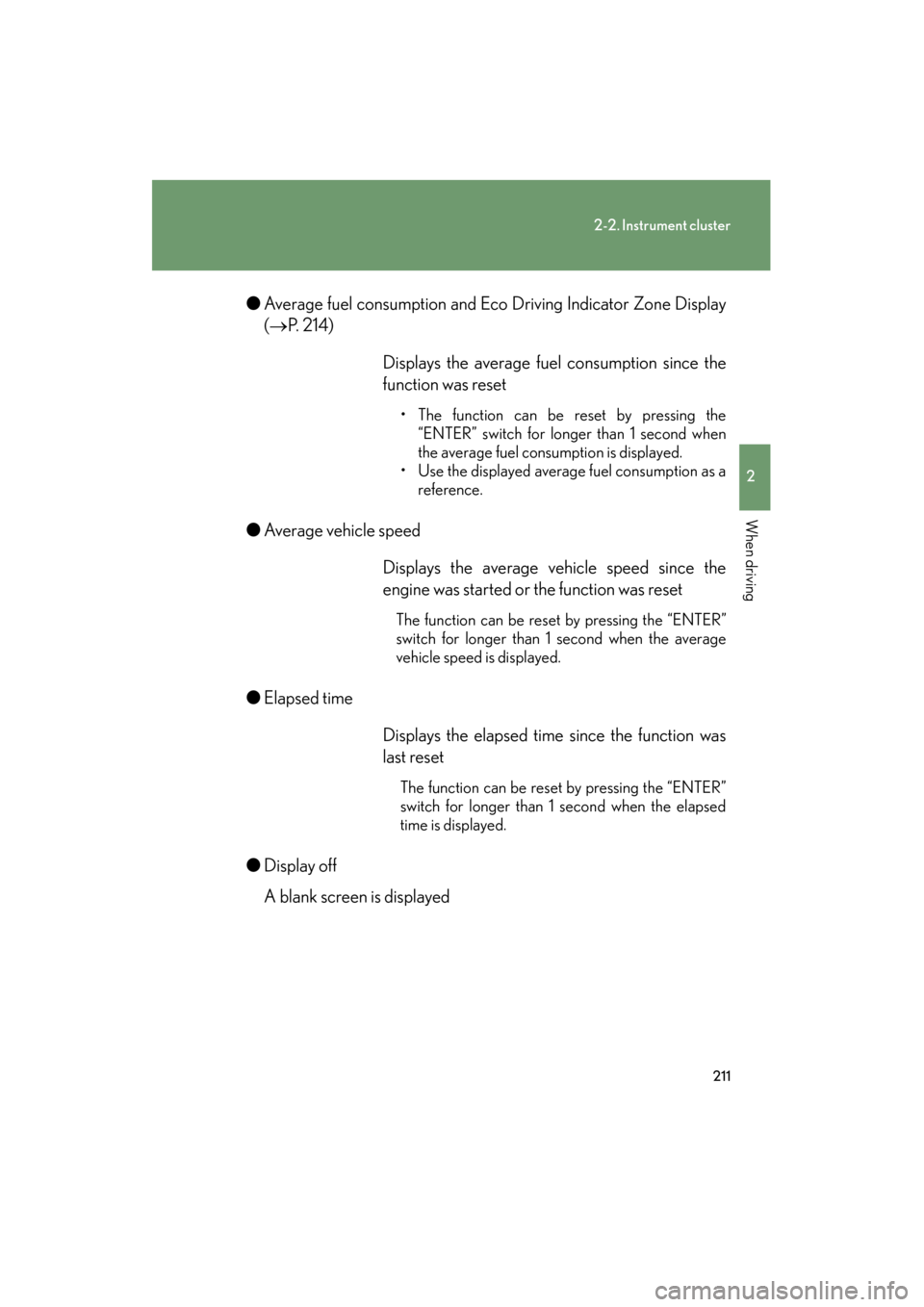

211
2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)●
Average fuel consumption and Eco Driving Indicator Zone Display
(→ P. 2 1 4 )
● Average vehicle speed
● Elapsed time
● Display off
A blank screen is displayed Displays the average fuel consumption since the
function was reset
• The function can be reset by pressing the
“ENTER” switch for longer than 1 second when
the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Displays the average vehicle speed since the
engine was started or the function was reset
The function can be reset by pressing the “ENTER”
switch for longer than 1 second when the average
vehicle speed is displayed.
Displays the elapsed time since the function was
last reset
The function can be reset by pressing the “ENTER”
switch for longer than 1 second when the elapsed
time is displayed.
GX460_OM_OM60J63U_(U).book Page 211 Thursday, March 29, 2012 9:10 AM

215
2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change:
●When the vehicle is stopped, or moving at low speeds (less than 12 mph
[20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■When “--” or “E” is displayed
The system may be malfunctioning. Take your vehicle Lexus dealer.
■When disconnecting and reconnecting battery terminals
The following information data will be reset:
●Average fuel consumption after refueling
●Average fuel consumption
●Average vehicle speed
●Elapsed time
CAUTION
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the information display. At
extremely low temperatures, the information display monitor may respond slowly,
and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
serious injury.
GX460_OM_OM60J63U_(U).book Page 215 Thursday, March 29, 2012 9:10 AM

217
2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)
Switching the displayItems displayed can be switched
by pressing the “MODE” switch.“MODE” switch
“RESET” switch
“DISP” switch
Display adjustment switch
Display items
■ Driving range
Displays the estimated maximum
distance that can be driven with
the quantity of fuel remaining
• This distance is computed basedon your average fuel consump-
tion. As a result, the actual dis-
tance that can be driven may
differ from that displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
•When refueling, turn the “ENGINE START STOP” switch
off. If the vehicle is refueled with-
out turning the “ENGINE
START STOP” switch off, the
display may not be updated.
GX460_OM_OM60J63U_(U).book Page 217 Thursday, March 29, 2012 9:10 AM

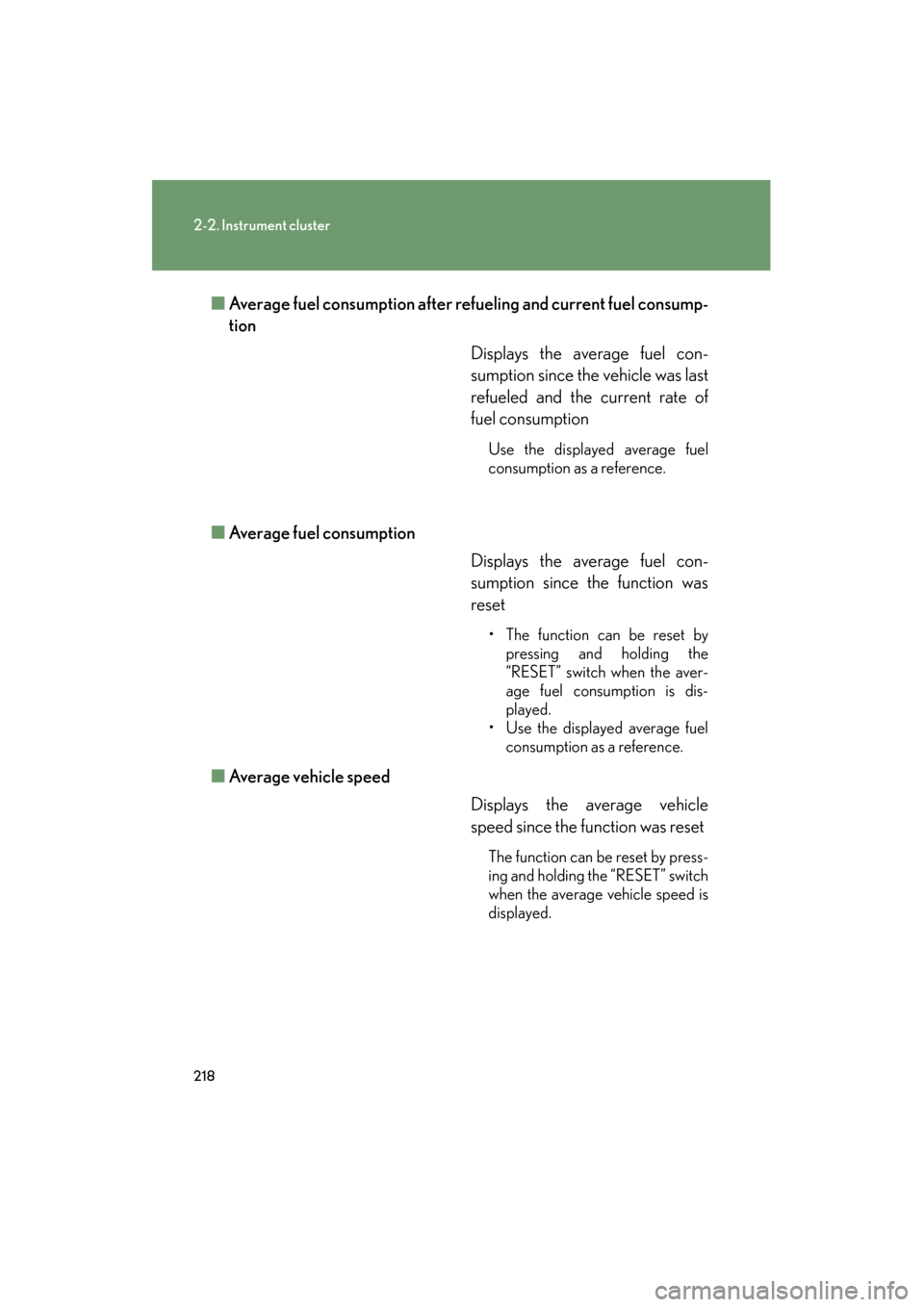

218
2-2. Instrument cluster
GX460_OM_OM60J63U_(U)■
Average fuel consumption after re fueling and current fuel consump-
tion
Displays the average fuel con-
sumption since the vehicle was last
refueled and the current rate of
fuel consumption
Use the displayed average fuel
consumption as a reference.
■Average fuel consumption
Displays the average fuel con-
sumption since the function was
reset
• The function can be reset bypressing and holding the
“RESET” switch when the aver-
age fuel consumption is dis-
played.
• Use the displayed average fuel consumption as a reference.
■Average vehicle speed
Displays the average vehicle
speed since the function was reset
The function can be reset by press-
ing and holding the “RESET” switch
when the average vehicle speed is
displayed.
GX460_OM_OM60J63U_(U).book Page 218 Thursday, March 29, 2012 9:10 AM

219
2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)■
Elapsed time
Displays the elapsed time since the
function was last reset
The function can be reset by press-
ing and holding the “RESET” switch
when the elapsed time is displayed.
■Air conditioning system display
→ P. 398
Setting up the display
■ Setting up the information display
To set up the display, press the “DISP” switch until the desired item
appears.
If left idle for approximately 10 seconds, the display will revert to the previous
screen.
●Setting the contrast
Press the display adjustment
switch (“∧” or “ ∨”) to adjust the
contrast.
+: Strengthen
-: Weaken
GX460_OM_OM60J63U_(U).book Page 219 Thursday, March 29, 2012 9:10 AM

222
2-2. Instrument cluster
GX460_OM_OM60J63U_(U)
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■When “--” or “E” is displayed on the outside temperature display
The system may be malfunctioning. Take your vehicle to your Lexus dealer.
■When disconnecting and reconnecting battery terminals
The following information data and settings will be reset:
●Average fuel consumption after refueling
●Average fuel consumption
●Average vehicle speed
●Elapsed time
■Customization
Setting of available languages can be changed.
(Customizable features →P. 788)
NOTICE
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
GX460_OM_OM60J63U_(U).book Page 222 Thursday, March 29, 2012 9:10 AM

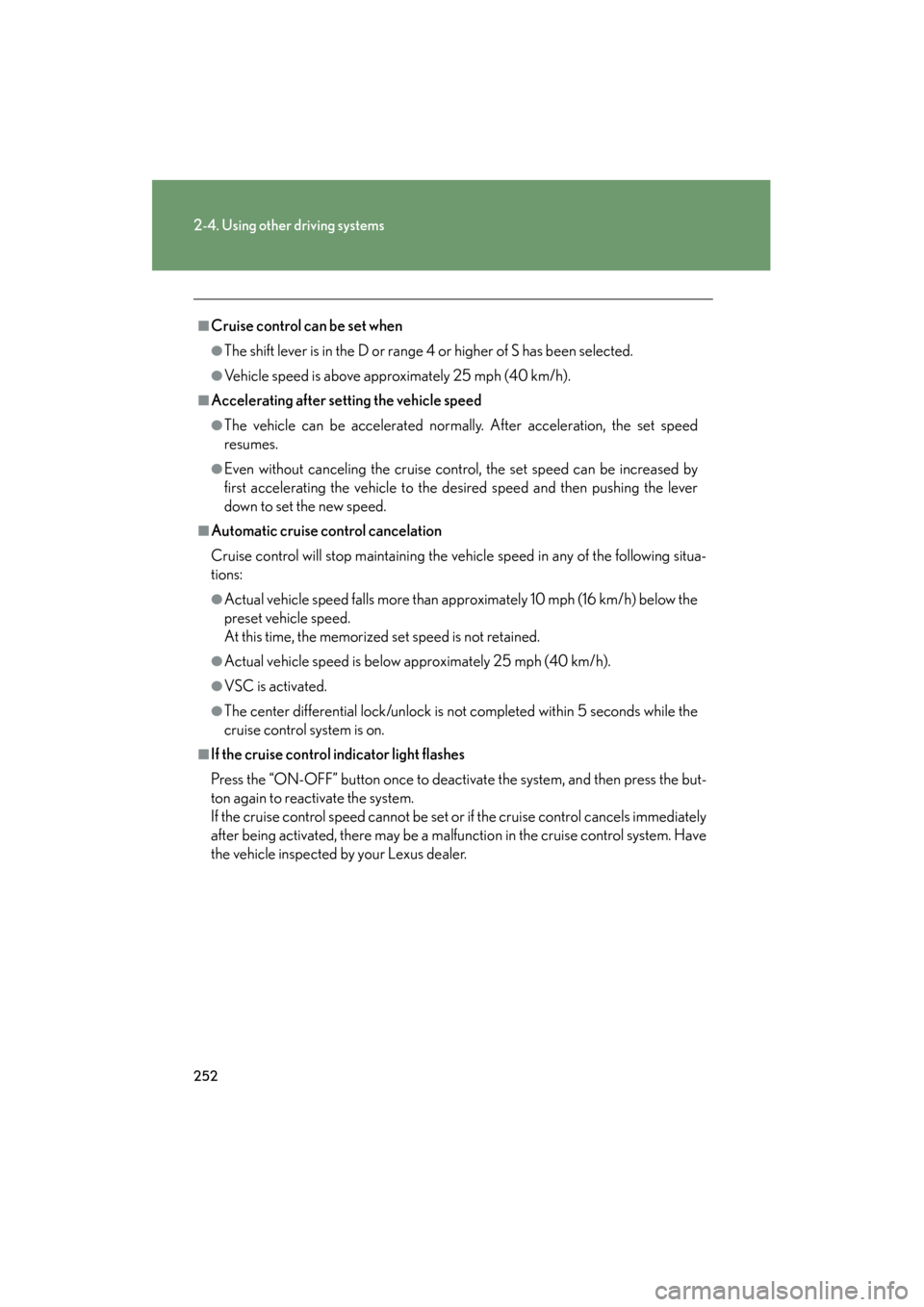

252
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)
■Cruise control can be set when
●The shift lever is in the D or range 4 or higher of S has been selected.
●Vehicle speed is above approximately 25 mph (40 km/h).
■Accelerating after setting the vehicle speed
●The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
●Even without canceling the cruise control, the set speed can be increased by
first accelerating the vehicle to the desired speed and then pushing the lever
down to set the new speed.
■Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following situa-
tions:
●Actual vehicle speed falls more than approximately 10 mph (16 km/h) below the
preset vehicle speed.
At this time, the memorized set speed is not retained.
●Actual vehicle speed is below approximately 25 mph (40 km/h).
●VSC is activated.
●The center differential lock/unlock is not completed within 5 seconds while the
cruise control system is on.
■If the cruise control indicator light flashes
Press the “ON-OFF” button once to deactivate the system, and then press the but-
ton again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels immediately
after being activated, there may be a malfunction in the cruise control system. Have
the vehicle inspected by your Lexus dealer.
