security Lexus GX460 2013 Owner's Manual

TABLE OF CONTENTSIndex
4
GX460_OM_OM60J63U_(U)
3-1. Using the air conditioning system and defogger
Front automatic air conditioning system ................ 398
Rear automatic air conditioning system .................. 413
Rear window defogger switch............................................... 417
Windshield wiper de-icer .......... 418
3-2. Using the audio system Audio system .................................. 419
Using the radio ............................... 421
Using the CD player ................... 429
Playing MP3 and WMA discs.................................. 437
Operating an iPod ....................... 446
Operating a USB memory....... 454
Optimal use of the audio system ............................................ 463
Using the AUX port.................... 465
Using the steering wheel audio switches ............................ 466 3-3. Using the Bluetooth
® audio
system
Bluetooth
® audio system ......... 470
Using the Bluetooth
® audio
system ............................................ 474
Operating a Bluetooth
®
enabled portable player ........ 480
Setting up a Bluetooth
®
enabled portable player ........ 483
Bluetooth
® audio system
setup .............................................. 490
3-4. Using the hands-free system (for cellular phone)
Hands-free system for cellular phones ............................ 491
Using the hands-free system (for cellular phones) ................. 495
Making a phone call................... 503
Setting a cellular phone ............ 508
Security and system setup ......... 513
Using the phone book................. 517
3-5. Using the interior lights Interior lights list............................ 525
• Personal/interior light main switch .................................. 526
• Personal/interior lights ........... 527
3Interior features
GX460_OM_OM60J63U_(U).book Page 4 Thursday, March 29, 2012 9:10 AM

17
GX460_OM_OM60J63U_(U)
C
Accessory meter∗ P. 216
∗: If equipped
*: Refer to “Navigation System Owner’s Manual”.
Vehicles without a navigation system
Vehicles with a navigation systemSecurity indicator
P. 119, 121
Rear window defogger switch P. 417
Air conditioning system P. 398
Navigation system*Security indicator P. 119, 121
Air conditioning system*
Rear window defogger switch*
Windshield wiper de-icer P. 418
GX460_OM_OM60J63U_(U).book Page 17 Thursday, March 29, 2012 9:10 AM

39
1-2. Opening, closing and locking the doors
1
Before driving
GX460_OM_OM60J63U_(U)
*1: A message will be shown on the multi-information display in the instrumentcluster.
*2: If the engine does not start when the electronic key is inside the vehicle, theelectronic key battery may be depleted or there may be difficulties receiving
signal from the key. ( →P. 74 5 )
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
AlarmSituationCorrection procedure
Interior alarm pings
once
*1
The electronic key has a low
batteryReplace the electronic
key battery
An attempt was made to start
the engine without the elec-
tronic key being present, or
the electronic key was not
functioning normally
Start the engine with the
electronic key
present
*2
Interior alarm pings
once and exterior
alarm sounds 3
times
*1
The driver’s door was closed
after the key was carried out-
side the vehicle, and the
“ENGINE START STOP”
switch was not turned OFFTu r n t h e “ E N G I N E
START STOP” switch
OFF and close the
driver’s door again
An occupant carried the
electronic key outside the
vehicle and closed the door
while the “ENGINE START
STOP” switch was not OFF
Bring the electronic key
back into the vehicle
GX460_OM_OM60J63U_(U).book Page 39 Thursday, March 29, 2012 9:10 AM

50
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)
■Operation signals
Doors: A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Windows and moon roof: A buzzer sounds to indicate that the windows and moon
roof are operating.
Glass hatch: A buzzer sounds once to indicate that the glass hatch have been
opened.
■Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a buzzer
sounds continuously. Fully close the door to stop the buzzer, and lock the vehicle
once more.
■Pa n ic m o d e
■Security feature
→P. 3 9
■Alarm
Using the wireless remote control to lock the doors will set the alarm system.
(→ P. 1 2 1 ) When is pressed for longer than about
one second, an alarm will sound intermit-
tently and the vehicle lights will flash to deter
any person from trying to break into or dam-
age your vehicle.
To stop the alarm, press any button on the
electronic key.
GX460_OM_OM60J63U_(U).book Page 50 Thursday, March 29, 2012 9:10 AM

120
1-6. Theft deterrent system
GX460_OM_OM60J63U_(U)
■System maintenance
The vehicle has a maintenance-free type of engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object.
●If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle.
CAUTION
■Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
GX460_OM_OM60J63U_(U).book Page 120 Thursday, March 29, 2012 9:10 AM

396
GX460_OM_OM60J63U_(U)
3-1. Using the air conditioning system and defogger
Front automatic air conditioning system........... 398
Rear automatic air conditioning system............. 413
Rear window defogger switch ....................................... 417
Windshield wiper de-icer ..................................... 418
3-2. Using the audio system Audio system ............................ 419
Using the radio......................... 421
Using the CD player ............. 429
Playing MP3 and WMA discs............................ 437
Operating an iPod ................. 446
Operating a USB memory .................................. 454
Optimal use of the audio system ..................................... 463
Using the AUX port .............. 465
Using the steering wheel audio switches ...................... 466 3-3. Using the Bluetooth®
audio system
Bluetooth
® audio system .... 470
Using the Bluetooth
®
audio system .......................... 474
Operating a Bluetooth
®
enabled portable
player ...................................... 480
Setting up a Bluetooth
®
enabled portable
player ...................................... 483
Bluetooth
® audio system
setup ....................................... 490
3-4. Using the hands-free system (for cellular phone)
Hands-free system for cellular phones ..................... 491
Using the hands-free system (for cellular phones) ........... 495
Making a phone call.............. 503
Setting a cellular phone ....... 508
Security and system setup ........................................ 513
Using the phone book ............ 517
GX460_OM_OM60J63U_(U).book Page 396 Thursday, March 29, 2012 9:10 AM

491
3
Interior features
GX460_OM_OM60J63U_(U)
3-4. Using the hands-free system (for cellular phone)
Hands-free system for cellular phones
The hands-free system is a function that allows you to use your cellular
phone without touching it.
This system supports Bluetooth
® cellular phones. Bluetooth® is a wireless
data system that allows the cellular phone to wirelessly connect to the
hands-free system and make/receive calls.
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation system
Ti t l ePa g e
Using the hands-free systemP. 4 9 5
Making a phone callP. 5 0 3
Setting a cellular phoneP. 5 0 8
Security and system setupP. 5 1 3
Using the phone bookP. 5 1 7
GX460_OM_OM60J63U_(U).book Page 491 Thursday, March 29, 2012 9:10 AM

500
3-4. Using the hands-free system (for cellular phone)
GX460_OM_OM60J63U_(U)

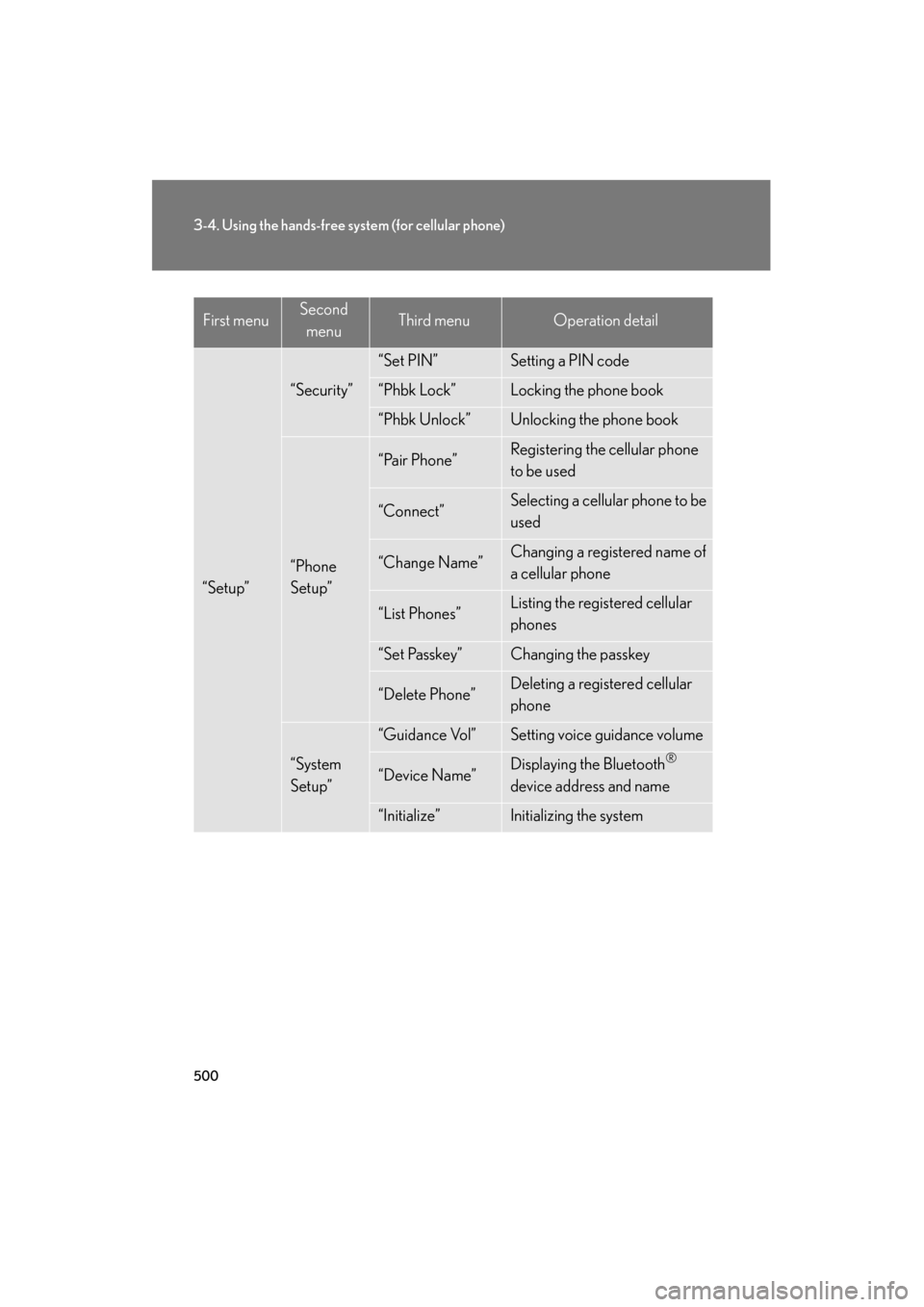

“Setup”
“Security”
“Set PIN”Setting a PIN code
“Phbk Lock”Locking the phone book
“Phbk Unlock”Unlocking the phone book
“Phone
Setup”
“Pair Phone”Registering the cellular phone
to be used
“Connect”Selecting a cellular phone to be
used
“Change Name”Changing a registered name of
a cellular phone
“List Phones”Listing the registered cellular
phones
“Set Passkey”Changing the passkey
“Delete Phone”Deleting a registered cellular
phone
“System
Setup”
“Guidance Vol”Setting voice guidance volume
“Device Name”Displaying the Bluetooth®
device address and name
“Initialize”Initializing the system
First menuSecond menuThird menuOperation detail
GX460_OM_OM60J63U_(U).book Page 500 Thursday, March 29, 2012 9:10 AM

513
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_OM_OM60J63U_(U)

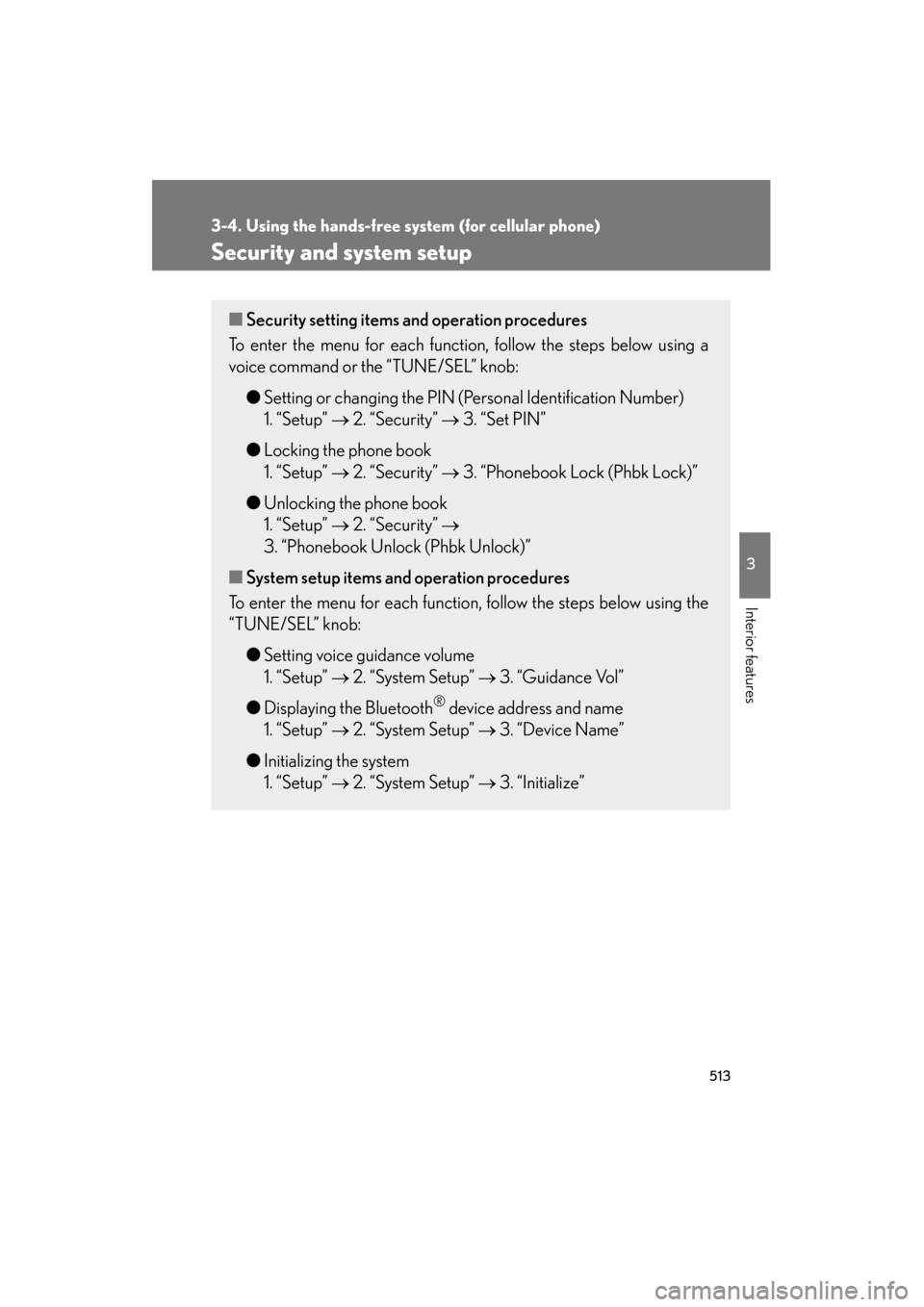

Security and system setup
■Security setting items an d operation procedures
To enter the menu for each function, follow the steps below using a
voice command or the “TUNE/SEL” knob:
● Setting or changing the PIN (Personal Identification Number)
1. “Setup” → 2. “Security” → 3. “Set PIN”
● Locking the phone book
1. “Setup” → 2. “Security” → 3. “Phonebook Lock (Phbk Lock)”
● Unlocking the phone book
1. “Setup” → 2. “Security” →
3. “Phonebook Unlock (Phbk Unlock)”
■ System setup items and operation procedures
To enter the menu for each function, follow the steps below using the
“TUNE/SEL” knob:
● Setting voice guidance volume
1. “Setup” → 2. “System Setup” → 3. “Guidance Vol”
● Displaying the Bluetooth
® device address and name
1. “Setup” → 2. “System Setup” → 3. “Device Name”
● Initializing the system
1. “Setup” → 2. “System Setup” → 3. “Initialize”
GX460_OM_OM60J63U_(U).book Page 513 Thursday, March 29, 2012 9:10 AM

516
3-4. Using the hands-free system (for cellular phone)
GX460_OM_OM60J63U_(U)
■Initialization
●The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered cellular phone data
• Security code
• Registered Bluetooth
® enabled portable player data
• Passkey for the cellular phones
• Passkey for the Bluetooth
® audio players
• Guidance volume
• Receiver volume
•Ring tone volume
●Once the initialization has been completed, the data cannot be restored to its
original state.
■When the phone book is locked
The following functions cannot be used:
●Dialing by inputting a name
●Speed dialing
●Dialing a number stored in the call history memory
●Using the phone book
GX460_OM_OM60J63U_(U).book Page 516 Thursday, March 29, 2012 9:10 AM
