1-2. Opening, closing and locking the doors
1
Before driving
GX460_OM_OM60J63U_(U)
Unlocking and locking the doors (front door handles only)Grip the driver’s door handle to
unlock the door. Grip the passen-
ger’s door handle to unlock all the
doors.
*
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the doors are
locked.
*: The door unlock settings can be changed. ( →P. 4 0 )
Touch the lock sensor (the inden-
tation on the upper or lower part of
the door handle) to lock the doors.
Unlocking and locking the back door
Locks the all doors
Unlocks the all doors
The doors cannot be unlocked for
3 seconds after the doors are
locked.
GX460_OM_OM60J63U_(U).book Page 33 Thursday, March 29, 2012 9:10 AM

36
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: once; Unlocked: twice)
■When the door cannot be locked by the lock sensor on the upper part of the door
handle
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages shown
on the multi-information display is used to prevent theft of the vehicle and accidents
resulting from erroneous operation.
●When a warning message is shown on the multi-information display
Take appropriate measures in response to the warning message on the multi-
information display. (→P. 7 1 5 ) Touch both lock sensors on the upper and
lower part of the door handle simultaneously.
GX460_OM_OM60J63U_(U).book Page 36 Thursday, March 29, 2012 9:10 AM

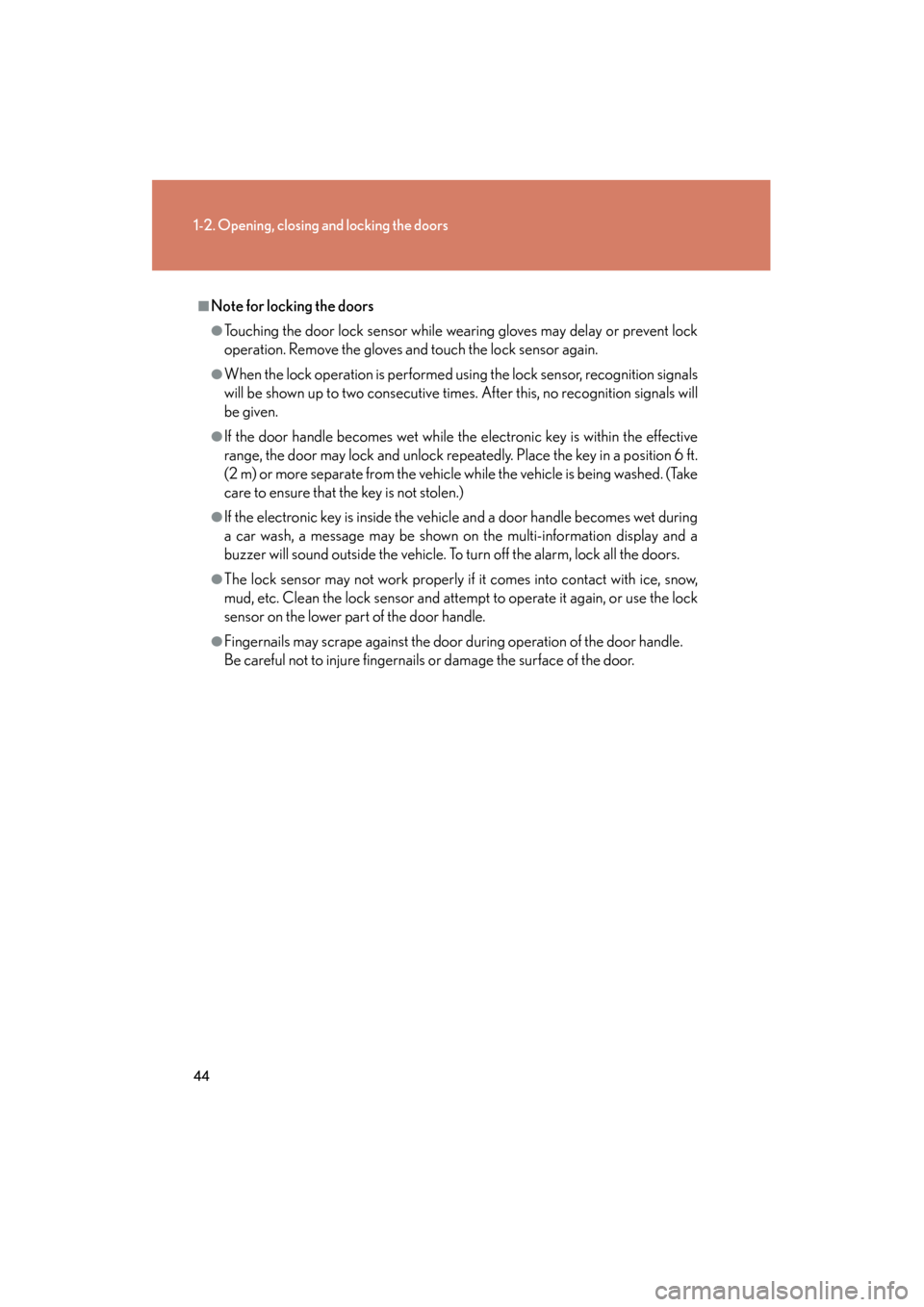

44
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)
■Note for locking the doors
●Touching the door lock sensor while wearing gloves may delay or prevent lock
operation. Remove the gloves and touch the lock sensor again.
●When the lock operation is performed using the lock sensor, recognition signals
will be shown up to two consecutive times. After this, no recognition signals will
be given.
●If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. Place the key in a position 6 ft.
(2 m) or more separate from the vehicle while the vehicle is being washed. (Take
care to ensure that the key is not stolen.)
●If the electronic key is inside the vehicle and a door handle becomes wet during
a car wash, a message may be shown on the multi-information display and a
buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.
●The lock sensor may not work properly if it comes into contact with ice, snow,
mud, etc. Clean the lock sensor and attempt to operate it again, or use the lock
sensor on the lower part of the door handle.
●Fingernails may scrape against the door during operation of the door handle.
Be careful not to injure fingernails or damage the surface of the door.
GX460_OM_OM60J63U_(U).book Page 44 Thursday, March 29, 2012 9:10 AM

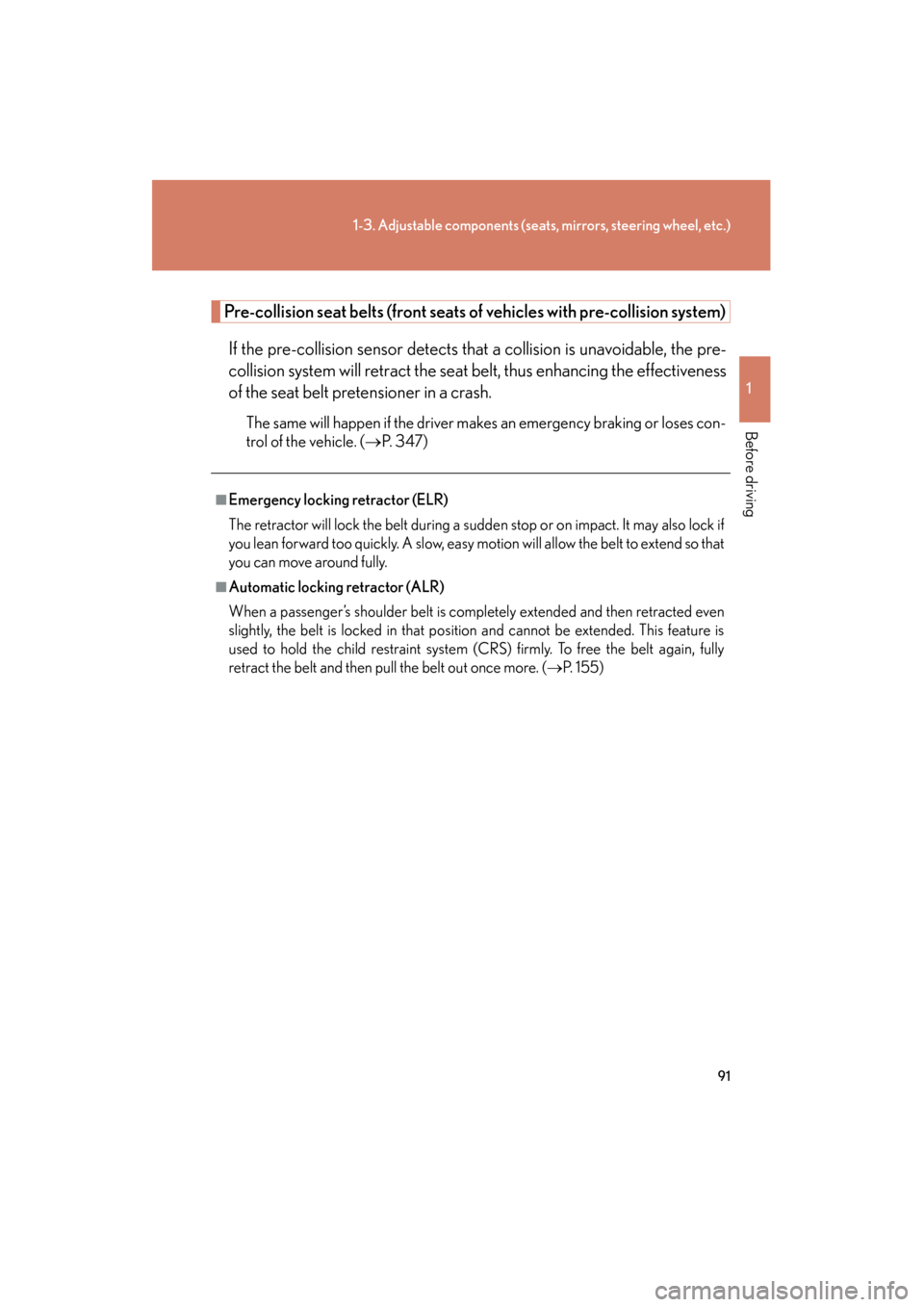

91
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_OM_OM60J63U_(U)
Pre-collision seat belts (front seats of vehicles with pre-collision system)
If the pre-collision sensor detects that a collision is unavoidable, the pre-
collision system will retract the seat belt, thus enhancing the effectiveness
of the seat belt pretensioner in a crash.
The same will happen if the driver makes an emergency braking or loses con-
trol of the vehicle. ( →P. 3 4 7 )
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudde n stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend so that
you can move around fully.
■Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is
used to hold the child restraint system (CRS) firmly. To free the belt again, fully
retract the belt and then pull the belt out once more. ( →P. 1 5 5 )
GX460_OM_OM60J63U_(U).book Page 91 Thursday, March 29, 2012 9:10 AM

94
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_OM_OM60J63U_(U)
CAUTION
■When the children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■Seat belt pretensioners
●Do not place anything, such as a cushion, on the front passenger’s seat. Doing so
will disperse the passenger’s weight, which prevents the sensor form detecting
the passenger’s weight properly. As a result, the seat belt pretensioner for the
front passenger’s seat may not activate in the event of a collision.
●If the pretensioner has activated, the SRS warning light will come on. In that case,
the seat belt cannot be used again and must be replaced at your Lexus dealer.
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoul-
der. The belt should be kept away from your neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in a collision. (→P. 9 0 )
GX460_OM_OM60J63U_(U).book Page 94 Thursday, March 29, 2012 9:10 AM

99
1
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
Before driving
GX460_OM_OM60J63U_(U)
Inside rear view mirror
In automatic mode, sensors are used to detect the headlights of vehicles
behind and the reflected light is automatically reduced.
Without compass
Turns automatic mode on
Turns automatic mode off
The indicator comes on when
automatic mode is turned on.
The mirror reverts to automatic
mode each time the “ENGINE
START STOP” switch is turned
to IGNITION ON mode.
With compassTurns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
The mirror reverts to automatic
mode each time the “ENGINE
START STOP” switch is turned
to IGNITION ON mode.
GX460_OM_OM60J63U_(U).book Page 99 Thursday, March 29, 2012 9:10 AM

100
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_OM_OM60J63U_(U)
Adjusting the height of rear view mirrorAdjust the height of the rear view
mirror by moving it up and down.
■To prevent sensor error
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and may cause an accident, result-
ing in death or serious injury.
To ensure that the sensors operate properly,
do not touch or cover them.
GX460_OM_OM60J63U_(U).book Page 100 Thursday, March 29, 2012 9:10 AM

128
1-7. Safety information
GX460_OM_OM60J63U_(U)
SRS airbag system componentsFront passenger occupant
classification system (ECU and
sensors)
Knee airbag
Curtain shield airbag
Front passenger airbag
“A I R B A G O N ” a n d “A I R B A G
OFF” indicator lights
Side and curtain shield airbag
sensor
Front side airbag
SRS warning light and “RSCA
OFF” indicator light Rear side (if equipped) and
curtain shield airbag sensor
Rear side airbag (outer second
seat) (if equipped)
Driver airbag
Driver’s seat belt buckle switch
Floor sensor
“RSCA OFF” switch
Airbag sensor assembly
Front airbag sensor
Front passenger’s seat belt
buckle switch
Seat belt pretensioners
GX460_OM_OM60J63U_(U).book Page 128 Thursday, March 29, 2012 9:10 AM

129
1-7. Safety information
1
Before driving
GX460_OM_OM60J63U_(U)Your vehicle is equipped with ADVANCED AIRBAGS designed based
on the US motor vehicle safety standards (FMVSS208). The airbag sen-
sor assembly (ECU) controls airbag
deployment based on information
obtained from the sensors etc. shown in the system components diagram
above. This information includes crash severity and occupant informa-
tion. As the airbags deploy, a chemical reaction in the inflators quickly fills
the airbags with non-toxic gas to help restrain the motion of the occu-
pants.
■SRS warning light
This warning light system monitors the airbag sensor assembly, front airbag sensors,
side and curtain shield airbag sensors, rear side and curtain shield airbag sensors,
floor sensor, driver’s seat belt buckle switch, front passenger occupant classification
system (ECU and sensors), “AIR BAG ON” indicator light, “AIR BAG OFF” indica-
tor light, the “RSCA OFF” indicator light, front passenger’s seat belt buckle switch,
seat belt pretensioner assemblies, airbags, interconnecting wiring and power
sources. ( →P. 1 2 6 )
GX460_OM_OM60J63U_(U).book Page 129 Thursday, March 29, 2012 9:10 AM

201
2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)
■The meters and display illuminate when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Instrument cluster brightness adjustment
The instrument cluster brightness levels when the tail lights are on and off can be
adjusted.
■The brightness of the instrument cluster lights
When the tail lights are on, the brightness will change. However, when the sur-
roundings are bright (daytime, etc.) turning on the tail lights will not change the
instrument cluster brightness.
In addition, the brightness of the instrument cluster lights is automatically adjusted
based on the light sensor detecting how bright the surroundings are.
■When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
If the trip meter was displayed last, the ODO screen will be displayed after reset-
ting.
■Customization
Setting of sensitivity of the ambient light sensor used for dimming the meter lights
can be changed. (Customizable features →P. 7 8 8 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( →P. 74 9 )
