4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
36RAD NO.115 AAudio system, navigation system, rear
seat entertainment system
37AM27. 5 AStarter system
38RAD NO.210 ANavigation system
39MAYDAY7. 5 AMAYDAY
40AMP30 AAudio system
41ABS NO.150 AABS, VSC
42ABS NO.230 AABS, VSC
43AIR PMP50 AAir pump
44SECURITY10 ASECURITY
45SMART7. 5 ASmart access system with push button
start
46STRG LOCK20 ASteering lock system
47TOW I N G B R K30 ATo w i n g
48WIP RR15 ARear window wiper
49DOME10 A
Interior lights, personal lights, vanity
lights, door courtesy lights, footwell
lights, outer foot lights, overhead
module
FuseAmpereCircuit

662
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)

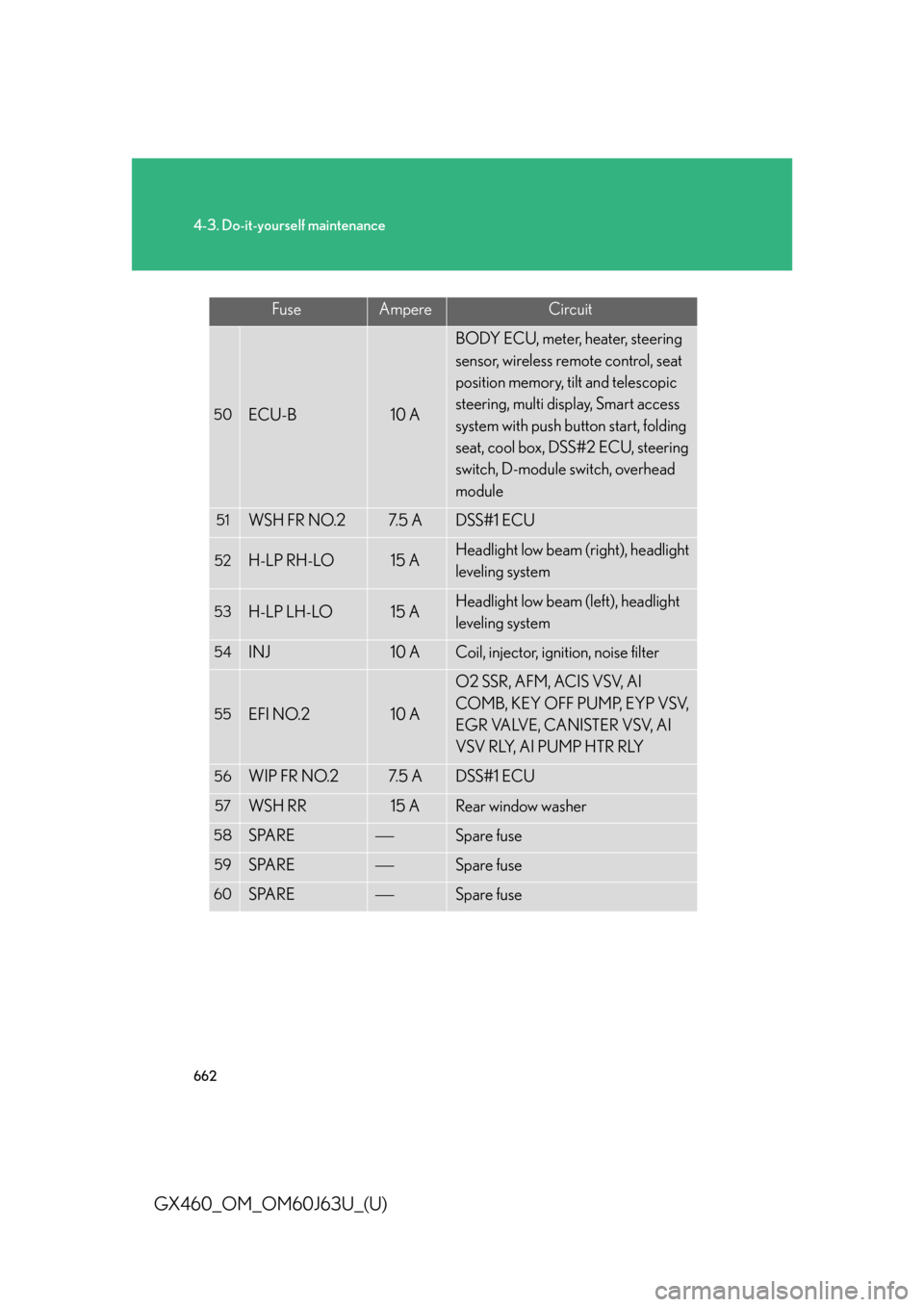

50ECU-B10 A
BODY ECU, meter, heater, steering
sensor, wireless remote control, seat
position memory, tilt and telescopic
steering, multi display, Smart access
system with push button start, folding
seat, cool box, DSS#2 ECU, steering
switch, D-module switch, overhead
module
51WSH FR NO.27. 5 ADSS#1 ECU
52H-LP RH-LO15 AHeadlight low beam (right), headlight
leveling system
53H-LP LH-LO15 AHeadlight low beam (left), headlight
leveling system
54INJ10 ACoil, injector, ignition, noise filter
55EFI NO.210 A
O2 SSR, AFM, ACIS VSV, AI
COMB, KEY OFF PUMP, EYP VSV,
EGR VALVE, CANISTER VSV, AI
VSV RLY, AI PUMP HTR RLY
56WIP FR NO.27. 5 ADSS#1 ECU
57WSH RR15 ARear window washer
58SPARESpare fuse
59SPARESpare fuse
60SPARESpare fuse
FuseAmpereCircuit

663
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)Under the instrument panel
FuseAmpereCircuit
1P/O U T L E T15 APo w e r o u t l e t
2ACC7. 5 A
Outside rear view mirror motor,
BODY ECU, air conditioning system,
audio system, navigation system,
parking assist system, back up relay,
DSS#2 ECU, AT indicator, EFI ECU,
shift lock ECU, DCM, MAYDAY
ECU
3BKUP LP10 A
Back-up lights, audio system, multi
information display, DSS#2 ECU,
parking assist sensor
4TOW I N G B K L P10 ATo w i n g
5AV S20 AAir suspension system
6KDSS10 AKDSS ECU

664
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
74WD20 A4WD system, rear differential lock
8P/ S E AT F L30 AFront power seat (left)
9D/L NO.225 ADoor lock motor, glass hatch
opener, BODY ECU
10PSB30 APSB ECU
11TI & TE15 ATilt and telescopic steering
12FOG FR15 AFront fog lights
13OBD7. 5 ADLC 3
14A/C7. 5 AAir conditioning system
15AM17. 5 AStarting system
16DOOR RL25 ARear power window (left)
17ECU-IG NO.110 A
Shift lock ECU, VSC ECU, steering
sensor, yaw rate sensor, sequential
switch, auto wiper ECU, back up
relay, tilt & telescopic steering, PSB
ECU, DSS#1 ECU, front radar sensor,
AFS ECU, TIRE PRESS ECU,
DRIVER MON ECU
18IG17. 5 A
Front turn signal light, rear turn signal
light, side turn signal light, meter turn
signal light, trailer light, ALT, VSC, C/
C switch
FuseAmpereCircuit

665
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
19ECU-IG NO.210 A
Rear window defogger, outside rear
view mirror memory, seat heater/ven-
tilator switch, inverter relay, air condi-
tioning system, EC mirror, BODY
ECU, exhaust gas sensor, parking
assist sensor, navigation system,
DSS#2 ECU, meter switch, accessory
meter, folding seat ECU, O/H IG,
head light cleaner, rear air condition-
ing system, deicer, D-module, rain
sensor, air suspension, RR VLV ECU,
steering heater, LKA, P/SEAT IND
20S/HTR FR20 ASeat heater and ventilator
21P/ S E AT F R30 AFront power seat (right)
22DOOR P30 A
Front power window (passenger’s
side), outside rear view mirror mem-
ory
23DOOR10 APo w e r w i n d o w
24DOOR D25 AFront power window (driver’s side)
25DOOR RR25 ARear power window (right)
26S/ROOF25 AMoon roof
27WIP30 AWindshield wipers and washer
28WA S H E R20 AWindshield wipers and washer, rear
window wipers and washer
29COOLING10 ACool box
FuseAmpereCircuit

666
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
30IGN10 A
EFI ECU, C/OPN RLY, VSC ECU, air
bag ECU, smart entry & start system,
steering lock ECU, CAN gateway
ECU
31GAUGE7. 5 AMeter
32PA N E L7. 5 A
Switch illumination, glove box light,
cup holder lights, auxiliary box light,
navigation system, audio system, air
conditioning system, outside rear view
mirror switch, folding seat switch,
multi-information display, P/SEAT
IND, SHIFT, COOL BOX
33TA I L10 A
Front position lights, tail lights, license
plate lights, EFI ECU, rear fog lights,
towing, front fog lights
FuseAmpereCircuit

667
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 6 7 0 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.

668
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
Headlight aim (vehicles with low beam halogen bulbs)
: If equipped
■ Vertical movement adjustment bolts
Adjustment bolt A
Adjustment bolt B
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gas and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
STEP1
STEP2
STEP3
STEP4

669
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
■Adjusting the headlight aim
Turn bolt A in either direction
using a Phillips-head screw-
driver.
Remember the turning direction
and the number of turns.
Turn bolt B the same number of
turns and in the same direction
as in step 1 using a Phillips-head
screwdriver.
If the headlight cannot be
adjusted using this procedure,
take the vehicle to your Lexus
dealer to adjust the headlight
aim.
STEP1
STEP2

670
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
Light bulbs
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replacement
seems difficult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
■ Prepare a replacement light bulb
Check the wattage and color of the light bulb being replaced.
( P. 76 9 )
■ Remove the engine compartment cover
 P. 6 1 9
■ Front bulb locations
Headlight low beam
(halogen bulb)
Headlight high beam
and daytime running lights
Parking/front side marker light
Front turn signal light
Fog light
